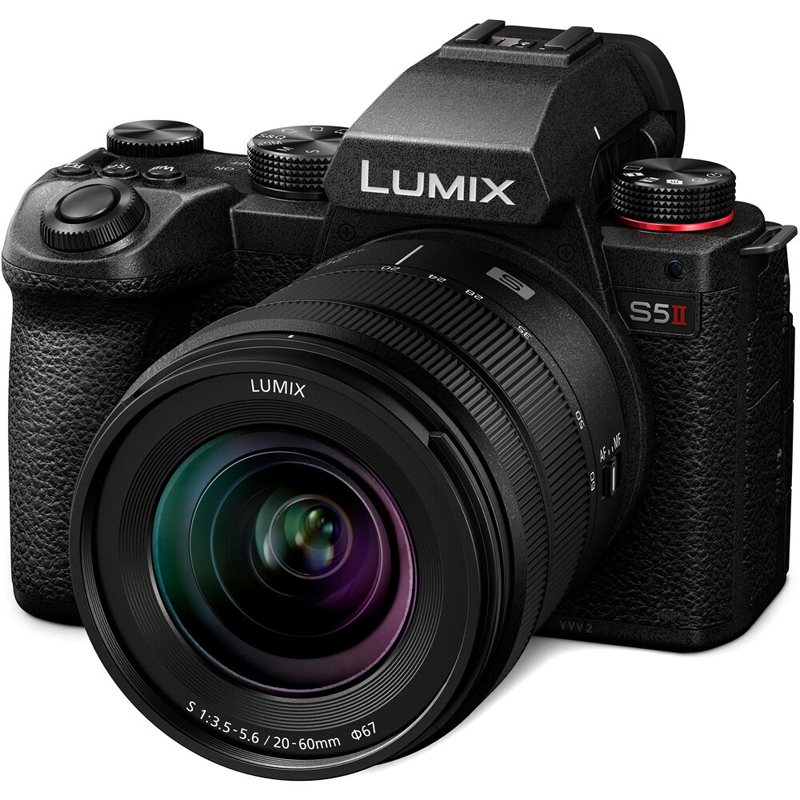

Panasonic Lumix S5 II with 20-60mm Lens Kit
Regular Price
A$3,699.00
Special Price
A$2,658.00
save: A$1,041.00
Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
- 24.2MP Full-Frame CMOS Sensor
- 6K30p 4:2:0 10-Bit Video Recording
- C4K/4K60p 4:2:2 10-Bit Unlimited
- 3.68m-Dot 0.78x-Magnification OLED LVF
- 3.0" 1.84m-Dot Tilt/Free-Angle Touch-LCD
- 779-Point Phase-Detection AF System
- 5-Axis Sensor-Shift Image Stabilization
- ISO 100-51200, up to 30 fps Shooting
- Dual UHS-II SD Slots; Wi-Fi & Bluetooth
- Weather-Sealed Construction
- Comes with Panasonic Lumix S 20-60mm F3.5-5.6 Lens
Recommended Accessories for your Purchase
The Panasonic Lumix S5 II Mirrorless Camera is a 24.2MP full-frame CMOS sensor camera with 6K30p 4:2:0 10-bit video recording and C4K/4K60p 4:2:2 10-bit unlimited video recording. The 3.68m-dot OLED electronic viewfinder has 0.78x magnification offers a clear viewing in the field and 100% coverage and available for stable eye-level shooting, while the 3.0" 1.84m-dot tilt/free-angle touchscreen LCD features 1,620k dots and a 147° viewing angle. The OLED LVF allows you to preview exposure settings before shooting or review recorded images immediately after capture.
The camera features a 779-point phase-detection autofocus system and 5-axis in-body stabilization to compensate for up to 6.5 stops of camera shake for sharp imaging capabilities when working with challenging lighting or long zoom settings. The 6K Photo mode allows you to shoot at 30 fps, save an 8mp image from the middle of the burst shot, and then crop it as needed later on your computer system.
The S5 II also has dual UHS-II SD card slots for fast file saving performance as well as Wi-Fi and Bluetooth connectivity options for sharing images remotely via apps like Instagram or Facebook directly from your smartphone or tablet device. This kit comes with Panasonic Lumix S 20-60mm F3.5-5.6 Lens.
Product Features in Detail
Explore Your Creative Universe.
Advanced features like PDAF and I.S. (Image stabilization) make using the LUMIX S5II a truly rewarding experience. Capture high-quality photos and video with unlimited recording and enjoy enhanced mobility with this compact full-frame mirrorless camera.
Phase Hybrid AF for aggressive shooting
The most important thing in autofocus is to be dependable. The new Phase Hybrid AF delivers speed and accuracy to help you capture the target subject even in the most challenging scenes where multiple subjects are involved, and even in backlit or low-light environments.
Great for shooting as you walk: Active I.S. Technology
New Active I.S. lets you walk and shoot at the same time. By determining the status of camera shake and optimizing correction ratios, Active I.S. can compensate for even significant camera shake, approximately 200%* more than conventional systems.
*Compared with LUMIX S5. Focal length 20mm, when using S-R2060.
Heat management for unlimited recording time
4:2:2 10-bit C4K/4K 60p/50p unlimited recording time.* With a compact body equivalent to the S5, the LUMIX S5II’s new optimized heat dissipation structure enables extended recording even when shooting at heavy loads (e.g. high-resolution video over 4K, HFR video).
*The camera may stop recording when used in a temperature that is lower or higher than the recommended operating temperature (0 to 40 degrees). Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
The LUMIX commitment to superior image quality
The new engine delivers more true-to-life colors, finer resolution, and a natural three-dimensional effect, and combined with Dual Native ISO technology, effectively suppresses noise even when shooting at ultra-high sensitivities, beautifully rendering even dark areas.
Easy color grading with REAL TIME LUT
LUT-applied photos and videos can be recorded internally without any special software. Even if you don’t have specialized editing skills, the camera helps you expand your range of expression as much as you want.
Tough body for a wide range of weather conditions
The camera can be used in a wide range of weather conditions. The durable magnesium alloy full die-cast frame and sealing of all joints, dials, and buttons make it dust- and splash-resistant*.
*Dust- and splash-resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
Intuitive operation
The intuitive, well-calculated layout and 8-directional joystick allow you to select the focus area intuitively with simple, one-thumb operation for speedy shooting.
Lenses that enable high-quality photographic and video expression
The LUMIX S series delivers superior optical performance, mobility, and operability without compromise. Even when you change lenses, all your images show a consistent rendering, for high-quality works of art.
A higher grade of visual expression
Enjoy RAW video data output, ProRes recording, All-Intra video, external USB-SSD recording, and wireless/wired live streaming for professional video production.
| TYPE | |
| Type | Digital Single Lens Mirrorless camera |
| Lens mount | L-Mount |
| IMAGE SENSOR | |
| Type | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor |
| Camera effective pixels / Total pixels | 24.20 megapixels / 25.28 megapixels |
| AR (Anti Reflection) coating | Yes |
| Aspect ratio / Color filter | 3:2 / Primary color filter |
| Dust reduction system | Image sensor shift type |
| LATITUDE | |
| Latitude | 14+ stops (V-Log) |
| STILL IMAGE | |
| Recording file format | JPEG (DCF, Exif 2.31), RAW |
| Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 |
| File size (pixels) when using full-frame lenses | 3:02 |
| 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode. | |
| 4:03 | |
| 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode. | |
| 6:09 | |
| 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode. | |
| 1:01 | |
| 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode. | |
| 65:24:00 | |
| 6000x2208(L) | |
| 2:01 | |
| 6000x3000(L) | |
| File size (pixels) when using APS-C/Super 35mm lenses | 3:02 |
| 3984x2656(L) / 2880x1920(M) / 2064x1376(S) | |
| 4:03 | |
| 3536x2656(L) / 2560x1920(M) / 1840x1376(S) | |
| 16:09 | |
| 3984x2240(L) / 2880x1624(M) / 1920x1080(S) | |
| 1:01 | |
| 2656x2656(L) / 1920x1920(M) / 1376x1376(S) | |
| Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine) |
| Color space | sRGB, AdobeRGB |
| MOTION PICTURE | |
| Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC |
| MP4: H.264/MPEG-4 AVC, H.265/HEVC | |
| Audio format | MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) |
| MP4: AAC (2ch 48kHz/16-bit) | |
| *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately). | |
| System frequency | 59.94Hz / 50.00Hz / 24.00Hz |
| Image area of video | Full / APS-C / PIXEL/PIXEL |
| MOV / 59.94Hz / FULL (*HLG is selectable.) (*¹) (*²) | [6K] 5952x3968 (3:2) |
| 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [6K] 5952x3136 (17:9) | |
| 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [5.9K] 5888x3312 (16:9) | |
| 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [C4K] 4096x2160 | |
| 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| MOV / 59.94Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²) | [C4K] 4096x2160 |
| 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [3.3K] 3328x2496 (4:3) | |
| 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* | |
| 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* | |
| 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *When Image Area of Video is set to APS-C. | |
| MOV / 50.00Hz / FULL (*HLG is selectable.) (*¹) (*²) | [6K] 5952x3968 (3:2) |
| 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [6K] 5952x3136 (17:9) | |
| 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [5.9K] 5888x3312 (16:9) | |
| 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [C4K] 4096x2160 | |
| 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| MOV / 50.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²) | [C4K] 4096x2160 |
| 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [3.3K] 3328x2496 (4:3) | |
| 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* | |
| 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* | |
| 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *When Image Area of Video is set to APS-C. | |
| MOV / 24.00Hz / FULL (*HLG is selectable.) (*¹) (*²) | [6K] 5952x3968 (3:2) |
| 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [6K] 5952x3136 (17:9) | |
| 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [5.9K] 5888x3312 (16:9) | |
| 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [C4K] 4096x2160 | |
| 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| MOV / 24.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²) | [C4K] 4096x2160 |
| 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [3.3K] 3328x2496 (4:3) | |
| 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| MP4 / 59.94Hz / FULL (*¹) | [4K] 3840x2160 |
| 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| [FHD] 1920x1080 | |
| 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| MP4 / 59.94Hz / APS-C / PIXEL/PIXEL (*¹) | [4K] 3840x2160 |
| 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| [FHD] 1920x1080 | |
| 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| MP4 / 50.00Hz / FULL (*¹) | [4K] 3840x2160 |
| 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| [FHD] 1920x1080 | |
| 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| MP4 / 50.00Hz / APS-C / PIXEL/PIXEL (*¹) | [4K] 3840x2160 |
| 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. | |
| 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| [FHD] 1920x1080 | |
| 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| MP4 / 24.00Hz / FULL | - |
| MP4 / 24.00Hz / APS-C / PIXEL/PIXEL | - |
| SLOW & QUICK | |
| MOV / 59.94Hz / FULL (*¹) | [FHD] 1920x1080 |
| 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| MOV / 59.94Hz / APS-C (*¹) | [C4K] 4096x2160 |
| 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| MOV / 50.00Hz / FULL (*¹) | [FHD] 1920x1080 |
| 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| MOV / 50.00Hz / APS-C (*¹) | [C4K] 4096x2160 |
| 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| 25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| MOV / 24.00Hz / FULL (*¹) | [FHD] 1920x1080 |
| 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| MOV / 24.00Hz / APS-C (*¹) | [C4K] 4096x2160 |
| 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [4K] 3840x2160 | |
| 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| [FHD] 1920x1080 | |
| 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
| *Angle of view narrows if you select a frame rate with a number of frames 151 or more. | |
| VIEWFINDER | |
| Type | OLED Live View Finder |
| Pixels | Approx. 3.68 million dots |
| Field of view / Magnification | Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2 |
| Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) |
| Eye sensor | Yes |
| Display speed | 120fps / 60fps |
| REAR MONITOR | |
| Type | TFT LCD monitor with static touch control |
| Monitor size | Free-angle, 3.0-inch (7.6cm), 3:2 aspect |
| Pixels | Approx. 1.84 million dots |
| Field of view | Approx. 100% |
| STATUS LCD | |
| Status LCD | - |
| FOCUS (*³) | |
| Type | Phase Detection AF system / Contrast AF system |
| DFD technology | Yes |
| Focus mode | AFS (Single) / AFC (Continuous) / MF |
| AF mode | Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint |
| *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set. | |
| AF detective range | EV -6 - 18 (F1.4, ISO100 equivalent, AFS) |
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
| AF assist light | Yes |
| AF lock | Set the Fn button in custom menu to AF lock |
| Focus ring control | Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) |
| Others | AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum |
| EXPOSURE CONTROL | |
| Light metering system | 1,728-zone multi-pattern sensing system |
| Light metering mode | Multiple / Center Weighted / Spot / Highlight Weighted |
| Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| Mode dial | Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto |
| *The same exposure operations as P/A/S/M mode is available. | |
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| ISO sensitivity (Standard output sensitivity) | [Normal] |
| Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO | |
| [V-Log] | |
| Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO | |
| [HLG] | |
| Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO | |
| Dual Native ISO | [Normal] |
| Native ISO: 100, 640 | |
| Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto / 50* / 100-800 *Extended ISO | |
| High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO | |
| [V-Log] | |
| Native ISO: 640, 4000 | |
| Auto: Auto / 320* / 640-51200 *Extended ISO | |
| Low: Auto / 320* / 640-5000 *Extended ISO | |
| High: Auto / 2000* / 4000-51200 *Extended ISO | |
| [HLG] | |
| Native ISO: 400, 2500 | |
| Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto / 400-3200 | |
| High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO | |
| [Cinelike D2 / Cinelike V2] | |
| Native ISO: 200, 1250 | |
| Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO | |
| Low: Auto /100* / 200-1600 *Extended ISO | |
| High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO | |
| AE lock | Set the Fn button in custom menu to AE lock |
| IMAGE STABILIZATION SYSTEM | |
| Image Stabilization System | B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] |
| Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.] | |
| WHITE BALANCE | |
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
| White balance adjustment | Blue/Amber bias, Magenta/Green bias |
| Color temperature setting | 2500-10000K in 100K |
| SHUTTER | |
| Type | Focal-plane shutter |
| Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 |
| Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 | |
| Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 | |
| Motion picture: 1/16,000 - 1/25 | |
| Creative Video M mode / MF mode: 1/16,000 - 1/2 | |
| Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
| Remote control | Remote control by DMW-RS2 (sold separately) |
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
| BRACKET | |
| AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
| Aperture bracket | 3, 5 or all positions |
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels |
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, color temperature setting |
| BURST SHOOTING | |
| Burst speed | Mechanical shutter / Electronic front curtain shutter |
| H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) | |
| M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) | |
| L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
| Electronic shutter | SH30: 30 frames/sec (AFS/AFC/MF) |
| H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) | |
| M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) | |
| L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
| Number of recordable images | H/M/L* |
| RAW+JPEG: More than 200 images | |
| RAW: More than 200 images | |
| JPEG: More than 300 images | |
| *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. | |
| *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)". | |
| SH | |
| RAW / RAW+JPEG / JPEG: 200 images | |
| FLASH | |
| Flash type | TTL External Flash (sold separately) |
| Synchronization speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. |
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. |
| Flash output adjustment | 1/3EV step ±3EV |
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
| EXTRA TELE CONVERSION | |
| Extra Tele Conversion | 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording. |
| COLOR SETTINGS | |
| Photo Style | Photo Style |
| Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)* | |
| *Set to ON from Show/Hide Photo Style to select. | |
| Picture adjustment | |
| Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT | |
| *Adjustable settings vary depending on the Photo Style mode. | |
| Filter | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass |
| LUT Library | Vlog_709 / Set 1-10 |
| *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings. | |
| MOTION PICTURE FUNCTION | |
| Time lapse shot | Yes |
| Stop motion animation | Yes |
| Live cropping | Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes) |
| SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
| Luminance level | 8-bit: 0-255 / 16-235 / 16-255 |
| 10-bit: 0‒1023 / 64‒940 / 64‒1023 | |
| Synchro scan | Yes |
| Master pedestal level | 31 steps |
| Color bars / 1kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes |
| LUT view assist | Supported file types: .vlt, .cube |
| Monitor / HDMI | |
| HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
| Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF |
| Wave form monitor / Vectorscope | Selectable |
| Knee control | Yes (in Like709 mode) |
| Red REC frame indicator | ON / OFF |
| Vertical Position Information | Still image / Motion picture (ON/OFF) |
| LEVEL GAUGE | |
| Level Gauge | Yes |
| FUNCTION BUTTON | |
| REC | Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default |
| PLAY | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default |
| INTERFACE | |
| USB | USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2)) |
| HDMI (*²) | HDMI |
| HDMI TypeA | |
| Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.) | |
| Monitor-through | |
| 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) | |
| 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) | |
| Playback | |
| 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* | |
| 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* | |
| 24.00Hz: C4K/24p / 4K/24p / 1080p | |
| *Only for playback. | |
| Remote input | φ2.5mm |
| Audio | Build-in microphone |
| Stereo | |
| Wind Noise Canceller: OFF / Standard / High | |
| External microphone / External audio device input | |
| φ3.5mm for external microphone / external audio device | |
| MIC (Plug-in Power) / MIC / LINE | |
| Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately). | |
| Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately). | |
| XLR microphone | |
| Yes with DMW-XLR1 (sold separately) | |
| 4ch mic input | |
| Yes with DMW-XLR1 (sold separately) | |
| Speaker | |
| Monaural | |
| Headphone output | |
| φ3.5mm | |
| SD card slot | Slot 1, Slot 2 |
| SD Memory Card / SDHC Memory Card* / SDXC Memory Card* | |
| *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. | |
| TC IN/OUT | |
| Count up | Rec Run / Free Run |
| Time code mode | Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.) |
| HDMI time code output | ON / OFF |
| FAN | |
| Fan | Auto1 / Auto2 / Fast / Normal / Slow* / OFF** |
| *Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. | |
| **OFF can be set when in iA/P/A/S/M mode. | |
| WIRELESS | |
| Wi-Fi | 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) |
| 5GHz bands (STA) (IEEE 802.11a/n/ac) | |
| Security: WPA/WPA2/WPA3 | |
| Bluetooth | Bluetooth® v5.0 (Bluetooth Low Energy (BLE)) |
| Dust and Splash Resistant* | Yes. |
| *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. | |
| POWER | |
| Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) |
| USB power supply, USB power charging, USB power delivery | |
| Battery life (CIPA standard) | Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060 |
| Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50 | |
| *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. | |
| Continuous recordable time (Motion picture) (*¹) | MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged. |
| Actual recordable time (Motion picture) (*¹) | MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged. |
| Battery grip | DMW-BGS5 (sold separately) |
| DIMENSIONS / WEIGHT | |
| Dimensions (W x H x D) | Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions) |
| Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions) | |
| Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions) | |
| Weight | Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) |
| Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap) | |
| OPERATING ENVIRONMENT | |
| Operating temperature (*³) | 0℃ to 40℃ (32℉ to 104℉) |
| Operating humidity | 10%RH to 80％RH |
| STANDARD ACCESSORIES | |
| Software | Recording |
| LUMIX Tether | |
| ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. | |
| http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) | |
| LUMIX Sync | |
| ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software. | |
| https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS) | |
| Playback / Editing | |
| ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. | |
| http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) | |
| Standard accessories | DC-S5M2 Kit |
| Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C) | |
| DC-S5M2K Kit / DC-S5M2C Kit | |
| Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap | |
| DC-S5M2W Kit | |
| Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2 | |
| ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. | |
Note
(*1) About motion picture recording
- Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes
- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV]: 192GB
(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
(*3) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.
(*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
For Panasonic Lumix S 20-60mm F3.5-5.6 Lens:
| Lens Construction | 11 elements in 9 groups (2 aspherical lenses, 3 ED lenses, 1 UHR lens) |
| Mount | L-Mount |
| Optical Image Stabilizer | No |
| Focal Length | f=20-60mm |
| Aperture Type | 9 diaphragm blades / Circular aperture diaphragm |
| Maximum Aperture | F3.5 (Wide) - F5.6 (Tele) |
| Minimum Aperture | F22 |
| Closest Focusing Distance | 0.15m/0.49ft (at focal length 20-26mm) / 0.4m/1.31ft (at focal length 60mm) |
| Maximum Magnification | 0.43x |
| Diagonal Angle of View | 94°(Wide) - 40°(Tele) |
| Dust and Splash Resistant | Yes* |
| Recommended Operating Temperature | -10˚C to 40˚C (14˚F to 104˚F) |
| Filter Size | φ67mm |
| Max. Diameter | φ77.4mm / 3.05inch |
| Overall Length | Approx. 87.2mm / 3.43inch (from the tip of the lens to the base side of the lens mount) |
| Weight | Approx. 350g / 12.35oz (excluding lens cap, lens rear cap and lens hood) |
| Standard Accessories | Lens cap, Lens rear cap, Lens hood |
This product comes with 12 Months Australian Manufacturer Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Panasonic Lumix S5 II with 20-60mm Lens Kit
Panasonic DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
AC Adapter
USB-C to USB-A Cable
Shoulder Strap
Body Cap
Hot Shoe Cover
Battery Grip Connector Cover
Write Your Own Review
Panasonic Lumix S5 II with 20-60mm Lens Kit
