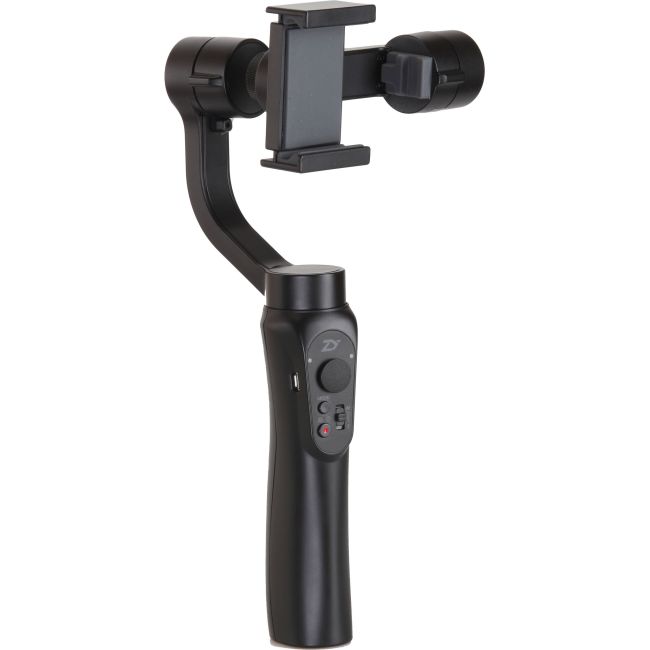

Zhiyun-Tech Smooth Q 3-Axis Gimbal Stabilizer

THIS PRODUCT IS TEMPORARILY UNAVAILABLE, SORRY
A$0.00
Out of stock
Free Shipping for Orders over $299* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
  • For up to 220g Smartphones
  • Charge Phone via USB While Shooting
  • One-Step Balancing Knob
  • Up to 12-Hour Run Time
  • 320° Pan, Tilt, Roll Axis Rotation
  • 4-Way Joystick
  • Zoom Control Switch
  • 1/4"-20 Mounting Thread on Bottom
  • Local Genuine Warranty

Vloggers will certainly enjoy the Zhiyun-Tech Smooth-Q 3-Axis Gimbal Stabilizer. With a maximum payload of 220 grams, it can carry bigger smartphones with attached accessories such as add-on lenses and microphones. With a 320-degree rotation along the pan, tilt, and roll axes, you can move the attached phone smoothly while keeping it steady. The phone is balanced via a single button that control the roll axis the four-way joystick navigates the steady panning. The interface also includes a switch to control zoom and the mode button. It also provides a number of helpful features such as face-tracking as well as panoramic and time lapse modes. Aside from the interface in the gimbal itself, full control is also provided by the downloadable ZY play app. Meanwhile, its battery provide up to 12 hours of run time so you need not worry about running out of power. If you wish to use with a monopod or tripod, the Smooth Q easily attaches via the 1/4"-20 mounting thread.


Product Features in Detail

Manual Zooming
By connecting to the dedicated mobile APP, ZY Play, via Bluetooth, Smooth-Q allows instant zooming control of the camera right through the stabilizer. With a single push or pull of the switch, you can focus and capture the moment more freely.

Optimized Stabilizing System
Empowered by the 5th Gen. Instune Algorithms combined with world’s advanced electronic stabilizing system, the Smooth-Q has realized 40% improvement in its torque output, supporting a max. payload of 220g.

Enhanced Motor Torque
Smooth-Q not only can support PLUS-size smartphones, but further allows external add-ons, such as lenses, light-compensating lamp, and microphone etc, to support a wider range of applications.

Lightweight but powerful
Powered by a built-in rechargeable battery, the Smooth-Q not only supports an ultra-long continuous runtime up to 12 hours, but further backs up for extended mission allowing connection with portable power source through USB port. Saving your time and load with a super compact construction of only 440g, with it, now you can really travel light without missing a single moment on the road.

Intelligent controls
With the various innovative functions of the ZY Play, Smooth-Q not only perfects your footage with nice cinematic impact, but also realizes multiple smart controls. By activating the Object Tracking function, the gimbal and phone camera will be configured to follow and focus the target automatically, so now you can record any live moment while also taking part in it. In addition, it also supports time lapse, slow motion, long exposure, multi-style filters and more to inspire your creativity.

Two-way mounting clamp
In response to various application demands of different users and in purpose of maximizing comfort and ease in use, Smooth-Q is innovatively designed with a 2-way mobile clamp. Simply loosen the fixing thumb screw, turn the mobile clamp by 90° to make a quick vertical/horizontal switch of the smartphone, it’s time to say goodbye to all pain-taking struggles with the turning of your camera.

One-Step Balancing
Featured by the unique telescopic shaft design, Smooth-Q allows one-step easy balance adjustment of the mounted handset, you will no time in capturing your next shot!

Universal Mounting Port
Equipped with an universal 1/4” threaded hole at the bottom, Smooth-Q can be mounted to various photography equipment and apparatus, such as tripod mount, extension rod or suction cup, so you not only can produce rocker-arm footage, but can also make cool time lapse footage with ideal view while it operates with your hands free!

Item Minimum Standard Maximum Remark
Operation Voltage 6.8V 8.4V 12.6V
Operation Current 80mA 110mA 1500mA
Charging Voltage   5V
Charging Current   1500mA
Output Voltage   5V
Output Current   2000mA
Following Deviation in Static State ±0.01°   ±0.04°
Following Deviation in Motion State ±0.05°   ±0.3°
Tilt Mechanical Range   320°
Roll Mechanical Range   320°
Pan Mechanical Range   360°   Unlimited
Controllable Tilt Angle -135°   +185°
Controllable Roll Angle -30°   +30°
Operation Temperature   360°   Unlimited
Operation Temperature -10°C 25°C 45°C
Battery Runtime   12h   Balanced center of gravity
Charging Time   2.5h
Valid Payload 75g   200g
Horizontal Arm Adjustment Range     15mm
Mounting Clamp Supporting Range 58mm   85mm
Compatible Models Smartphones with sizes within 6.0", GoPro Hero3/4/5
Product Dimension 118 x 105 x 285 mm
Product Net Weight 440 grams

This product comes with Local Genuine Warranty.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in
'Grey Market' or 'Parallel Import' activities.

Smooth Q 3-Axis Smartphone Gimbal
Micro-USB Charging Cable
Carrying Bag
Local Genuine Warranty
