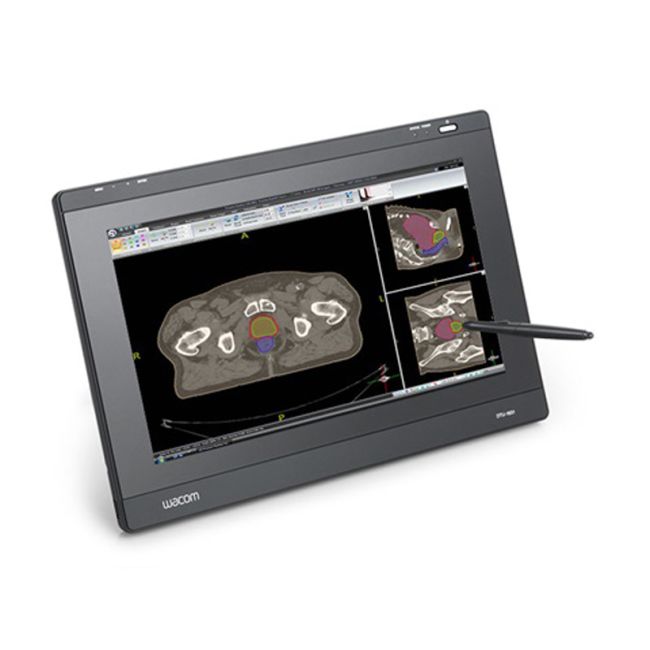

- Wacom Interactive Pen Display DTU-1631A
Having the combination of 1366 x 768 resolution 15.6" display and a cordless, battery-free pen, any user can use applications that require working directly with a pen on screen. Not only that, it can also be used in signing documents, redlining, and sharing presentations as well. With the Built-in DVI-I pass-thru connector, it can handle either analog or digital input that allows mirroring from the pen display to another 3rd party monitor. Two user-accessible USB ports can be used to easily access your connected USB device. The internal scaler will feed the video input and display them to their corresponding resolution and aspect ratio. You can also incline your display with the adjustable stand to an angle you are most comfortable with.
Product Features in Detail
The DTU-1631 combines a 16:9 widescreen LCD with Wacom’s patented, cordless, battery-free pen technology in a 15.6" display that is ideal for business applications where people benefit from working with a pen, but desire a compact form factor. It can be used for red lining and signing documents, annotating and sharing presentations, handwriting on application or registration forms, creating hand-drawn imagery, and capturing handwritten notes.
Built-in DVI-I pass-thru connector
With a full 1366 x 768 resolution, the DTU-1631 has a built-in DVI-I pass-thru connector that handles either digital or analog input and allows mirroring directly from the pen display to a projector or other display.
An internal scaler will take video input signals in different resolution and display them in their native resolution and aspect ratio.
Two user-accessible USB ports
The display includes two user-accessible USB ports to provide easy access to your favorite USB devices.
The DTU-1631 also includes an adjustable stand that reclines from between 19 to 72 degrees.
|Screen resolution||1366 x 768 (WXGA)|
|Pixel pitch||0.252 x 0.252 mm|
|Colour depth||16.77 million colours|
|Maximum Brightness (cd/m2)||255 cd/m2|
|Response Time||8 ms|
|Viewing angle (horizontal / vertical)||90° / 65°|
|Backlight lifetime||50,000 hours|
DVI-I to VGA (analog RGB) cable DVI to DVI cable
|Video Interface||DVI-I video in/out|
|Battery-free & cordless pen||Yes|
|Pen pressure levels||512 levels|
|Customisable pen buttons||2 side switches|
|Tablet resolution||2540 lpi|
|Coordinate accuracy||±0.5mm (center)|
|Tablet reading height||5 mm|
|Report rate||133 points/sec|
|Data cables||USB cable|
|Main unit dimensions (W x D x H)||420 x 283 x 49 mm (excluding stand)|
|Weight (including stand)||4.3 kg|
|Adjustable stand (incline from vertical)||19° to 72°|
|USB 2.0 hubs||2 (1 on each side of the display)|
|Operating temperature||5℃ to 35℃|
|Operating humidity||20% to 80% RH|
|Windows OS compatibility||7 / Vista / XP / 2000|
|Macintosh OS compatibility||OS X 10.4 or later|
|Power supply input||AC 100-240V, 50-60Hz|
|Maximum power consumption||29W|
This product comes with 12 Months Warranty with WACOM Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Interactive Pen Display DTU-1631A
Cordless, battery-free pen with replacement nibs and a pen tether
Power adapter and power cable
USB data cable
DVI-DVI and DVI-VGA video cables
Quick start guide
CD with driver software for installation
12 Months Warranty with WACOM Australia
