Vanguard PH-123V Tripod HeadBookmark and Share

Categories: Tripod Heads,

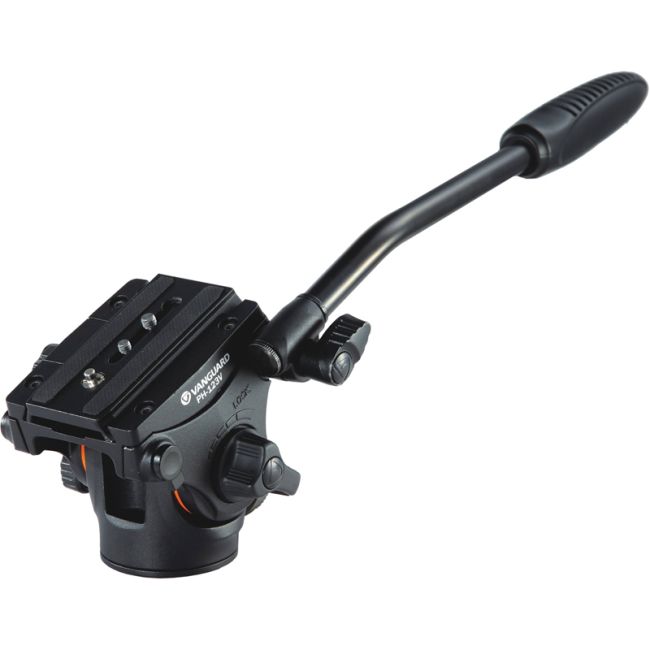

Vanguard PH-123V Tripod Head
Click for larger view
Click for rear view

This product is temporarily unavailable, sorry

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Payload capacity of 6kg
  • Weight of 0.83kg
  • Height of 10.6cm
  • 360° rotation and frontal tilt
  • Magnesium alloy
  • Counterbalance system
  • Spring counterbalance
  • Fluid pan head with long handle
  • Adjustable drag tension
  • Limited Lifetime Warranty with CR Kennedy Australia

The Vanguard PH-114V incorporates adjustable drag tension and spring counterbalance to provide smoother panning and tilting performance. The counterbalance system guarantees the precise amount of weight of the camera being used. It easily supports a payload capacity of 8kg and yet has an easy to carry weight of 0.57kg and height of 9.45cm. This fluid pan head with long handle is of magnesium alloy body.

Product Features in Detail

Spring counterbalance and adjustable drag tension
PH-123V fluid video head with spring counterbalance and adjustable drag tension provides incredibly smooth pan and tilt functions and rigid magnesium, closed-type construction for steady videography with HD camcorders and add-ons.

Counterbalance switch
Its counterbalance system ensures the perfect amount of balance for the weight of the camera being used. Simply flip the counterbalance switch between “off” and “on."

Optimal center of gravity positioning
PH fluid video head features a large quick shoe safety release button and front-to-back movement fine tuning capabilities for optimal center of gravity positioning.

Other features
Built to support more than 13.2 lbs., PH fluid video head also has a long handle for use with heavy equipment. PH fluid video heads also feature a 1/4” and 3/8” attachment interface.

Included in the Box

     Vanguard PH-123V Tripod Head
     Limited Lifetime Warranty with CR Kennedy Australia

Warranty Information

     This Vanguard PH-123V Tripod Head comes with Limited Lifetime Warranty with CR Kennedy Australia.
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

Extended height(mm) 106
Min.Extended Height(mm)
Folded height(mm)
Weight(kg) 0.83
Maximum loading capacity(kg) 6
Tilted Loading Capacity(kg)
Extended height(inch) 4 1/8
Min.Extended Height(inch)
Folded height(inch)
Minimum working height (inch)
Maximum working height (inch)
Weight(lbs) 29.3oz
Maximum loading capacity(lbs) 13.2
Tilted Loading Capacity(lbs)
Number of Leg Sections
Leg Diameter(mm)
Head Specs
Bubble level(pcs) 1
Quick shoe included QS-67
Swivel 360°
Tilt +60°~ -90°
Panhead movements
