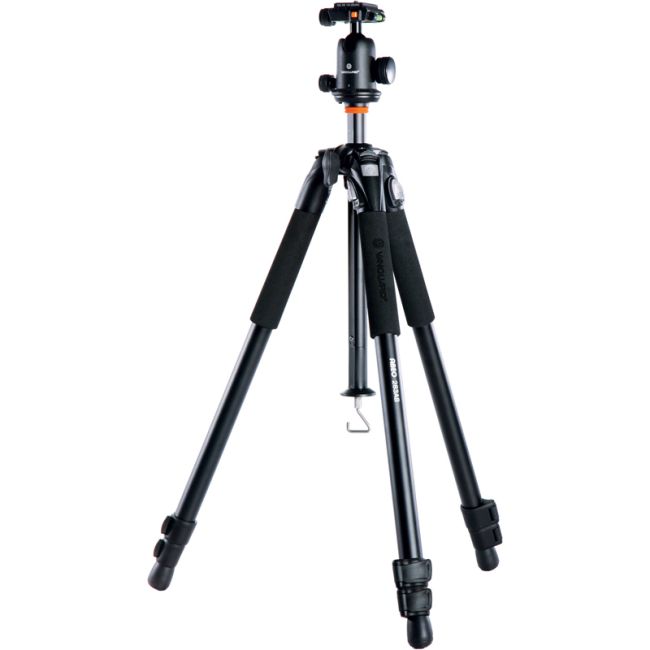

Vanguard ABEO 283AB Tripod
Key Features

- Payload capacity of 8kg
- 170.5cm Maximum length
- 148.5cm minimum length
- 72.5cm Folded Length
- Weight of 2.33kg
- 3 Leg Sections
- Comes with SBH-100 ball head
- Quick-flip leg lock
- Rubber feet that converts to large spike
- 12 Months Australian Warranty with CR Kennedy

$319.00 Incl. GST


  • Payload capacity of 8kg
  • 170.5cm Maximum length
  • 148.5cm minimum length
  • 72.5cm Folded Length
  • Weight of 2.33kg
  • 3 Leg Sections
  • Comes with SBH-100 ball head
  • Quick-flip leg lock
  • Rubber feet that converts to large spike
  • Foam grips
  • Limited Lifetime Warranty with CR Kennedy Australia

Designed to withstand heavy loads, the ABEO 283AB Tripod has become the most chosen tripod in its line may it be capturing stills or video. It is built to carry a payload capacity of 8kg even with a weight of 2.33kg and extended to a 170.5cm maximum length. You can transport the tripod in its 72.5cm folded length. With quick-flip leg lock, its 3 leg sections are easier and a faster to setup. Its foam grips and rubber feet that converts to large spike protects the legs from rough terrain. It comes with SBH-100 ball head.

Product Features in Detail

Solid. Secure. Sleek
It’s no wonder Abeo Series is one of our most anticipated professional tripods.

Magnesium die-cast construction
Whether you’re shooting still or video or both, Abeo is built to support with unwavering reliability and stability thanks to premium magnesium die-cast construction.

Ergonomic release button
Its legs adjust to 25, 50 and 80-degree angles with an ergonomic release button – ultra fast and securely.

Quick-flip leg locks
Quick-flip leg locks enable fast setup.

Low-angle adaptor
Abeo enables unique shots, too, with an easy-to-set-up low-angle adaptor.

SBH-100 ball head
Abeo 283AB 100 comes with our popular SBH-100 ball head.

Included in the Box

     Vanguard ABEO 283AB Tripod
     Limited Lifetime Warranty with CR Kennedy Australia

Warranty Information

     This Vanguard ABEO 283AB Tripod comes with Limited Lifetime Warranty with CR Kennedy Australia.
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

Extended height(mm) 1705
Min.Extended Height(mm) 1485
Folded height(mm) 725
Weight(kg) 2.33
Maximum loading capacity(kg) 8
Tilted Loading Capacity(kg) -
Extended height(inch) 67 1/8
Min.Extended Height(inch) 58 1/2
Folded height(inch) 28 1/2
Minimum working height (inch) -
Maximum working height (inch) -
Weight(lbs) 5.14
Maximum loading capacity(lbs) 17.6
Tilted Loading Capacity(lbs) -
Number of Leg Sections 3
Leg Diameter(mm) 28
Head Specs SBH-100
Bubble level(pcs) 3
Quick shoe included QS-39
Swivel 360°
Tilt +90° ~ -35°
Panhead movements -
