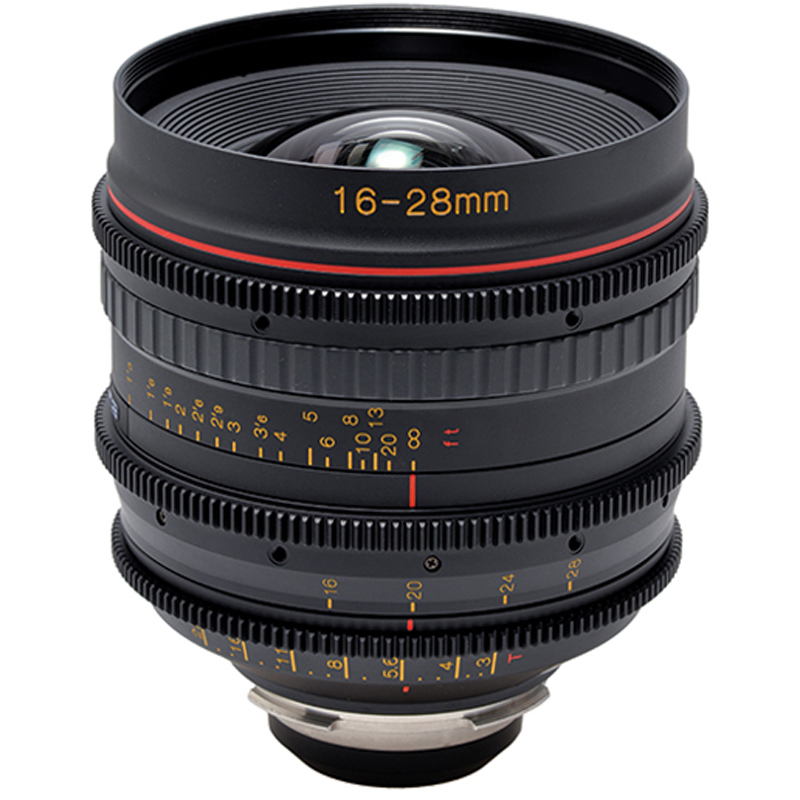

Tokina Cinema ATX 16-28mm T3.0 FX Zoom with PL Mount Lens


Stock levels may vary, if your order is urgent, please enquire about availability

Free Shipping for Orders over $98* (*excludes bulky items)
  • PL Mount
  • Constant T3.0 Aperture
  • Minimum  Focus Distance of 11"
  • Suitable for 4K Image Capturing
  • De-Clicked 9-Bladed Aperture Ring
  • Parafocal Lens Design
  • Aspherical, SLD Glass Elements
  • Reduced Breathing and Image Shift
  • All-Metal Construction
  • Covers Full-Frame 35mm Sensors
  • 12 Months Warranty with CR Kennedy Australia
Get 10% OFF any OKKO UV, ND or CPL Filter when purchased with this lens. Discount will be deducted on the cart page

Recommended Accessories for your Purchase

Built for use with 4K image capturing, the all-metal construction Cinema ATX 16-28mm T3.0 FX Zoom lens covers full-frame 35mm sensors and optimizes parafocal lens designreduced breathing and image shift to maintain focus throughout the zoom range. This lens offers constant T3.0 aperture and a minimum focus distance of 11”. The lens construction is composed of aspherical, SLD glass elements which help promote excellent sharpness and contrast. Parafocal optical designGeared Focus, Aperture, and Zoom Rings allow you to maintain precise focus while zooming.  Its de-clicked 9-Bladed Aperture Ring provides smooth iris pulls. Cinema ATX 16-28mm T3.0 FX Zoom is available with PL Mount.

Product Features in Detail

Super-wide lens

Full frame super-wide 16-28mm lens

Parfocal lens design

Parfocal lens design allows you to maintain precise focus while using the zoom control

Constant T3.0 aperture

Fast constant T3.0 aperture throughout the 16mm to 28mm zoom range

Reduced breathing

Reduced breathing so you can focus on the scene and not the lens

De-clicked, 9-bladed, curved iris

Smooth, de-clicked, 9-bladed, curved iris for beautiful out-of-focus areas

No image shift

Virtually no image shift when using the zoom control during filming

Lens construction

Aspherical elements and Super-Low Dispersion glass reduce distortion and increase optical performance

4K image

4K image ready

All-metal cine-style housing

Durable, all-metal cine-style housing with geared manual zoom, focus and aperture rings for use in follow-focus systems

114mm front diameter

Common 114mm front diameter for use with a wide variety of matte boxes and accessories

Easy viewing

Zoom, focus, and iris marking are on both sides of the lens for easy viewing and more mounting/follow-focus options

Lens Data System

LDS (Lens Data System) support is possible

Available mounts

Available in Sony E (new), Canon EF and PL mounts

Mount Sony E, PL, Canon EF
Focal Distance 16 – 28mm
Zoom Ratio 1.75:1
Optical Structure 13 groups /15 elements
Sensor Size Full Frame 35mm
Minimum Focus Distance 0.28m (0.92 ft)
Maximum Macro Magnification 1:5.3
Zoom Mode Rotary Zoom
Aperture/Iris Blades 9
Depth of Field T3.0 – T22 (F2.8 – F22)
Filter Size 112 mm
Overall Length Sony E mount:
166.2mm (from 161mm mount surface)
PL Mount:
144mm (from 127mm mount surface)
Canon EF Mount:
140.5mm (from 135mm mount surface)
Diameter of Front Head 114mm
Maximum Diameter 123mm
Weight 1.5kg
This product comes with 12 Months Australian warranty with CR Kennedy Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

Tokina Cinema ATX 16-28mm T3.0 FX Zoom with PL Mount Camera Lens
12 Months Australian warranty with CR Kennedy Australia
