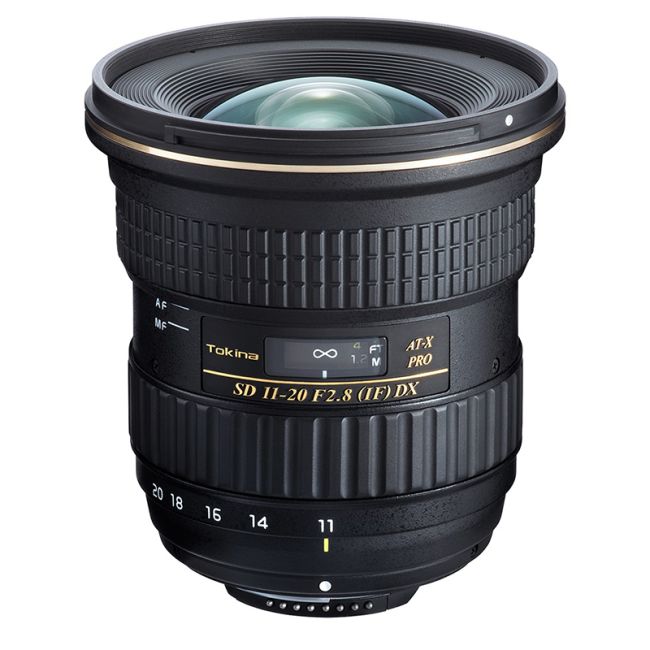

Tokina AT-X 11-20mm F2.8 PRO DX Lens
- F/2.8 Maximum Aperture
- 11-20 mm Focal distance
- Three SD (super-low Dispersion, “FK01” and FK03”) glass elements
- Three aspherical lens elements
- Two all glass molded and one P-MO hybrid
- 82mm Filter size
- Canon and Nikon mount
- One-touch Focus Clutch Mechanism
- Compatibility: Only with APS-C DSLR Cameras
Product Features in Detail
Refined optical design
The new Tokina AT-X 11-20 PRO DX builds on the award-winning design of the best-selling Tokina AT-X 11-16 PRO DX-II lens by expanding the telephoto side of the zoom range from 16mm to 20mm while refining the optical design.
New proprietary optical design
The new proprietary optical design uses a total of three aspherical lens elements, two all glass molded and one P-MO hybrid, to achieve excellent contrast and sharpness as well as correct spherical aberrations. The AT-X 11-20 also uses three SD (super-low Dispersion, “FK01” and FK03”) glass elements to control chromatic aberrations.
Ultra wide-angle zoom lens
This compact ultra wide-angle zoom lens has a bright constant F/2.8 aperture make viewing and auto focus possible in lower light situations but still maintaining a reasonable size and weight. This lens also uses common sized 82mm filters so use of a CR-PL filter is possible.
One-touch Focus Clutch Mechanism
Tokina’s exclusive One-touch Focus Clutch Mechanism allows the photographer to switch between AF and MF simply by snapping the focus ring forward for AF and back toward the lens mount for manual focusing. The lens is also designed to stand up to the rigors of daily use by photographers in a wide variety of shooting conditions and environments.
Excellent for Cine / Video use
The new Tokina AT-X 11-20 PRO DX is a ultra-wide-angle zoom lens of DX (APS-C) the size, and has a maximum F-stop value of 2.8. In in Cine/Video use it demonstrates it’s preeminent power.
Focus distance | 11 - 20 mm |
Brightness | F2.8 |
Format | APS-C |
Minimum aperture | F22 |
Lens configuration | 14 elements in 12 group |
Coating | Multilayer film coating |
Angle of view | 104.34 ~ 72.42 |
Filter size | 82mm |
Shortest Object Distance | 0.28m |
Macro maximum magnification | 01:08.6 |
Focus method | Internal focus |
Number of Aperture blades | 9 |
Maximum diameter | 89.0 mm |
Full length | 92.0 mm |
Weight | 560 g |
Hood (Attached) | BH-821 |
