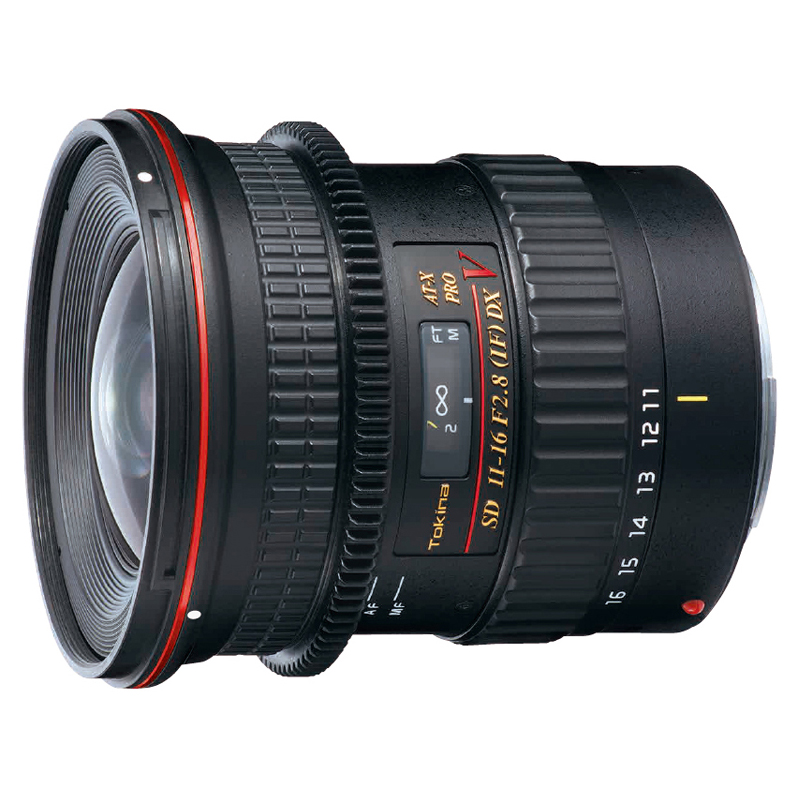

Tokina AF 11-16mm F2.8 AT-X 116 PRO DX V Lens
- F/2.8 - F/22 Aperture Range
- Interlocking Follow Focus Gear
- Wide-Angle Zoom
- Multi-layer coating
- 13 Elements in 11 Groups
- Rotary Zoom
- 9 Aperture Blades
- 77mm Filter Size
- Compatibility: Only with APS-C DSLR Cameras
Product Features in Detail
Follow Focus Gear
This lens has a manual focusing ring with an interlocking follow focus gear to allow the lens to be used in a cinema follow focus system. This lens is for shooting video with DSLR (VDSLR) cameras. To use follow focus, the manual focus ring is placed in the MF position before shooting. When photographing normally (taking photos), auto-focus can be used.
Razor sharp images are achieved through the inclusion of a new aspherical lens and super-low dispersion glass
A PM-O aspherical lens element is placed in the front group. This element working in combination with the glass-molded aspherical lens placed in the rear group corrects or various aberrations while ideally correcting distortions as well. The further correction of chromatic aberrations is achieved through the use of two more elements of SD (Super-Low Dispersion) glass "FK03" which is essentially close to fluorite glass.
Superb operation in a compact body
AF-MF switching is accomplished by simply sliding the focusing ring forward and back on the lens barrel. The feel when manually focusing has moderate sense of torque in the focus ring, enabling precise focusing.
Realization a fast aperture F2.8 and closest focus distance 0.3m. It is effective in taking photographs utilizing perspective changes. The lter size is 77mm, and C-PL filters can also be used.
Focal Length | 11 - 16mm |
Maximum Aperture | F2.8 |
Minimum Aperture | F22 |
Construction E/G | 13 Elements in 11 Groups |
Coatings | Multi-layer |
Angle of View | 104 - 82° |
Minimum Focus Distance | 1.0 ft (0.3 m) |
Macro Ratio | 1:11.6 |
Focusing Mode | Internal Focusing |
Zoom Mode | Rotary Zoon |
Aperture Blades | 9 |
Filter Size | 77mm |
Maximum Outer Diameter | 3.3 in (84mm) |
Lens Length | 3.5 in (89.2mm) |
Weight | 1.2 lbs (550g) |
Accessories | Flower design Bayonet lens hood (BH77A) |
Lens Hood | BH-77B |
Mounts | Canon APS-C, Nikon APS-C |
Notes | * The lens is designed for Digital cameras with APS-C sized CMOS and CCD sensors, not designed for cameras with Full Frame sensors. ** Please note, the Tokina AT-X 116 PRO DX V lens itself is not waterproof or water resistant. |
