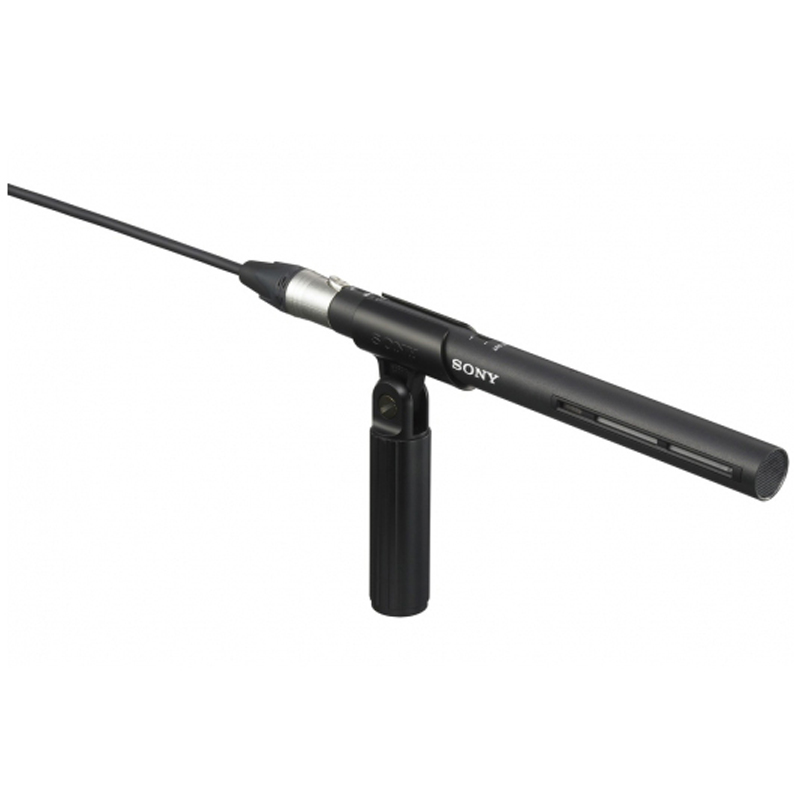

The ECMVG1 is a lightweight shotgun microphone with switchable low-cut filter and phantom powered. The ECMVG1 is designed for use on film, television and documentaries. It is the ideal microphone for use in noisy environments such as motor sports events or windy locations.

The ECMVG1's high sensitivity requires less gain and its smooth tone will reproduce the voice clearly without sounding harsh. This makes it ideal for use on stage as well as in live recording situations where there may be high background noise or wind noise coming from nearby fans or air conditioners. The Furry Windshield minimizes wind noise while the Ultralightweight Metal Body reduces handling noise and offers a stable position when held against a boom pole or stand.

A furry windshield is included with each ECMVG1 microphone to eliminate wind noise that can occur when recording outdoors with a shotgun microphone.

Product Features in Detail

Ideal for Field Shooting with Compact Camcorders or Boom Poles
The ECM-VG1 is specifically designed for professional field and studio production applications at an affordable price.
It is extremely lightweight and is supplied with an innovative windscreen that suppresses wind noise, making it a perfect choice for field sound shooting with a compact camcorder or attached to a boom pole.

Outstanding Sound Quality
The ECM-VG1 delivers exceptionally smooth and natural sound reproduction. It has a flat-and-wide frequency response (40 Hz to 20 kHz), excellent sensitivity of -33 dB (0 dB=1 V/Pa), and a low inherent noise level of less than 18 dB SPL.

Compact and Extremely Lightweight Design with Metal Body
Designed as an extremely lightweight shotgun microphone, the ECM-VG1 maintains good balance even when mounted on compact camcorders.

Built-in Low-cut Filter
The built-in two-position (M, V) low-cut switch provides a simple method of reducing the effects of unwanted ambient noise.

External DC (40 to 52 V) Operation
The ECM-VG1 provides an electronically balanced output operation on 48 V standard external power.

Innovative Windscreen
The ECM-VG1 is supplied with an innovative windscreen that has an internal frame to rigidly fix the windscreen, creating a space between the microphone and the outside part of the windscreen that helps suppress strong wind noise. It also protects the ECM-VG1 from contact noise in harsh operational environments such as outdoor shooting.

Specification

Audio Section
Capsule Type	Mono Electret Condenser
Frequency Response	40 Hz to 20 kHz
Directivity	Uni-directional (super-cardioid)
*Sensitivity [1]**	-33 dB ±3 dB
*Output Impedance [2]**	60Ω±20%, Balanced
Dynamic Range	107 dB or more
*Signal-to-Noise Ratio [3]**	76 dB or more
*Inherent Noise [4]**	18 dB SPL or less
*Induction Noise From External Magnetic Field [5]**	0 dB SPL
*Wind Noise [6]**	45 dB SPL or less (with windscreen)
*Maximum Input Sound Pressure Level [7]**	125 dB SPL
General Section
Connector	XLR-3-12C (male)
Mic Cable	XLR 3-pin Cable Required
Power Requirements	External, DC 40 V to 52 V
*Dimensions [8]**	φ20 x 210 mm
*Dimensions [8]**	φ13/16 x 8 3/8 inches
Mass	Approx. 66 g
Mass	Approx. 2.3 oz

Note
*[1] 0 dB = 1 V/Pa, at 1 kHz
*[2] Output impedance at 1 kHz
*[3] A-weighted, 1 kHz, 1 Pa.
*[4] 0 dB SPL = 20 μPa.
*[5] dB SPL/1E-7 T, 0 dB SPL = 20 μPa.
*[6] Wind noise at 2m/s (0 dB SPL = 20 μPa.)
*[7] 0 dB SPL = 20 μPa.
*[8] The values for dimensions are approximate.

Warranty

This product comes with 12 Months Warranty with Sony Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

In The Box

Sony ECMVG1 Lightweight Shotgun Microphone
Furry Windshield
2 Stand Adapters
XLR Cable
Microphone Spacer
Microphone Holder
