Sky-Watcher SynGuiderBookmark and Share

Categories: SkyWatcher Telescope Accessories,

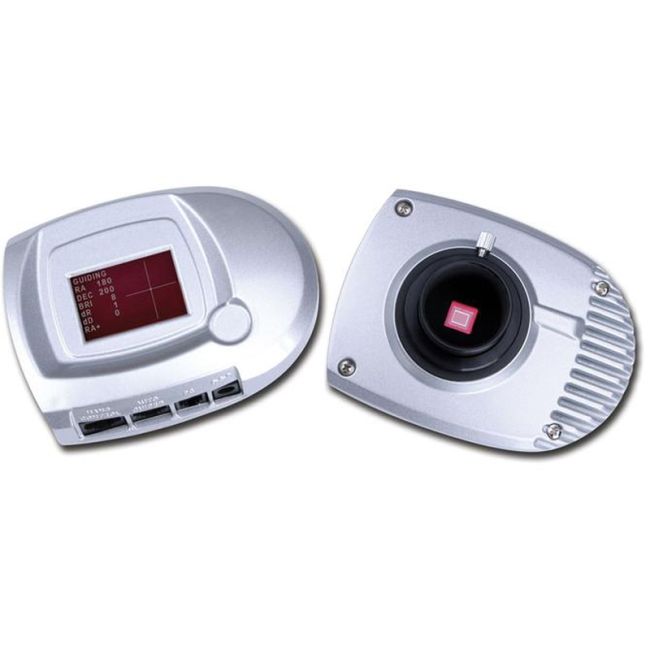

Sky-Watcher SynGuider
Click for larger view
Click for rear view

Main Product

Sky-Watcher SynGuider $524.00

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Guides the equatorial mount without a computer
  • Sony CCD image sensor
  • LCD display of real-time star image
  • Upgradable firmware
  • Large chip coming with more area
  • Standard auto guiding port
  • Adaptable by T-ring (M42) and 1.25” eyepiece holder
  • 5 Years Genuine Warranty with Sky Watcher Australia

The SynGuider is a standalone telescope accessory that guides the equatorial mount without a computer. It comes with Sony CCD image sensor and an LCD display of real-time star image which enables to track the dimmer stars. The large chip coming with more area helps locate and keep the guided star on chip. It is also adaptable by T-ring (M42) and 1.25” eyepiece holder with the standard auto guiding port to control the EQ mount.

Product Features in Detail

The revolutionary, stand-alone auto guiding tool, SynGuider is born!
Equipped with Sony CCD image sensor and the real-time star image display screen, SynGuider can work independently without a computer or calibration software. You will be saving significant power while working in the stargazing field with a limited electricity power pack.

Adaptable to main telescopes
The SynGuider is adaptable to main telescopes with T-ring (M42) and 1.25" eyepiece holder, and can control EQ mount with a standard autoguider interface.

Ideal for Digital Single Lens Reflex (DSLR) users
SynGuider is ideal for Digital Single Lens Reflex (DSLR) users, while saving you the need to operate your imaging system through a computer. It will greatly improve your efficiency and productivity during astro-photography sessions.  SynGuider will allow you to obtain pin-point stars during long exposure process to make your work simple and fun!

Included in the Box

     Sky-Watcher SynGuider
     5 Years Genuine Warranty with Sky Watcher Australia

Warranty Information

     This Sky-Watcher SynGuider comes with 5 Years Genuine Warranty with Sky Watcher Australia.
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

Image Sensor Type SONY ICX404AL CCD Sensor
Chip Size 5.59mm(X) * 4.68mm(Y)
Number of Effective Pixels 510(X) * 492(Y)
Unit Cell Size 9.6um(X) * 7.5um(Y)
Power Supply DC 6V ~ 14V, 250mA
Power Jack 2.1mm, tip positive
Exposure Time 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 mS
Sensitivity Typically, the SynGuider can capture and guide a star with up to the magnitude of 8 under the following conditions: regular 80mm aperture refractor, 2048ms exposure time, and good seeing conditions.
