- Payload Capacity of 50 kg
- Super Smooth PE Curve
- Whisper Slew
- Small Backlash
- Auto-Home Function
- DSLR Interface
- Permanent Periodic Error Correction
- Precise polar-alignment with SynScan hand controller
- Adjustable Pier tripod (0.75m - 1.00m)
- 5 Years Genuine Warranty with Sky Watcher Australia
The Sky-Watcher EQ8 Mount also comes equipped with Pier Tripod. Still in handy with counterweights and a GPS, it is also capable of supporting a payload capacity of 50kg. The motor controller with Permanent Period Error Correction (PPEC) keeps on track with the current position of the telescope’s worm to improve the tracking performance in your astrophotography. The Camera Control function has DSLR interface which you can always use in recording your viewed cosmic elements. EQ8 mounts provide super smooth PE curve, a 3.3°/sec whisper slew with auto-home function and precise polar-alignment with SynScan hand controller.
Product Features in Detail

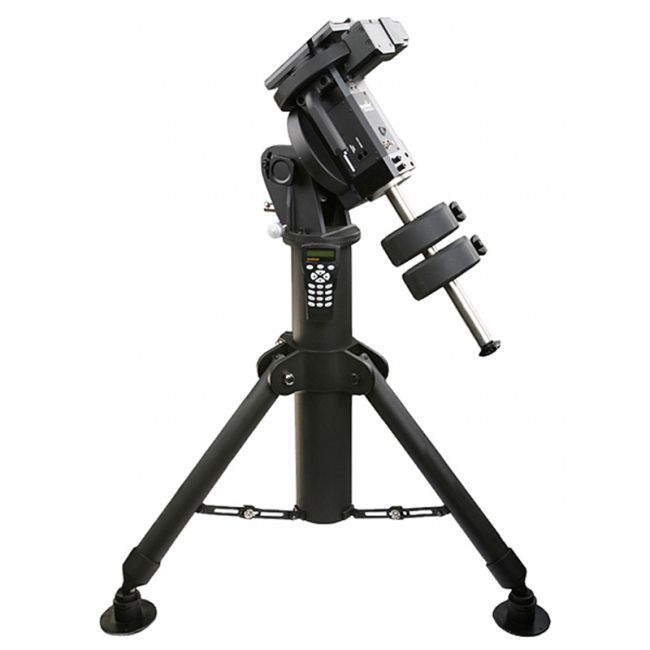

The EQ8 High Precision EQ mount is pier tripod - based
It comes with a SynScan hand hand controller, 2x10kg counterweights and a GPS, with a payload of 50kg. The patented Freedom Find (dual-encoder) technolgy allows the telescope to be moved manually whenever the user wishes - but with no need for re-alignment!
The EQ8 mount is equipped with auxiliary encoders on both the R.A. axis and Dec. axis. Therefore, the mount can keep tracking its current position even when a user unlocks the clutches and rotates the mount in R.A. axis and Dec. axis by hand. With this feature, a user can manually operate the mount anytime without worrying about losing the mount’s alignment status. When the user wants to operate the mount with the SynScan hand control again, no alignment is required and all that is needed to be done is to re-lock the clutches. This feature can be enabled or disabled on the SynScan hand controller.
Permanent Periodic Error Correction
The EQ8 mount is equipped with an index on its R.A. worm. Thus the motor controller can keep tracking the current position of the worm. After a proper PEC training routine, in which the training data is stored in the motor controller permanently, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate), thus this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instructions please refer to the SynScan hand controller manual.
Batch Exposure Function
The EQ8 mount is equipped with a SNAP port which can control the shutter release of a camera. Working with the SynScan hand control’s “Camera Control” function, a user can take batch exposures when doing astrophotography. Up to 8 groups of “Exposure-time & Frames” combinations can be set on the SynScan hand controller. For detailed information, refer to the SynScan hand controller manual.
The EQ8 mount is equipped with two home position sensors. Working with the SynScan hand controller, the mount can be placed to the same home position after turning on the power. For detailed information, refer to the SynScan hand controller manual.
Included in the Box
Sky-Watcher EQ8 Mount Without Pier Tripod
5 Years Genuine Warranty with Sky Watcher Australia
This Sky-Watcher EQ8 Mount Without Pier Tripod comes with 5 Years Genuine Warranty with Sky Watcher Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Mount Type German Equatorial Counter Weight 2x10 kg Motor Drive 0.9 º Hybrid Stepper Motor GoTo SynScan hand controller Tripod Height Pier Tripod Tripod Weight 31 kg Shipping Weight 4 boxes: 31kg+28kg+11kg+11kg Shipping Carton Dimensions 98x48x50 cm3; 66x61x71 cm3; 24x13x26 cm3; 24x13x26 cm3 Power Supply DC11-16v 4A Payload Capacity 50 kg Tracking Modes EQ Tracking Rates sidereal, dolar rate, lunar rate Slewing Speed Maximum 3.3 degrees/second Guiding Speed 0.125x, 0.25x, 0.5x, 0.75x, 1x
