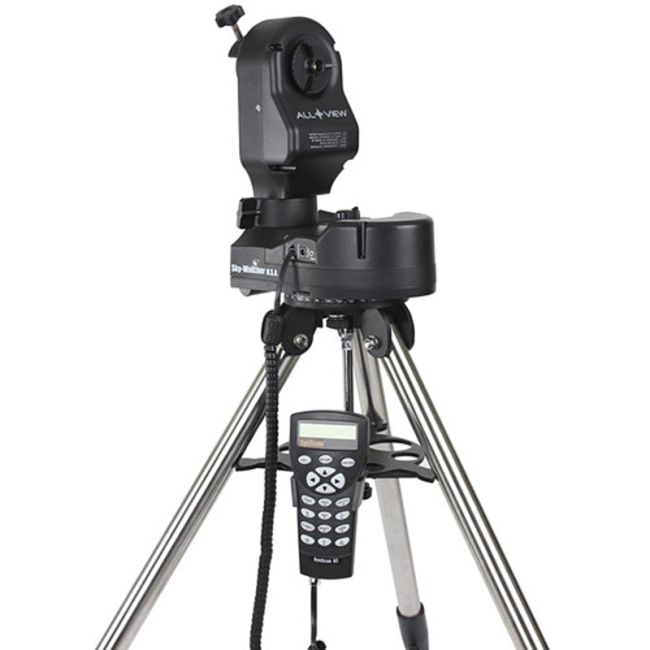

- Sky-Watcher All View Mount
With the patented Freedom Find (dual-encoder) technology, the All View Mount allows your telescope to be moved electronically or manually in either axis without losing the alignment or even its angle positioning. It is reinforced with a stainless steel tripod with an accessory tray.The AZ Synscan Hand control with database of over 42,900 celestial objects works for those who wish to browse celestial objects including complete Messier, NGC, IC SAO catalogues and 25 user defined objects. You can snap on the images with the Electronic shutter release via hand control access. The multi-purpose Sky-Watcher All View Mount is designed for use with altazimuth go-to computerized astronomical mount, a stable platform for time lapse panning videos or still images, a motorized platform for taking panoramic photographs, and a motorized panning head for smooth panning video. For digital photography or videography, you can use the cable supplied for Canon DSLR. This tripod is capable of supporting a Payload capacity of 4 Kg.
Product Features in Detail
Freedom Find (dual-encoder) on each axis allows manual movement without losing alignment or position infomation
Freedom Find™ - tracking made easy!
With the patented Freedom Find (dual-encoder) technology which allows the telescope to be moved manually or electronically in either axis without losing its alignment or positional information. After moving to a new object the telescope will automatically begin to track the new object accurately. No re-setup is required in one observing session.
Electronic shutter release to automatically trigger camera exposures in panoramic mode*
Multi-Layer panorama picture
Free-angle, 360° line-by-line panorama
Motorized panning head
Utilize your still camera to create panning Time-Lapse videos
Tracking and GOTO
AZ Synscan Hand control with database of over 42,900 celestial objects
Telescopes up to 5kg can be mounted to either the 45mm dovetail or the supplied L-bracket via a standard ¼-20 tripod bush. Longer telescopes can be mounted on the outside of the mounting arm allowing complete freedom of vertical movement. The supplied Synscan handset has a database of over 42,900 celestial objects, and can command the mount to locate and track those objects automatically, allowing you to explore the night sky to your heart’s content. The patented dual-encoder design means the mount can also be moved by hand without losing alignment or positional information.
Video Cruising and Time Lapse mode: DSLR interface
Includes shutter release cable for Canon Rebel EOS DSLR cameras. Optional cable available for other camera models.
In Video Coursing mode, the mount allows you to capture up to 10 hours of video between two user-determined points. The slewing speed bwtween these points is also programmable. Similarly, in Time Lapse mode the users can choose a starting and finishing point, and a slewing time up to 10 hours between these points. This feature allows the users to capture a series of still images (up to 65,535) during the slew, and using suitable image processing software, the images can be merged to create time lapse video.
|Mount Type||Motorized altazimuth with manual release clutch knobs|
|GoTo||All View Hand Controller|
|Slow Motion Control||Motorized|
|Accessory Tray||Large wall-to-wall|
|Motor Drive||DC servo Slew Speeds 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x|
|Power Supply||8 to 15 V DC 1Amp (tip positive)|
|Tracking Rates||Sidereal, Lunar, Solar|
|Tracking Modes||Dual Axis Tracking|
|Payload Capacity||4 kg|
|Shipping Carton Dimensions||113x37x37 cm3|
This product comes with 5 Years Genuine Warranty with Sky Watcher Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Sky-Watcher All View Mount
5 Years Genuine Warranty with Sky Watcher Australia
