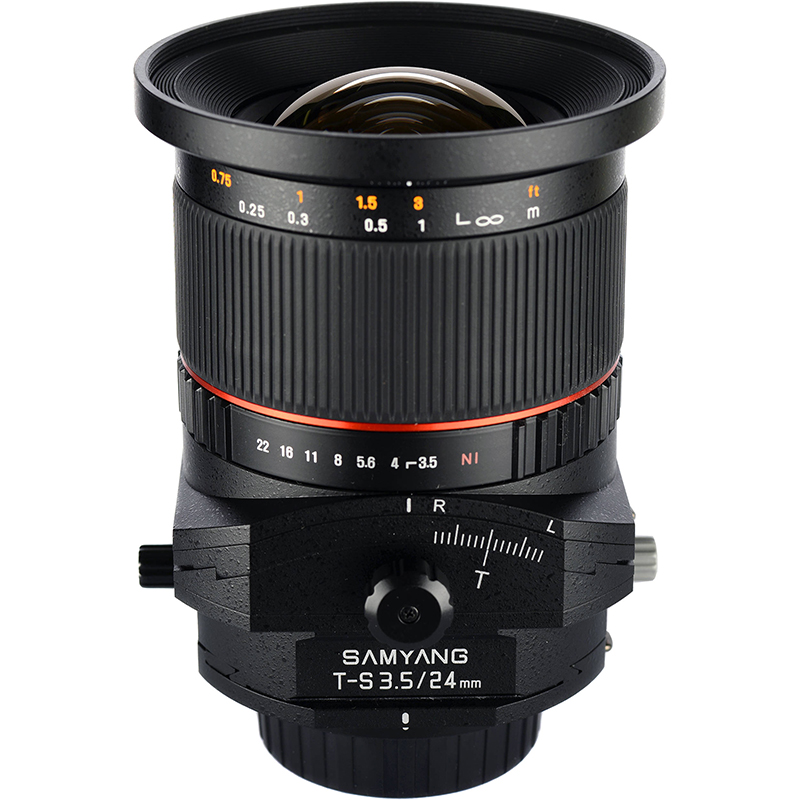

Samyang 24mm F3.5 ED AS UMC Tilt & Shift Canon EOS Full Frame Lens
- F3.5 Aperture
- 24mm Focal Length
- 82mm filter thread
- Extra low dispersion
- Glass aspherical lenses
- Tilt and shift function
- Ultra multi coating
- Mount Rotation Lever
- 24 Months Genuine Australian Warranty
24mm F3.5 ED AS UMC Tilt & Shift is the most advanced lens ever created by Samyang. It integrates Mount Rotation Lever that enables tilt and shift functions of up to 180°. It fits ND, polarisers or any filter with 82mm filter thread. The optical construction consists of Extra low dispersion and Glass aspherical lenses which guarantees a superb optical performance and detailed images even when tilt and shift controls are integrated. The F3.5 Aperture and 24mm Focal Length can be used for wide-angle, full-frame lens photography. Ultra multi coating technology is used to reduce flare and ghost to retain clear image.
Product Features in Detail
Wide-angle, full-frame lens
The Samyang T-S 24mm F3.5 ED AS UMC is a wide-angle, full-frame lens fitted with the perspective control and tilt-shift functions.
Glass aspherical lenses
The adaption glass aspherical lenses reproduce aberration to get high quality image in center and edge of frame and excellent contrast.
Extra low dispersion(ED)
Low dispersion lenses decrease dispersion of unnessarry light so that make aberration little effectively.
Tilt shift
If you need, you could reproduce image into making it real and creative.
Ultra multi coating(UMC)
We apply the UMC(ultra multi coating) of our own technology to reduce flare and ghost as much as possible and get clear and fresh color image.
Mount Rotation Lever
The Mount Rotation Lever enables as a combined unit the Tilt and Shift Sections to be rotated RIGHT up to 90 degrees (with 30 degree adjustment). The Tilt Rotation Lever enables the Tilt section to independently rotate LEFT by 90 degrees (with 30 degree adjustment). Filter size is 82mm.
| Manufacturer | Samyang Optics |
| Model | Samyang T-S 24mm F/3.5 ED AS UMC |
| Lens type | Wide angle Tilt / Shift lens for Full frame or cropped sensors |
| Focal length | 24 mm |
| Maximum aperture | F/3.5 |
| Min aperture | F/22 |
| Angle of view | 59.9 deg. (56.9 deg. for APS-C/DX) |
| Min focusing distance | 0.20m |
| No. of diaphragm blades | 8 |
| Focus type | MF (Manual Focus only) |
| Lens construction | 16 element, 11 groups (2x Aspheric elements) |
| Dimensions | 110.5 - 113mm x 86.0mm |
| Weight | ~ 680g |
| Lens Rotation | Maximum Tilt Amount:+/- 8.5 deg; Maximum Shift Amount: +/- 12mm. Between Tilt and Shift Rotation: 90 deg Left (click stop for every 30 deg step). Mount Rotation: 90 deg Left and Right (click stop for every 30 deg step). |
| Filter Size: | 82mm |
| Available mounts | Canon, Nikon, Sony A-mount, Sony E-mount, Pentax |
Samyang 24mm F3.5 ED AS UMC Tilt & Shift Canon EOS Full Frame Camera Lens
Front Lens Cap
Rear Lens Cap
Soft lens bag
24 Months Australian Warranty
