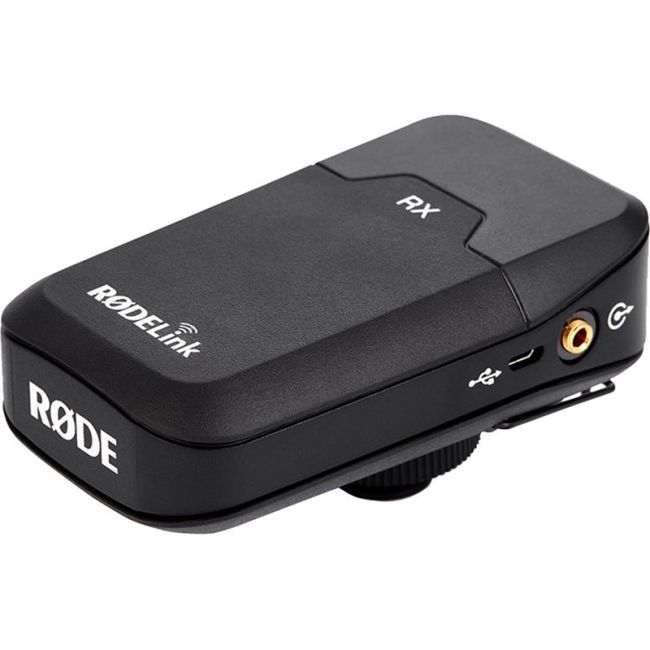

Rode RX-CAM Camera-Mounted Wireless Receiver
- For RODELink Wireless Systems
- 3-Position Gain Switch
- Internal Antenna
- OLED Display
- Multiple Mounting Options
- Channel Selector and Mute Button
- Level and Battery Status Indication
- 3.5mm TRS Locking Jack Output
- Powered via AA Batteries or Micro-USB
The Camera-Mounted Wireless Rode RX-CAM Receiver for RODELink Wireless Systems promises a strong audio reception for use in video and audio recording. It is powered via AA Batteries or Micro-USB. It receives transmission via the internal antenna and can be attached through multiple mounting options. This receiver offers 3-position gain switch including 0 dB, -10 dB, and -20 dB plus the Channel Selector and Mute Button. Featuring an OLED display, it will show the current Level and Battery Status Indication, for the receiver and transmitter, as well as the mute status and current channel. The RX-CAM utilizes a 3.5mm TRS locking jack output connection for dual mono.
Product Features in Detail
Camera-mounted wireless receiver
The RX-CAM is a camera-mounted wireless receiver for the RØDELink digital wireless system. It features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions.
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Output connection | 3.5mm TRS Locking Jack Socket - Dual Mono |
| Output impedance | 300Ω |
| Dimensions | 111mm X 65mm X 52mm |
| Weight | 190gm |
Rode RX-CAM Camera-Mounted Wireless Receiver
SKU: Rode RX-CAM
UPC:
