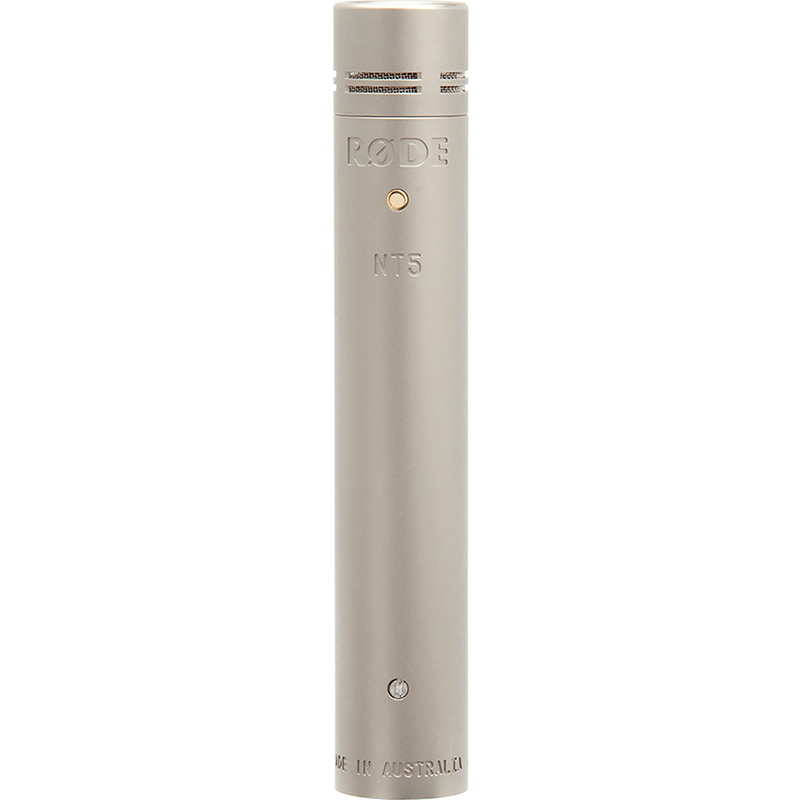

Rode NT5 Microphone
- Externally biased condenser
- Heavy-duty satin-nickel plated body
- Gold sputtered 1/2” capsule
- J-FET impedance converter with bipolar output buffer
- Surface mount circuitry
- Dual power operation
- Full frequency response
- Available as Certified Match Pair
- Low noise
NT5 Microphone is an externally biased condenser intended for recording drum overheads, acoustic instruments, cymbals and live performances. It employs a gold sputtered 1/2” capsule, an active J-FET impedance converter with bipolar output buffer. This mic has surface mount circuitry and dual power operation with full frequency response but gives low noise. Finished in heavy-duty satin nickel plated body, the NT5 is available as a single microphone or as an acoustically matched pair.
Premier small-diaphragm cardioid condenser microphone
The NT5 is RØDE's premier small-diaphragm cardioid condenser microphone, sometimes referred to as a 'pencil mic'.
All around recording
Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer.
Tight cardioid pickup pattern
Its tight cardioid pickup pattern also makes it ideal for use as an indoor dialogue microphone for filmmaking on a mic stand or boom.
Versatility
Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is available.
Available as Certified Match Pair
Finished in durable satin nickel, the NT5 available as a single microphone or as an acoustically matched pair.
Designed and made in Australia
The RØDE NT5 Condenser Microphone is designed and made in Australia.
Acoustic Principle | Pressure Gradient |
Active Electronics | JFET impedance converter with bipolar output buffer |
Capsule | 0.50" |
Polar Pattern | Cardioid |
Address Type | End |
Frequency Range | 20Hz - 20kHz |
Output Impedance | 100Ω |
Maximum SPL | 143dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
Maximum Output Level | 13.9dBu (@ 1kHz, 1% THD into 1KΩ load) |
Sensitivity | -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) | 16dB-A |
Power Options | +24V phantom power+48V phantom power |
Weight | 101.00gm |
Dimensions | 118.00mmH x 20.00mmW x 20.00mmD |
Output | XLR Output |
RODE NT5 Microphone
Durable Microphone Clip RM5
Pop Filter/Wind Shield WS5
Padded Zip Pouch ZP1
