Rode RODELink Digital Wireless System Kit for FilmmakersBookmark and Share

MODEL: RODE-DIGITAL-WIRELESS-SYSTEM-FILMMAKER-KIT
Categories: Rode Microphones, Rode Microphones,

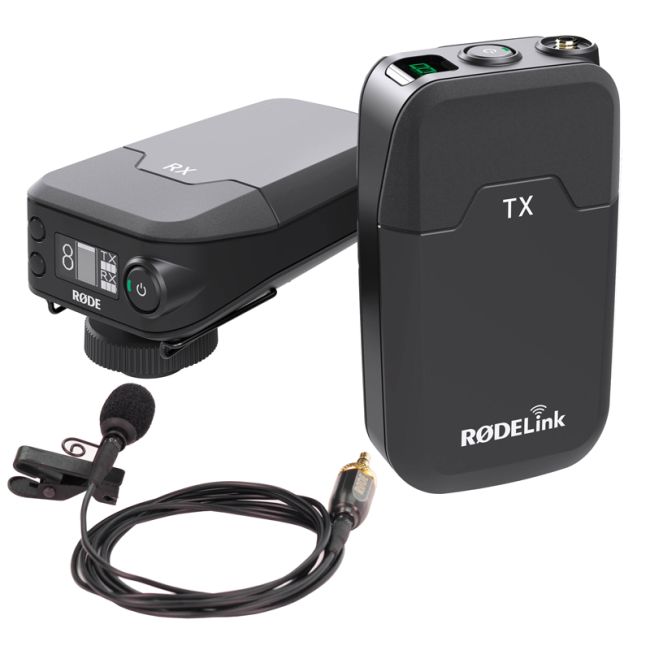

Rode RODELink Digital Wireless System Kit for Filmmakers
Click for larger view
Click for rear view

Main Product

Rode RODELink Digital Wireless System Kit for Filmmakers $429.00 Ships tomorrow

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Series II, 2.4GHz digital transmission
  • Up to 100 metres range
  • 128-bit encryption
  • One button pairing
  • OLED display (on receiver)
  • AA battery or USB powered
  • Three level gain control
  • Includes RØDE's broadcast Lavalier microphone
  • 12 Months Warranty plus extra 10 years when registered on RODE website

The RodeLink Digital Wireless System Kit is the answer to digital recording of up to 100 metres range. It uses series II, 2.4GHz digital transmission with 128-bit encryption capable of handling long frequencies maintaining a strong signal. This kit features OLED display (on receiver) providing the status of the battery, level info, channel, and mute selection. It is powered by either a AA battery or USB. The wireless system consists of three level gain control and one button pairing


Product Features in Detail

Digital wireless system
RØDELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres (over 100 yards).

Wireless video shooting
The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone.

OLED display
The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection.

3/8" thread shoe mount
The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions.

Secure microphone connection
The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible.

Omnidirectional Lavalier microphone
RØDE’s omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.

Pwerful & Secure
Using a series II 2.4GHz encrypted digital transmission that is sent on two channels simultaneously, RØDELink automatically selects the strongest signal and ensures your audio is as reliable and secure as a cabled connection.

Designed & made in Australia
The RØDELink system is proudly designed and manufactured at RØDE’s headquarters in Sydney, Australia.


Included in the Box

     RODE RodeLink Digital Wireless System Kit for Filmmakers
     Lavalier Lapel Microphone
     RX-CAM Camera-Mounted Wireless Receiver
     TX-BELT Beltpack Wireless Transmitter
     Captive TRS cable
     12 months Warranty plus extra 10 years when registered on RODE website


Warranty Information

     This RODE RodeLink Digital Wireless System Kit for Filmmakers comes with 12 months Warranty plus extra 10 years when registered on RODE website.
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.




Tech Specs

Transmission type 2.4GHz Fixed Frequency Agile System
System dynamic range 112dB
Range (distance) 100m
Frequency range 35Hz - 22kHz
Maximum output level 1v Rms (2.8v P-p)
Max input signal level 1v Rms (2.8v P-p)
Max latency 4ms
Receiver (RX-CAM)

Power source
2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance 300Ω
Dimensions 111mm X 65mm X 52mm
Weight 190gm
Transmitter (TX-BELT)

Power source
2 X AA Battery Or MicroUSB
Antenna Internal
Output connection 3.5mm TRS Locking Jack Socket
Output impedance 10kΩ
Dimensions 111mm X 65mm X 40mm
Weight 190gm
Lavalier

Acoustic Principle
Pressure Gradient
Active Electronics JFET impedance converter
Capsule 0.10"
Address Type End
Frequency Range 60Hz - 18kHz
Output Impedance 3000Ω
Maximum SPL 110dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum Output Level 189.0dBu (@ 1kHz, 1% THD into 1KΩ load
Sensitivity -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted) 25dB-A
Weight 1.00gm
Dimensions 12.00mmH x 4.50mmW x 4.50mmD
