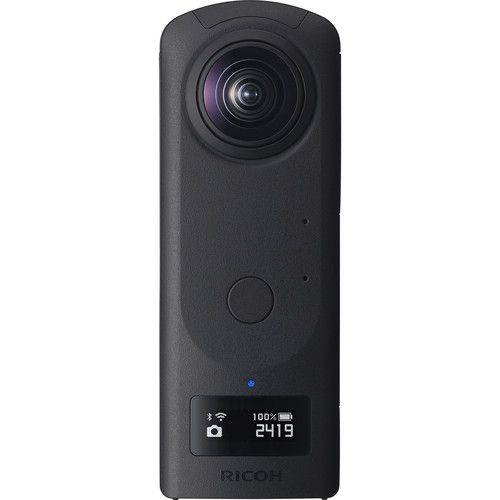

Ricoh Theta Z1 360 Camera
- 360-Degree Footage
- 23 Megapixel Still Images (RAW or JPEG)
- 4K Video Recording and Live Streaming
- Dual 1-inch CMOS Sensors
- Improved Low Light Performance
- F2.1, F3.5 and F5.6 Aperture Selection
- 19GB Internal Storage
- 3-Axis Image Stabilisation
- Magnesium Alloy Build
360 Photography and videography is the latest fascinating step in the digital media evolution. The Ricoh THETA Z1 is the next distinct step in this evolution. The advancement and innovation of new technology always have its initial pitfalls. Where focus originally starts on innovation the next step is to refine. With the improved stabilisation, low light performance and the inclusion of live streaming the THETA Z1 is the well refined next step!
Low light performance was one of the weak points of the previous 360 camera. The updated dual 1-inch CMOS sensor allows for an impressively improved low light performance. The lenses of the camera feature an improved design with less ghosting, fringing, and flares. Aperture can be selected from f/2.1, f/3.5, and f/5.6. In addition to JPEG photos, the THETA Z1 can capture Adobe DNG raw files, giving photographers greater flexibility in editing to produce higher-quality results. Other specs and features include 19GB of built-in storage, 4-channel mics, 3-axis rotational stabilization, a Function (Fn) button, and 360-degree live streaming in 4K or 2K.
Product Features in Details
4K Recording and Live Streaming
Records natural 360° images using approx. 23MP (6720 x 3360, 7k) still images shooting and highly accurate image stitching.
Dual 1-inch CMOS Image Sensor
The camera demonstrates superior noise reduction performance even when shooting at night or indoors with low light due to the equipped 1.0-inch back-illuminated CMOS images sensor.
F2.1, F3.5 and F5.6 Aperture Selection
Using a newly developed lens unit which reduces ghosting, flare and purple fringe. Aperture mechanism is newly adopted with the selection of F2.1, F3.5 and F5.6. By closing down the aperture, higher resolution is achieved.
Supports various shooting modes.
It is possible to save RAW (DNG) format for the first time in THETA series. You can also save in JPEG at the same time.
Exterior/external dimensions | 48mm (W) × 132.5mm (H) × 29.7mm (24mm*9) (D) |
Weight] Approx. 182 g | 182 g |
Still image resolution 6720x3360 | 6720x3360 |
Video resolution/frame rate/bit rate | 4K 3840×1920/29.97fps/56Mbps |
2K 1920×960/29.97fps/16Mbps | |
Live streaming resolution/frame rate (USB) | 4K H264: 3840×1920/29.97fps/120Mbps |
2K H264: 1920×960/29.97fps/42Mbps | |
Microphone 4ch | 4ch |
Internal memory/Number of photos that can be recorded, time *2 | Approx. 19GB |
Still image: RAW+ Approx. 350 photos, JPEG Approx. 2400 photos | |
Video (time per recording): Max. 5 minutes/25 minutes*3*4 | |
Video (total recording time): (4K, H.264) approx. 40 minutes | |
(2K, H.264) approx. 130 minutes | |
Compatible accessories | Tripod/stand (includes tripod mount hole) |
Bundled items | Soft case and USB cable |
Object distance | Approx. 40cm - ∞ (from front of lens) |
Still image/video: Auto, Aperture priority, Shutter priority, ISO priority, Manual*3 | |
Live streaming: Auto | |
Exposure control mode | Program AE, Aperture priority AE, Shutter priority AE, ISO priority AE, Manual |
Exposure compensation | Still image/Video: Manual compensation(-2.0 to +2.0 EV, 1/3 EV steps)*3 |
ISO sensitivity (standard output sensitivity) | Still image/video: (Auto) ISO 80 to 6400 (Can set upper limit) |
(Manual mode) ISO 80 to 6400 *3 | |
Live streaming: ISO 80 to 6400 | |
White balance mode | Still image/Video: Auto, Outdoor, Shade, Cloudy, Incandescent light 1, Incandescent light 2, Daylight color fluorescent light, Natural white fluorescent light, White fluorescent light, Light bulb color fluorescent light, Color temperature settings (2500 to 10000 K)*3 |
Live streaming: Auto | |
Shutter speed | Still image: (Auto) 1/25000 to 1/8 seconds, |
(shutter priority mode) 1/25000 to 1/8 seconds *1 | |
(Manual mode) 1/25000 to 60 seconds *1 | |
Video: (Auto) 1/25000 to 1/30 seconds | |
(Shutter priority, Manual) 1/25000 to 1/30 seconds*3 | |
Live streaming: (Auto) 1/25000 to 1/30 seconds | |
Shooting functions | Still image: Noise reduction, DR compensation, HDR rendering, Interval shooting, Interval composite shooting, Multi-bracketing shooting, Self-timer (2, 5 and 10 seconds), My Settings |
Video: Self-timer (2, 5 and 10 seconds), My Settings | |
Power source Lithium ion battery (built-in) *7 | |
Battery life Still image: Approx. 300 photos *8 | |
Video: Approx. 60 minutes *8 | |
Recording file format | Still image: RAW(DNG)*2, JPEG(Exif Ver2.3) |
Video: MP4 (Image: MPEG-4 AVC/H.264, Audio: AAC-LC (mono) + Linear PCM (4ch spatial audio)) | |
Live streaming: Image: H.264, Audio: Linear PCM(4ch) | |
USB Type-C:USB3.0 | |
CA-3-compatible | |
14 elements in 10 groups | |
F2.1, 3.5, 5.6 | |
Image sensor_size | 1.0-inch type (x2) |
Effective pixels] | Approx. 20 megapixels (x2) |
Output pixels | approx. 23 megapixels |
Wireless compliance standard | IEEE802.11 a/b/g/n/ac (2.4GHz/5GHz)*5 |
IEEE802.11 b/g/n (2.4GHz only) | |
Bluetooth 4.2 | |
Wireless supported channels 2.4 GHz: 1 to 11ch or 1 to 13ch *6 | 2.4 GHz: 1 to 11ch or 1 to 13ch *6 |
5 GHz: W52 (36 to 48ch, channel bandwidth 20/40/80 MHz supported) *5 | 5 GHz: W52 (36 to 48ch, channel bandwidth 20/40/80 MHz supported) *5 |
Wireless communication protocol (WLAN) | HTTP (Open Spherical Camera API v2 compatible) |
Wireless communication protocol (Bluetooth) | GATT(Generic Attribute Profile) |
Usage temperature range 0°C - 40°C | 0°C - 40°C |
Usage humidity range 90% or less | 90% or less |
Storage temperature range | -20°C - 60°C |
- Ricoh THETA Z1 360 Camera
- USB Cable
- Soft Case
