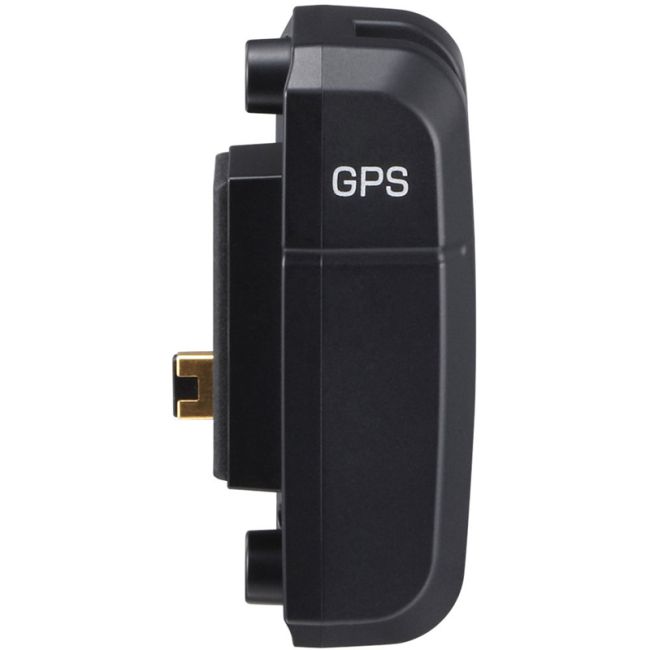

Ricoh GP-1 GPS Receiver
- Compatible with Ricoh G700SE & G800SE Cameras
- Records GPS Data and Compass Headings
- Class 4 Water Resistance
- 12 Months Genuine Australia Warranty from CR Kennedy
- Compatible with Ricoh G700SE & G800SE Cameras
- Records GPS Data and Compass Headings
- Class 4 Water Resistance
- Shockproof to 3.9', IP64 Rated on Camera
- Powered by Camera's Battery
- 12 Months Genuine Australia Warranty from CR Kennedy
Ricoh GP-1 GPS Receiver is a camera accessory compatible with Ricoh G700SE & G800SE Cameras. It is used to record GPS Data and Compass Headings then embed the data to your image or movie files. Even if attached to the camera, it still provides class 4 water resistance, Shockproof to 3.9', and IP64 Rate on Camera. It works powered by camera's battery.
This GPS unit is for use exclusively with RICOH G700SE cameras
It can be used to record GPS data (longitude and latitude) and compass headings in photographs taken while it is connected to a G700SE.
The GP-1 is not equipped with a battery or on/off switch
When the camera is turned on, power is supplied to the GP-1, the status lamp (c) turns green, and GPS data acquisition begins automatically.
Status LEDs
The status lamp (c) glows green while GPS data are updated and blinks green when the update is complete.
Accuracy
GPS Accuracy: 2D RMS approx. 5m *During clear skies (fine weather with no obstructions, and an angle of elevation greater than 30 degrees) Digital compass direction accuracy: ±6 degrees *Measurement error calculated from Magnetic north.
Included in the Box
Ricoh GP-1 GPS Receiver
12 months Warranty from CR Kennedy Australia
Warranty Information
This Ricoh GP-1 GPS Receiver comes with 12 months Warranty from CR Kennedy Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
| Supported cameras | RICOH G700SE & G800SE | |
| GPS | Receiver | Maximum number of satellites |
| tracked: 48 | ||
| Acquisition times (*1) | Cold start: Approximately 40 s | |
| Hot start: Approximately 5 s | ||
| Update rate | 1 s | |
| Data format | NMEA 0183 | |
| Position accuracy (*1) | 2D RMS Approximately 5 m | |
| Electronic compass | Calibration | Manual/auto dual format |
| Directional precision (*2) | ±6 degrees | |
| Directional resolution | Display resolution: 1 degree | |
| Recording resolution: 0.1 degree | ||
| Average power consumption | 300 mW | |
| Dimensions (W × H × D) | 28.5 mm × 58.9 mm × 25.5 mm | |
| Weight | 42.5 g | |
| Operating temperature | –10 °C to +40 °C | |
| Operating humidity | 20% – 90% | |
| Storage temperature | –20 °C to +60 °C | |
| Water/dust resistance (*3) | JIS/IEC Class 4 water resistance, | |
| JIS/IEC Class 6 dust resistance (IP64) | ||
