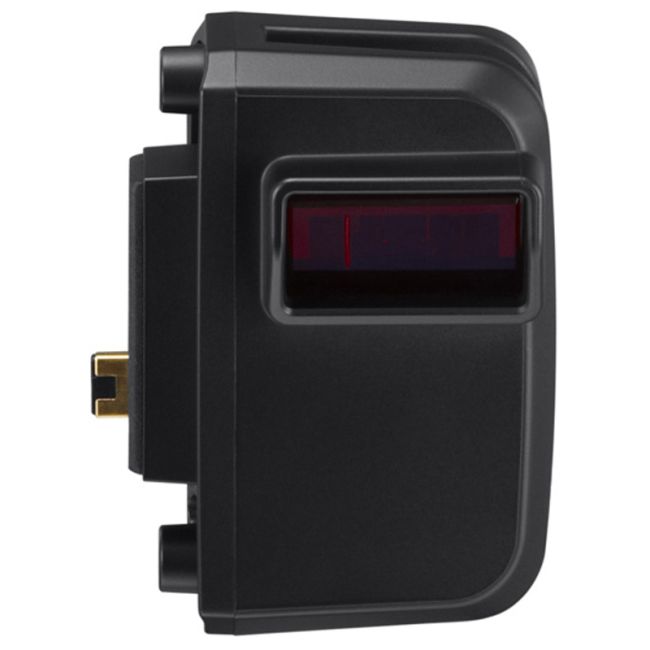

Ricoh BR1 Barcode Reader
- 12 Months Genuine Australia Warranty from CR Kennedy
- Used for a Camera to Read One-Dimensional Bar Codes
- Can be Used Even in Dark Places
- 12 Months Genuine Australia Warranty from CR Kennedy
The Ricoh BR1 Barcode Reader is used for a camera to read one-dimensional bar codes. In order to read the barcode, laser light is emitted while the main camera lens recognizes the input. It can be used even in dark places.
Product Features in Detail
Supports IP64 dirt resistance and waterproofing
Even with the BR-1 attached, the camera supports IP64 dirt resistance and waterproofing, and can withstand the impact from a 1.5m fall.
The reading of one bar codes is supported
The saving of bar codes as camera memos can be useful for freight management in logistics, prevention of patient data mix-ups in medical facilities, etc.
The BR-1 is not equipped with a battery or on/off switch
When the camera is turned on, power is supplied to the BR-1, the status lamp (d) turns green, and an icon appears in the picture display.
Included in the Box
Ricoh BR1 Barcode Reader
12 months Warranty from CR Kennedy Australia
Warranty Information
This Ricoh BR1 Barcode Reader comes with 12 months Warranty from CR Kennedy Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
| Supported cameras | RICOH G700SE |
| Supported barcodes (linear barcodes only) |
Chinese 2 of 5, Codabar, Code 11, |
| Code 32 (Italian Pharma Code), Code 39, | |
| Code 39 Full ASCII, Code 93, Code 128, EAN-8, | |
| EAN-13, UCC/EAN128, MSI, Interleaved 2 of 5, | |
| Discrete 2 of 5, UPC-A, UPC-E, JAN/UPC/EAN, | |
| JAN/UPC/EAN with Supplementals | |
| Resolution | 0.1016 mm – 1.3970 mm |
| Light source | Output: 0.7 mW |
| Wavelength: 655 nm | |
| MRD value | Min. 25% (wavelength = 650 nm) |
| Sampling frequency | 104 ± 12 scans/sec |
| Ambient light | Artificial light: 4100 lx (excluding sodium-vapor lamps) |
| Sunlight: 91000 lx | |
| Power consumption | 400 mW |
| Dimension s (W × H × D) | 42.5 × 58.7 × 35.0 mm |
| Weight | 42.5 g |
| Operating temperature | –10 °C to +40 °C |
| Operating humidity | 20% – 90% |
| Storage temperature | –20 °C to +60 °C |
| Water/dust resistance (*) | JIS/IEC Class 4 water resistance, JIS/IEC Class 6 |
| dust resistance (IP64) | |
| Resistance to disinfectant | Outer surface can be cleaned with ethanol and liquid sodium hypochlorite disinfectants |
(*) When mounted on RICOH G700SE
