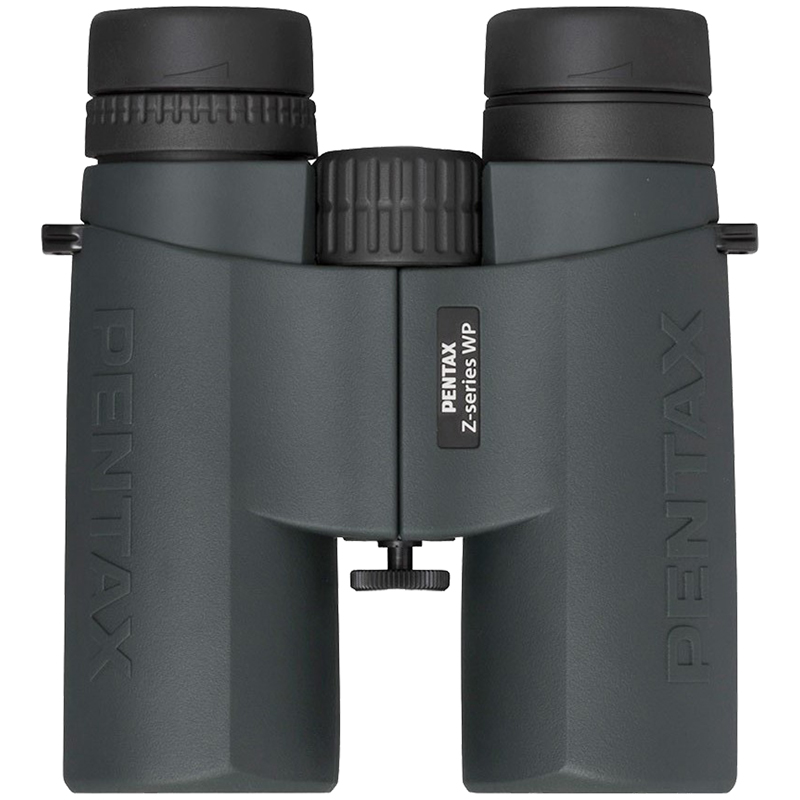

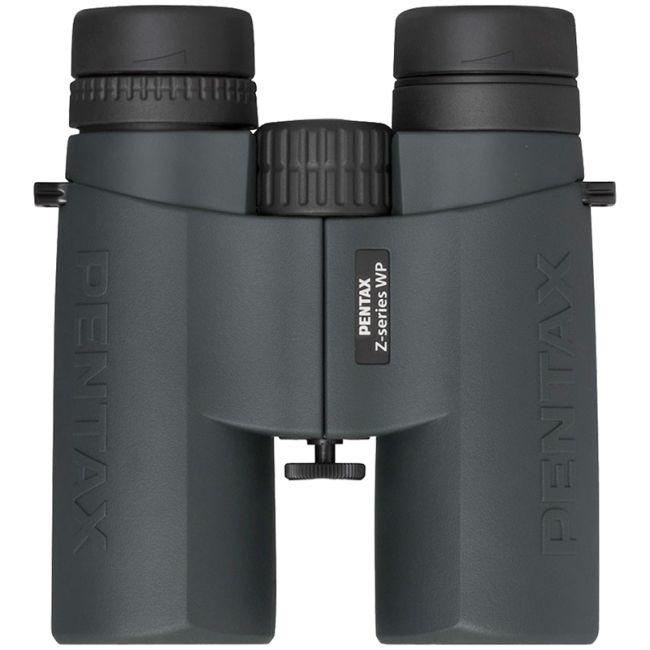

- Pentax ZD 10x43 WP Binoculars
The Pentax Z series binoculars promise high level quality and clarity in its entire range. They are built to perform at its best with the new fully multi-coated optics and new enhanced light transmission coatings with Protective lens coating. The ZD 10x43 WP has 10X magnification and 43mm lens objectives which incorporates hybrid aspherical lens element with phase correction to clearly see your angle of view in its clearest perspective. Built in a magnesium alloy construction, its specialized toughness keeps the binoculars lightweight yet robust. The Z series binoculars are also waterproof, nitrogen-filled and unique hydrophobic coating.
Product Features in Detail
New Fully-multi-coated optics
Fully multi-coated lenses serve the essential purpose of maximizing the amount of light passing through a lens, thereby prevent flare and ghosting from interfering with your view. PENTAX applies multiple layers of coatings to every surface of every element and prism in the full Sport Optics line-up. These fully-multi-coated optics assure the maximum light transmission resulting in a clear, crisp view of the world.
New Enhanced Light Transmission Coatings
PENTAX binoculars take quality optics to the next level by applying a new, optimized film-deposition technology on lens and prism surfaces resulting in increased light transmission which creates bright images with accurate color rendition
Protective Lens Coating
All optical surfaces are delicate and must be handled with care to prevent scratching. To add to the durability of the Z- and S-series Water Proof binoculars*, PENTAX has added a protective, nano technology coating that helps deflect water, oil, dust and dirt. This allows PENTAX binoculars to withstand the harshest viewing conditions.
Due to its outstanding refractive index, the BaK4 glass prism found in all PENTAX Sport Optics is highly acclaimed for its perfectly round exit pupil and clear, unvignetted image.
The complex optical design of roof prism binoculars provide durable, compact, yet lightweight design but require a higher level of optical perfection. A phase-correction coating is applied in the full range of roof prism binoculars to maximize image viewing quality.
PENTAX waterproof products are fully sealed and purged with laboratory grade nitrogen to provide a fog proof view in the harshest weather conditions. With a JIS Class 6 rating, PENTAX waterproof binoculars can even be submerged in up to 3 feet of water.
Unique Hydrophobic Coating
Water droplets on a lens have a negative influence on the ability of light to enter the objective lens. By using a unique water repellent coating on all outer lenses we make water drops “bead” into small, deformed droplets. The deformed droplets cause less distortion and “slide” more easily off the lens. Your binocular remains fully functional even in rain, snow, fog or condensing breath.
Inner Focus Optics Design
This sophisticated optical design is critical to low-maintenance and long life guarantee. Exposure to airbourne particles and moisture is avoided, thereby ensuring that no outside influences can penetrate the housing and disrupt functionality.
Hybrid Aspherical lens elements
Edge-to-edge sharpness is a vital element to comfortable viewing. To achieve this, we utilise aspherical lens elements in our eyepieces. This is a specially shaped lens design that reduces aberration to a minimum. Hybrid-Aspherical lens elements have the additional advantage of superior functionality while being lightweight and compact.
Dielectric Coating of the prisms serves to enhance the colors of the image. Multiple layers of surface correction coatings are “vaporized” onto the surface of the prisms in a vacuum. This maximizes the quality of visible light in the color spectrum between infra-red and ultra-violet as it passes through the glass.
Nitrogen is a chemical element and a colorless, odorless and tasteless gas. It contains very little humidity and is therefore used to “purge” binoculars and spotting scopes of the high humidity air that is part of our environment. Due to the low humidity factor, nitrogen prevents condensation from forming on the internal lenses of optical instruments during phases of rapid temperature change. Furthermore, because nitrogen is purged into the optical instrument at slightly above atmospheric pressure, dust and other miniscule particles are prevented from entering the housing.
Superb impact resistance
The body is made from magnesium, which adds toughness while keeping the binoculars light. In addition, the exterior rubber coating provides the binoculars with superb resistance to shocks and impacts.
Long eye relief design
The long eye relief offered in all PENTAX Sport Optics allows the viewer to see the entire field of view clearly and effortlessly. This is especially beneficial to eyeglass wearers, and allows viewing for extended periods of time without added eye strain.
|Objective Lens Diameter||43 mm|
|Field of View at 1000m||105 m|
|Exit pupil aperture||4.3 mm|
|Eye Relief||17 mm|
|Water proof||Yes (JIS Class 6) – Nitrogen purged|
|Accessories||Objective and eyepiece caps, case, strap|
|Prism coating||BaK4 with High Resolution Phase Correcting coating|
|Lens coating||New fully multi-coated optics, New enhanced light transmission coatings, Protective lens coating|
|Close focus||2.0 m|
|Tripod Adaptor||With adapter TP-3 – PENTAX Code No. 69554|
This Pentax ZD 10x43 WP Binoculars comes with 10 years Australian Warranty with CR Kennedy.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities
Pentax ZD 10x43 WP Binoculars
10 years Australian Warranty with CR Kennedy
