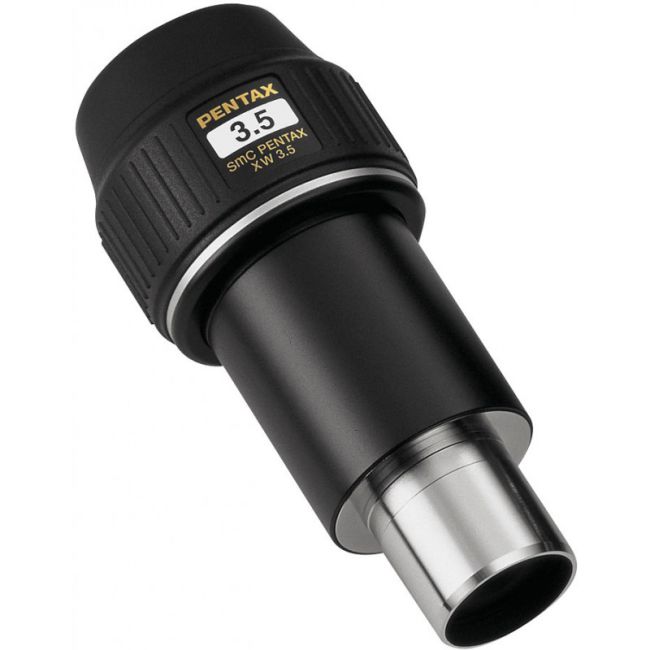

Pentax Eyepiece SMC XW-3.5

• 3.5mm Focal Length
• Multi-Coated with Special Coating
• Continuous Helicoid Eyecup Design
• 20mm Eye Relief
• 70° Apparent Field of View
• Waterproof & Fogproof
• 12 Months Warranty with CR Kennedy Australia

Designed for use with Pentax Spotting Scopes, the Eyepiece SMC XW-3.5 offers 3.5mm focal length with high refraction and low dispersion.  The glass construction is Multi-Coated with Special Coating to minimize ghosting and flare. It is built with 8 elements in 5 groups plus 70° Apparent Field of View and 20mm Eye Relief thanks to the continuous helicoid eyecup design.

Product Features in Detail

Clear, Comfortable Viewing Assured by 70° Apparent Angle of View and 20mm Eye Relief
All smc PENTAX XW-series eyepieces feature an extra-wide 70-degree apparent angle of view and an extra-long 20mm eye relief to deliver an exciting, wide-perspective image.

High-Grade Optics for Exceptional Image Quality
The high-performance XW-series optics incorporates high-refraction, extra-low-dispersion lanthanum glass elements to produce a well-balanced image with minimal aberrations. It is particularly designed to reduce the disturbing blackout effect by effectively compensating the spherical aberration of the pupil.

PENTAX-Original Multi-Layer Coating for Outstanding Light Transmission Efficiency
All lens surfaces that come in contact with air are treated with the original multi-layer coating, while all laminated surfaces are treated with the innovative partial coating, to offer the light transmission efficiency of more than 90 percent (an astonishing 96 percent at 550nm) over the visible light spectrum.

Advanced Light-Shielding Technology for Improved Image Contrast
Thanks to PENTAX’s advanced computer simulation technology, the XW series features a light-shielding diaphragm at the most effective position to drastically reduce internal reflections for a brighter, higher-contrast image.

Weatherproof Construction for All-Weather Viewing
The XW series features JIS Class 4 weatherproof construction,* making it possible to use it in drizzle or under night dew.
* The XW-series eyepieces are not designed for underwater use and should not be submerged under water.

American-Standard Eyepiece Sleeve and Built-In Adapter-Mounting Screw
The XW series features the American-standard 31.7mm for smooth, easy installation on the PENTAX spotting scopes. When the rotatable eyecup is removed, it also offers an adapter-mounting screw/thread (43mm in diameter with a 0.75mm pitch).

 Included in the Box

     Pentax Eyepiece SMC XW-3.5
     Front & Rear Push-On Lenscaps
     Helicoid Case
     12 Months Australian Warranty with CR Kennedy
