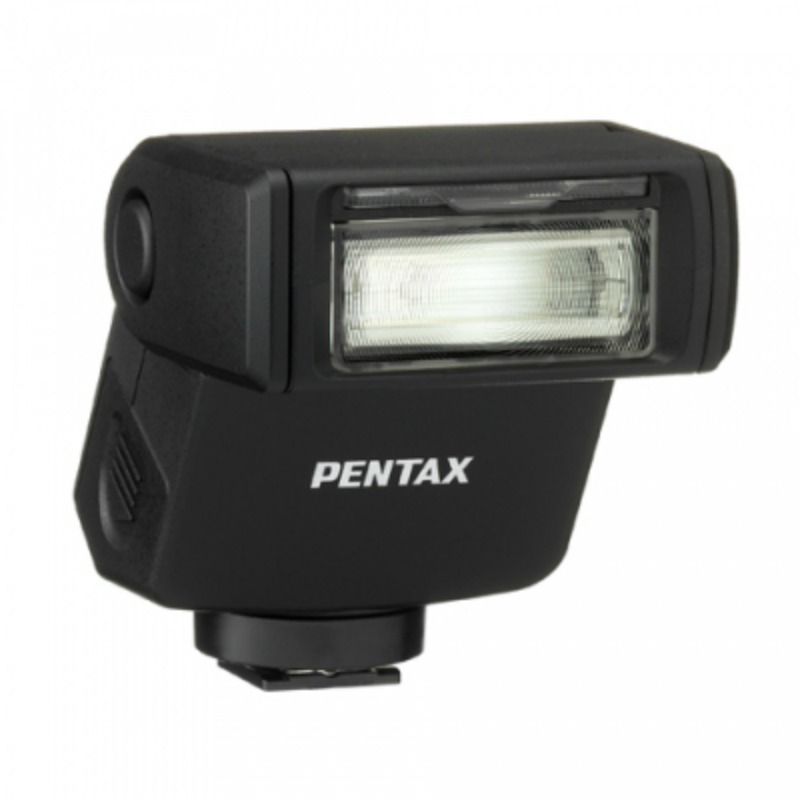

Pentax AF-201FG Flash Unit
- P-TTL auto flash unit
- Guide number of 20 at ISO 100/m
- Dustproof, weather-resistant
- Bounce flash function, adjustable to angles of -10 to 135° vertically
- Built-in wide-angle panel
- Powered by Two AAA batteries
- Compact and lightweight
Designed for use with the Pentax interchangeable digital cameras, the AF201 FGP-TTL auto flash unit is made to be very durable during any shooting condition plus it is dustproof and weather-resistant. It has a guide number of 20 at ISO 100/m and features bounce flash function and adjustable to angles of -10 to 135° vertically which softens the subject’s shadow. The built-in wide-angle panel is used to cover the angle of view of your ultra wide lens. This flash is powered by two AAA batteries that don’t compromise the compact and lightweight construction.
Product Features in Detail
Compact body, with dependable dustproof, weather-resistant design for outdoor shooting
This auto flash unit has a compact, well-balanced body ideal for use with PENTAX K-series digital SLR cameras and the smaller, lighter Q-series lens-interchangeable models. Thanks to 18 seals applied in crucial parts of the body including the hotshoe, it features a highly dependable dustproof, weather-resistant construction. When paired with a dustproof, weather-resistant camera body and lens, it assures solid performance, even in harsh outdoor conditions such as rain and dust.
Bounce flash function up to a 135-degree tilt angle
The flash head can be adjusted vertically to 10 different angles (-10, 0, 30, 45, 60, 75, 90, 105, 120 and 135 degrees) for bounce flash operation. By bouncing the flash discharge off the ceiling or wall during indoor shooting, the user can soften the subject’s shadow to create more natural, true-to-life portraiture.
Simplified, dial-access operation
This flash unit features a simplified operating system that lets the user start flash photography instantly by turning the discharge mode dial, which double-functions as the ON/OFF switch. In addition to the OFF position, this dial provides a choice of four discharge modes: P-TTL auto flash with leading-curtain synchronization and P-TTL auto flash with trailing-curtain synchronization, in both of which the flash’s preliminary emission is detected by the camera’s light sensor to accurately control the main discharge level for proper exposure; and manual flash with full discharge and manual flash with 1/4-level discharge.
Other features
Built-in wide-angle panel that slides out to cover 20mm angle of view (in 35mm format)
| Type | Clip-on, P-TTL auto zoom flash |
| Flash Modes | P-TTL auto, TTL auto, auto, manual |
| Bounce Head | Yes, (-10º, 0º, 30º, 45º, 60º, 75º, 90º) |
| Zoom Head | 24-85mm (20mm w/ wide angle diffusor, flash senses focal length automatically) |
| Focal Length | 24-85mm (20mm w/ wide angle diffusor) |
| Flash Range | 2.6' – 26.3' (GN 54, ISO 100, F5.6) |
| Color Temp | Daylight |
| Other Functions | Auto Power Off, Test Discharge, 1s modeling flash, P-TTL wireless flash, wide angle diffusor, catchlight panel, autofocus spotbeam |
| Dimensions | 3.0" x 5.6" x 4.2" |
| Notes | TR Power Pack 3 (optional) available as an external power source for the AF500FGZ flash. |
| Flash Control | TTL-series-control auto flash, manual flash |
| Flash Exposure Compensation | In P-TTL mode, -3.0 to +1.0 steps (0.5-steps increments) |
| Swivel Head | Right: (0º, 30º, 60º, 90º, 120º, 150º, 180º) |
| Left: (0º, 30º, 60º, 90º, 135º) | |
| Discharge Angles | 31-78 degrees horizontal, 23-60 degrees vertical (98 degrees horizontal, 85 degrees vertical with wide angle diffusor) |
| Guide Number | 178.2 at ISO 100/ft (54 at ISO 100/m) |
| Interval Battery Life | Alkaline batteries - approx 6s interval, 200 full discharges |
| Lithium batteries - approx 6s interval, 350 full discharges | |
| NiMH batteries - approx 6s interval, 250 full discharges | |
| TR Power Pack 3 - approx 4.5s interval, 700 full discharges | |
| Sync Modes | Leading curtain sync, Trailing curtain sync, Contrast control sync, High-speed sync |
| Power Supply | Four AA size batteries (alkaline, lithium, NiMh), TR Power Pack 3 available (optional) |
| Weight W/o Batteries | 13.04 oz. |
