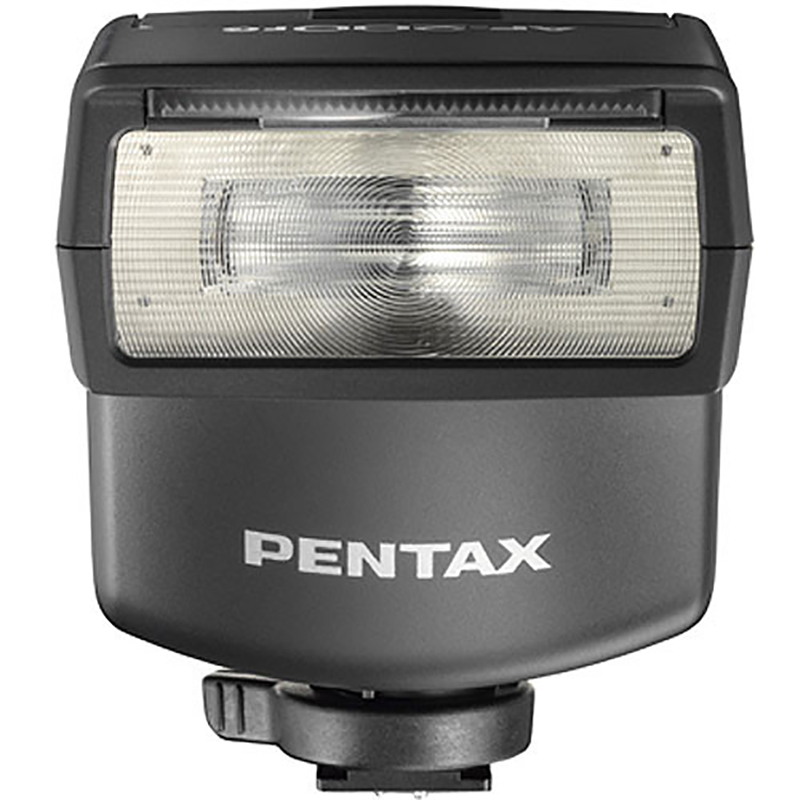

Pentax AF-200FG Flash Unit
- Clip-on-type
- Guide number of 20 (at ISO 100/m)
- Simple mode dial operation
- P-TTL with pre-flash
- Full manual mode
- Built-in-wide-angel panel
- Compact design
The AF 200 FG is a clip-on-type compact designed flash with a guide number of 20 (at ISO 100/m). Its simple mode dial operation offers P-TTL with pre-flash to assure proper exposure. It features full manual mode for more creative control. It has a built-in-wide-angel panel that is capable of covering an angle of view for 24mm lens.
Product Features in Detail
Compact, lightweight body
The PENTAX AF200FG auto flash is a clip-on-type flash, it features a compact, lightweight body, a guide number of 20 (at ISO 100/m) and simple dial operation to assure effortless flash photography for everyone.
Simplified operation
Simplified operation using a control dial on the back panel to set a flash mode and discharge level
Compact design
A compact, go- anywhere design with a guide number of 20 (at ISO 100/m)
P-TTL auto flash system
P-TTL auto flash system to constantly assure the proper exposure level by measuring the flash’s pre-discharge with the camera’s multi-pattern metering system
Luminous intensity distribution
A luminous intensity distribution which uniformly covers a wide discharge angle of a 28mm lens (in the 35mm format) Built-in-wide-angel panel that slides out to cover an angle of view for 24mm lens (in the 35 mm format).
| Type | Clip-on P-TTL auto flash |
| Flash Modes | P-TTL (TTL corrective auto flash, contrast-control auto flash) |
| TTL (TTL auto flash) | |
| FULL (manual flash) | |
| Bounce Head | N/A |
| Zoom Head | N/A |
| Focal Length | 28mm equivalent (24mm equivalent with wide angle diffusor) |
| Flash Range | 2.3-11.8’ (GN 20, ISO 100, f/5.6) |
| Color Temp | Daylight |
| Other Functions | Auto Power Off, Test Discharge, Flash Exposure Compensation (-0.5 EV, -1 EV) |
| Dimensions | 2.7" x 3.3" x 3.7” |
| Notes | N/A |
| Flash Control | TTL-series-control auto flash, manual flash |
| Flash Exposure Compensation | -0.5EV and -1.0EV (in P-TTL mode) |
| Swivel Head | N/A |
| Discharge Angles | 70 degrees horizontal, 53 degrees vertical (78 degrees horizontal, 60 degrees vertical with wide angle diffusor) |
| Guide Number | 66 at ISO 100/ft (20 at ISO 100/m) |
| Interval Battery Life | Alkaline batteries - approx 4s interval, 300 full discharges |
| Lithium batteries - approx 4s interval, 450 full discharges | |
| NiMH batteries - approx 4s interval, 400 full discharges | |
| Sync Modes | Leading Shutter Curtain Sync |
| Power Supply | Four AA size batteries (alkaline, lithium, NiMH) |
| Weight W/o Batteries | 6.8 oz |
