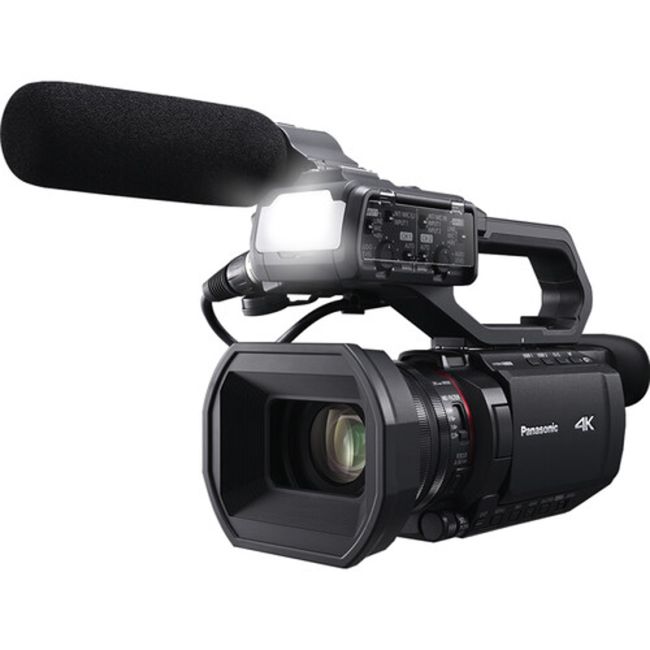

Panasonic X2100GN 4K 3G SDI Semi-Pro Digital Video Camera
- Up to UHD 4K60 Video, 3G-SDI and HDMI Out
- 1/2.5" 8.29MP MOS Sensor
- 24x Optical Zoom, 48x Digital i.ZOOM
- 3.5" LCD, OLED Viewfinder, LED Light
- 120 fps Slow Motion, Live Streaming
- 5-Axis Hybrid OIS, Detachable Handle
- Records MP4/MOV/AVCHD to Dual SD Cards
- Wide 25mm Lens, Face Detection Autofocus
The Panasonic X2100GN 4K 3G SDI Semi-Pro Digital Video Camera is a robust and versatile tool for content creators who require high-quality video capture capabilities. It can record Ultra High Definition (UHD) 4K video at 60 frames per second, ensuring smooth and detailed footage. It offers professional connectivity with both 3G-SDI and HDMI outputs for high-quality external monitoring and integration into professional workflows. The relatively large 1/2.5 inch sensor size with 8.29 megapixels helps in capturing high-resolution images with good low-light performance. With a high-powered 24x optical zoom lens, the camera can capture distant subjects without sacrificing image quality. The 48x digital i.ZOOM offers additional reach, though it's a digital expansion, which can impact the image quality when fully utilized. It features a 3.5-inch LCD screen for live view and playback, complemented by an OLED viewfinder that provides precise composition and excellent visibility under various lighting conditions. A built-in LED light is available for illumination in darker shooting scenarios.
The camera can record at 120 fps for slow-motion playback, adding a creative effect to videos. It also supports live streaming, making it ideal for broadcasting live events or creating real-time content for online. The 5-Axis Hybrid Optical Image Stabilization (OIS) minimizes camera shake, offering steadier footage especially when shooting handheld or on the move. A detachable handle adds versatility, allowing different grip configurations and easier carrying. The camera supports multiple recording formats, including MP4, MOV, and AVCHD, offering compatibility with a variety of editing systems and workflows. With dual SD card slots, you can record continuously by automatically switching to the second card when the first is full, and it allows for instant backup. The 25mm wide-angle lens is ideal for capturing expansive scenes and can accommodate tight indoor spaces. It also features face detection autofocus, which ensures that subjects' faces remain in sharp focus, useful in interviews or scenes with moving subjects.
This camera hits the sweet spot for semi-professional users who demand high-quality video recording and professional features. It's perfect for event videography, documentary filmmaking, corporate videos, and live streaming events. Its wide lens, varied recording formats, dual-card recording, and advanced OIS make it well-suited to handle a range of filming situations with agility and ease.
Product Features in Detail
Mobile 4K 60p Camcorder
A small and light 4k 60p professional camera with high mobility, a wide-angle 25mm* lens, optical 24x zoom, and extensive networking capabilities for one-person operation in the field.
* 35mm camera equivalent. Note: The mics shown in product photos are optional.
Compact and Powerful 4K 60p Camcorder
While excelling in mobility and portability, the included high-capacity battery provides 4 hours and 35 minutes of shooting (60 Hz), and the compact body considers the weight balance of the advanced functions when shooting.
Wide 25mm* and Optical 24x Zoom Lens
The lens covers the range from 25mm* wide-angle to 600mm* tele with a 24x zoom. i.ZOOM achieves 32x zoom with 4K mode, and 48x zoom with FHD mode.
* 35mm camera equivalent.
4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding colour recognition, tracking subjects is improved, without interruption, when the face moves to either side.
HYBRID O.I.S.
In addition to Optical Image Stabilisation, Electronic Image Stabilisation detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.
Versatile Recording Mode
Supports a high bit rate of 200 Mbps for 4K 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MOV) codec, and 120/100fps* Super Slow-motion with 10-bit recording in FHD.
*59.94Hz: 120fps, 50Hz: 100fps
Heat-Dispersing Design
The heat dispersion structure equipped with an ultrathin fan enables a compact, lightweight body to be combined with ultra high definition 4K 60p recording.
Tiltable Viewfinder with Eyecup
The 1,770K-dot-equivalent OLED colour viewfinder can be tilted for added convenience. The large eyecup fits either eye comfortably.
Wireless Control from a Tablet or Smartphone
The built-in 5-GHz/2.4-GHz Wi-Fi module enables you to connect just the body to Wi-Fi. Using a tablet or smartphone app HC ROP, wireless camera operations are also possible with live view image.
USB PD (USB Type-C)
The USB-C port enables power supply and charging with a mobile battery when the power is turned off.
Environmental Care and Initiatives
Recycled materials are used for the packaging boxes and molded pulp, and white ink is used for recyclability. It is also compatible with the versatile USB-PD standard to reduce environmental impact.
4:2:2 10-bit Internal Recording
Records a 4:2:2 10-bit colour profile of up to LongGOP UHD 29.97p/25p (150 Mbps), or FHD 59.94p/50p (100 Mbps) with SD cards. Outputs 10-bit UHD 59.94p/50p images via HDMI
Full-HD Live Streaming
RTSP/RTP/RTMP/RTMPS-compatible HD streaming enables distribution of relays for concerts, sports events, and news flashes to Facebook, YouTube, etc.
・ Facebook is a registered trademark of Facebook, Inc. ・ YouTube™ is a registered trademark or trademark of Google LLC.
Wired Remote
Equipped with a REMOTE terminal (2.5-mm super mini jack) for remote operation of focus, zoom, REC start/stop, etc.
* A wired remote controller (commercially available) is required.
USB Tethering
A network connection can be made by connecting a smartphone/tablet to a USB. Streaming using 5G smartphones is also possible via USB tethering.
User Buttons
46 functions can be allocated to the User Buttons. There are a total of 13 User Buttons: six on the body, and seven on the LCD Touch Panel. The O.I.S. and AE LEVEL buttons can also be used as User Buttons.
SENSOR SECTION | |
Image Sensor | 1/2.5-type (inch) MOS Sensor |
Effective Pixels | 8.29 megapixels |
LENS SECTION | |
F Value | F1.8 ― 4.0 |
Optical Zoom | 24x |
Focal Length | 4.12 ― 98.9 mm |
35 mm Film Camera Equivalent | 25.0 ― 600.0 mm |
Filter Diameter | 62 mm |
Lens Brand | Panasonic Lens |
CAMERA SECTION | |
Minimum Illumination | 1.5 lx (F1.8, Super Gain +, Shutter Speed 1/30 sec) |
Focus | Auto / Manual |
Zoom | i.Zoom OFF |
24x | |
i.Zoom ON | |
Max. 48x (UHD 32x) | |
Digital Zoom | 2x / 5x / 10x |
ND Filter | Clear, 1/4, 1/16, 1/64 |
IR Filter | Incorporates the ON/OFF control function |
White Balance | Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed |
Shutter Speed | 59.94 Hz mode |
60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec | |
30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec | |
24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
50.00 Hz mode | |
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
Slow Shutter Speed | 59.94 Hz mode |
59.94i/59.94p: 1/8, 1/15, 1/30 sec | |
29.97p: 1/8, 1/15 sec | |
23.98p: 1/6, 1/12 sec | |
50.00 Hz mode | |
50i/50p: 1/6, 1/12, 1/25 sec | |
25p: 1/6, 1/12 sec | |
Super Slow Recording Frame Rate | 59.94 Hz mode |
FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p) | |
50.00 Hz mode | |
FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p) | |
Iris | Auto / Manual |
Image Stabilizer | Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD) |
RECORDING SECTION | |
Recording Media | SDHC/SDXC Memory Card (Up to 512GB), UHS-I compatible |
Recording Format | MOV, MP4, AVCHD |
Video Compression Method | MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-4 HEVC Main10 Profile |
AVCHD: H.264/MPEG-4 AVC High Profile | |
Audio Compression Method | MOV: LPCM, 48kHz/24bit, 2ch |
MP4: AAC, 48kHz/16bit, 2ch | |
AVCHD: Dolby Audio, 48kHz/16bit, 2ch | |
2-slot Function | Relay recording, simultaneous recording, background recording (MOV/MP4 FHD only), dual codec recording* |
*To be added by firmware update. | |
System Frequency | 59.94Hz / 50.00Hz |
Recording / Playback Mode | MOV (HEVC) |
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 200M: Average 200Mbps (VBR) | |
UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR) | |
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 150M: Average 150Mbps (VBR) | |
MOV | |
[4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 420 LongGOP 150M: Average 150Mbps (VBR) | |
UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 100M: Average 100Mbps (VBR) | |
[4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 422 LongGOP 150M: Average 150Mbps (VBR) | |
FHD 1920x1080 59.94p/50.00p ALL-I 200M: Average 200Mbps (VBR) | |
FHD 1920x1080 59.94i/50.00i ALL-I 100M: Average 100Mbps (VBR) | |
FHD 1920x1080 29.97p/25.00p/23.98p ALL-I 100M: Average 100Mbps (VBR) | |
FHD 1920x1080 59.94p/50.00p 422 LongGOP100M: Average 100Mbps (VBR) | |
FHD 1920x1080 59.94i/50.00i/29.97p/25.00p/23.98p 422 LongGOP 50M: Average 50Mbps (VBR) | |
MP4 (HEVC) | [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR) |
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR) | |
MP4 | [4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR) |
FHD 1920x1080 59.94p/50.00p/23.98p/59.94i*/50.00i* 420 LongGOP 50M: Average 50Mbps (VBR) | |
FHD 1920x1080 59.94p*/50.00p* LongGOP 28M: Average 28Mbps (VBR) | |
FHD 1920x1080 23.98p* LongGOP 24M: Average 24Mbps (VBR) | |
FHD 1920x1080 29.97p*/25.00p* LongGOP 20M: Average 20Mbps (VBR) | |
*To be added by firmware update. | |
AVCHD | [4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR) |
PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR) | |
HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR) | |
PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR) | |
P2 | — |
P2 Proxy | — |
DUAL CODEC SECTION *To be added by firmware update. | |
Recording Format | MOV/MP4 |
Video Compression Method | H.264/MPEG-4 AVC High Profile, 420LongGOP |
Audio Compression Method | MOV:LPCM 48kHz/24bit 2ch, MP4:AAC 48kHz/16bit 2ch |
Recording format | FHD 50Mbps |
[Main recording] MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP | |
[Sub recording] MOV: FHD 29.97p, 25.00p, 23.98p/420LongGOP | |
FHD 8Mbps | |
[Main recording] MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP | |
MOV: 1080-59.94p, 50.00p, 59.94i, 50.00/422LongGOP | |
MOV: 1080-59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/422ALL-I | |
MP4: 2160-29.97p, 25.00p, 23.98p/420LongGOP | |
MP4: 1080-59.94p, 50.00p, 59.94i, 50.00i, 23.98p/420LongGOP | |
[Sub recording] MOV: FHD/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/420LongGOP | |
MP4: FHD-59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/420LongGOP | |
* The file format and frame rate for sub recording is the same as for main recording. | |
LIVE STREAMING | |
Video Compression Format | H.264/MPEG-4 AVC Main Profile, High Profile |
— | |
Video Resolution | 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 |
— | |
Streaming Method | Unicast, Multicast |
— | |
Frame Rate | System frequency = 59.94 Hz: 60 fps, 30 fps, 24fps |
System frequency = 50.00 Hz: 50 fps, 25 fps | |
Bit Rate | 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps |
— | |
Audio Compression Format | AAC-LC: 48 kHz/16 bit 2ch |
— | |
Network Protocol | RTSP/RTP/RTMP/RTMPS |
NDI | — |
STILL IMAGE SECTION | |
Recording Format | JPEG (DCF/Exif2.2) |
Recording Image Size | Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9) |
* Only images cut from video in video playback mode are supported. | |
GENERAL SECTION | |
Power Supply | 7.28V (Battery) / 9.0V (DC IN) |
Power Consumption | Recording: 19.8W, Charging: 15.5W |
Dimensions (W x H x D) | Approx. 129 x 159 x 267 mm (5.1 x 6.3 x 10.5 inch) (including handle unit, lens hood, and eye cup, excluding microphone holder) |
Weight | Body: approx. 0.85kg (1.88 lb) (body only, excluding handle unit, lens hood, battery, and eye cup) |
Shooting: approx. 1.5kg (3.31 lb) (including handle unit, lens hood, battery, and eye cup) | |
LCD Monitor (Electrostatic Touch Panel) | 3.5-inch Wide LCD monitor (About 2,760,000 dots) |
Viewfinder | 0.39-inch Wide OLED EVF (About 2,360,000 dots), video display area: About 1,770,000 dots |
Manual Ring | Focus / Zoom or Iris |
Accessory Shoe | Yes |
LED Video Light | Average Illumination |
Approx. 70 lx (1.0m) | |
Irradiation Angle | |
Approx. 30° | |
Color Temperature | |
Approx. 4600K | |
INTERFACE SECTION | |
Video | SDI OUT |
BNC x 1, 0.8V[p-p], 75Ω, 3G/1.5G HD-SDI, supports time code output and SDI remote recording control | |
Output format 4:2:2 10bit: | |
1920x1080/59.94p LEVEL-A, 50.00p LEVEL-A, 59.94i, 50.00i, 29.97p, 29.97PsF, 25.00p, 25.00PsF, 23.98p, 23.98PsF | |
1280x720/59.94p, 50.00p | |
HDMI | |
Type A x 1 (VIERA Link not supported), supports time code output and remote recording control | |
Output format: 4:2:2 10bit: | |
3840x2160/59.94p, 50.00p, 29.97p, 25.00p, 23.98p | |
1920x1080/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p | |
1280x720/59.94p, 50.00p, 720x480/59.94p, 720x576/50.00p | |
Audio Input | Built-in Microphone |
Stereo microphone | |
Microphone Input | |
3.5mm stereo mini jack x 1 | |
XLR Input | |
XLR (3 pins) x 2 * When using a separately sold Handle Unit. | |
Input high impedance, LINE/MIC/MIC+48 V (switchable SW) | |
LINE:+4dBu/0dBu (switchable menu) | |
MIC: –40dBu/–50dBu/–60dBu (switchable menu) | |
Audio Output | SDI OUT |
2 ch (LPCM) | |
HDMI | |
2 ch (LPCM) | |
Headphone | |
3.5 mm diameter stereo mini jack x 1 | |
Speaker | |
15 mm diameter, round x 1 | |
Other Input/Output | Camera Remote |
2.5mm diameter super mini jack x 1 | |
USB | |
Type-C x 1, High-speed USB (USB2.0), HOST/DEVICE combined (switchable menu) | |
HOST: Bus power supported (5V, 0.5A), USB tethering function, USB ethernet adaptor supported | |
DEVICE: Mass storage function (read only) | |
DC IN | |
9V/3A, USB Type-C x 1, USB-PD supported | |
Wi-Fi | |
Standard | IEEE 802.11a/b/g/n/ac |
Frequency | 2.4GHz/5GHz band |
STANDARD ACCESSORY | |
AC Adaptor | — |
AC Cable | — |
Rechargeable Battery Pack | Yes (5,900mAh) |
Handle Unit | Yes (detachable) |
Battery Charger | — |
IR Remote | — |
HDMI Cable | — |
USB Cable (C-C) | — |
Microphone Holder | Yes |
Microphone Holder Screws | Yes |
Input Terminal Cap | — |
Eye Cup | Yes |
Lens Hood | Yes |
Editing Software | — |
This product comes with 5 Year Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Panasonic X2100GN 4K 3G SDI Semi-Pro Digital Video Camera
Detachable Handle Unit
Microphone Holder
Microphone Holder Screw Set
Rechargeable Battery
Lens Hood
Eye Cup

SKU: Panasonic HC-X2100GN
UPC: 8887549877032
