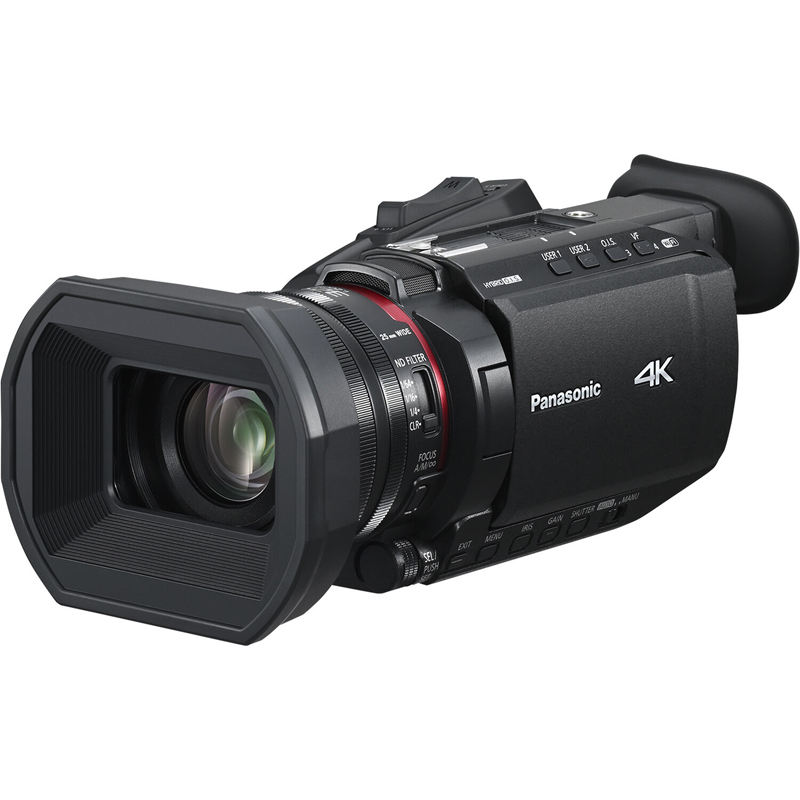

Panasonic X1600 4K Semi-Pro Digital Video Camera
- Up to UHD 4K60 Video, HDMI Out
- 1/2.5" 8.29MP MOS Sensor
- 24x Optical Zoom, 48x Digital i.ZOOM
- 3.5" LCD Touchscreen, OLED Viewfinder
- 120 fps Slow Motion, Live Streaming
- 5-Axis Hybrid OIS, Manual Lens Rings
- Records MP4/MOV/AVCHD to Dual SD Cards
- Wide 25mm Lens, Face Detection Autofocus
The Panasonic X1600 4K Semi-Pro Digital Video Camera is a compact, versatile, and high-performing camcorder intended for semi-professional videographers who require an array of advanced features. It allows for capturing high-resolution 4K video at up to 60 frames per second, ensuring smooth and detailed footage. HDMI out facilitates monitoring or recording with external devices. High-quality 1/2.5" 8.29MP MOS sensor yields sharp images with accurate color rendition, even in less than ideal lighting conditions. A 24x optical zoom p0rovides a significant amount of zoom without degrading image quality, suitable for capturing subjects at a distance. Its 48x Digital i.ZOOM enhances the reach of the optical zoom electronically, offering a way to get even closer shots. A broad-angle 25mm lens is ideal for capturing expansive scenes. The user-friendly 3.5" LCD touchscreen makes changing settings and framing shots simple. OLED viewfinder offers a sharp, clear view even under bright lighting conditions, making it an excellent tool for outdoor shooting. Capture fast action with clarity and create dramatic slow-motion sequences in post-production with its 120 fps slow motion features. This camera supports live streaming, making it ideal for real-time broadcasting over the internet.
A 5-Axis Hybrid OIS delivers effective image stabilization, reducing camera shake for both stills and video, especially at longer focal lengths or while moving. Versatile format options allow for flexibility in post-production and cater to different workflow preferences. Dual SD card slots facilitate extended recording times and instant backup, ensuring that no moment is missed due to a lack of storage. Smart focusing system that can lock onto and track faces, providing clear and sharp results for interviews, presentations, and more. The combination of 4K video, live streaming, and advanced features situates it well for filmmakers, live content producers, and YouTubers. The extended zoom and face detection autofocus make it excellent for capturing detailed footage at weddings, concerts, and other live events. The portability, reliable autofocus, and high-quality sensor make it well-suited for on-the-go shooting and documentary work.
The Panasonic X1600 4K Semi-Pro Digital Video Camera is a robust tool that balances professional features with ease of use. With capabilities such as 4K60 recording, live streaming, advanced stabilization, and dual SD card slots, it stands as a strong competitor in the prosumer camcorder market, aimed at those who need reliability, versatility, and quality in their video recording endeavors.
Product Features in Detail
Compact 4K 60p Camcorder, Built for Directors
While excelling in mobility and portability, the included high-capacity battery provides 6 hours and 10 minutes of shooting (60 Hz), and the compact body considers the weight balance of the advanced functions when shooting.
Wide 25mm* and Optical 24x Zoom Lens
The lens covers the range from 25mm* wide-angle to 600mm* tele with a 24x zoom. i.ZOOM achieves 32x zoom with 4K mode, and 48x zoom with FHD mode.
* 35mm camera equivalent.
4K High-Precision AF
Face Detection precisely captures subjects on-site free from out of focus problems and insufficient exposure. Also, by adding color recognition, tracking subjects is improved, without interruption, when the face moves to either side.
HYBRID O.I.S.
In addition to Optical Image Stabilization, Electronic Image Stabilization detects and corrects handshake in the 5-axis direction. The Ball O.I.S. System reduces friction in the drive section, especially improving the correction of small-amplitude blurring.
Versatile Recording Mode
Supports a high bit rate of 200 Mbps for 4K 59.94p/50p video recording with HEVC (LongGOP/10 bit 4:2:0/MOV) codec, and 120/100fps* Super Slow-motion with 10-bit recording in FHD.
*59.94Hz: 120fps, 50Hz: 100fps
Heat-Dispersing Design
The heat dispersion structure equipped with an ultrathin fan enables a compact, lightweight body to be combined with ultra high definition 4K 60p recording.
Wireless Control from a Tablet or Smartphone
The built-in 5-GHz/2.4-GHz Wi-Fi module enables you to connect just the body to Wi-Fi. Using a tablet or smartphone app HC ROP, wireless camera operations are also possible with live view image.
Environmental Care and Initiatives
Recycled materials are used for the packaging boxes and molded pulp, and white ink is used for recyclability. It is also compatible with the versatile USB-PD standard to reduce environmental impact.
4:2:2 10-bit Internal Recording
Records a 4:2:2 10-bit color profile of up to LongGOP UHD 29.97p/25p (150 Mbps), or FHD 59.94p/50p (100 Mbps) with SD cards. Outputs 10-bit UHD 59.94p/50p images via HDMI.
Full-HD Live Streaming
RTSP/RTP/RTMP/RTMPS-compatible HD streaming enables distribution of relays for concerts, sports events, and news flashes to Facebook, YouTube, etc.
* For the purpose of compliance with RED DELEGATED REGULATION (EU) 2022/30, a streaming functionality with RTP/RTSP/RTMP will no longer be provided around summer 2025 onward. ・ Facebook is a registered trademark of Facebook, Inc. ・ YouTube™ is a registered trademark or trademark of Google LLC.
Wired Remote
Equipped with a REMOTE terminal (2.5-mm super mini jack) for remote operation of focus, zoom, REC start/stop, etc.
* A wired remote controller (commercially available) is required.
User Buttons
46 functions can be allocated to the User Buttons. There are a total of 13 User Buttons: six on the body, and seven on the LCD Touch Panel. The O.I.S. and AE LEVEL buttons can also be used as User Buttons.
SENSOR SECTION | |
Image Sensor | 1/2.5-type (inch) MOS Sensor |
Effective Pixels | 8.29 megapixels |
LENS SECTION | |
F Value | F1.8 ― 4.0 |
Optical Zoom | 24x |
Focal Length | 4.12 ― 98.9 mm |
35 mm Film Camera Equivalent | 25.0 ― 600.0 mm |
Filter Diameter | 62 mm |
Lens Brand | Panasonic Lens |
CAMERA SECTION | |
Minimum Illumination | 1.5 lx (F1.8, Super Gain +, Shutter Speed 1/30 sec) |
Focus | Auto / Manual |
Zoom | i.Zoom OFF |
24x | |
i.Zoom ON | |
Max. 48x (UHD 32x) | |
Digital Zoom | 2x / 5x / 10x |
ND Filter | Clear, 1/4, 1/16, 1/64 |
IR Filter | Incorporates the ON/OFF control function |
White Balance | Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed |
Shutter Speed | 59.94 Hz mode |
60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec | |
30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec | |
24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
50.00 Hz mode | |
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec | |
Slow Shutter Speed | 59.94 Hz mode |
59.94i/59.94p: 1/8, 1/15, 1/30 sec | |
29.97p: 1/8, 1/15 sec | |
23.98p: 1/6, 1/12 sec | |
50.00 Hz mode | |
50i/50p: 1/6, 1/12, 1/25 sec | |
25p: 1/6, 1/12 sec | |
Super Slow Recording Frame Rate | 59.94 Hz mode |
FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p) | |
50.00 Hz mode | |
FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p) | |
Iris | Auto / Manual |
Image Stabilizer | Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD) |
RECORDING SECTION | |
Recording Media | SDHC/SDXC Memory Card (Up to 512GB), UHS-I compatible |
Recording Format | MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-4 HEVC Main10 Profile |
AVCHD: H.264/MPEG-4 AVC High Profile | |
Video Compression Method | MOV: LPCM, 48kHz/24bit, 2ch |
AVCHD: H.264/MPEG-4 AVC High Profile | |
MOV: LPCM, 48kHz/24bit, 2ch | |
Audio Compression Method | MP4: AAC, 48kHz/16bit, 2ch |
AVCHD: Dolby Audio, 48kHz/16bit, 2ch | |
2-slot Function | Relay recording, simultaneous recording, background recording (MP4 FHD only) |
System Frequency | 59.94Hz / 50.00Hz |
Recording / Playback Mode | MOV (HEVC) |
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 200M: Average 200Mbps (VBR) | |
UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR) | |
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 150M: Average 150Mbps (VBR) | |
MOV | |
[4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 420 LongGOP 150M: Average 150Mbps (VBR) | |
UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 100M: Average 100Mbps (VBR) | |
[4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 422 LongGOP 150M: Average 150Mbps (VBR) | |
FHD 1920x1080 59.94p/50.00p ALL-I 200M: Average 200Mbps (VBR) | |
FHD 1920x1080 59.94i/50.00i ALL-I 100M: Average 100Mbps (VBR) | |
FHD 1920x1080 29.97p/25.00p/23.98p ALL-I 100M: Average 100Mbps (VBR) | |
FHD 1920x1080 59.94p/50.00p 422 LongGOP100M: Average 100Mbps (VBR) | |
FHD 1920x1080 59.94i/50.00i/29.97p/25.00p/23.98p 422 LongGOP 50M: Average 50Mbps (VBR) | |
MP4 (HEVC) | [4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR) |
UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR) | |
MP4 | [4:2:0 8bit] UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 72M: Average 72Mbps (VBR) |
FHD 1920x1080 59.94p/50.00p/23.98p/59.94i*/50.00i* 420 LongGOP 50M: Average 50Mbps (VBR) | |
FHD 1920x1080 59.94p*/50.00p* LongGOP 28M: Average 28Mbps (VBR) | |
FHD 1920x1080 23.98p* LongGOP 24M: Average 24Mbps (VBR) | |
FHD 1920x1080 29.97p*/25.00p* LongGOP 20M: Average 20Mbps (VBR) | |
*To be added by firmware update. | |
AVCHD | [4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR) |
PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR) | |
HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR) | |
PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR) | |
P2 | — |
P2 Proxy | — |
DUAL CODEC SECTION *To be added by firmware update. | |
Recording Format | — |
Video Compression Method | — |
Audio Compression Method | — |
Recording format | FHD 50Mbps |
— | |
FHD 8Mbps | |
— | |
LIVE STREAMING | |
Video Compression Format | H.264/MPEG-4 AVC Main Profile, High Profile |
— | |
Video Resolution | 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180 |
— | |
Streaming Method | Unicast, Multicast |
— | |
Frame Rate | System frequency = 59.94 Hz: 60 fps, 30 fps, 24fps |
System frequency = 50.00 Hz: 50 fps, 25 fps | |
Bit Rate | 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps |
— | |
Audio Compression Format | AAC-LC: 48 kHz/16 bit 2ch |
— | |
Network Protocol | RTSP/RTP/RTMP/RTMPS |
NDI | — |
STILL IMAGE SECTION | |
Recording Format | JPEG (DCF/Exif2.2) |
Recording Image Size | Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9) |
* Only images cut from video in video playback mode are supported. | |
GENERAL SECTION | |
Power Supply | 7.28V (Battery) / 9.0V (DC IN) |
Power Consumption | Recording: 12.3W, Charging: 15.5W |
Dimensions (W x H x D) | Approx. 129 x 93 x 209 mm (5.1 x 3.7 x 8.3 inch) (including lens hood) |
Weight | Body: approx. 0.80kg (1.77 lb) (body only, excluding lens hood and battery) |
Shooting: approx. 1.1kg (2.43 lb) (including lens hood and battery) | |
LCD Monitor (Electrostatic Touch Panel) | 8.8 cm (3.5-inch) Wide LCD monitor (About 2,760,000 dots) |
Viewfinder | 1.0 cm (0.39-inch) Wide OLED EVF (About 2,360,000 dots), video display area: About 1,770,000 dots |
Manual Ring | Focus / Zoom or Iris |
Accessory Shoe | Yes |
LED Video Light | Average Illumination |
— | |
Irradiation Angle | |
— | |
Color Temperature | |
— | |
INTERFACE SECTION | |
Video | SDI OUT |
— | |
HDMI | |
Type A x 1 (VIERA Link not supported), supports time code output and remote recording control | |
Output format: 4:2:2 10bit: | |
3840x2160/59.94p, 50.00p, 29.97p, 25.00p, 23.98p | |
1920x1080/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p | |
1280x720/59.94p, 50.00p, 720x480/59.94p, 720x576/50.00p | |
Audio Input | Built-in Microphone |
Stereo microphone | |
Microphone Input | |
3.5mm stereo mini jack x 1 | |
XLR Input | |
XLR (3 pins) x 2 * When using a separately sold Handle Unit. | |
Input high impedance, LINE/MIC/MIC+48 V (switchable SW) | |
LINE:+4dBu/0dBu (switchable menu) | |
MIC: –40dBu/–50dBu/–60dBu (switchable menu) | |
Audio Output | SDI OUT |
— | |
HDMI | |
2 ch (LPCM) | |
Headphone | |
3.5 mm diameter stereo mini jack x 1 | |
Speaker | |
15 mm diameter, round x 1 | |
Other Input/Output | Camera Remote |
2.5mm diameter super mini jack x 1 | |
USB | |
Type-C x 1, High-speed USB (USB2.0), Mass storage function (read only) | |
DC IN | |
9V/3A, USB Type-C x 1, USB-PD supported | |
Wi-Fi | |
Standard | IEEE 802.11a/b/g/n/ac |
Frequency | 2.4GHz/5GHz band |
STANDARD ACCESSORY | |
AC Adaptor | — |
AC Cable | — |
Rechargeable Battery Pack | Yes (5,900mAh) |
Handle Unit | — |
Battery Charger | — |
IR Remote | — |
HDMI Cable | — |
USB Cable (C-C) | — |
Microphone Holder | — |
Microphone Holder Screws | — |
Input Terminal Cap | — |
Eye Cup | Yes |
Lens Hood | Yes |
Editing Software | — |
This product comes with 5 Year Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Panasonic X1600 4K Semi-Pro Digital Video Camera
Rechargeable Battery
Lens Hood
Eye Cup

SKU: Panasonic HC-X1600GN
UPC: 8887549877162
