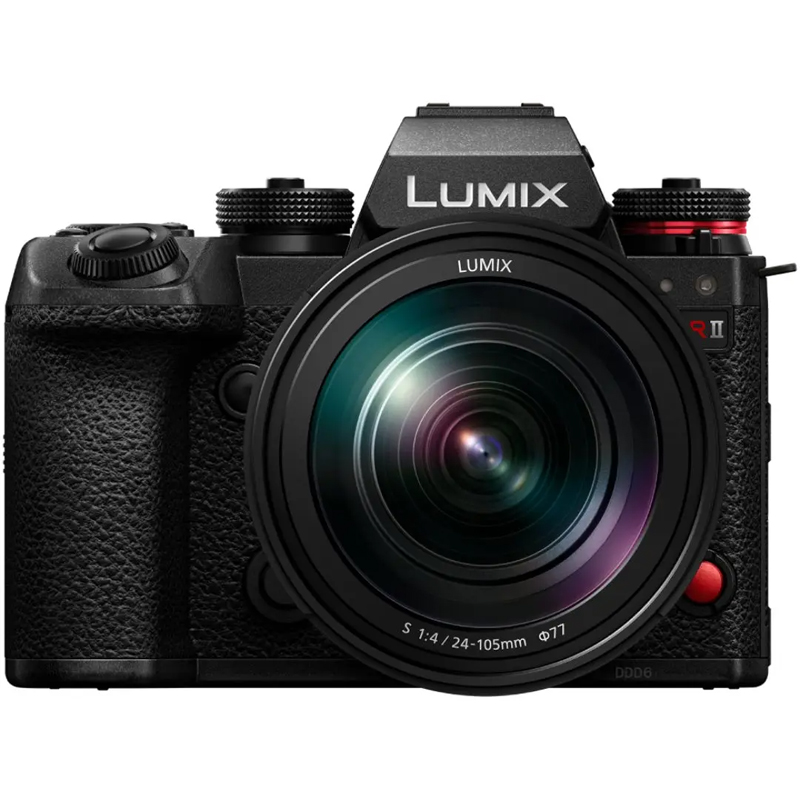

Panasonic Lumix S1R Mark II Body w/ S 24-105mm f/4 O.I.S Lens Compact System Camera
- 44.3MP Full-Frame CMOS Sensor
- Lightweight Design, 25% Lighter than S1R
- Up to 40 fps Raw Shooting with AF-C/AF-S
- 8K 30p and 4K 120p 10-Bit Video Recording
- ProRes RAW HQ Internal Recording
- 6.4K Open Gate Shooting
- 5.76m-Dot 0.78x-Magnification OLED LVF
- Phase Hybrid AF with AI Tracking
- 8-stop, 5-axis IBIS; Active I.S.
- 14 stops of V-Log and V-Gamut
- ISO 80-102400
- Dual UHS-II SD Slots; Wi-Fi and Bluetooth
The Panasonic Lumix S1R Mark II takes the mantle from its predecessor, the S1R, delivering enhancements in image quality, video capabilities, and performance while shedding 25% of its body weight. Aimed at professional photographers and videographers, this compact system camera blends high-resolution imaging with an agile and durable design. It offers superior resolution and image quality at 44.3MP Full-Frame CMOS Sensor, perfect for both high-end photo and video applications. The camera is 25% lighter than the original S1R, this model provides enhanced portability without sacrificing build quality or features. Capable of up to 40 fps raw shooting with both AF-C (Continuous Autofocus) and AF-S (Single Autofocus), allowing for capturing fast-moving subjects with precision. It supports 8K 30p and 4K 120p 10-bit video recording, along with ProRes RAW HQ internal recording, providing filmmakers with immense flexibility and quality. The 6.4K open gate shooting opens up creative possibilities for videographers with its unique aspect ratio and high resolution. The Panasonic Lumix S1R Mark II features a 5.76m-Dot 0.78x-Magnification OLED Live View Finder (LVF), offering crystal clear visualization of your scene. The Phase Hybrid AF with AI Tracking leverages artificial intelligence to ensure sharp focus on moving subjects across various scenarios. The robust stabilization integrates an 8-stop, 5-axis in-body image stabilization (IBIS) system along with Active I.S. for video, significantly reducing camera shake. The wide dynamic range offers 14 stops of dynamic range with V-Log and V-Gamut, catering to high-end video production needs. With an ISO range of 80-102400, it provides versatility in low-light conditions without compromising on image quality. Equipped with dual UHS-II SD card slots for ample and flexible storage. Wi-Fi and Bluetooth connectivity streamline the workflow for professional users.
Whether it’s landscape, portrait, wedding, or event photography, the 44.3MP sensor ensures stunning image quality. With its high-resolution video capabilities, including 8K recording and ProRes RAW, the S1R Mark II is a powerful tool for creating cinematic content. The capability to shoot up to 40 fps with precise autofocus makes it perfect for capturing every moment of fast-paced action. The lightweight design, coupled with robust build quality, makes it an excellent travel companion for photographers on the move.
The Panasonic Lumix S1R Mark II sets a new standard for compact system cameras, merging high-resolution imaging capabilities with a user-friendly, portable design. Its broad range of features caters to a wide spectrum of creative needs, from professional photography and filmmaking to high-speed action shots and travel photography. With its advanced video recording options, extensive dynamic range, and reliable connectivity options, the S1R Mark II stands as a versatile companion for creatives seeking uncompromised performance in demanding environments.
Product Features in Detail
Discover Unseen Details.
Hybrid model featuring a 44.3MP full-frame sensor and LUMIX's first-ever 8K video recording. Delivers outstanding still and video performance with excellent operability and reliability while streamlining creators' workflows.
Going beyond photos and videos. Fueling the passion to create.
The LUMIX S1RII is built for creators who seek high-resolution artistic expression. With a new 44.3MP full-frame sensor and a high-performance engine powered by L2 Technology, it delivers stunningly natural and detailed images. Its compact body combines refined operability with exceptional reliability, elevating your shooting experience and supporting your creativity at every step of your workflow.
Lifelike detail with the new 44.3MP sensor
From breathtaking landscapes to intricate works of art and everyday moments—LUMIX’s "Capturing it All" philosophy ensures every scene is brought to life. With unique colour science and a new 44.3MP sensor, details are rendered in stunning clarity. Plus, handheld high-resolution shooting lets you capture it all with ease.
AFC 40 fps burst shooting
Capture every moment with stunning detail and speed. The LUMIX S1RII’s new sensor delivers both high resolution and rapid burst shooting, making it perfect for action-packed scenes like sports, wildlife, and children who won't sit still —where every second counts.
High-resolution and wide dynamic range
Bring your vision to life without limits. The LUMIX S1RII delivers stunning 8K video and wide dynamic range log recording, ensuring cinematic quality in every shot. You can also capture every detail in breathtaking slow motion, turning ordinary moments into extraordinary stories.
Powerful video production support
The LUMIX S1RII is packed with powerful tools to elevate your video production. With features like the False Colour function and the new LUMIX Flow app, you get the support you need for smooth, confident shooting. Plus, with the optional microphone adaptor, you can capture professional-grade 32-bit float audio for perfect sound every time.
Phase Hybrid AF with advanced AI technology
The LUMIX S1RII takes autofocus to the next level with its evolved Phase Hybrid AF, offering lightning-fast, pinpoint precision and exceptional tracking. Thanks to advanced AI technology, it accurately recognises and follows your subject, even in challenging scenarios like fast-paced sports or crowded scenes—ensuring you never miss the perfect shot.
8.0-stop 5-axis I.S. technology* / Active I.S. technology
The LUMIX S1RII ensures steady, smooth framing for both photos and videos, even when shooting handheld. For video, it significantly reduces micro jitters and shake caused by movement such as walking or running, delivering professional-quality footage on the go. Plus, with the new cropless mode, you can make the most of your wide-angle lens, giving you greater flexibility in your shots.
A highly adaptable monitor for any style
The newly developed compact tilt and free-angle rear monitor offers ultimate flexibility, allowing you to compose shots from any angle while keeping the cable plugged in—ideal for seamless video production. Outdoors, the high-resolution OLED viewfinder with approximately 5.76M dots ensures natural, precise framing, even in bright conditions, so you can shoot with complete confidence.
Compact body without compromising operability
The LUMIX S1RII is designed with precision, featuring ergonomically placed buttons, dials, and a joystick for effortless control. Its refined, compact design weighs just 795g, offering a perfect balance of portability and intuitive operability, so you can shoot comfortably for longer without compromise.
Built to withstand extremes from -10°C to 40°C
The LUMIX S1RII is designed to operate at temperatures as low as -10°C,* and has also been verified for operation at temperatures as high as 40°C. Even in harsh field environments, it will support your passion for shooting photos and videos without fail.
Compatible with a variety of recording media
The LUMIX S1RII is equipped with a dual card slot. Slot 1 is compatible with CFexpress Type B cards, enabling smooth recording of high-speed burst shooting and high-bitrate video. It also supports direct recording to USB-SSD, giving you the flexibility to choose the recording media that best suits your needs.
Compatible with a wide range of software
The LUMIX S1RII empowers your creative workflow with a wide range of compatible software. The LUMIX Lab app allows for seamless editing and uploading in one step, streamlining your content creation. Capture One provides professional-grade tools for high-quality photography, while LUMIX Flow app makes video production more accessible. With Frame.io Camera to Cloud, sharing and collaborating on content becomes effortless, giving you the flexibility to work from anywhere and share results instantly.
Commitment to a Sustainable Future
LUMIX is prioritising the environment by taking meaningful steps towards sustainability, such as phasing out packaging plastic and polystyrene. This commitment is important not only for reducing waste but also for inspiring a more eco-conscious approach within the industry, ensuring that creativity and innovation don’t come at the expense of the planet.
TYPE | |
Type | Digital Single Lens Mirrorless camera |
Lens mount | L-Mount |
IMAGE SENSOR | |
Type | 35mm full-frame (35.8mm x 23.9mm) CMOS sensor |
Camera effective pixels / Total pixels | 44.3 megapixels / 45.9 megapixels |
AR (Anti Reflection) coating | Yes |
Aspect ratio / Colour filter | 3:2 / Primary colour filter |
Dust reduction system | Image sensor shift type |
Shutter Behavior at Power Off | ON / OFF |
LATITUDE | |
Latitude | 14 stops (V-Log) (Dynamic Range Expansion (Log) ON) |
13 stops (V-Log) (Dynamic Range Expansion (Log) OFF) | |
STILL IMAGE | |
Recording file format | JPEG (DCF, Exif 3.0), RAW |
Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 |
File size (Pixels) / When using full-frame lenses | 3:02 |
8144x5424(L) / 5808x3872(M) / 4128x2752(S) / 1920x1280(XS) / 16288x10848(XL)* / 11504x7664(LL)* *High Resolution mode. | |
4:03 | |
7232x5424(L) / 5168x3872(M) / 3664x2752(S) / 1712x1280(XS) / 14464x10848(XL)* / 10224x7664(LL)* *High Resolution mode. | |
16:09 | |
8144x4584(L) / 5808x3272(M) / 4128x2320(S) / 1920x1080(XS) / 16288x9168(XL)* / 11504x6480(LL)* *High Resolution mode. | |
1:01 | |
5424x5424(L) / 3872x3872(M) / 2752x2752(S) / 1280x1280(XS) / 10848x10848(XL)* / 7664x7664(LL)* *High Resolution mode. | |
65:24:00 | |
8144x3008(L) | |
2:01 | |
8144x4072(L) | |
File size (Pixels) / When using APS-C | 3:02 |
5360x3568(L) / 3840x2560(M) / 2688x1792(S) / 1920x1280(XS) | |
4:03 | |
4752x3568(L) / 3424x2560(M) / 2384x1792(S) / 1712x1280(XS) | |
16:09 | |
5360x3016(L) / 3840x2160(M) / 2688x1512(S) / 1920x1080(XS) | |
1:01 | |
3568x3568(L) / 2560x2560(M) / 1792x1792(S) / 1280x1280(XS) | |
Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine) |
Colour space | sRGB, AdobeRGB |
MOTION PICTURE | |
Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW |
MP4: H.264/MPEG-4 AVC, H.265/HEVC | |
Audio format | 4ch Audio Recording: OFF |
MOV | |
Linear format: LPCM (2ch stereo 48kHz/24-bit, 96kHz/24-bit*) | |
Float format**: LPCM (2ch stereo 48kHz/32-bit, 96kHz/32-bit) | |
*When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). **When attaching DMW-XLR2 (sold separately). | |
MP4 | |
Linear format: AAC (2ch stereo 48kHz/16-bit) | |
4ch Audio Recording: XLR* | |
MOV | |
Linear format: LPCM (4ch monaural 48kHz/24-bit) | |
Float format: LPCM (4ch monaural 48kHz/32-bit) | |
*When attaching DMW-XLR2 (sold separately). | |
4ch Audio Recording: XLR*+Camera | |
MOV | |
Linear format: LPCM (4ch monaural 48kHz/24-bit, 96kHz/24-bit**) | |
*When attaching DMW-XLR2 (sold separately). **When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). | |
System frequency | 59.94Hz / 50.00Hz / 24.00Hz |
Image area of video | Full / APS-C / PIXEL/PIXEL |
Proxy | ON / OFF |
Proxy Rec Quality: H / M / L | |
Real Time LUT (Proxy): ON / OFF | |
*When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, and [Streaming]. | |
MOV (*¹) (*²) (*³) / 59.94Hz / FULL | [8.1K] 8128x4288 (17:9) |
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[8K] 7680x4320 (16:9) | |
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[6.4K] 6432x4288 (3:2) | |
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.9K] 5888x3312 (16:9) | |
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[4K] 3840x2160 (16:9) | |
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[FHD] 1920x1080 (16:9) | |
119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
MOV (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL (*⁶) | [5.9K] 5888x3312 (16:9) |
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[4K] 3840x2160 (16:9) | |
119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
MOV (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶) | [4.7K] 4736x3552 (4:3) |
59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[4K] 3840x2160 (16:9) | |
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[FHD] 1920x1080 (16:9) | |
119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
MOV (*¹) (*²) (*³) / 50.00Hz / FULL | [8.1K] 8128x4288 (17:9) |
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[8K] 7680x4320 (16:9) | |
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[6.4K] 6432x4288 (3:2) | |
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.9K] 5888x3312 (16:9) | |
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[4K] 3840x2160 (16:9) | |
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[FHD] 1920x1080 (16:9) | |
100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
MOV (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL (*⁶) | [5.9K] 5888x3312 (16:9) |
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[4K] 3840x2160 (16:9) | |
100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
MOV (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶) | [4.7K] 4736x3552 (4:3) |
50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[4K] 3840x2160 (16:9) | |
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[FHD] 1920x1080 (16:9) | |
100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
MOV (*¹) (*²) (*³) / 24.00Hz / FULL | [8.1K] 8128x4288 (17:9) |
24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[8K] 7680x4320 (16:9) | |
24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[6.4K] 6432x4288 (3:2) | |
24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.9K] 5888x3312 (16:9) | |
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[4K] 3840x2160 (16:9) | |
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[FHD] 1920x1080 (16:9) | |
120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
MOV (*¹) (*²) (*³) / 24.00Hz / PIXEL/PIXEL (*⁶) | [5.9K] 5888x3312 (16:9) |
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[4K] 3840x2160 (16:9) | |
120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
MOV (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL (*⁶) | [4.7K] 4736x3552 (4:3) |
48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[4K] 3840x2160 (16:9) | |
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵) | |
[FHD] 1920x1080 (16:9) | |
120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
MP4 (*¹) (*²) / 59.94Hz / FULL | [8K] 7680x4320 (16:9) |
29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
[4K] 3840x2160 (16:9) | |
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
[FHD] 1920x1080 (16:9) | |
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
MP4 (*¹) (*²) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶) | [4K] 3840x2160 (16:9) |
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
[FHD] 1920x1080 (16:9) | |
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
MP4 (*¹) (*²) / 50.00Hz / FULL | [8K] 7680x4320 (16:9) |
25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
[4K] 3840x2160 (16:9) | |
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
[FHD] 1920x1080 (16:9) | |
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
MP4 (*¹) (*²) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶) | [4K] 3840x2160 (16:9) |
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
[FHD] 1920x1080 (16:9) | |
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
MP4 (*¹) (*²) / 24.00Hz / FULL | - |
MP4 (*¹) (*²) / 24.00Hz / APS-C / PIXEL/PIXEL | - |
ProRes (*¹) (*²) (*³) / 59.94Hz / FULL | [5.8K] 5760x3040 (17:9) |
29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM) | |
29.97p, 1.3Gbps (ProRes 422) (LPCM) | |
23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM) | |
23.98p, 1.0Gbps (ProRes 422) (LPCM) | |
[C4K] 4096x2160 (17:9) | |
59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
59.94p, 1.3Gbps (ProRes 422) (LPCM) (*⁴) | |
29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
29.97p, 648Mbps (ProRes 422) (LPCM) (*⁴) | |
23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
23.98p, 519Mbps (ProRes 422) (LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
59.94p, 1.2Gbps (ProRes 422) (LPCM) (*⁴) | |
29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
29.97p, 608Mbps (ProRes 422) (LPCM) (*⁴) | |
23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
23.98p, 486Mbps (ProRes 422) (LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
119.88p, 901Mbps (ProRes 422 HQ) (LPCM) | |
119.88p, 601Mbps (ProRes 422) (LPCM) | |
59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
59.94p, 302Mbps (ProRes 422) (LPCM) (*⁴) | |
29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
29.97p, 151Mbps (ProRes 422) (LPCM) (*⁴) | |
23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
23.98p, 121Mbps (ProRes 422) (LPCM) (*⁴) | |
ProRes (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL (*⁶) | [5.8K] 5760x3040 (17:9) |
29.97p, 4.2Gbps (ProRes RAW HQ) (LPCM) | |
29.97p, 2.8Gbps (ProRes RAW) (LPCM) | |
29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM) | |
29.97p, 1.3Gbps (ProRes 422) (LPCM) | |
23.98p, 3.4Gbps (ProRes RAW HQ) (LPCM) | |
23.98p, 2.2Gbps (ProRes RAW) (LPCM) | |
23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM) | |
23.98p, 1.0Gbps (ProRes 422) (LPCM) | |
ProRes (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶) | [4.7K] 4736x3552 (4:3) |
29.97p, 1.8Gbps (ProRes 422 HQ) (LPCM) | |
29.97p, 1.2Gbps (ProRes 422) (LPCM) | |
23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM) | |
23.98p, 986Mbps (ProRes 422) (LPCM) | |
[C4K] 4096x2160 (17:9) | |
59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
59.94p, 1.3Gbps (ProRes 422) (LPCM) (*⁴) | |
29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
29.97p, 648Mbps (ProRes 422) (LPCM) (*⁴) | |
23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
23.98p, 519Mbps (ProRes 422) (LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
59.94p, 1.2Gbps (ProRes 422) (LPCM) (*⁴) | |
29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
29.97p, 608Mbps (ProRes 422) (LPCM) (*⁴) | |
23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
23.98p, 486Mbps (ProRes 422) (LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
119.88p, 901Mbps (ProRes 422 HQ) (LPCM) | |
119.88p, 601Mbps (ProRes 422) (LPCM) | |
59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
59.94p, 302Mbps (ProRes 422) (LPCM) (*⁴) | |
29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
29.97p, 151Mbps (ProRes 422) (LPCM) (*⁴) | |
23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
23.98p, 121Mbps (ProRes 422) (LPCM) (*⁴) | |
ProRes (*¹) (*²) (*³) / 50.00Hz / FULL | [5.8K] 5760x3040 (17:9) |
25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) | |
25.00p, 1.1Gbps (ProRes 422) (LPCM) | |
[C4K] 4096x2160 (17:9) | |
50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
50.00p, 1.1Gbps (ProRes 422) (LPCM) (*⁴) | |
25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
25.00p, 541Mbps (ProRes 422) (LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
50.00p, 1.0Gbps (ProRes 422) (LPCM) (*⁴) | |
25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
25.00p, 507Mbps (ProRes 422) (LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
100.00p, 757Mbps (ProRes 422 HQ) (LPCM) | |
100.00p, 505Mbps (ProRes 422) (LPCM) | |
50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
50.00p, 252Mbps (ProRes 422) (LPCM) (*⁴) | |
25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
25.00p, 126Mbps (ProRes 422) (LPCM) (*⁴) | |
ProRes (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL (*⁶) | [5.8K] 5760x3040 (17:9) |
25.00p, 3.5Gbps (ProRes RAW HQ) (LPCM) | |
25.00p, 2.3Gbps (ProRes RAW) (LPCM) | |
25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) | |
25.00p, 1.1Gbps (ProRes 422) (LPCM) | |
ProRes (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶) | [4.7K] 4736x3552 (4:3) |
25.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) | |
25.00p, 1.0Gbps (ProRes 422) (LPCM) | |
[C4K] 4096x2160 (17:9) | |
50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
50.00p, 1.1Gbps (ProRes 422) (LPCM) (*⁴) | |
25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
25.00p, 541Mbps (ProRes 422) (LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) (*⁴) | |
50.00p, 1.0Gbps (ProRes 422) (LPCM) (*⁴) | |
25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
25.00p, 507Mbps (ProRes 422) (LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
100.00p, 757Mbps (ProRes 422 HQ) (LPCM) | |
100.00p, 505Mbps (ProRes 422) (LPCM) | |
50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
50.00p, 252Mbps (ProRes 422) (LPCM) (*⁴) | |
25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
25.00p, 126Mbps (ProRes 422) (LPCM) (*⁴) | |
ProRes (*¹) (*²) (*³) / 24.00Hz / FULL | [5.8K] 5760x3040 (17:9) |
24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) | |
24.00p, 1.0Gbps (ProRes 422) (LPCM) | |
[C4K] 4096x2160 (17:9) | |
24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
24.00p, 519Mbps (ProRes 422) (LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
24.00p, 487Mbps (ProRes 422) (LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
120.00p, 908Mbps (ProRes 422 HQ) (LPCM) | |
120.00p, 606Mbps (ProRes 422) (LPCM) | |
24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
24.00p, 121Mbps (ProRes 422) (LPCM) (*⁴) | |
ProRes (*¹) (*²) (*³) / 24.00Hz / PIXEL/PIXEL (*⁶) | [5.8K] 5760x3040 (17:9) |
24.00p, 3.4Gbps (ProRes RAW HQ) (LPCM) | |
24.00p, 2.2Gbps (ProRes RAW) (LPCM) | |
24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) | |
24.00p, 1.0Gbps (ProRes 422) (LPCM) | |
ProRes (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL (*⁶) | [4.7K] 4736x3552 (4:3) |
24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) | |
24.00p, 987Mbps (ProRes 422) (LPCM) | |
[C4K] 4096x2160 (17:9) | |
24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
24.00p, 519Mbps (ProRes 422) (LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
24.00p, 487Mbps (ProRes 422) (LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
120.00p, 908Mbps (ProRes 422 HQ) (LPCM) | |
120.00p, 606Mbps (ProRes 422) (LPCM) | |
24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*⁴) | |
24.00p, 121Mbps (ProRes 422) (LPCM) (*⁴) | |
SLOW & QUICK | |
MOV (*¹) (*²) / 59.94Hz / FULL | [5.9K] 5888x3312 (16:9) |
29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
MOV (*¹) (*²) / 59.94Hz / APS-C | [C4K] 4096x2160 (17:9) |
59.94p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
59.94p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
59.94p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
29.97p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
23.98p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
MOV (*¹) (*²) / 50.00Hz / FULL | [5.9K] 5888x3312 (16:9) |
25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
MOV (*¹) (*²) / 50.00Hz / APS-C | [C4K] 4096x2160 (17:9) |
50.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
50.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
50.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
25.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
MOV (*¹) (*²) / 24.00Hz / FULL | [5.9K] 5888x3312 (16:9) |
24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | |
24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | |
24.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
24.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
24.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
MOV (*¹) (*²) / 24.00Hz / APS-C | [C4K] 4096x2160 (17:9) |
24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[4K] 3840x2160 (16:9) | |
24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
[FHD] 1920x1080 (16:9) | |
24.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴) | |
24.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴) | |
EXTERNAL USB-SSD RECORDING (*⁷) | |
External USB-SSD Recording (*⁷) | Yes (ON / OFF) |
STREAMING | |
Wi-Fi / Protocol | RTMPS |
Wi-Fi / 59.94Hz | [FHD] 1920x1080 |
59.94p, 8Mbps (H.264) | |
29.97p, 6Mbps / 3Mbps (H.264) | |
[HD] 1280x720 | |
59.94p, 6Mbps (H.264) | |
29.97p, 4Mbps (H.264) | |
Wi-Fi / 50.00Hz | [FHD] 1920x1080 |
50.00p, 8Mbps (H.264) | |
25.00p, 6Mbps / 3Mbps (H.264) | |
[HD] 1280x720 | |
50.00p, 6Mbps (H.264) | |
25.00p, 4Mbps (H.264) | |
USB Tethering / Protocol | RTMPS |
USB Tethering / 59.94Hz | [4K] 3840x2160 |
29.97p, 12.5Mbps (H.264) | |
[FHD] 1920x1080 | |
59.94p, 16Mbps / 8Mbps (H.264) | |
29.97p, 6Mbps / 3Mbps (H.264) | |
[HD] 1280x720 | |
59.94p, 6Mbps (H.264) | |
29.97p, 4Mbps (H.264) | |
USB Tethering / 50.00Hz | [4K] 3840x2160 |
25.00, 12.5Mbps (H.264) | |
[FHD] 1920x1080 | |
50.00p, 16Mbps / 8Mbps (H.264) | |
25.00p, 6Mbps / 3Mbps (H.264) | |
[HD] 1280x720 | |
50.00p, 6Mbps (H.264) | |
25.00p, 4Mbps (H.264) | |
VIEWFINDER | |
Type | OLED Live View Finder |
Pixels | Approx. 5.76 million dots |
Field of view / Magnification | Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m⁻¹, when the aspect ratio is set to 3:2 |
Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m⁻¹ / -4.0 - +2.0 (dpt) |
Eye sensor | Yes |
Display speed | 120fps* / 60fps *During live view in photo recording mode. |
REAR MONITOR | |
Type | TFT LCD monitor with static touch control |
Monitor size | Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect |
Pixels | Approx. 1.84 million dots |
Field of view | Approx. 100% |
FOCUS (*⁸) | |
Type | Phase Detection AF system / Contrast AF system |
DFD technology | Yes |
Focus mode | AFS (Single) / AFC (Continuous) / MF |
AF mode | Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint |
*Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle/Bike / Train / Airplane. Except when Pinpoint is set. Target Parts can also be set. | |
AF detective range | EV -6 - 18 (F1.4, ISO100 equivalent, AFS) |
AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
AF assist light | Yes |
AF lock | Set the Fn button in custom menu to AF lock |
Focus ring control | Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) |
Others | AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, Focus Frame Moving Speed, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), AFS Behavior in Video Mode, Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume, AF Micro Adjustment |
EXPOSURE CONTROL | |
Light metering system | 1,728-zone multi-pattern sensing system |
Light metering mode | Multiple / Centre Weighted / Spot / Highlight Weighted |
Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
Recording mode | Mode dial |
Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Custom 1, 2, 3, 4, 5 / Intelligent Auto | |
Photo/Video/S&Q switch | |
Photo Mode / Video Mode / Slow&Quick Mode | |
Custom mode | |
The settings can be registered for each of the photo, video, and S&Q modes. | |
Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
ISO sensitivity (Standard output sensitivity) | Still image |
[Normal] | |
Auto / 40* / 80-51200 / 102400* (1/3 or 1 EV step) *Extended ISO | |
[V-Log] | |
Auto / 100* / 200-51200 (1/3 or 1 EV step) *Extended ISO | |
Motion picture | |
[Normal] | |
Auto / 40* / 80-51200 / 102400* (1/3 or 1 EV step) *Extended ISO | |
[V-Log] | |
When Dynamic Range Expansion (log) OFF: Auto / 100* / 200-51200 (1/3 or 1 EV step) *Extended ISO | |
When Dynamic Range Expansion (log) ON: Auto / 200* / 400-51200 (1/3 or 1 EV step) *Extended ISO | |
[HLG] | |
Auto / 320-51200 / 102400* (1/3 or 1 EV step) *Extended ISO | |
Dual Native ISO | [Normal] |
Auto (Base ISO 80 / 400): Auto / 40* / 80-51200 / 102400* *Extended ISO | |
Low (Base ISO 80): Auto / 40* / 80-800 *Extended ISO | |
High (Base ISO 400): Auto / 200* / 400-51200 / 102400* *Extended ISO | |
[V-Log / Dynamic Range Expansion (log) OFF] | |
Auto (Base ISO 200 / 1000): Auto / 100* / 200-51200 *Extended ISO | |
Low (Base ISO 200): Auto / 100* / 200-2000 *Extended ISO | |
High (Base 1000): Auto / 500* / 1000-51200 *Extended ISO | |
[V-Log / Dynamic Range Expansion (log) ON] | |
Auto (Base ISO 400 / 2000): Auto / 200* / 400-51200 *Extended ISO | |
Low (Base ISO 400): Auto / 200* / 400-4000 *Extended ISO | |
High (Base 2000): Auto / 1000* / 2000-51200 *Extended ISO | |
[HLG] | |
Auto (Base ISO 320 / 1600): Auto / 320-51200 / 102400* *Extended ISO | |
Low (Base ISO 320): Auto / 320-3200 | |
High (Base ISO 1600): Auto / 1600-51200 / 102400* *Extended ISO | |
[Cinelike A2 / Cinelike D2 / Cinelike V2] | |
Auto (Base ISO 160 / 800): Auto / 80* / 160-51200 / 102400* *Extended ISO | |
Low (Base ISO 160): Auto /80* / 160-1600 *Extended ISO | |
High (Base ISO 800): Auto / 400* / 800-51200 / 102400* *Extended ISO | |
Synchro scan | Still image / Motion picture |
AE lock | Set the Fn button in custom menu to AE lock |
IMAGE STABILISATION SYSTEM | |
B.I.S. | 5-axis |
Centre: 8.0-stop, Periphery: 7.0-stop | |
*Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used.] | |
Dual I.S. 2 | 5-axis |
Centre: 7.0-stop, Periphery: 7.0-stop | |
*Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used.] | |
WHITE BALANCE | |
White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4 |
White balance adjustment | Blue/Amber bias, Magenta/Green bias |
Colour temperature setting | 2500-10000K in 100K |
SHUTTER | |
Type | Focal-plane shutter |
Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 |
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 | |
Electronic shutter Image Priority mode: Bulb (Max. 60 sec), 1/8,000 - 60 | |
Electronic shutter Speed Priority mode: Bulb (Max. 60 sec), 1/16,000 - 60 | |
Motion picture: 1/10,000 - 1/25* | |
Motion picture M mode / MF mode: 1/10,000 - 1/2* | |
*To set the shutter speed longer than the frame rate, please set Shutter Speed Limiter function to OFF. | |
Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
Remote control | Remote control by DMW-RS2 (sold separately) |
BRACKET | |
AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
Aperture bracket | 3, 5 or all positions |
Focus bracket | Yes |
White balance bracket | 3 images in blue/amber axis or in magenta/green axis, colour temperature setting |
BURST SHOOTING | |
Burst speed | Mechanical shutter / Electronic front curtain shutter |
H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) | |
H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) | |
H+ Image Priority: 9 frames/sec (AFC) | |
H+ Speed Priority: 10 frames/sec (AFC) | |
M: 5 frames/sec (AFS/AFC/MF) (with Live View) | |
L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
Electronic shutter | |
SH: 40 frames/sec (AFS/AFC/MF) | |
SH PRE: 40 frames/sec (AFS/AFC/MF) | |
H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) | |
H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) | |
H+ Image Priority: 9 frames/sec (AFC) | |
H+ Speed Priority: 10 frames/sec (AFC) | |
M: 5 frames/sec (AFS/AFC/MF) (with Live View) | |
L: 2 frames/sec (AFS/AFC/MF) (with Live View) | |
Number of recordable images | |
H/H+/M/L* | |
RAW+JPEG: More than 60 images | |
RAW: More than 70 images | |
JPEG: More than 80 images | |
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. | |
*When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)". | |
SH | |
RAW / RAW+JPEG / JPEG: 70 images | |
FLASH | |
Flash type | Sold separately |
Synchronization speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. |
Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
Flash output adjustment | 1/3EV step ±3EV |
Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. |
Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
COLOUR SETTINGS | |
Photo Style | Photo Style |
Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike A2 / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)* | |
*Set to ON from Show/Hide Photo Style to select. | |
Picture adjustment | |
Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / Dual Native ISO / ISO / WB / LUT / LUT 1 / LUT 2 / LUT Opacity / LUT 1 Opacity / LUT 2 Opacity | |
*Adjustable settings vary depending on the Photo Style mode, whether a LUT is applied, and the base Photo Style of the applied LUT. | |
Filter | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass |
LUT Library | Supported file types: .vlt, .cube |
Vlog_709 / Set 1-39 (Set 1-3: Sample LUT) | |
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in Log View Assist, LUT can be applied from these settings. | |
ZOOM FUNCTION | |
Hybrid zoom | Still image / Motion picture |
Crop zoom | Still image / Motion picture |
MOTION PICTURE FUNCTION | |
Time lapse shot | Yes |
Stop motion animation | Yes |
Live cropping | Yes |
SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
Luminance level | 8-bit: 0-255 / 16-235 / 16-255 |
10-bit: 0-1023 / 64-940 / 64-1023 | |
Master pedestal level | 31 steps |
Colour bars / Test tone | Yes (SMPTE / EBU / ARIB) / Yes |
LUT view assist | Monitor / HDMI |
HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF |
False Colour | Yes |
Wave form monitor / Vectorscope | Selectable |
Knee control | Yes (in Like709 mode) |
Other functions | Red REC Frame Indicator, Streaming Blue Frame Indicator |
VERTICAL POSITION INFORMATION | |
Vertical Position Information | Still image / Motion picture (ON/OFF) |
LEVEL GAUGE | |
Level Gauge | Yes |
FUNCTION BUTTON | |
REC | Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Apply LUT / REAL TIME LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Colour Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Control (Photo Mode) / Exposure Control (Video Mode) / Synchro Scan (Photo) / Synchro Scan (Video) / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting (Photo) / AF Custom Setting (Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabiliser / Shutter Type / [Hybrid Zoom (Photo) / Crop Zoom / Live View Composite / Rec. File Format / Rec Quality / Rec Quality (My List) / Proxy Recording / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Audio Recording / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabiliser / E-Stabilisation (Video) / Boost I.S. (Video) / Image Area of Video / Hybrid Zoom(Video) / Crop Zoom / Focus Transition / Live Cropping / Live Cropping Settings / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Video Mode) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / LUT Select(LUT View Assist) / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Image Flip (Monitor) / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select (LUT View Assist) / HLG View Assist (Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / False Colour / WFM/Vector Scope / Anamorphic Desqueeze Display / Colour Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Streaming / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Same Setting as Photo Mode / Restore to Default |
PLAY | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Video Mode) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / Send Images to Frame.io / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default |
INTERFACE | |
USB | USB Type-C® (USB 10Gbps) |
HDMI (*⁹) | HDMI |
HDMI TypeA | |
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.) | |
Monitor-through | |
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) | |
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) | |
Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF | |
Playback | |
59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* | |
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* | |
24.00Hz: C4K/24p / 4K/24p / 1080p | |
*Only for playback. | |
Remote input | φ2.5mm |
Audio | Build-in microphone |
Stereo | |
Wind Noise Canceller: OFF / Standard / High | |
External microphone / External audio device input | |
φ3.5mm for external microphone / external audio device | |
MIC (Plug-in Power) / MIC / LINE | |
Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately). | |
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately). | |
XLR microphone | |
Yes with DMW-XLR2 (sold separately) | |
4ch mic input | |
Yes with DMW-XLR2 (sold separately) | |
Speaker | |
Monaural | |
Headphone output | |
φ3.5mm | |
Card slot | Slot 1: CFexpress Type B Card |
Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card* | |
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. | |
TC IN/OUT | |
Count up | Rec Run / Free Run |
Time code mode | Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.) |
HDMI time code output | ON / OFF |
FAN | |
Fan | Auto1 / Auto2 / Fast / Normal / Slow* / OFF** *SLOW setting cannot be used depending on the video recording quality. **OFF can not be set when in Video mode. |
LAMP | |
Lamp | Tally Lamp (front/rear) / Card Access Light / Charging Light/Network Connection Light |
WIRELESS | |
Wi-Fi | 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) |
5GHz bands (STA/AP) (IEEE 802.11a/n/ac) | |
Security: WPA/WPA2/WPA3 | |
Bluetooth | Bluetooth® v5.0 (Bluetooth Low Energy (BLE)) |
DUST AND SPLASH RESISTANT* | |
Dust and Splash Resistant | Yes. |
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. | |
POWER | |
Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) |
USB power supply, USB power charging, USB power delivery | |
Battery life (CIPA standard) | When using CFexpress Card |
Approx. 340 images (rear monitor), 280 images (LVF), 950 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22 | |
*Using a Nextorage CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. | |
When using SD memory card | |
Approx. 350 images (rear monitor), 280 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22 | |
*Using a Nextorage SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. | |
Continuous recordable time (Motion picture) (*¹) | When using CFexpress Card |
MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105 | |
MP4 [FHD/30p (FULL)]: Approx. 80 min with S-R24105 | |
When using SD memory card | |
MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105 | |
MP4 [FHD/30p (FULL)]: Approx. 80 min with S-R24105 | |
Actual recordable time (Motion picture) (*¹) | When using CFexpress Card |
MP4 [4K/60p (FULL)]: Approx. 25 min with S-R24105 | |
MP4 [FHD/30p (FULL)]: Approx. 40 min with S-R24105 | |
When using SD memory card | |
MP4 [4K/60p (FULL)]: Approx. 25 min with S-R24105 | |
MP4 [FHD/30p (FULL)]: Approx. 40 min with S-R24105 | |
Battery grip | DMW-BG2 (sold separately) |
DIMENSIONS / WEIGHT | |
Dimensions (W x H x D) | Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions) |
Approx. 134.3 x 102.3 x 187.8 mm / 5.29 x 4.03 x 7.40 inch (with S-R24105, excluding protrusions) | |
Weight | Approx. 795g / 1.75 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) |
Approx. 712g / 1.57 lb (Body, Hot Shoe Cover) (excluding body cap) | |
OPERATING ENVIRONMENT | |
Operating temperature | -10℃ to 40℃ (14℉ to 104℉) |
・The performance of the battery (number of pictures that can be taken/available recording time) may decrease temporarily at temperatures between -10℃ to 0℃ (14℉ to 32℉). | |
・When using in low temperatures (-10℃ to 0℃ (14℉ to 32℉)), attach a Panasonic lens with a minimum recommended operating temperature of -10℃ (14℉). | |
Operating humidity | 10%RH to 80%RH |
STANDARD ACCESSORIES | |
Software | LUMIX Lab / LUMIX Flow |
・This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software. | |
https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS) | |
LUMIX Tether | |
・This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. | |
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) | |
・The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using computer connected to the Internet. | |
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) | |
Standard accessories | DC-S1RM2 Kit |
Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector | |
DC-S1RM2M Kit | |
Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Lens Cap, Lens Hood, Lens Rear Cap | |
・The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
Note
(*1) About motion picture recording
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more, S&Q video with ALL-Intra, or ProRes: CFexpress card
- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes
- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.8K]: 640GB
- The recording time varies depending on the shooting format and the operating conditions. It will stop automatically once the internal temperature gets too high.
(*2) HLG is selectable in [4:2:2 10bit] or [4:2:0 10bit].
(*3) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR2 (sold separately).
(*4) Proxy video recording is available.
(*5) Proxy video recording is available. When Proxy Recording is set to ON, Crop Zoom is not available.
(*6) When Image Area of Video is set to PIXEL/PIXEL, Crop Zoom is not available.
(*7) Please use DC Coupler DMW-DCC18 (sold separately) or Battery Grip DMW-BG2 / Battery Pack DMW-BLK22 (sold separately) when using the following settings. For video and S&Q video when set as MOV/MP4 with exceeding a resolution of C4K; or ProRes video with frame rate of 31 fps or above and exceeding a resolution of C4K.
(*8) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 4K 60p (C4K/4K 100p/120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting above 4K 60p (C4K/4K 100p/120p).
(*9) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
To output motion pictures with 4K 120p/100p or 8K30p/25p/24p, use an Ultra High Speed HDMI cable (Type A - Type A plug).
This product comes with 5 Year Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Panasonic Lumix S1R Mark II Body w/ S 24-105mm f/4 O.I.S Lens Compact System Camera
Battery Pack
Battery Charger
Shoulder Strap
Body Cap
Hot Shoe Cover
Cover for the Battery Grip Connector

SKU: Panasonic DC-S1RM2MKIT
UPC: 9302704040056
