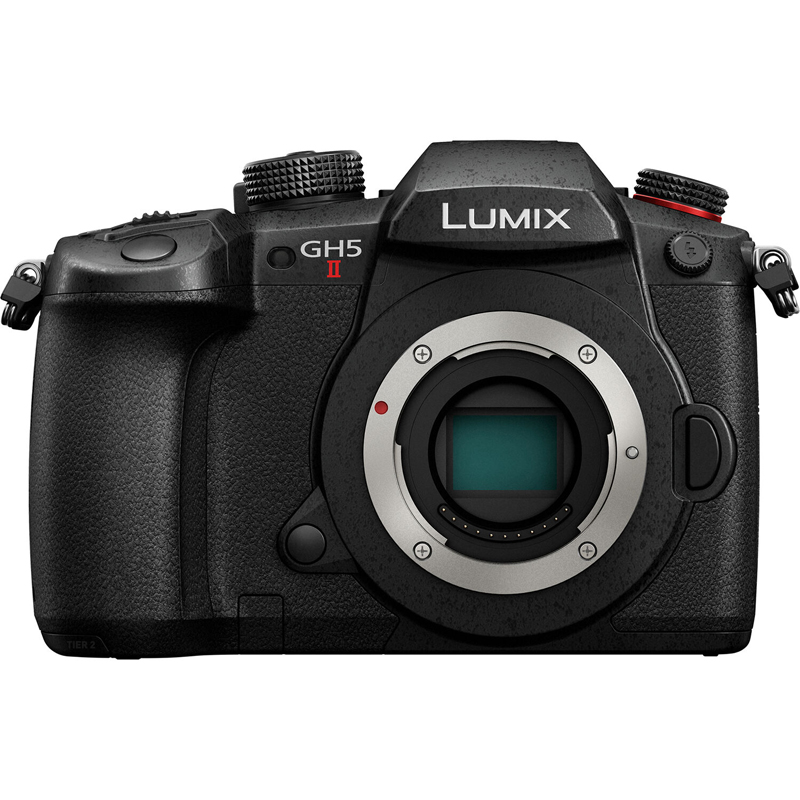

Panasonic Lumix GH5 Mark II Body Only
Only 1 Left!
- 20.3MP Live MOS Sensor with AR Coating
- Micro Four Thirds Lens Mount
- DCI/UHD 4K 60p Video and 10-Bit Internal Recording
- 0.76x 3.68m-Dot OLED Viewfinder
- Pre-Installed V-Log L and No Crop 4K Video
- 3.0" 1.84m-Dot Free-Angle Touchscreen
- 5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser
- Livestream Video via Wi-Fi
- 225-Area DFD AF with Advanced Subject Detect
- 6K and 4K PHOTO Modes
Sporting a 20.3MP Live MOS Sensor with AR Coating, the micro four thirds lens mount Panasonic Lumix GH5 Mark II is capable of handling and producing superb and stunning images. Perfect framing is made possible via the 0.76x 3.68m-Dot OLED Viewfinder and image blur is reduced by the 5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser. In addition to quality pictures, the Lumix GH5 Mark II is also capable of DCI/UHD 4K 60p Video and 10-Bit Internal Recording with Pre-Installed V-Log L and No Crop 4K Video which makes it easier to match the color tone with the footage recorded by other VariCam-series cameras. Using the feature makes you engage in 6K and 4K PHOTO Modes to capture clear images out of the recorded footages.
Playback and camera setting adjustments are done using the 3.0" 1.84m-Dot Free-Angle Touchscreen while the SD Memory Card compatibility ensures that there is enough storage space for your recorded images and videos. The Livestream Video via Wi-Fi allows instant online sharing as well as wireless camera control. With the 225-Area DFD AF and Advanced Subject Detect, this camera incorporates advanced deep learning technology to detect specific subjects including humans and fast-moving animals for better composition of your photos and videos.
Product Features in Detail
For The Modern Content Creator
Uncompromising versatility from a compact and lightweight, weather resistant body equips all creators including YouTube vloggers, and professional videographers with the ability to turn their creative vision into reality.
Enhanced 20.3MP MOS Sensor with AR Coating
The GH5M2 features a 20.3MP MOS sensor enhanced with an Anti-Reflection (AR) coating for uncompromising image detail and superior colour reproduction for both still images and video.
5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser
The GH5M2 improves on its image sharpness and video stability with a 5-axis Dual I.S. 2 Image Stabiliser that combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops worth of correction.*
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.
C4K/4K 60p/50p 10-bit Internal/External Recording
Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI live output external recording are supported for maximum image quality and post-production versatility.
* HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Unlimited Video Recording, Multiple Modes
The GH5M2 is built with cinema, broadcasting, live streaming and other professional applications in mind with unlimited recording offered on all frame rate and quality settings.
* On condition that the camera is under the environment where the operation is guaranteed and is running on the battery. Recording time depends on the capacity of the battery and the SD Memory Card. Recording may stop in C4k/4K60p/50p 10-bit and Anamorphic mode automatically to protect the camera.
V-Log L Pre-Installed
The LUMIX GH5M2 delivers 12 stops of dynamic range thanks to the pre-installed V-Log L colour profile. Level up your captured footage for maximum cinematic effect or colour match footage from another camera with seamless workflow integration.
Wireless Live Streaming (RTMP/RTMPS protocol)
Easily adapt to the changing needs of your audience with wireless live streaming directly from the camera via the LUMIX Sync app. Stream live events anytime, anywhere with the quality that only a mirrorless interchangeable lens camera can offer.
･Live streaming to platforms that comply with RTMP/RTMPS is possible (Compatibility with the platforms is not guaranteed.) There may be cases where live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform.
･Android and Google Play are trademarks or registered trademarks of Google Inc.
･IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
USB-C Power Supply / Power Charging
USB-C with USB Power Delivery compatibility simplifies your battery charging and power requirements. Convenient for travel and during extended shooting sessions, the GH5M2 can supply power to the camera while simultaneously charging the battery.*
*Battery must be installed in camera and retain some charge for feature to work.
・USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.
Autofocus Featuring AI Technology
High-speed, high-precision autofocus is combined with deep learning artificial intelligence technology for near-instant recognition of human faces, eyes, heads and bodies. An animal recognition mode has also been added for superior accuracy in pet and wildlife photography.
Supports a Wide Range of Production Needs
With a compact, all-weather body, versatile photo and video performance suited to a wide range of creative needs and untethered live streaming functionality, the LUMIX GH5M2 is built for modern creatives who need to reach a diverse audience with beautiful, impactful stories.
| TYPE | ||
| Type | Digital Single Lens Mirrorless camera | |
| Recording media | SD Memory Card / SDHC Memory Card* / SDXC Memory Card* | |
| *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. | ||
| Lens mount | Micro Four Thirds mount | |
| IMAGE SENSOR | ||
| Type | Live MOS sensor (17.3 x 13.0 mm) | |
| Camera effective pixels / Total pixels | 20.33 megapixels / 21.77 megapixels | |
| AR (Anti Reflection) coating | Yes | |
| Aspect ratio / Colour filter | 4:3 / Primary colour filter | |
| Dust reduction system | Image sensor shift type | |
| LATITUDE | ||
| Latitude | 12 stops (V-Log L) | |
| STILL IMAGE | ||
| Recording file format | Still image | JPEG (DCF, Exif 2.31), RAW |
| 6K PHOTO (*¹) / 4K PHOTO (*¹) | 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) | |
| 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) | ||
| Extracted still images: JPEG (DCF, Exif 2.31) | ||
| Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 | |
| File size (Pixels) | 4:03 | 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) |
| 3:02 | 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) | |
| 16:09 | 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO) | |
| 1:01 | 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO) | |
| Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard | |
| Colour space | sRGB, AdobeRGB | |
| MOTION PICTURE | ||
| Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately). | |
| MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch)) | ||
| System frequency | 59.94Hz / 50.00Hz / 24.00Hz | |
| Image area of video MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately). | Full / Pixel by Pixel | |
| 59.94Hz [C4K] 4096x2160 | 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) | ||
| 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 59.94Hz [4K] 3840x2160 | 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) | ||
| 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 59.94Hz [Anamorphic 6K] 4992x3744 (4:3) | 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 59.94Hz [Anamorphic 4K] 3328x2496 (4:3) | 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) | |
| 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 59.94Hz [FHD] 1920x1080 | 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 50.00Hz [C4K] 4096x2160 | 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) | ||
| 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 50.00Hz [4K] 3840x2160 | 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) | ||
| 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 50.00Hz [Anamorphic 6K] 4992x3744 (4:3) | 25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 50.00Hz [Anamorphic 4K] 3328x2496 (4:3) | 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) | ||
| 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 50.00Hz [FHD] 1920x1080 | 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | ||
| 24.00Hz [C4K] 4096x2160 | 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 24.00Hz [4K] 3840x2160 | 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 24.00Hz [Anamorphic 6K] 4992x3744 (4:3) | 24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 24.00Hz [Anamorphic 4K] 3328x2496 (4:3) | 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | |
| 24.00Hz [FHD] 1920x1080 | 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. | |
| MP4 (*¹) | 59.94Hz [4K] 3840x2160 | 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) |
| 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | ||
| 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | ||
| 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | ||
| 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | ||
| 59.94Hz [FHD] 1920x1080 | 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | ||
| 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | ||
| 50.00Hz [4K] 3840x2160 | 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | |
| 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) | ||
| 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | ||
| 50.00Hz [FHD] 1920x1080 | 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | |
| 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) | ||
| 24.00Hz - | - | |
| VARIABLE FRAME RATE | ||
| MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately). | 59.94Hz [C4K] 4096x2160 | 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
| 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | ||
| 59.94Hz [4K] 3840x2160 | 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | ||
| 59.94Hz [Anamorphic 4K] 3328x2496 (4:3) | 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | ||
| 59.94Hz [FHD] 1920x1080 | 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | ||
| 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | ||
| 50.00Hz [C4K] 4096x2160 | 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00Hz [4K] 3840x2160 | 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00Hz [Anamorphic 4K] 3328x2496 (4:3) | 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 50.00Hz [FHD] 1920x1080 | 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | ||
| 24.00Hz [C4K] 4096x2160 | 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00Hz [4K] 3840x2160 | 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00Hz [Anamorphic 4K] 3328x2496 (4:3) | 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| 24.00Hz [FHD] 1920x1080 | 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) | |
| STREAMING | ||
| Protocol | RTMP / RTMPS | |
| Streaming quality | NTSC (59.94Hz) [FHD] 1920x1080 | |
| 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. | ||
| 29.97p, 6Mbps / 3Mbps (H.264) | ||
| NTSC (59.94Hz) [HD] 1280x720 | ||
| 59.94p, 6Mbps (H.264) | ||
| 29.97p, 4Mbps (H.264) | ||
| PAL (50.00Hz) [FHD] 1920x1080 | ||
| 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. | ||
| 25.00p, 6Mbps / 3Mbps (H.264) | ||
| PAL (50.00Hz) [HD] 1280x720 | ||
| 50.00p, 6Mbps (H.264) | ||
| 25.00p, 4Mbps (H.264) | ||
| VIEWFINDER | ||
| Type | OLED Live View Finder | |
| Pixels | Approx. 3.68 million dots | |
| Field of view / Magnification | Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3 | |
| Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt) | |
| Eye sensor | Yes | |
| Display speed | 120fps / 60fps | |
| REAR MONITOR | ||
| Type | TFT LCD monitor with static touch control | |
| Monitor size | Free-angle, 3.0-inch (7.5cm), 3:2 aspect | |
| Pixels | Approx. 1.84 million dots | |
| Field of view | Approx. 100% | |
| FOCUS | ||
| Type | Contrast AF system | |
| DFD technology | Yes | |
| Focus mode | AFS (Single) / AFC (Continuous) / MF | |
| AF mode | Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3 | |
| (Full area touch is available) (Scalable AF frame size and flexible AF position) | ||
| AF detective range | EV -4 - 18 (F2.0, ISO100 equivalent, AFS) | |
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction | |
| AF assist light | Yes | |
| AF lock | Set the Fn button in custom menu to AF lock | |
| Post Focus / Focus Stacking | Yes / Yes | |
| Focus Ring Control | Nonlinear / Linear *When a compatible lens is attached. | |
| Others | Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume | |
| EXPOSURE CONTROL | ||
| Light metering system | 1,728-zone multi-pattern sensing system | |
| Light metering mode | Multiple / Centre Weighted / Spot / Highlight Weighted | |
| Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) | |
| Recording mode | Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto | |
| ISO sensitivity (Standard output sensitivity) | Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step) | |
| Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step) | ||
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) | |
| AE lock | Set the Fn button in custom menu to AE lock | |
| IMAGE STABILISATION SYSTEM | ||
| Image sensor shift type (5-axis / 6.5-stop*) | *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used. | |
| Dual I.S. (6.5-stop* Dual I.S. 2 compatible) | *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used. | |
| WHITE BALANCE | ||
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4 | |
| White balance adjustment | Blue/Amber bias, Magenta/Green bias | |
| Colour temperature setting | 2500-10000K in 100K | |
| SHUTTER | ||
| Type | Focal-plane shutter | |
| Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 | |
| Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 | ||
| Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60 | ||
| Motion picture: 1/16,000 - 1/25 | ||
| Creative Video M mode / MF mode: 1/16,000 - 1/2 | ||
| Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time | |
| Remote control | Remote control by DMW-RS2 (sold separately) | |
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) | |
| BRACKET | ||
| AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst | |
| Aperture bracket | 3, 5 or all positions | |
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels | |
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, colour temperature setting | |
| BURST SHOOTING | ||
| Burst speed | Mechanical shutter / Electronic front curtain shutter | |
| AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) | ||
| AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) | ||
| Electronic shutter | ||
| AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) | ||
| AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) | ||
| Number of recordable images | RAW / RAW+JPEG: More than 108 images | |
| JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.) | ||
| *When recording is performed under the test conditions specified by Panasonic. | ||
| 6K PHOTO (*¹) / 4K PHOTO (*¹) | ||
| Burst speed | 6K PHOTO: 30 frames/sec | |
| 4K PHOTO: 60 frames/sec, 30 frames/sec | ||
| Exif information | Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.) | |
| TIME LAPSE SHOT | ||
| Time Lapse Shot | Yes | |
| STOP MOTION ANIMATION | ||
| Stop Motion Animation | Yes | |
| FLASH | ||
| Flash type | TTL External Flash (sold separately) | |
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. | |
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. | |
| Flash output adjustment | 1/3EV step ±3EV | |
| Synchronization speed | Less than 1/250 second | |
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch | |
| Flash sync socket | Yes | |
| EXTRA TELE CONVERSION | ||
| Extra Tele Conversion | 2.0x (EX S), 1.4x (EX M) *Only for still image recording. | |
| PHOTO STYLE | ||
| Photo Style | Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10 | |
| Picture adjustment | Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / ISO / WB | |
| *Adjustable settings vary depending on the Photo Style mode. | ||
| FILTER | ||
| Filter | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine* | |
| *For photos only. | ||
| MOTION PICTURE FUNCTION | ||
| Master pedestal level | 31 steps | |
| Luminance level | 8-bit: 0-255 / 16-235 / 16-255 | |
| 10-bit: 0‒1023 / 64‒940 / 64‒1023 | ||
| Wave form monitor / Vectorscope | Selectable | |
| LUT view assist | Monitor / HDMI | |
| HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) | |
| Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF | |
| Synchro scan | Yes | |
| Time code | Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.) | |
| SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB | |
| Colour bars / 1kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes | |
| Knee control | Yes (in Like709 mode) | |
| Other functions | Red REC Frame Indicator, Streaming Blue Frame Indicator, | |
| VERTICAL POSITION INFORMATION | ||
| Vertical Postion information | Still image / Motion picture (ON/OFF) | |
| LEVEL GAUGE | ||
| Level Gauge | Yes | |
| FUNCTION BUTTON | ||
| REC | Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabiliser / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabiliser / E-Stabilisation (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Colour Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default | |
| PLAY | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default | |
| PictBridge compatible | ||
| INTERFACE | ||
| USB | SuperSpeed USB 3.1 Gen1 Type-C | |
| HDMI (*²) | HDMI | HDMI TypeA |
| Audio: Stereo | ||
| Monitor-through | 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) | |
| 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) | ||
| Down Convert: Auto / 4K / 1080p / 1080i / OFF | ||
| Playback | 59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p | |
| 50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p | ||
| 24.00Hz: Auto / C4K/24p / 4K/24p / 1080p | ||
| Remote input | φ2.5mm | |
| Microphone | Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately). | |
| External microphone / external audio device input | φ3.5mm for external microphone / external audio device | |
| MIC (Plug-in Power) / MIC / LINE is selectable. | ||
| Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). | ||
| XLR microphone | Yes with DMW-XLR1 (sold separately) | |
| Speaker | Monaural | |
| Headphone output | φ3.5mm | |
| SD card slot | Slot 1, Slot 2 | |
| WIRELESS | ||
| Wi-Fi | 2.4GHz (STA/AP) (IEEE802.11b/g/n) | |
| 5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries. | ||
| Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) | |
| DUST AND SPLASH RESISTANT* | ||
| Dust and Splash Resistant | Yes. | |
| *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. | ||
| POWER | ||
| Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) | |
| USB power supply, USB power charging, USB power delivery | ||
| Battery life (CIPA standard) | Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22 | |
| Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22 | ||
| *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. | ||
| Continuous recordable time (Motion picture) (*¹) | MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060 | |
| MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060 | ||
| Actual recordable time (Motion picture) (*¹) | MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060 | |
| MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060 | ||
| Battery grip | DMW-BGGH5 (sold separately) | |
| DIMENSIONS / WEIGHT | ||
| Dimensions (W x H x D) | Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions) | |
| Weight | Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body) | |
| Approx. 647g / 1.43 lb (Body only) | ||
| OPERATING ENVIRONMENT | ||
| Operating temperature (*³) | -10oC to 40oC (14oF to 104oF) | |
| Operating humidity | 10%RH to 80％RH | |
| STANDARD ACCESSORIES | ||
| Software | Recording | LUMIX Sync |
| ・ This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software. | ||
| https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS) | ||
| LUMIX Network Setting Software | ||
| ・ This software is used to write in streaming destination setting information into an SD card from a computer. Check the site below to download and install the software. | ||
| https://panasonic.jp/support/global/cs/dsc/ (For Windows / Mac) | ||
| LUMIX Tether | ||
| ・ This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. | ||
| http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) | ||
| Playback / Editing | ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. | |
| http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) | ||
Note
(*¹) About motion picture recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without
This product comes with 12 months Warranty with Panasonic Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Panasonic Lumix GH5 Mark II Body Only
Panasonic DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
Panasonic DMW-BTC15 Battery Charger
Body Cap
USB Cable
Cable Holder
Shoulder Strap
SKU: Panasonic DC-GH5M2GN
UPC: 8887549797514
