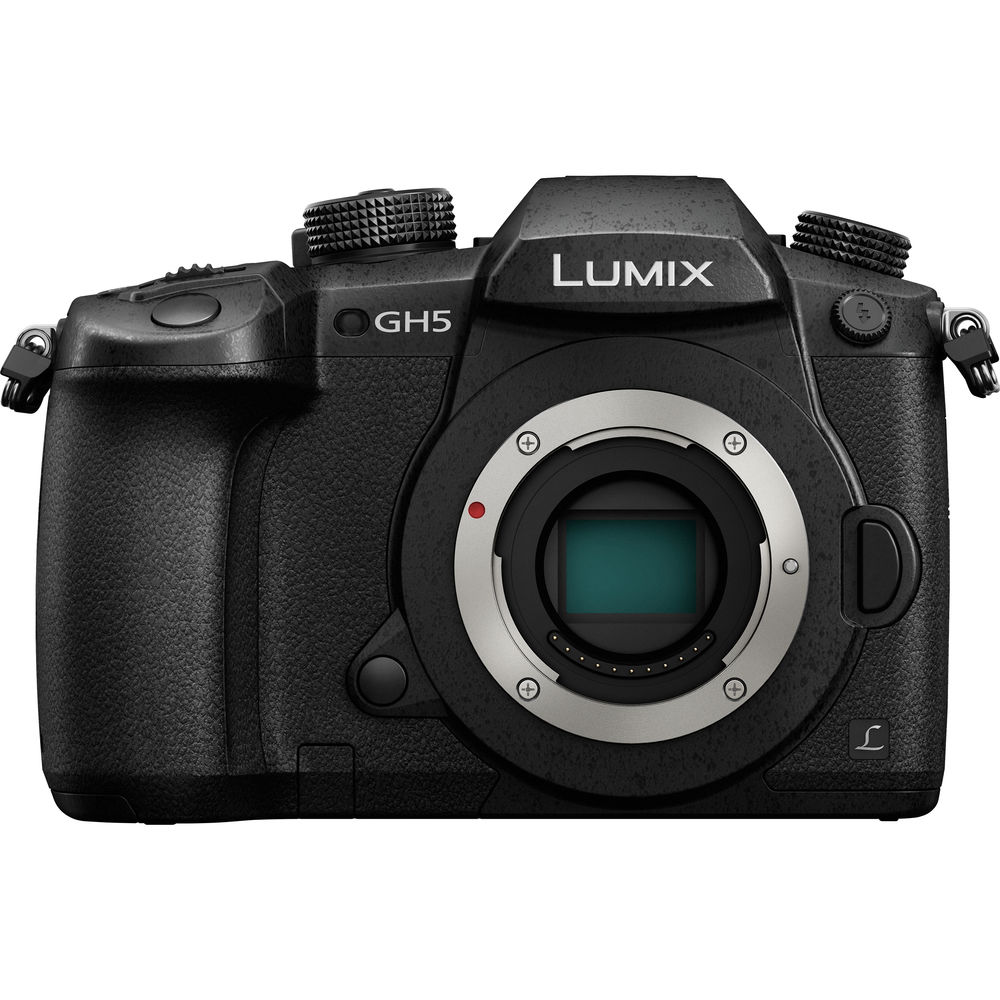

Panasonic Lumix GH5 Body Only Ex Display
- 20.3 megapixel Digital Live MOS Sensor
- Venus Engine 10 Image Processor
- 4K Video at 60p/50p
- 4:2:2 10-bit 4K Video Recording
- Five-axis Dual Image Stabilization
- 3,680k-dot OLED Live View Finder
- 3.2", 1620k-dot TFT touchscreen LCD monitor
- Depth from Defocus AF Technology
- 6K Photo Mode at 30 fps
- 4K Photo Mode at 60 fps
- Two UHS-II SD card slots
- Wi-Fi, Bluetooth and NFC Connectivity
- Durable Magnesium alloy frame
The Panasonic Lumix DMC-GH5 is a revolutionary compact digital camera that boasts of 4K Video at 60/50p as well as 4:2:2 10-bit 4K Video Recording to capture footages of superb quality. While recording, stunning images can also be extracted by using either the 6K Photo Mode at 30 fps or the 4K Photo Mode at 60 fps. Aside from video, the DMC-GH5 is also reliable with pictures thanks to the combination of the 20.3 megapixel Digital Live MOS Sensor and the Venue Engine 10 Image Processor. Finding that perfect frame is possible through the3,680k-dot OLED Live View Finder while image blur due to camera shake is minimized by the five-axis Dual Image Stabilization. Put the GH5's Depth from Defocus AF Technology to lock in moving subjects and infuse ample storage space by maximizing the camera's two UHS-II SD card slots. Use the 3.2", 1620k-dot TFT touchscreen LCD monitor to review saved media or adjust camera settings. Online sharing and wireless control can be activated through Wi-Fi, Bluetooth, and NFC connectivity. All of these functions are housed on a durable magnesium alloy frame that makes the Panasonic Lumix DMC-GH5 lightweight.
Product Features in Detail
20.3 Megapixel Sensor
The LUMIX GH5 packs a real punch with its high performance Digital Live MOS sensor sporting a 20.3 megapixels to achieve the ultimate picture quality in the history of LUMIX G digital cameras. Together with the removal of the low-pass filter from the sensor, you can confidently capture the sharpest ever imagery with high dynamic range and artefact free. The LUMIX GH5 is a camera of beauty created by you and crafted by Panasonic engineering.
Venus Engine image processor
The camera also comes with a new image processor Venus Engine, which achieves improvement especially in natural texture expression. The engine’s Multi-pixel Luminance Generation renders clear, sharp images by referring to a 9x larger area of pixel information during the de-mosaic process for precise detail reproduction. With Intelligent Detail Processing, the characteristic of every single pixel is analyzed to detect whether the pixel is located at a flat, detail or edge part of the picture. Optimum processing according to the characteristic of each pixel is then applied. This results in high-precision yet natural images with stunning detail suppressing false colors at its edges.
4K 60p/50p video
The LUMIX GH5 takes professional shooting performance to another level with high-precision, silky smooth 4K 60p/50p (QFHD 4K: 3840 x 2160 / MOV or MP4) video recording capability. Faster frame rates mean excellent motion compensation plus you can slow down footage inside your video editing timeline without losing detail. You also achieve perfect panning control and a suppression of the rolling shutter effect as seen in lesser frame rates.
4:2:2 10-bit Internal Recording
The LUMIX GH5 brings game changing internal 4:2:2 10-bit 4K video recording. For example, 10-bit will render all the subtleties of graduated skies and sunsets without the banding so prone to 8-bit. The power of having film creation capabilities inside the camera sets a new precedent in guerilla style filmmaking, also you can record 4:2:2 10-bit to SD card whilst simultaneously feeding the live signal thru a full-size HDMI port connected to an external monitor or recorder. 4:2:2 10-bit recording enables faithful colour and grading fidelity with over a billion colours and four times the tonality of 8-bit to match professional intent.
Three Dimensional Colour Control
Three Dimensional Color Control detects not only hue and saturation, but also brightness, and applies optimum control according to the value of each factor. This achieves rich color reproduction from shadows to highlights of the image. The conventional Multi Process NR (Noise Reduction) is upgraded to High Precision Multi Process NR. It boasts 4x the noise identification accuracy compared to the previous engine and preserves details even after the noise reduction process. As a result, photos can be clearly shot even at high sensitivity ISO values of up to 25,600.
5-Axis Dual Image Stabilization
The LUMIX GH5 also incorporates the 5-axis Dual I.S. (Image Stabilizer) 2, which suppresses blurring in more powerful and advanced ways for both photo and video recording, including 4K video. Combining an O.I.S. (Optical Image Stabilizer, 2-axis) and B.I.S. (Body Image Stabilizer, 5-axis), it compensates for larger movements which were conventionally uncontrollable. The LUMIX GH5’s high-precision gyro sensor controls both the O.I.S. and B.I.S. compensation by studying the focal length and shooting conditions, making it possible to use a max. 5-stop slower shutter speed. This is highly beneficial not only for wide-angle and telephoto shots, but also in adverse situations, such as at night-time or when shooting with one hand.
Depth from Defocus Technology
Panasonic's innovative DFD (Depth From Defocus) technology is constantly evolving and its just got even better. DFD allows the LUMIX GH5 to calculate focal lens movement by comparing depth of field values of two images at incredibly high speed. By combining the AF drive with a maximum read speed of 480 fps, the LUMIX GH5 can achieve ultra-high-speed Auto Focus in up to 0.05 seconds and 9 fps burst shooting with AFC (12 fps burst shooting with AFS). A newly adopted motion detector accurately tracks fast moving subjects, and enables smooth 4K PHOTO/VIDEO & 6K PHOTO recording.
6K and 4K Photo Modes
The LUMIX GH5’s new 6K PHOTO function makes it possible to capture unmissable moments at 30 fps by extracting the frame with the best timing out of the 6K burst file (in 3:2 or 4:3 aspect) to save as an approximately 18-megapixel equivalent high resolution photo. 4K PHOTO has also been upgraded enabling 60 fps high speed capture in approximately 8-megapixel equivalent resolution. In 6K/4K PHOTO, three exclusive modes are available to choose from depending on the situation; 6K/4K Burst, 6K/4K Burst (Start/Stop) and 6K/4K Pre-burst.
By compensating the signal information between the frames, the Venus Engine makes it possible to apply Post Recording Refinement over the pictures to correct distortion and reduce noise when playing back or cutting images out of the 6K/4K burst file. As a result, the picture quality of 6K/4K PHOTO shot at high shutter speed in high sensitivity or those shot in panning are dramatically improved.
Large OLED Live View Finder
A super high-resolution 3,680k-dot OLED LVF (Live View Finder) brings gorgeous visibility and makes for perfect framing even under direct sunlight. A high 0.76x magnification (35mm camera equivalent) makes it easy to see image detail, your settings and icons, and, the long eye point distance of 21mm is excellent for people who wear spectacles. Best of all, the OLED LVF ensures your pictures match up to exactly how you intended them. Adopting a static-type touch control system, the 3.2-inch free-angle rear screen in 3:2 aspect with 1,620K-dot high resolution achieves approximately 100% field of view.
Post Focus Function
If focus is not exactly as the user intended when the shutter is pressed, the LUMIX GH5’s Post Focus function enables users to select the specific focus point even after shooting – particularly helpful in situations like macro shooting where severe focusing is required. In addition, the camera also features a Focus Stacking function. Taking a single macro photo with specific areas in focus can sometimes be difficult, Focus Stacking enables users to take multiple images of the same frame with different focus points. You can then combine them into one image with the defocus as you like.
TYPE | Type | Digital Single Lens Mirrorless camera | |
Recording media | SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards) | ||
Image sensor size | 17.3 x 13.0 mm (in 4:3 aspect ratio) | ||
Lens mount | Micro Four Thirds mount | ||
IMAGE SENSOR | Type | Live MOS Sensor | |
Total pixels | 21.77 Megapixels | ||
Camera effective pixels | 20.30 Megapixels | ||
Color filter | Primary color filter | ||
Dust reduction system | Supersonic wave filter | ||
IMAGE STABILIZATION SYSTEM | Image sensor shift type (5-axis / 5-stop*), Dual I.S. (Dual I.S. 2 compatible)/* Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm), when H-FS12060 is used. | ||
RECORDING SYSTEM | Recording file format | Still image | JPEG (DCF, Exif 2.31), RAW |
6K PHOTO*1 / 4K PHOTO | 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))/4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) | ||
Motion picture | MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately)./MP4: H.264/MPEG-4 AVC/AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch) | ||
System frequency | 59.94Hz, 50.00Hz, 24.00Hz | ||
Aspect ratio | 4:3, 3:2, 16:9, 1:1 | ||
Image quality | RAW, RAW+Fine, RAW+Standard, Fine, Standard | ||
Color Space | sRGB, AdobeRGB | ||
File size(Pixels) -Still Image | 4:3 | 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) | |
3:2 | 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) | ||
16:9 | 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO) | ||
1:1 | 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO) | ||
File size (Pixels) -Motion picture | AVCHD Progressive*2/ AVCHD*2-59.94Hz | <[Full HD] 1920x1080> 59.94p, 28Mbps (LongGOP) (Dolby)/<[Full HD] 1920x1080> 59.94i, 24Mbps (LongGOP) (Dolby) (Sensor output is 29.97fps)/<[Full HD] 1920x1080> 59.94i, 17Mbps (LongGOP) (Dolby) (Sensor output is 59.94fps)/<[Full HD] 1920x1080> 23.98p, 24Mbps (LongGOP) (Dolby) | |
AVCHD Progressive*2/ AVCHD*2-50.00Hz | <[Full HD] 1920x1080> 50.00p, 28Mbps (LongGOP) (Dolby)/<[Full HD] 1920x1080> 50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)/<[Full HD] 1920x1080> 50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps) | ||
Continuous recordable time (Motion picture) | AVCHD [FHD/60p]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 150 min (LVF) with H-HSA12035 / H-FS12060/AVCHD [FHD/60i]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 160 min (LVF) with H-HSA12035 / H-FS12060/MP4 [4K/60p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060/MP4 [4K/30p]: Approx. 110 min (rear monitor), 110 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060" | ||
Actual recordable time (Motion picture) | AVCHD [FHD/60p]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 75 min (LVF) with H-HSA12035 / H-FS12060/AVCHD [FHD/60i]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 80 min (LVF) with H-HSA12035 / H-FS12060/MP4 [4K/60p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060/MP4 [4K/30p]: Approx. 55 min (rear monitor), 55 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060 | ||
WIRELESS | WiFi | IEEE 802.11a/b/g/n/ac * 5GHz Wi-Fi is not available in some countries./1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch | |
QR Code Connection | Yes | ||
Password-less connection | Yes (ON / OFF selectable) | ||
Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) | ||
VIEWFINDER | Type | OLED Live View Finder (3,680k dots) | |
Field of view | Approx. 100% | ||
Magnification | Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1 | ||
Eye point | Approx. 21 mm from eyepiece lens | ||
Diopter adjustment | -4.0 - +3.0 (dpt) | ||
Eye sensor | Yes | ||
Eye sensor adjustment | High / Low | ||
FOCUS | Type | Contrast AF system | |
DFD technology | Yes | ||
Post Focus | Yes | ||
Focus Stacking | Yes | ||
Focus mode | AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF | ||
AF mode | Face/Eye Detection / Tracking / 225-Area / Custom Multi / 1-Area / Pinpoint/(Full area touch is available) (Scalable AF frame size (by Joystick) and flexible AF position (by front/rear dial)) | ||
AF detective range | EV -4 - 18 (ISO100 equivalent) | ||
AF assist lamp | Yes | ||
AF lock | Yes (AF/AE LOCK button) | ||
AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction | ||
Others | One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter | ||
EXPOSURE CONTROL | Light metering system | 1,728-zone multi-pattern sensing system | |
Light metering mode | Multiple / Center Weighted / Spot | ||
Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) | ||
Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual | ||
ISO sensitivity (Standard Output Sensitivity) | Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)/Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step) | ||
Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) | ||
AE lock | Yes (AF/AE LOCK button) | ||
WHITE BALANCE | White balance | AWB / AWBc / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 | |
White balance adjustment | Blue/Amber bias, Magenta/Green bias | ||
Color temperature setting | 2500-10000K in 100K | ||
SHUTTER | Type | Focal-plane shutter | |
Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60/Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60/Electronic shutter: 1/16,000 - 1/Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 23.98Hz: 1/16,000 - 1/24 (When using Synchro Scan) | ||
Shutter life | Approx. 200,000 images | ||
Self timer | 10sec, 3 images / 2sec / 10sec | ||
Remote control | Remote control with Bulb function by DMW-RSL1 (sold separately) | ||
6K PHOTO / 4K PHOTO | Burst speed | [6K PHOTO] 30 frames/sec/[4K PHOTO] 60 frames/sec, 30 frames/sec | |
Exif information | Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.) | ||
Marking function | Yes (in 6K/4K Burst (S/S) mode) | ||
Loop rec function | Yes (in 6K/4K Burst (S/S) mode) | ||
BRACKET | AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst | |
Aperture Bracket | 3, 5 or all positions in 1 EV step | ||
Focus Bracket | 1 to 999 images, focus steps can be set in 5 levels | ||
White balance bracket | 3 exposures in blue/amber axis or in magenta/green axis, color temperature setting | ||
BURST SHOOTING | Burst speed | [Mechanical shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)/[Mechanical shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)/[Electronic shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)/[Electronic shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) | |
Number of recordable images | More than approx. 60 images (when there are RAW files with the particular speed)/More than approx. 600 images (when there are no RAW files)/(depending on memory card size, battery power, picture size, and compression) | ||
FLASH | Flash type | TTL External Flash (sold separately) | |
Flash Mode | Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA, iA+ only. | ||
Synchronization speed | Less than 1/250 second | ||
Flash output adjustment | 1/3EV step ±3EV | ||
Flash synchronization | 1st. Curtain Sync, 2nd Curtain Sync. | ||
Synchronization for flash dimming and exposure compensation | Yes | ||
Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch | ||
Flash sync socket | Yes | ||
REAR MONITOR | Type | TFT LCD monitor with static touch control | |
Monitor size | Free-angle 3.2-inch (8.0cm) / 3:2 aspect / Wide viewing angle | ||
Pixels | Approx. 1,620k dots | ||
Filed of view | Approx. 100% | ||
Monitor adjustment | Brightness, Contrast, Saturation, Red-Green, Blue-Yellow | ||
LIVE VIEW | Digital zoom | 2x, 4x | |
Extra Tele Conversion | Still image: Max. 2x/4K PHOTO: 1.6x (4:3), 1.5x (3:2), 1.4x (16:9, 1:1)/Motion picture: 2.7x (FHD), 1.4x (4K) | ||
Other functions | Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture) | ||
DIRECTION DETECTION FUNCTION | Direction Detection Function | Yes | |
FUNCTION BUTTON | Fn1-20 | Wi-Fi / Q.MENU / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot RAW+JPG / 1 Shot Spot Metering / Cursor Button Lock / Dial Operation Switch / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Burst Rate / 6K/4K Photo / Self Timer / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Setup (Flash) / Ex. Tele Conv. / Digital Zoom / Stabilizer Sensitivity / ON/OFF of each item in White Balance / ON/OFF of each item in Photo Style / AF Mode/MF / Rec/Playback Switch / Off / 4K Live Crop / Motion Pic. Set / Picture Mode / Variable Frame Rate / Picture Mode / Synchro Scan / Time Code Display / Mic. Directivity Adjust / Color Bars / WFM/Vector Scope / LUT Monitor Display* / LUT HDMI Display* / Focus Transition / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Rec Area / Video-Priority Display / Step Zoom / Zoom Speed / Restore to Default *Upgrade Software Key DMW-SFU1 (sold separately) is required. | |
PHOTO STYLE | Photo Style | Standard / Vivid / Natural / Monochrome / L. Monochrome / Scenery / Portrait / Custom 1, 2, 3, 4 / Cinelike D / Cinelike V / Like709* / V-LogL*/**/*When Creative Video Mode is selected. **Upgrade Software Key DMW-SFU1 (sold separately) is required. | |
CREATIVE CONTROL | Creative Control | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect** / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine* *For photos only. **Not available in 4:2:2 10-bit video or 4K video recording. | |
CREATIVE VIDEO MODE | Exposure mode | Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure</td |
This product comes with 12 months Warranty with Panasonic Australia. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Panasonic Lumix GH5 Body Only Ex Display
Battery Charger with AC Cable
Battery Pack
Body Cap
Hot Shoe Cover
Eye Cup
Flash Synchro Socket Cap
Cover for Battery Grip Connector
USB Connection Cable
Shoulder Strap
Cable Holder
