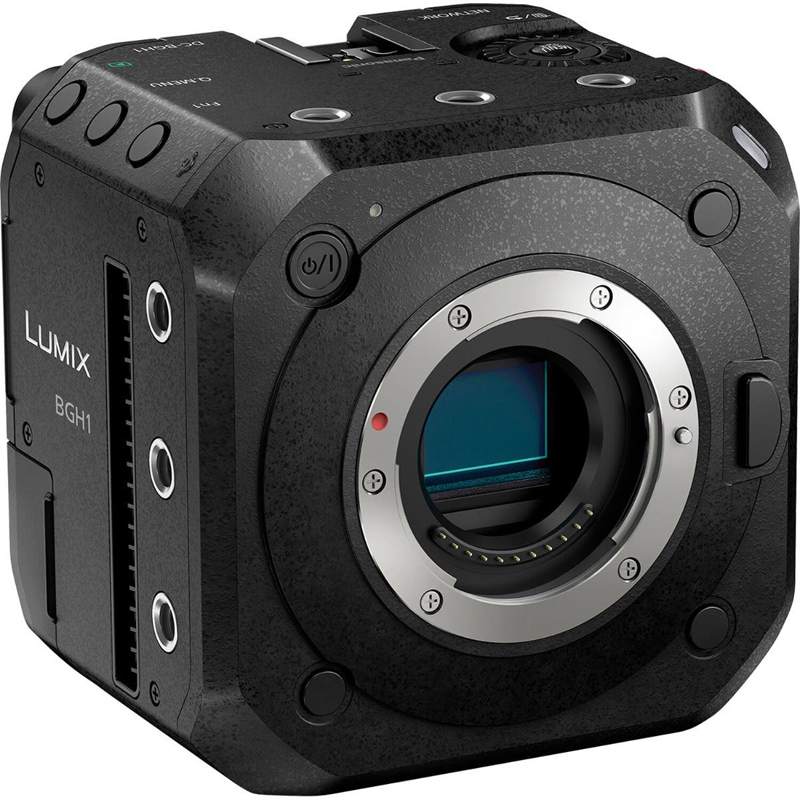

Panasonic Lumix BGH1 4K Cinema Box Camera

A$2,938.00

Stock levels may vary, if your order is urgent, please enquire about availability

Free Shipping for Orders over $98* (*excludes bulky items)
No SURCHARGE FOR CREDIT CARDS
  • 10.2-megapixel Live MOS sensor
  • Dual Native ISO technology
  • 4:2:0 10-bit C4K/4K 60p video recording
  • Unlimited recording in all settings
  • 13-stop dynamic range
  • AI-powered Autofocus
  • 10x slow motion/30x quick motion
  • Cooling fan for heat dissipation
  • Dual SD Card slots
  • 3.5 mm microphone input
  • Genlock and Timecode BNC input/output
  • Remote control via LUMIX Tether app
  • First MFT camera approved by Netflix

The Panasonic LUMIX BGH1 Cinema Camera is the first Micro Four Thirds 4K camera approved by Netflix. Those who are aspiring to create shows for the online streaming service will enjoy its versatility in cinema prodction and even vlogging. Its lightweight and compact design makes it an ideal device when you're taking shots using drones or gimbals.

It features a 10.2-megapixel sensor and a 13-stop dynamic range to aptly adjust to the amount of lighting in every scene. This lightweight camera can record 4K 60p video which can be enhanced through Varicam Look, advanced autofocus, and dual-native ISO. Professional color graders will also have an easier time thanks to its Hybrid Log-Gamma.

Unlimited videos can be recorded in either GOP, MOV, or MP4 formats in H.264 and H.265/HEVC codecs, while video outputs can be done via the HDMI 2.0 output for 4K and 3G-SDI for 1080p. Superb slow motion footages are also possible by shooting at 1080p 240fps. The BGH1 is the perfect cinema camera when using multiple cameras in one shot because its timecode and Genlock BNC ports allow easy post-production synching.

For easier access to pre-set setting, you can program the four function buttons to automatically delivery a certain feel to the shot. The camera can also be controlled via Wi-Fi or Bluetooth, while the LUMIX Tether app allows you to control up to 12 BGH1s. As for audio, the camera has a built-in microphone and a 3.5mm mic input. You can also monitor the sounds using the 3.5mm headphone jack. Finally, you can also stabilize the shots and play with more angles by mounting the Panasonic LUMIX BGH1 onto a tripod with the help of four 1/4"-20 mounting threads.


Product Features in Detail

Live MOS Sensor with Dual Native ISO

The LUMIX BGH1's 10.2-megapixel Live MOS sensor has Dual Native ISO technology that reduces noise while maximizing image quality to deliver a maximum ISO 51200/Extended ISO 204800 that helps minimize image noise and boost light sensitivity to render dark areas in the frame.

13-stops wide dynamic range with V-Log L

V-Log L's13 stops of dynamic range provide accurate reproduction of colours from highlights to dark areas. V-Log L also has identical characteristics with its predecessor, V-Log, making the latter's LUTs usable for color-grading footage from Varicam series cameras.

Various recording modes

The Panasonic LUMIX BGH1 can conduct C4K/4K 60p/50p 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit, and ALL-Intra 400 Mbps recording, which are perfect for providing rich colour profiles in post-production. You can also use its simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit live output for external recording via HDMI. It also supports unlimited anamorphic 4K recording to provide creativity and flexibility that professional videographers look for in various production environments.

Heat-resistant camera

ries, the exterior is designed for uniform heat dissipation. Its aluminum and magnesium alloy body-frame is designed to regulate the camera's temperature to avoid overheating. The BGH1 also has a cooling fan that helps dissipate heat while reducing the camera's weight to maintain its portability.

SDI/HDMI output

The BGH1 is the first LUMIX camera with an SDI (3G-SDI) terminal that supports 1080p output, retains stable connection despite long cables, and allows monitoring. Consequently, simultaneous recording via HDMI or USB widens your video production options.

Genlock IN/Timecode IN/OUT

Multi-camera control and live-streaming in mind, BGH1 delivers another LUMIX first with Genlock IN. When used with timecode, Genlock facilitates high-precision frame synchronization based on signals from the external input. This function is ideal during live sporting events that would need multiple cameras. Aside from the seamless feed connection, each video has a timecode that will help patch footages together with ease.

Type
Type Digital Single Lens Mirrorless camera
Recording Media SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens Mount Micro Four Thirds mount
Image Sensor
Type Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels/ total pixels 10.28 megapixels / 11.93 megapixels
Aspect ratio/colour filter 4:3 / Primary color filter
Latitude 13 stops (V-Log L)
Still Image
Recording file format JPEG (DCF, Exif 2.31)
*Tethered photo shooting with LUMIX Tether for Multicam software
Aspect ratio 4:3
File size (pixels) 3680 x 2760 (L) / 2592 x 1944 (M) / 1824 x 1368 (S)
Image quality Fine / Standard
Color space sRGB
Motion Picture

MOV***
Hi-Res Audio is selectable only when using the DMW-XLR1 (sold separately).
59.94 Hz [C4K] 4096 x 2160 59.94p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable.
59.94p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio)
29.97p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
23.98p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[4K] 3840 x 2160 59.94p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable.
59.94p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio)
29.97p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
23.98p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[Anamorphic 4K] 3328 x 2496 (4:3) 59.94p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio)
29.97p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
23.98p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[FHD] 1920 x 1080 59.94p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
29.97p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
23.98p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
50.00 Hz [C4K] 4096 x 2160 50.00p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable.
50.00p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio)
25.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[4K] 3840 x 2160 50.00p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable.
50.00p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio)
25.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[Anamorphic 4K] 3328 x 2496 (4:3) 50.00p, 200 Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, Hi-Res Audio) *HLG is selectable.
50.00p, 150 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio)
25.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[FHD] 1920 x 1080 50.00p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
25.00p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
24.00 Hz [C4K] 4096 x 2160 24.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[4K] 3840 x 2160 24.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[Anamorphic 4K] 3328 x 2496 (4:3) 24.00p, 400 Mbps (4:2:2 10-bit ALL-Intra)* / 150 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
[FHD] 1920 x 1080 24.00p, 200 Mbps (4:2:2 10-bit ALL-Intra)* / 100 Mbps (4:2:2 10-bit LongGOP)* / 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, Hi-Res Audio) *HLG is selectable.
MP4*** 59.94 Hz [4K] 3840 x 2160 59.94p, 100 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 72 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
23.98p, 72 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
29.97p, 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920 x 1080 59.94p, 28 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00 Hz [4K] 3840 x 2160 50.00p, 100 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 72 Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
25.00p, 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920 x 1080 50.00p, 28 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
Variable Frame Rate
MOV** 59.94 Hz [C4K] 4096 x 2160 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840 x 2160 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328 x 2496 (4:3) 29.97p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920 x 1080 59.94p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
29.97p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
23.98p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 201 or more.
50.00 Hz [C4K] 4096 x 2160 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840 x 2160 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328 x 2496 (4:3) 25.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920 x 1080 50.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
25.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 201 or more.
24.00 Hz [C4K] 4096 x 2160 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840 x 2160 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328 x 2496 (4:3) 24.00p (Maximum output of sensor is 60 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920 x 1080 24.00p (Maximum output of sensor is 240 fps), 100 Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 201 or more.
Focus
Type Contrast AF system
DFD Technology Yes
Focus Mode AF / MF
AF Mode Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area / 1-Area
*Tethered photo shooting with LUMIX Tether for Multicam software.
AF Detective Range EV -6–20 (F1.4, ISO100 equivalent, AF [Still image])
AF Custom Setting AF Speed, AF Sensitivity
AF Lock Set the Fn button in custom menu to AF lock
Others AF-ON, Continuous AF, AF+MF, MF Guide, MF Assist, Focus Peaking, Focus Ring Lock, 1-Area AF Moving Speed, Lens Focus Resume
Exposure Control
Light metering system 1,728-zone multi-pattern sensing system
Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted
Metering range EV 0–18 (F2.0 lens, ISO100 equivalent)
Exposure mode Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity (standard output sensitivity) Auto / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO.
Dual Native ISO [Normal]
Native ISO: 160, 800
Auto: Auto / 80* / 100* / 160–51200 / 102400* / 204800* *Extended ISO.
Low: Auto / 80* / 100* / 160–800 *Extended ISO.
High: Auto / 800–51200 / 102400* / 204800* *Extended ISO.

[V-Log L]
Native ISO: 400, 2000
Auto: Auto / 400–25600
Low: Auto / 400–2000
High: Auto / 2000–25600

[HLG]
Native ISO: 320, 1600
Auto: Auto / 320–51200 / 102400* / 204800* *Extended ISO.
Low: Auto / 320–1600
High: Auto / 1600–51200 / 102400* / 204800* *Extended ISO.

[Cinelike D2 / Cinelike V2]
Native ISO: 160, 800
Auto: Auto / 80* / 100* / 160–51200 / 102400* / 204800* *Extended ISO.
Low: Auto / 80* / 100* / 160–800 *Extended ISO.
High: Auto / 800–51200 / 102400* / 204800* *Extended ISO.
Exposure Compensation Motion picture: 1/3 EV step ±3 EV
Still image: 1/3 EV step ±5 EV *Tethered photo shooting with LUMIX Tether for Multicam software.
AE Lock Set the Fn button in custom menu to AE lock
White Balance
White balance AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature
setting 1, 2, 3, 4
White balance adjustment Blue/Amber bias, Magenta/Green biass
Color temperature setting 2500–10000K in 100K
Shutter
Shutter Speed Motion picture: 1/16,000–1/2
Still image: 1/16,000–1 *Tethered photo shooting with LUMIX Tether for Multicam software.
Photo Style
Photo Style Motion picture: Standard / Vivid / Natural / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1–10 Still image: Standard *Tethered photo shooting with LUMIX Tether for Multicam software.
Photo Adjustment Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB
*Adjustable settings vary depending on the Photo Style mode.
Filter Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color
Other Functions
Master Pedestal Level 31 steps
Luminance Level 8-bit: 0–255 / 16-235 / 16-255
10-bit: 0–1023 / 64‒940 / 64‒1023
LUT view assist Rec / Playback: HDMI / SDI
HLG view assist Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)
Anamorphic desqueeze display 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Rec: SDI
Playback: HDMI / SDI
Synchro scan Yes
SS/Gain Operation Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1 kHz test tone Yes (SMPTE / EBU / ARIB) / Yes
Knee Control Yes (in Like709 mode)
Level Gauge Yes
Function Button
REC Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Image Area of Video / Digital Zoom / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Cursor Button Lock / DISP. / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Monochrome Live View / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAY Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / DISP. / Card Slot Change / Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default
Interface
USB SuperSpeed USB 3.1 Gen1 Type-C
DC IN DC 12 V (11.4–12.6 V), EIAJ Type4
HDMI*** HDMI HDMI Type A
Audio: Stereo
Monitor-through 4:2:2 10-bit (When [Rec Quality] is set to [4:2:2 10-bit] or [4:2:0 10-bit].)
4:2:2 8-bit (When [Rec Quality] is set to [4:2:0 8-bit])
Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
Playback 59.94 Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
50.00 Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
24.00 Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p
SDI SDI BNC Terminal, 0.8 V [p-p], 75 Ω, 3G-SDI
Audio: Stereo, SDI Sound Output Gain Adj.: 0 dB / -6 dB / -8 dB
Monitor-through 4:2:2 10-bit
Playback 59.94 Hz: 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
50.00 Hz: 1080/50.00p / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
24.00 Hz: 1080/24.00PsF
Ethernet Remote Control: LAN Terminal (RJ-45)
Power Supply: PoE+ (IEEE802.3at compliant)
* Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
Remote Input φ2.5 mm
Microphone Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
External microphone/external audio device input φ3.5 mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately)
XLR microphone Yes, with DMW-XLR1 (sold separately)
Headphone output φ3.5 mm
SD Card Slot Slot 1, Slot 2
TC IN/OUT Count-up Rec Run / Free Run
Timecode mode Drop Frame / Non-Drop Frame (When system frequency [59.94 Hz] is selected)
HDMI timecode output ON / OFF
SDI timecode output ON / OFF
External TC setting TC Synchronization / TC Output Reference
Genlock IN Genlock IN ON / OFF
Horizontal Phase Synchronization  -206–+49
Fan Auto1 / Auto2 / Normal / Slow
Lamp Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED
Wireless
Wi-Fi IEEE 802.11b/g/n, 2412 MHz–2462 MHz (1–11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
Bluetooth Bluetooth® v4.2 (Bluetooth Low Energy [BLE])
Power
Direct power supply AC Adaptor (12 V, 3 A) (bundled)
Li-ion Battery Pack (7.28V) (sold separately)
PoE+ (IEEE802.3at compliant) (sold separately)
Battery Li-ion Battery Pack AG-VBR59 (7.28 V, 5900 mAh, 43 Wh) (sold separately)
Li-ion Battery Pack AG-VBR89 (7.28 V, 8850 mAh, 65 Wh) (sold separately)
Li-ion Battery Pack AG-VBR118 (7.28 V, 11800 mAh, 86 Wh) (sold separately)
Continuous recordable time (Motion picture)** MP4 [4K/60p]: Approx. 270 min, MP4 [FHD/60p]: Approx. 300 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 420 min, MP4 [FHD/60p]: Approx. 480 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 560 min, MP4 [FHD/60p]: Approx. 640 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.
Actual recordable time (Motion picture)** MP4 [4K/60p]: Approx. 135 min, MP4 [FHD/60p]: Approx. 150 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 210 min, MP4 [FHD/60p]: Approx. 240 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 280 min, MP4 [FHD/60p]: Approx. 320 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.
Dimensions and Weight
Dimensions (W x H x D) Approx. 93.0 x 93.0 x 78.0 mm / 3.66 x 3.66 x 3.07 inch (excluding protrusions)
Weight Approx. 545 g / 1.2 lb (Body only)
Operating Environment
Operating temperature****  -10 °C to 40 °C (14 °F to 104 °F)
Operating humidity 10 % RH to 80 % RH
Standard Accessories
Software LUMIX Tether for Multicam. This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Standard Accessories AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover

DC-BGH1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

** About motion picture recording

  • - Use a card with SD Speed Class "Class 4" or higher when recording motion pictures in [MP4 (under 28 Mbps)].
  • - Use a card with SD Speed Class "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
    (SD speed class is the speed standard regarding continuous writing.)
  • - Video Speed Class 60 or higher is required for ALL-Intra 400 Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
  • - MP4 motion pictures with [MP4] in [4K]:
    • When using an SDHC Memory Card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
    • When using an SDXC Memory Card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  • - MP4 motion pictures with [MP4] in [FHD]:
    • You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  • - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
    The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
    It may cause problems such as freezing when played on these devices.
  • - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

*** For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI 2.0 cable that has the HDMI logo on it, and that is described as "4K compatible".

**** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 °C (14 to 104 °F).

This product comes with Genuine Warranty from Panasonic Australia.
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

Panasonic LUMIX BGH1 4K Cinema Camera Body
AC Adaptor
AC Cable
Cable Lock Band
Body Cap
Hot Shoe Cover
AUDIO Terminal Cover
DC IN Terminal Cover
BNC Terminal Cover
HDMI Terminal Cover
REMOTE Terminal Cove

Write Your Own Review
You're reviewing:Panasonic Lumix BGH1 4K Cinema Box Camera
Your Rating
Panasonic Lumix BGH1 4K Cinema Box Camera
Panasonic Lumix BGH1 4K Cinema Box Camera
A$2,938.00

SKU: Panasonic BGH1

UPC: 8887549781919
