Panasonic Connected Home Alert Kit
- Long Range DECT Wireless Technology
- Easy & Simple Setup
- Visual Motion Detection, Sound & Ambient Temperature Indoor Sensors
- Visual Motion Detection & Infrared (Heat) Outdoor Sensors
- Selectable Detection Area
- Window/Door & Motion Sensor Detection and Automatic Notification
- Smart Plug Power Control Schedule
- Remotely Turn Off Lamps & Appliances
- View Power Consumption
- Connected Hub Video Recording
- 12 Months Warranty with Panasonic Australia
Protect your home and your family and install your own Panasonic Connected Home Alert Kit. This helpful CCTV and alarm kit offers long range DECT technology that is longer than a Wi-Fi range plus 2.4 GHz FHSS technology. The kit is easy and simple to setup, just connect the devices or using one-touch registration for Wi-Fi. The alert kit uses visual motion detection, sound and ambient temperature for indoor sensors while visual motion detection and infrared (heat) is used for outdoor sensors. Using the Connected Home App, a Selectable Detection Area is available for your smartphone or tablet adjustment as well as window/door and motion sensor detection and automatic notification thru voice call or smart phone. It also offers remote turning off of lamps and appliances, Smart Plug Power Control Schedule, power consumption viewing, and connected hub video recording directly to a micro SD card.
Product Features in Detail
Home Alert Kit
Premium kit includes one Indoor Camera, one Outdoor Camera, one Cordless Handset, one Micro SD Card, one Smart Plug, one Motion Sensor, two Window/Door Sensors and one Hub Unit *. Receive alerts, arm and disarm system via your smartphone/tablet. Ideal for monitoring your children, pets and for general home security.
Long Range
DECT wireless technology for a longer range than Wi-Fi and 2.4GHz FHSS technology. Easy wireless installation even in remote locations.
No Monthly Safety Fees
Usable simply by purchasing hardware, unlike security services that require a monthly safety fee.
Easy Wi-Fi Setup
Easy registration to a Wi-Fi router. Setup can be performed from a smartphone without the need to start a PC.
One Push Pairing
When additional optional devices are purchased, they can be easily registered with a single button. (This procedure is not required for devices that were included as part of a bundle.)

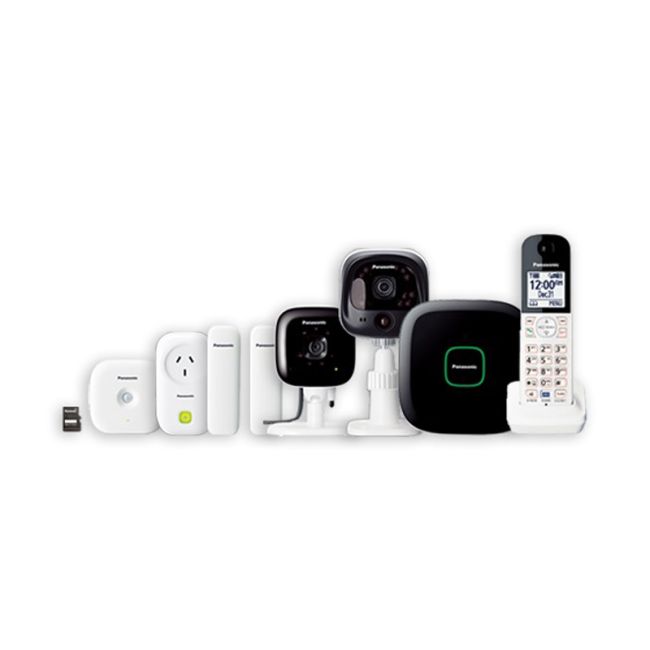

Included in the Box
Panasonic Connected Home Alert Kit
Cordless Handset
One Indoor Video Camera
One Outdoor Video Camera
Two Window/Door Sensors
Motion Sensor
Smart Plug
Hub Unit
12 Months Warranty with Panasonic Australia
Warranty Information
This Panasonic Connected Home Alert Kit comes with 12 Months Warranty with Panasonic Australia
Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
HUB | General | Colour | W (White) |
Frequency range | DECT: 1.88 GHz - 1.90 GHz | ||
Frequency range | Wi-Fi: 2.412 GHz – 2.472 GHz | ||
Wireless Network Standard | Wi-Fi: IEEE 802.11 b / g / n | ||
Encryption | WPA2-PSK (TKIP / AES), WPA-PSK (TKIP / AES), WEP (128 / 64 bit) | ||
SD Card Slot for Recording Video | Y (microSD Max2GB / microSDHC Max32GB) | ||
Status Indication | LED (Red / Yellow / Green) | ||
Alert Tone Volume | 6setp+OFF | ||
Wall Mountable | Y | ||
Operating Conditions | 0℃–40℃ | ||
Operating Conditions | 20%–80% relative air humidity (dry) | ||
Easy Setup | One Push Pairing Button (Handset, Camera, Other Device) | Y | |
Wi-Fi Setup Button | Y | ||
Expandability | Digital Cordless Handset (KX-HNH100) | Up to 6 | |
Camera (KX-HNC600 / HNC200) | Up to 4 | ||
Sensor / Smart Plug (KX-HNS101 / HNS102 / HNA101) | Up to 50 | ||
Smartphone / Tablet | Up to 8 | ||
Phone Feature | Landline Telephone Function | Y | |
Smartphone Connect | Y | ||
Answering System | Y | ||
Call Block | Y | ||
Camera Feature (Indoor Camera) | Recording Time | Up to 15min | |
Camera Feature (Outdoor Camera) | Recording Time | Up to 15min | |
Sensor Detect Notification (Window Sensor / Motion Sensor / Motion Sensor in Camera) | Via Landline Call | Y | |
Via Home Network System Application | Y | ||
HUB Buzzer | Y | ||
Digital Cordless Handset | Y | ||
Power Consumption | Standby Power Consumption | Approx. 4.0 W | |
Dimensions/ Weight | Dimensions (W x D x H) | Approx. 130 mm x 130 mm x 42 mm | |
Weight | Approx. 220 g | ||
Motion Sensor | General | Colour | W (White) |
Frequency Range | DECT: 1.88 GHz - 1.90 GHz | ||
Sensor Detection Method | Pyroelectric infrared sensor (heat sensor) | ||
Heat Sensor Detection Range | Horizontal: approx. ±45° | ||
Heat Sensor Detection Range | Vertical: approx. ±10° | ||
Heat Sensor Detection Range | Distance: approx. 5 m * | ||
Heat Sensor Detection Range | '* When the surrounding temperature is approx. 25 °C. | ||
Sensor Sensitivity Select Switch | Y (High / Low) | ||
Status Indication | LED (Red/Green) | ||
Easy Setup | One Push Pairing button | ||
Power Source | Alkaline battery (AA x 2) | ||
Battery Life | Approx. 1 year | ||
Battery Life | * When motion is detected 50 times a day and the surrounding temperature is approx. | ||
Battery Life | 25 °C. | ||
Wall Mount | Y | ||
Operating Conditions | 0 °C – 40 °C | ||
Dimensions/ Weight | Sensor Unit Dimensions (W x D x H) | Approx. 73 mm x 39 mm x 72 mm *1 | |
Sensor Unit Dimensions (W x D x H) | Approx. 73 mm x 61 mm x 72 mm *2 | ||
Sensor Unit Dimensions (W x D x H) | *1 With the rear cover attached. | ||
Sensor Unit Dimensions (W x D x H) | *2 With the wall mounting adaptor attached. | ||
Magnet Unit Dimensions (W x D x H) | - | ||
Sensor Unit Weight | Approx. 70 g *1 | ||
Sensor Unit Weight | Approx. 77 g *2 | ||
Sensor Unit Weight | *1 With the rear cover attached. | ||
Sensor Unit Weight | *2 With the wall mounting adaptor attached. | ||
Magnet Unit Weight | - | ||
Window/Door Sensor | General | Colour | W (White) |
Frequency Range | DECT: 1.88 GHz - 1.90 GHz | ||
Sensor Detection Method | - | ||
Heat Sensor Detection Range | - | ||
Sensor Sensitivity Select Switch | - | ||
Status Indication | LED (Red/Green) | ||
Easy Setup | One Push Pairing button | ||
Power Source | Lithium battery (CR2 x 1) | ||
Battery Life | Approx. 2 years | ||
Battery Life | * When window/door is opened and closed 10 times a day, in an environment of 25 °C. | ||
Wall Mount | - | ||
Operating Conditions | -10 °C – 40 °C | ||
Dimensions/ Weight | Sensor Unit Dimensions (W x D x H) | Approx. 31 mm x 22 mm x 102 mm | |
Magnet Unit Dimensions (W x D x H) | Approx. 14 mm x 14 mm x 37 mm | ||
Sensor Unit Weight | Approx. 39 g | ||
Magnet Unit Weight | Approx. 8 g | ||
Digital Cordless Handset | General | Colour | W (White) |
Frequency Range | DECT: 1.88 GHz - 1.90 GHz | ||
LCD | 1.8 inch Mono (103×65dot) | ||
Key Backlight | Amber | ||
Operating Conditions | 0 °C – 40 °C | ||
Operating Conditions | 20 % – 80 % relative air humidity (dry) | ||
Home Network Setting | Arm / Disarm | Y | |
Monitoring Sensor Status | Y | ||
Smart Plug Control (Power On/Off) | Y | ||
Handset Talking Notification (On/Off) | - | ||
Alert Volume | 6 step+Off | ||
Telephone Function | Sound Equalizer | Y | |
Noise Reduction | Y | ||
Talking Caller ID | - | ||
Caller ID Memory | Y (50 items) | ||
Do Not Disturb Mode | Y | ||
Nuisance Call Block | Y (250 numbers) | ||
One Touch Eco Mode | - | ||
Speed Dial | Y (9 items) | ||
Shared Phonebook | Y (500 items) | ||
Speakerphone | Y | ||
Intercom | Y | ||
Ringer Volume | 6 step+Off | ||
Receiver Volume | 4 step | ||
Speakerphone Volume | 6 step | ||
Other | Standby Battery Life / Talk Time / Charge Time | Up to 170 hours / Up to 15 hours / About 7 hours | |
Battery Type | Ni-MH batteries (AAA x 2) | ||
Power Consumption | Charger Standby Power Consumption | Approx. 0.1 W | |
Dimensions/ Weight | Handset Dimensions (W x D x H) | Approx. 48 mm x 29 mm x 164 mm | |
Charger Dimensions (W x D x H) | Approx. 72 mm x 72 mm x 39 mm | ||
Handset Weight | Approx. 109 g * | ||
Handset Weight | * Excluding the batteries. | ||
Charger Weight | Approx. 43 g * | ||
Charger Weight | * Excluding the AC adaptor. | ||
Smart Plug | General | Colour | W (White) |
Frequency Range | DECT: 1.88 GHz - 1.90 GHz | ||
Max Wattage | Approx. 2,400W (10A max. x 220V - 240V) | ||
Status Indication | LED (Red / Green) | ||
Easy Setup / Operation | One push pairing button / | ||
Easy Setup / Operation | Manual power On/Off button | ||
Power Source | AC (220-240V, 50/60Hz) | ||
Power Consumption | Standby: Approx. 0.8 W | ||
Power Consumption | Maximum: Approx: 1.6 W | ||
Operating Conditions | 0 °C–40 °C | ||
Operating Conditions | 20%–80% relative air humidity (dry) | ||
Dimensions/ Weight | Dimensions (W x D x H) | Approx. 64 mm x 35 mm x 94 mm | |
Weight | Approx. 158 g | ||
Indoor Camera | General | Colour | W (White) |
Frequency Range | DECT: 1.88 GHz - 1.90 GHz | ||
Transmitting Range | Approx. 50 m / Approx. 300 m | ||
Camera Angle | Horizontal: approx. 70° | ||
Camera Angle | Vertical: approx. 50° | ||
Video Compression | H.264 | ||
Image Sensor | 0.3 megapixel CMOS | ||
Camera Resolution | High: 640x480 pixel (VGA), Low: 320x240 pixel (QVGA) | ||
Max Frame Rate | VGA up to 6 fps / QVGA up to 10fps (H.264) | ||
Recording Time | 2 GB card: Approx. 15 hours | ||
Recording Time | 4 GB card: Approx. 30 hours | ||
Recording Time | 8 GB card: Approx. 60 hours | ||
Recording Time | 16 GB card: Approx. 120 hours | ||
Recording Time | 32 GB card: Approx. 240 hours | ||
Recording Time | * Recorded files will be stored via the microSD/ microSDHC card in the Hub. | ||
Recording Time | * For live recording and recording by Smart Control feature. | ||
Recording Time | * Maximum continuous recording time is 15 minutes. | ||
Night Vision | 6m | ||
Sensor | Sound sensor | ||
Sensor | Visual sensor | ||
Sensor | Temperature sensor | ||
Infrared Sensor Detection Range | - | ||
Visual Sensor Detection Range | Horizontal: approx. 70° | ||
Visual Sensor Detection Range | Vertical: approx. 50° | ||
Dustproof / Waterproof Rating | - | ||
Speaker / Microphone | Y / Y | ||
Playing a Lullaby | 5 lullabies | ||
Status Indication | LED (Red/Green/Amber) | ||
Easy Setup | One Push Pairing button | ||
Wall Mountable | Y | ||
Adjustable Mounting Angles | Horizontal: ±90° | ||
Adjustable Mounting Angles | Vertical: facing forward - facing down approx. 60° * | ||
Adjustable Mounting Angles | * Adjustable when mounting | ||
Power Source | AC (220-240V, 50/60Hz) | ||
Operating Conditions | 0 °C – 40 °C | ||
Operating Conditions | up to 90% relative humidity (non-condensing) | ||
Power Consumption | Standby Power Consumption | Standby: Approx. Approx. 2.2 W | |
Standby Power Consumption | During Operation: Approx. 4.0 W | ||
Dimensions/ Weight | Dimensions (W x D x H) | Approx. 75 mm x 75 mm x 102 mm | |
Weight | Approx. 160 g | ||
Outdoor Camera | General | Colour | W (White) |
Frequency Range | DECT: 1.88 GHz - 1.90 GHz | ||
Transmitting Range | Approx. 50 m / Approx. 300 m | ||
Camera Angle | Horizontal: approx. 70° | ||
Camera Angle | Vertical: approx. 50° | ||
Video Compression | H.264 | ||
Image Sensor | 0.3 megapixel CMOS | ||
Camera Resolution | High: 640x480 pixel (VGA), Low: 320x240 pixel (QVGA) | ||
Max Frame Rate | VGA up to 6 fps / QVGA up to 10fps (H.264) | ||
Recording Time | 2 GB card: Approx. 15 hours | ||
Recording Time | 4 GB card: Approx. 30 hours | ||
Recording Time | 8 GB card: Approx. 60 hours | ||
Recording Time | 16 GB card: Approx. 120 hours | ||
Recording Time | 32 GB card: Approx. 240 hours | ||
Recording Time | * Recorded files will be stored via the microSD/ microSDHC card in the Hub. | ||
Recording Time | * For live recording and recording by Smart Control feature. | ||
Recording Time | * Maximum continuous recording time is 15 minutes. | ||
Night Vision | 12m | ||
Sensor | Infrared sensor | ||
Sensor | Visual sensor | ||
Infrared Sensor Detection Range | Horizontal: approx. 70° | ||
Infrared Sensor Detection Range | Vertical: approx. 20° | ||
Infrared Sensor Detection Range | Detection range: approx. 5 m | ||
Visual Sensor Detection Range | Horizontal: approx. 70° | ||
Visual Sensor Detection Range | Vertical: approx. 50° | ||
Dustproof / Waterproof Rating | IP55 | ||
Speaker / Microphone | Y / Y | ||
Playing a Lullaby | - | ||
Status Indication | LED (Red/Green/Amber) | ||
Easy Setup | One Push Pairing button | ||
Wall Mountable | Y | ||
Adjustable Mounting Angles | Horizontal: ±90° | ||
Adjustable Mounting Angles | Vertical: facing forward - facing down approx. 60° * | ||
Adjustable Mounting Angles | * Adjustable when mounting | ||
Power Source | AC (220-240V, 50/60Hz) | ||
Operating Conditions | -20 °C – 50 °C (-4 °F – 122°F) | ||
Operating Conditions | up to 90% relative humidity (non-condensing) | ||
Power Consumption | Standby Power Consumption | Standby: Approx. Approx. 2.3 W | |
Standby Power Consumption | During Operation: Approx. 4.5 W | ||
Dimensions/ Weight | Dimensions (W x D x H) | Approx. 75 mm x 87 mm x 75 mm *1 | |
Dimensions (W x D x H) | Approx. 75 mm x 173 mm x 75 mm *2 | ||
Dimensions (W x D x H) | *1 Without stand. | ||
Dimensions (W x D x H) | *2 With stand. | ||
Weight | Approx. 305 g | ||
Application | Support OS | iPhone(R)4 or later, iPad(R), or iPad mini (iOS 6.0 or later) or an Android(TM) device (Android 4.0 or later) | |
Smart Control | Y | ||
Device Error Notification | Y | ||
Alert Volume | Y |
