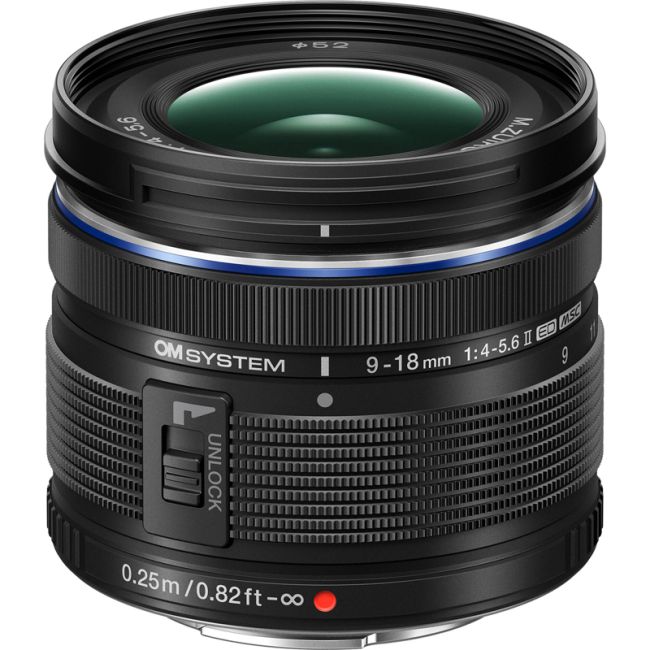

OM System M.Zuiko 9-18mm f/4.0-5.6 II Black Digital ED Lens
- Micro Four Thirds System
- f/4-5.6 Aperture Range
- 9-18mm Focal Length
- 18-36mm (Full-Frame Equivalent)
- 100-62° Angle of View
- Movie and Still Compatible (MSC)
- Dual Super Aspherical Lens
- Maximum Image Magnification 0.2×
- Movie and Still Compatible AF System
- Compact and Lightweight
The OM System M.Zuiko 9-18mm f/4.0-5.6 II Black Digital ED Lens is designed for the Micro Four Thirds system and offers a wide-angle zoom range with impressive features for both photography and videography. With an aperture range of f/4-5.6, the lens allows for effective light gathering, making it suitable for various lighting conditions and situations. The focal length of 9-18mm provides a wide-angle perspective, allowing users to capture expansive landscapes, architecture, and other subjects that require a wider field of view 1. In terms of full-frame equivalent focal length, it offers a range of 18-36mm. With an angle of view between 100-62°, the lens enables users to capture a wide and immersive scene in their shots.
The lens is movie and still compatible (MSC), meaning it can achieve quick and silent autofocusing, making it suitable for both photo and video shooting. Equipped with dual super aspherical lens elements, the lens delivers enhanced optical performance with reduced distortions and improved image quality. The lens offers a maximum image magnification of 0.2×, allowing for close-up shots with good detail and clarity. With a movie and still compatible AF system, the lens provides smooth and accurate autofocusing performance for both photography and videography. The OM System M.Zuiko 9-18mm f/4.0-5.6 II lens is designed to be compact and lightweight, making it portable and easy to carry around for various shooting situations.
This lens offers a wide-angle zoom range, versatile focal length, image quality, autofocus performance, and a compact form factor, making it suitable for capturing expansive landscapes, architectural details, and a variety of other wide-angle scenes in both photography and videography
Product Features in Detail
M.Zuiko Digital ED 9-18mm f4.0-5.6 II
A typical super-wide-angle lens tends to be big, heavy, and expensive, making it difficult for most camera users to take advantage of them. The M.Zuiko Digital ED 9-18mm F4.0-5.6 II promises to change all this. With its ultra compact and lightweight design and the outstanding portability, thanks to the DSA (Dual Super Aspherical) lens, available only with the Four Thirds System, this lens will make super-wide-angle photography friendlier and more affordable. Despite its compact size — it’s just 49.5mm long and weighs a mere 155 grams — this lens boasts a long focusing range equivalent to 18-36 mm on a 35-mm camera lens.
For On-the-Go
M.Zuiko everyday lenses offer a solution for every shooting situation, whether you need a convenient low-profile lens or a high-powered zoom.
Zoom Alternative
This lens is a great alternative to previous Ultra wide-angle zoom lens designs that have traditionally been very heavy…and very expensive.
Flexibility
The combination of two Dual Sided Aspherical, lenses, and aspherical, ED and HR glass helps minimize distortion and aberration.
Special Lens Hood
If you’re expecting to be doing a lot of outdoor shooting in bright conditions, the hood will really help prevent strong side or stray light from causing unwanted ghosting aberration.
Recommended Uses | |
Recommended Uses | Adventure Landscape, Architecture, Landscape, Nature, Travel |
Lens Construction | |
Lens configuration | 12 elements / 8 groups |
Maximum image magnification | 0.05x (wide) / 0.1x (tele) |
(equiv. 35mm) | 0.11x (wide) / 0.2x (tele) |
Angle of view | 100 - 62° |
Focusing method | High-speed Imager AF (MSC) |
Closest focusing distance | 0.25m |
Minimum field size | 321 x 241.2mm (wide) |
173 x 130mm (tele) | |
ED lens elements | 1 |
Aspherical glass elements | 1 |
DSA lens elements | 2 |
HR elements | 1 |
Focal Length | |
Focal length | 9 - 18mm |
Focal length (equiv. 35mm) | 18 - 36mm |
Aperture | |
Maximum aperture | F4.0 (wide) / F5.6 (tele) |
Minimum aperture | F22 |
Number of aperture blades | 7 Circular aperture diaphragm for natural background blurring |
Dimensions / Weight | |
Diameter | 56.2mm |
Length | 49.3mm |
Filter diamater | 52mm |
Weight | 154g (without Lens Cap, Lens Rear Cap and Lens Hood) |
Compatibility | |
Compatible to Tele Converter MC-14 | No |
Compatible to Tele Converter MC-20 | No |
Operates with 5-axis Sync IS | No |
This product comes with 12 Months Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
OM System M.Zuiko 9-18mm f/4.0-5.6 II Black Digital ED Lens
Front Lens Cap
Rear Lens Cap

SKU: OM System V335940BW000
UPC: 4545350056001
