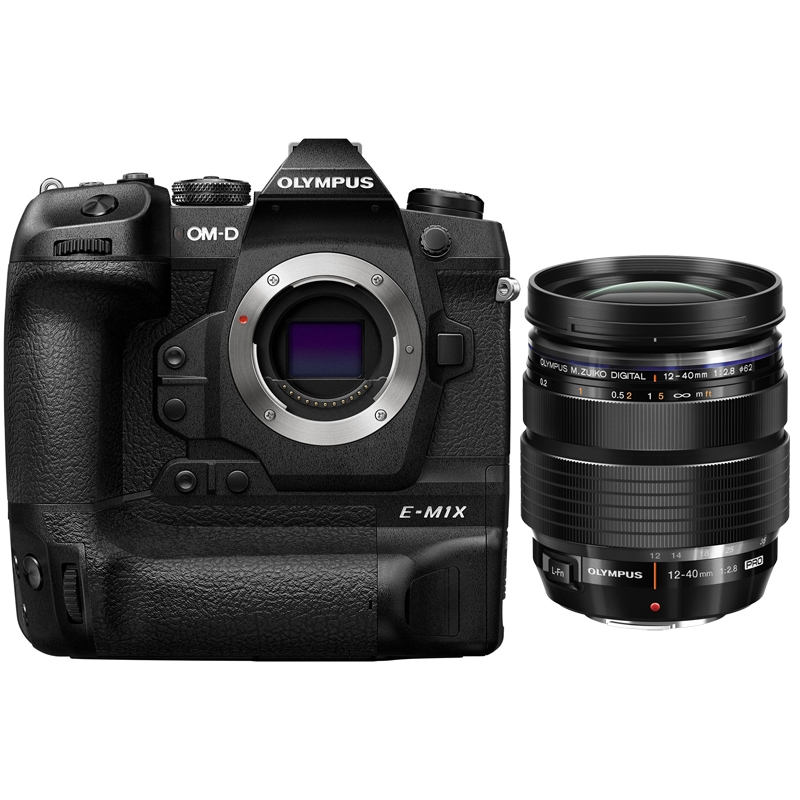

Olympus OM-D E-M1X with M. Zuiko ED 12-40mm f2.8 PRO Lens
- Comes with Olympus M. Zuiko ED 12-40mm f2.8 PRO Lens
- 20.4MP Live MOS Micro Four Thirds Sensor
- Dual TruePic VIII Image Processors
- 2.36m-Dot 0.83x Electronic Viewfinder
- Integrated Vertical Grip, Dual Batteries
- DCI 4K/24p & UHD 4K/30p Video Recording
- 3.0" 1.037m-Dot Vari-Angle Touchscreen
- 15 fps Shooting and Expanded ISO 25600
- 5-Axis Sensor-Shift Image Stabilization
- 121-Point All Cross-Type Phase-Detect AF
- Weather-Sealed Construction
With the photographer’s vision in hand, Olympus has come up with another innovative digital SLR that performs and features the demands of both novice and expert photo enthusiasts. Offering dual TruePic VIII image processors, Olympus OM-D E-M1X immensely improved AF with new subject detection auto-focus technology. This includes 2.36m-Dot 0.83x Electronic Viewfinder, DCI 4K/24p & UHD 4K/30p Video Recording and 121-Point All Cross-Type Phase-Detect AF capabilities, plus a high-speed shooting up to 15 fps and expanded ISO 25600. A rear 3.0" 1.037m-Dot Vari-Angle Touchscreen monitor is also available to benefit shooting from high and low shooting angles. The 5-axis sensor-shift image stabilization system compensates for up to 7.5 stops of camera shake to create sharper handheld shooting. This camera is also loaded with an Integrated Vertical Grip plus Dual Batteries to maximize your shooting capabilities. Moreover, this DSLR is made with weather-sealed construction to support your working in harsh conditions. This kit includes the Olympus M. Zuiko ED 12-40mm f2.8 PRO Lens.
Product Features in Detail
Freedom without compromise
Whether your assignment takes you on a wildlife journey, to a sports event or into the studio, the E-M1X has professional features which cater to any shooting style – every time.
Integrated vertical grip
Giving you everything you need in one, the E-M1X has an integrated vertical grip. As the design is the same on both the vertical and horizontal grip, the photographer enjoys the same intuitive hand movements in both portrait and landscape format shooting. With two battery units, it’s ideal for long-time assignments.
World’s best image stabilitation (IS)
The engineers at Olympus have taken IS yet another step forward to introduce the redeveloped gyro sensor. It delivers the precision that the E-M1X demands, with results unseen with other cameras. This advanced technology makes up to 7.5 shutter speed steps of compensation possible to eliminate the need for a tripod and enable free-hand shooting.
World’s best weatherproof body
Thanks to renowned OM-D weather sealing in the E-M1X, professional photographers can take on any scene – in the rain, snow and sand – without a worry. Now also with additional sealing for the SD card slot and all other covers, as well as for the remote cable, microphone and headphone terminals.
Haptic buttons and improved ergonomics
The specially designed height, shape and characteristics of each individual button and dial means you can easily feel the ones you need and fully concentrate on shooting through the viewfinder. The button layout and handling have both been enhanced to offer better ergonomics, which is especially convenient during long periods of shooting.
Class-leading Supersonic Wave Filter (SSWF)
The best in class has now become even better. The enhanced SSWF provides a higher level of reliability when you change lenses. Dirt and dust have even less a chance of ruining photos and equipment.
Long shutter life
After being put through stringent tests, the shutter curtain on the E-M1X has shown to provide a top-class operation life of 400,000 actuations.
Dual card slots
With two UHS-II slots, you can always be sure that the camera delivers the same performance even when one card is full. Professionals can save shots on both cards and always have a back-up, so a photo never goes lost.
USB charging
The E-M1X is the first Olympus camera to support USB power delivery of up to 100 Watts. This makes you independent of the power supply wherever you may be and have the option of charging the batteries using a powerbank. With double battery support, two batteries can be fully charged in-camera simultaneously in just two hours.
Long battery life
The duo battery power gives photographers the chance to shoot up to 2,580 images before having to recharge, which is ideal for long photo shoots and remote-location assignments.
Precision with the right function
The OM-D autofocus (AF) system has been completely re-engineered for the E-M1X. From additional focal points for different scenes to a new focus algorithm, the AF lets the photographer concentrate on the composition.
Intelligent subject detection AF
Ideal for racing events, air shows and trainspotting, this function detects specific subjects for pinpoint focusing and tracking. It does the work of autofocusing so that you can concentrate on the composition.
AF Low Intensity Limit
With down to –6 EV steps, this function takes the worry out of shooting in low light. The sensitive AF performs high-precision focusing also in dark scenes.
Multi Selector (joystick)
Located on both grips, this intuitive joystick makes switching AF areas during sequential shooting and movie recording fast and easy, especially while shooting through the viewfinder.
My Menu
Customise a menu of your most frequently used settings – up to 35 – and always have them ready at hand without the hassle. The GUI has been specially designed together with professional photographers.
Pro Capture
Life doesn’t stand still
In addition to professional-quality photos, the E-M1X is a master at movie-making. It features all the extras videographers need to capture moments as they happen.
Handheld High Res Shot
Designed for photographers who don’t want to be limited by using a tripod, or whose assignments take them to places where a tripod is not permitted, this function generates a single high-resolution shot equal to that captured with a 50M sensor – without any signs of blur caused by handshake.
Live ND
In Live ND, photographers can get slow shutter effects without the need for an expensive external filter. The scene can be reviewed in the viewfinder and the effect edited before you ever shoot the photo.
Field sensor system
Particularly ideal for photographers who need shooting information for efficient image management, the E-M1X has a built-in system that records your location, time, altitude and direction.
Wi-Fi capture
Benefit from the effects of tethering – without being tethered. Wi-Fi lets you transfer photos from the E-M1X to the computer without the use of cables. This gives photographers more shooting freedom, particularly in the studio.
Life doesn’t stand still
In addition to professional-quality photos, the E-M1X is a master at movie-making. It features all the extras videographers need to capture moments as they happen.
C4K Movie
With the ultra-high C4K (4096 x 2160) movie format, videographers not only have the highest recording resolution to date, but also more flexibility when it comes to post-production.
World’s best image stabilisation (IS)
Moving images require a flexible IS system which adjusts the compensation in harmony with how you pan the camera. The E-M1X is the world’s first camera to offer this flexibility to the videographer – at a quality level that no one else on the market can provide.
World’s best weatherproof body
The E-M1X is fully sealed against rainy weather, freezing temperatures and dusty air. Thanks to additional sealing for the remote cable, microphone and headphone terminals, the need for a bothersome rain cover is eliminated.
OM400-log
To counteract changing lighting conditions typical during documentary and nature shooting, the E-M1X enables log shooting. OM400-log delivers movies without loss of details in shadows or highlight blowouts, and greater freedom over video creativity through colour grading.
High-speed 120fps
Available for Full HD recording, this function provides more cinematic movies with a slow-motion perception. Movements made by the subject can be suspended to add dynamics to the film.
|
Product Type
|
|
|
Product type
|
Micro Four Thirds interchangeable lens system camera |
| Memory | SD, SDHC[*], SDXC[*] |
| UHS-I, II compatible | |
| Sensor size | 17.4 mm (H) x 13.0 mm (V) |
| Lens mount | Micro Four Thirds Mount |
|
Image Sensor
|
|
|
Product type
|
4/3 Live MOS Sensor |
| Number of pixels / aspect ratio | Number of effective pixels: Approx. 20.4 million pixels |
| Total number of pixels: Approx. 21.8 million pixels | |
| Aspect ratio: 1.33 (4:3) | |
| Dust reduction | Supersonic Wave Filter (image sensor dust reduction system) |
|
Still Photo Recording
|
|
|
Recording format
|
DCF2.0, Exif2.31 |
| File format | RAW (12-bit lossless compression), JPEG, RAW+JPEG |
| Recording image size | [RAW] 5184 x 3888 pixels |
| [JPEG] 5184 x 3888 pixels - 1024 x 768 pixels | |
| Dual Slot Settings | Standard, Auto Switch, Dual Independent, Dual Same |
| When two cards are inserted, card to be saved on to or to be viewed can be designated. | |
| Folder creation and selection | With |
| Copy | Copy single file, copy multiple files and copy all |
| When copied, the new file will be given a different name from that of the original file. | |
|
Image Stabilisation System
|
|
|
Type
|
Built-in 5-axis[*] sensor-shift image stabilisation for movie and still photos |
| yaw / pitch / roll / vertical shift / horizontal shift | |
| Mode | 4 modes (S-IS AUTO, S-IS1, S-IS2, S-IS3), OFF |
| Live View image stabilisation | Activation by half-pressing shutter button or pressing AEL / AFL button, enlarging view |
| Focal length setting | 11 settings: 10 programmable settings (10 lenses), 1 open setting |
| Lens IS priority | With |
| 5-axis Sync IS | With[*] |
| When using M.Zuiko Digital lenses equipped with image stabilisation | |
| Stabilisation performance | 7.0 EV[*] |
| Based on CIPA measurement conditions. When using M.Zuiko Digital ED 12-40mm F2.8 PRO (focal length =40mm (35mm equivalent: 80mm)) | |
| 7.5 EV[*] | |
| Based on CIPA measurement conditions. When using M.Zuiko Digital ED 12-100mm F4.0 PRO (focal length =100mm (35mm equivalent: 200mm)), with camera body IS set to Off, Frame rate: High | |
|
Finder
|
|
|
Finder type
|
Eye-level electronic viewfinder, approx. 2.36M dots |
| Field of view / Viewfinder magnification | Approx. 100% / Approx. 1.48x[1]-1.65x[2] (-1m-1, 50mm lens, Infinity) |
| 1: Finder Style 1, 2 (aspect ratio 4:3) | |
| 2: Finder Style 3 (aspect ratio 4:3) | |
| Eye point / Diopter adjustment range | Approx. 21mm (-1m-1, Distance from rear lens surface) / -4 ~ +2m-1 |
| Preview | Live View preview with depth of field preview lock |
| Display Grid | Off / normal grid / trichotomy /golden grid / scale / diagonal / movie grid |
| grid colour is selectable | |
| Level Gauge | 2-axis (horizontal / vertical) level gauge |
| Finder Style | 3 styles |
| Brightness and Colour Temperature Control | Adaptive brightness technology (EVF Auto Luminance) / ±7 level manual brightness control / ±7 level manual colour temperature control |
| S-OVF (Simulated OVF) | Expands the Live View dynamic range. |
| Available in the EVF when in P, A, S, M and B modes. Art filter, WB and exposure are not reflected in EVF. | |
|
Live View
|
|
|
Live View
|
Approx. 100% field of view, |
| exposure compensation preview, WB adjustment preview, | |
| gradation preview, face detection preview (up to 8 faces), | |
| grid line, magnification display (x3 / x5 / x7 / x10 / x14), | |
| Display modes: Standard, Histogram, Highlight & Shadow, Level Gauge, Off (Image Only) | |
| Preview | Preview with depth of field preview lock |
| Live View Boost | Live View Boost 1, Live View Boost 2[*] (For dark situations) |
| Settings can be specified for each shooting mode | |
| Live View Boost 2: Frame Rate Priority or Quality Priority selectable | |
| Off: Brightness in Live View shows specified exposure settings. | |
|
Monitor
|
|
|
Monitor type
|
3.0-inch vari-angle monitor[*] |
| Approx.1037k dots (3:2), electrostatic capacitance touch panel | |
| Touch control | Shutter release, Touch AF (AF area selection, AF area size adjustment) AF targeting pad, frame forward / backward, magnified playback, Super Control Panel, Wi-Fi connection, movie controls |
| Tilting capability | With (mirror display when monitor is in self portrait position) |
| Brightness / Colour temperature control | ±7 levels / ±7 levels |
| Colour tone select | Vivid / Natural |
|
Focusing
|
|
|
AF system
|
High-speed imager AF: Imager phase detection AF and imager contrast AF used in combination: When a Micro Four Thirds lens (mount adapter sold separately necessary) is attached, imager phase detection AF is always enabled). |
| AF working range | EV -3.5 - 20 (S-AF, ISO approx.100, with a F2.8 lens) |
| Focusing point / Focusing point selection mode | 121-point cross-type phase detection AF and 121-point contrast AF / All target, single target (normal / small), group target (5-area / 9-area / 25-area), custom target 1-4 (AF area and its increment steps selectable) |
| Focus mode | Single AF (S-AF)[1] / Continuous AF (C-AF)[1] / Manual Focus (MF) / AF tracking (C-AF + TR)[1] / Preset MF[2] |
| 1 AF+MF selectable | |
| 2 Distance setting values are rough estimates and not compatible lens except the AF lens. | |
| AF performance | C-AF lock (5 steps) , AF scanner (3 types) , C-AF Center Priority , C-AF Center Start |
| AF limiter | With (Fn button can be assigned to On / Off and up to 3 distance settings can be saved.) |
| Distance setting values are rough estimates. | |
| AF targeting pad | With (activate / deactivate with double tap on rear monitor) |
| Magnified frame AF | 3x , 5x , 7x , 10x , 14x |
| Autofocusing is possible in the magnified frame; can be assigned to button to turn magnify frame AF on / off and to activate magnification; touch icon on monitor to turn off; enables selection of focusing point from 800 or more. | |
| Super spot AF | With[*] (Contrast AF in center of the monitor when magnified) |
| Available only when a Micro Four Thirds lens is attached. | |
| Face detection AF / Eye detection AF | With |
| Eye Detection AF mode: off, nearer-eye priority, right-eye priority, left-eye priority | |
| Intelligent Subject Detection AF | With |
| Formula cars, rally cars, motorcycles, aircrafts, helicopters, bullet trains, standard trains, steam locomotives | |
| Manual focus assist | Focus ring rotation activates Live View image magnification and / or focus peaking when in S-AF + MF or MF mode |
| Peaking function | Activate with Fn button or focus ring |
| Change peaking settings using the Info button | |
| Colour selection: white, black, red, yellow | |
| Intensity selection: high, normal, low | |
| Back light effect: on, off | |
| AF Focus Adj. | Adjust all, adjust by lens (for Phase detection AF only) |
| AF illuminator | With |
|
Exposure Control (Still)
|
|
|
Metering system (TTL Image sensor metering)
|
Digital ESP metering (324-area multi pattern metering), center-weighted average metering, spot metering[*], spot metering with highlight control, spot metering with shadow control |
| Also available AF target spot metering | |
| Metering range | EV -2 - 20 (ISO approx.100, with a F2.8 lens) |
| Exposure mode / Shooting mode | P: program AE (program shift can be performed), A: aperture priority AE, S: Shutter priority AE, M: Manual, B: Bulb (Live Bulb, Live Time and Live Composite are available), Custom 1~4 |
| ISO sensitivity | AUTO ISO (default): LOW (approx.64) ‐ 6400 with customizable default and upper limit (200 - 6400) |
| Manual ISO: LOW (approx.64, approx.100), 200 - 25600 (adjustable in 1/3 or 1 EV steps) | |
| Exposure compensation | ±5 EV, adjustable by 1/3, 1/2 or 1 EV steps |
| When shooting in HDR or in video, only adjustable up to ±3 EV steps | |
| Live View only reflects up to ±3 EV steps | |
| AE lock | Locks with a half-press of the shutter button (can be set to AEL / AFL button as well) |
| Anti-Flicker Shooting | With |
|
Shutter
|
|
|
Shutter type
|
Focal-plane shutter (mechanical shutter): 1/8000 - 60 sec., with selectable EV adjustment steps (1/3, 1/2, 1) |
| Live Bulb / LiveTime: selectable exposure time (1 / 2 / 4 / 8 / 15 / 20 / 25 / 30 min.), with 8-min. default setting | |
| Live Composite: 3 hours maximum shooting time | |
| Electronic first curtain shutter (Anti-shock mode): 1/320 - 60 sec., | |
| Electronic shutter (Silent mode): 1/32000 - 60 sec., | |
| Flicker Scan: Video recording 1/30 (50 fps: 1/50, 60 fps: 1/60, Highspeed: 1/120) -1/250.0, Still 1/50.0-1/7634 | |
| Video recording S / M mode, Still S / M silent mode only. Selectable with a minimum of 0.1 | |
|
Drive
|
|
|
Sequential shooting maximum speed
|
[Sequential shooting H] approx. 15 fps with selectable 10-15 fps |
| [Sequential shooting L] approx. 10 fps with selectable 1-10 fps | |
| [Anti-shock sequential shooting L] approx. 8.5 fps with selectable 1-8 fps | |
| [Silent sequential shooting H] approx. 60 fps with selectable 15, 20, 30, 60 fps | |
| [Silent sequential shooting L] approx. 18 fps with selectable 1-10, 15, 18 fps | |
| [Pro Capture H] approx. 60 fps with selectable 15, 20, 30, 60 fps | |
| [Pro Capture L] approx. 18 fps with selectable 1-10, 15, 18 fps | |
| When using the M.Zuiko Digital ED 12-40mm F2.8 PRO | |
| Maximum sequential shooting speed may be affected by several factors including lens used, brightness, aperture, shutter speed, and ISO setting | |
| When in Pro Capture mode, slower shutter speeds and flash can not be used | |
| Pro Capture L mode is available when an M.Zuiko lens or lens without communication capability is attached. (Auto-focus is not available for lenses without communication capability). | |
| In Pro Capture L mode, the minimum aperture is F8. | |
| When ISO is 8000 or above, 30 fps becomes the maximum sequential shooting speed, and the actual shooting speed may become slower than the set shooting speed by a few frames per second. When using ISO Bracketing, performance will be affected at ISO 2000 or above | |
| Focus and exposure are fixed at the values of the first shot when using sequential shooting H | |
| Maximum sequential shooting speed is 8.5 fps for anti-shock sequential shooting L, even when set to 9 or 10 fps | |
| Sequential shooting frame count | 1- 99 frames |
| Pre-shutter Frames (For Pro Capture mode only) | Number of frames recorded prior to full-press of the shutter button can be set from 0 to 35 frames. |
| Sequential shooting maximum recordable frames[*] | [Sequential shooting H 15 fps] RAW: Max. 103 frames, JPEG (LF): Max. 132 frames |
| [Sequential shooting L 10 fps] RAW: Max. 287 frames, JPEG (LF): Until card is full | |
| [Silent sequential shooting H 60 fps] RAW: Max. 49 frames, JPEG (LF): Max. 49 frames | |
| [Silent sequential shooting L 18 fps] RAW: Max. 74 frames, JPEG (LF): Max. 89 frames | |
| When using the M.Zuiko Digital ED 12-40mm F2.8 PRO and the Toshiba SDXU-D032G memory card with standard card setting in slot 1. | |
| Low ISO processing: Priority is given to sequential shooting | |
| Self-timer | Operation time: 12 sec., 2 sec., custom (Wait time: 1-30 sec., Shot interval: 0.5 / 1 / 2 / 3 sec., Number of shots: 1-10, Every time AF: On / Off) |
|
Flash
|
|
|
Flash intensity control method
|
TTL Auto, Auto[*], Manual, Super FP[*] (FP-TTL AUTO, FP-MANUAL) |
| Available on the external flash | |
| Flash mode | Redeye, Fill-in, Flash Off, Red-eye Slow sync. (1st curtain), Slow sync. (1st curtain), Slow sync. (2nd curtain), Manual (1/1 (FULL) - 1/64) |
| Synchronisation speed | 1/250 sec. |
| When using Super FP: 1/125-1/8000 sec. | |
| When using electronic shutter: 1/50 sec. up to ISO 6400, 1/20 sec. for ISO 8000 and higher, and 1/20 sec. for ISO bracketing | |
| Flash intensity control | Up to ±3 EV in 1/3, 1/2, 1 EV steps selectable |
| Compatible external flash | FL-50R, FL-36R, FL-20, FL-14, FL-300R, FL-600R, FL-900R, STF-8, FL-700WR |
|
Wireless Flash Control
|
|
|
Compatible external flash
|
FL-50R, FL-36R, FL-300R, FL-600R, FL-900R, FL-700WR |
| Control method | Triggered and controlled by Olympus Wireless RC Flash system compatible flashes: included FL-LM3 or separately available FL-600R, FL-900R, STF-8 and FL-700WR |
| External Flash intensity type | TTL Auto, Auto, Manual, FP-TTL-AUTO, FP-MANUAL |
| Channel | 4 channels |
| Group No. | 4 groups (External flash 3 groups + commander flash) |
| Radio wireless control | With |
|
White Balance
|
|
|
White balance mode
|
Auto WB, 7 Preset WBs, 4 Capture WBs, Custom WB (Kelvin setting) |
| White balance compensation | ±7 steps along A-B / G-M axis |
|
Colour Mode
|
|
|
Colour matrix
|
sRGB, Adobe RGB |
|
Picture Mode
|
|
|
Mode
|
i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, e-Portrait, Underwater, Colour Creator, Art Filters |
| Gradation | Auto, Normal, High Key, Low Key |
| except when using e-Portrait, Underwater, Art Filters, Colour Creator | |
| Hilight and shadow control | ±7 steps each for highlight, shadow, midtone |
|
Art Filter
|
|
|
Art Filter
|
Pop Art (I, II / a, b, c, d, e, f) |
| (Variation / Art Effect) | Soft Focus (- / c, e) |
| Pale & Light Colour (I, II / a, b, c, d, f) | |
| Light Tone (- / d, f) | |
| Grainy Film (I, II / b, c, d, g, h) | |
| Pin Hole (I, II, III / d) | |
| Diorama (I,II / d) | |
| Cross Process (I, II / b, c, d, f) | |
| Gentle Sepia (- / a, b, c, d, f) | |
| Dramatic Tone (I / b, c, d, e, f) (II / b, c, d, e, f, g, h) | |
| Key Line (I, II / a, b, c, d, e) | |
| WaterColour (I, II / a, b, c, d) | |
| Vintage (I, II, III / a, b, c, d, e, f, i) | |
| Partial Colour (I, II, III / a, b, c, d, e, f) | |
| Bleach Bypass (I, II / a, b, c, d, e, f, i) | |
| Instant Film (- / a, b, c, d, e, f, i) | |
| Detail of Art Effect | a. Soft Focus Effect |
| b. Pin-Hole Effect | |
| c. White Edge Effect | |
| d. Frame Effect | |
| e. Star Light Effect | |
| f. Blur Effect (Top & bottom, Left & Right) | |
| g. B&W Effect (None, Yellow, Orange, Red, Green) | |
| h. Pict. Tone (None, Sepia, Blue, Purple, Green) | |
| i. Shade Effect (Top & bottom, Left & Right) | |
| Colour Ring (for partial color) | 18 colour selectable |
|
Colour Creator
|
|
|
Colour Creator
|
Colour pattern : 30 colours / Saturation setting -4 - +3 |
|
Bracketing
|
|
|
Exposure bracketing
|
2, 3 or 5 frames in 0.3, 0.7, 1.0 EV steps selectable, 7 frames in 0.3, 0.7 EV steps selectable |
| ISO bracketing | 3 frames in 0.3, 0.7, 1.0 EV steps selectable |
| White balance bracketing | 3 frames in 2, 4, 6 selectable steps for A-B / G-M axis. |
| Flash bracketing | 3 frames in 0.3, 0.7, 1.0 EV step selectable |
| Art Filter bracketing | i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, Art Filters, Colour Creator selectable |
| Focus bracketing | 3 to 999 shots, focus steps adjustable from 1 to 10 (compatible with Micro Four Thirds lenses) |
| Focus stacking | With[*] |
| Angle of view becomes slightly smaller (The cut area guide is displayed) | |
| Compatible with: | |
| M.Zuiko Digital ED 7-14mm F2.8 PRO | |
| M.Zuiko Digital ED 12-40mm F2.8 PRO | |
| M.Zuiko Digital ED 12-100mm F4.0 IS PRO | |
| M.Zuiko Digital ED 40-150mm F2.8 PRO | |
| M.Zuiko Digital ED 8mm F1.8 Fisheye PRO | |
| M.Zuiko Digital ED 30mm F3.5 Macro | |
| M.Zuiko Digital ED 60mm F2.8 Macro | |
| M.Zuiko Digital ED 300mm F4.0 IS PRO | |
|
HDR Function
|
|
|
HDR(Auto composite)
|
HDR1, HDR2 (painting-like) |
| ISO sensitivity is fixed at 200, and maximum shutter speed setting is 4 sec. | |
| Exposure compensation can be performed. | |
| Bracketing for HDR post process | 3 or 5 frames in 2.0 or 3.0 EV steps, or 7 frames in 2.0 EV steps. |
| This sequential shooting H AE bracketing is specifically designed for shooting images that will be HDR-processed on a PC. | |
|
Keystone Compensation
|
|
|
Keystone Compensation
|
With (can be confirmed in Live View) |
| Horizontal and vertical compensation can be performed simultaneously*up to ±20 step of horizontal and vertical compensation can be performed simultaneously. | |
|
Fisheye Compensation
|
|
|
Fisheye Compensation
|
3 styles (can be confirmed in Live View) |
| Underwater correction compatible | |
| Enabled when M.Zuiko Digital ED 8mm F1.8 Fisheye PRO is used. | |
|
Live ND
|
|
|
Live ND
|
With |
| S / M mode only, flash can not be used, ISO up to 800, the maximum shutter speed is 1 / 30 (when ND2 is set) and the speed drops if the number of ND steps is raised | |
|
High Res Shot
|
|
|
Resolution
|
Equivalent to 50 megapixels / 25 megapixels |
| Available in P / A / S / M mode, RAW+JPEG or JPEG. | |
| JPEG: 8160 x 6120 (50M), 5760 x 4320 (25M) / RAW: 10368 x 7776 | |
| RAW data can be developed in-camera. You need to install Olympus Workspace to develop on a PC. | |
| Shutter Type / Shutter Speed | Electronic shutter / 1/8000 - 60 sec. |
|
Handheld High Res Shot
|
|
|
Resolution
|
Equivalent to 50 megapixels / 25 megapixels |
| Available in P / A / S / M mode, RAW+JPEG or JPEG. | |
| JPEG: 8160 x 6120 (50M), 5760 x 4320 (25M) / RAW: 8160 x 6120 | |
| Flash can not be used | |
| RAW data can be developed in-camera. You need to install Olympus Workspace to develop on a PC. | |
| Shutter Type / Shutter Speed | Electronic shutter / 1/8000 - 60 sec. |
|
Anti-shock Mode
|
|
|
Shutter Type / Shutter Speed
|
Electronic first curtain shutter / 1/320[*] - 60 sec. |
| For speeds over 1/320 sec., mechanical shutter will automatically be selected. | |
| Shutter start delay | 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30sec. |
|
Silent Mode
|
|
|
Shutter Type / Shutter Speed
|
Electronic shutter / 1/32000 - 60 sec. |
| Shutter start delay | 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30 sec. |
| Silent Mode Settings | Settings for sound, AF illuminator, and flash can be set to On / Off separately (default setting is Off for all three) |
|
Live Bulb / Live Time
|
|
|
Update interval time
|
0.5 sec. - 60 sec. |
|
Live Composite
|
|
|
Update interval time / composite method
|
0.5 sec. - 60 sec. / Lighten Mode (Bright area prioritisation) |
|
Interval Mode
|
|
|
Interval Mode
|
Interval Time 1 sec. - 24 hours, Max 999 frames. |
| Creating Time-lapse movie automatically available | |
|
Multi Exposure
|
|
|
Number of picture / Function
|
2 frames / Auto gain, Exposing on Recorded picture (RAW) |
|
Multi Aspect
|
|
|
Aspect Ratio
|
4:3 (Default), 3:2, 16:9, 1:1, 3:4 |
|
One Push Tele-converter
|
|
|
Magnification
|
x2 |
|
Level Gauge
|
|
|
Detection
|
2-axis |
|
Video Recording
|
|
|
Recording format
|
MOV (MPEG-4AVC / H.264) |
| Mode / frame rate / compression method | [MOV] |
| 4096 x 2160 (C4K) / 24p / IPB (approx. 237 Mbps) | |
| 3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps) | |
| 1920 x 1080 (FHD) / 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N) | |
| 1920 x 1080 (FHD) / 60p, 50p / IPB (SF, F, N) | |
| 1280 x 720 (HD) / 60p, 50p, 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N) | |
| 60p: 59.94 fps, 50p: 50.00 fps, 30p: 29.97 fps, 25p: 25.00 fps, 24p: 23.98 fps, C4K 24.00 fps | |
| FHD ALL-I (A-I: ALL-Intra / approx. 202 Mbps), | |
| FHD IPB (SF: Super Fine / approx. 52 Mbps, F: Fine / approx. 30 Mbps, N: Normal / approx. 18 Mbps) | |
| HD ALL-I (A-I:ALL-Intra / approx. 102 Mbps), | |
| HD IPB (SF: SuperFine / approx. 26 Mbps, F: Fine / approx. 14 Mbps, N: Normal / approx. 10 Mbps) | |
| Frame rates may drop when particular Art Filters is used. | |
| Class 10 or higher SD card is recommended for shooting movies. | |
| UHS-II or UHS-I U3 card is recommended for 4K, C4K, ALL-I shooting. | |
| Maximum recording time | Approx. 29 min. |
| Art Filter Movie | With (Frame rates may drop when certain Art Filters are used) |
| One-push Movie Digital Converter | Approx. 3x |
| Time Lapse Movie | 3840 x 2160 (4K) / 5 fps |
| 1920 x 1080 (FHD) / 5 fps, 10 fps, 15 fps | |
| 1280 x 720 (HD) / 5 fps, 10 fps, 15 fps, 30 fps | |
| Quick Movie / Slow Movie | With (Both or either of the two may not be available depending on the frame rates. |
| High speed movie | 120 fps (1920 x 1080 / MOV) |
| Image Stabilisation for Movie | M-IS1[*] (multi motion IS by Image sensor shift and electronic image stabiliser), |
| M-IS2 (multi motion IS by Image sensor shift), Off | |
| Field of view varies when using M-IS1. Using lens which is equipped with image stabilisation can be given top priority. | |
| Grid Line / Focus Peaking | 4 types of grid lines / 4 colours for focus peaking |
| Time code | Rec run / free run, drop frame / non-drop frame |
| REC Bit | With |
| Live View Output via HDMI | Monitor Mode (outputs video and info display to a connected monitor)[1] |
| Record Mode (outputs video only, with no info display)[2] | |
| 1 While recording, footage is simultaneously displayed on the HDMI monitor and on the camera, but the info display is shown only on either one of the two. While playing movies, footage is simultaneously displayed on the HDMI monitor (normal size) and on the camera (normal size or enlarged). However, the image can not be enlarged on the camera when a movie is being recorded. | |
| 2 Movie quality is set to YCbCr 4:2:2 (8 bit), frame rate follows movie setting (24p, 30p and 60p settings are not recommended.), and sound will be recorded. | |
| Movie Picture Mode | Flat, OM-Log 400 |
| View assist compatible | |
| Exposure Control | Program AE, aperture priority AE, shutter priority AE, manual Flicker scan[1] (1/250 - 1/30.0[2]) |
| 1 Available only when in S, M mode. Selectable from minimum increment of 0.1. | |
| 2 50 fps movie: 1/50.0 sec., 60 fps movie: 1/60.0 sec. | |
| AE Lock | With |
|
Recording (Sound)
|
|
|
Recording format
|
Wave Format (Stereo linear PCM / 16-bit, Sampling frequency 48 kHz) |
| High-Resolution Audio (Stereo linear PCM / 24-bit, Sampling frequency 96 kHz) compatible | |
| Microphone / Speaker | Built-in stereo microphone / built-in mono speaker |
| External stereo microphone can be attached | |
| Microphone function | Wind noise reduction, recording volume, microphone volume limiter, |
| Audio dubbing possible for still pictures (up to 30 sec.) | |
| May affect audio quality. | |
| IC recorder linkage | Slate Tone / Synchronised Audio Rec-Movie Rec |
| LS-100 compatible | |
|
Wi-Fi Function
|
|
|
GPS info. Function
|
Available (Via GPS smartphone) |
| Built-in GPS info given priority | |
| Wireless Shooting | Live View, Rec View, Wireless Touch AF shutter, Self Timer (w/Countdown guidance, Sequential shooting, movie recording capability), Wireless Release, Movie Recording, Power Off |
| P, A, S, M, B and drive mode can be selected. Aperture, shutter speed, exposure, ISO sensitivity, white balance and sequential shooting can be adjusted. | |
| Image Share | File Type: JPEG[*], MOV |
| Marking function for image share. | |
| Easy Connection | Connect using a QR code, |
| Connect using Bluetooth (View, Transfer only) | |
|
Tethered shooting
|
|
|
Tethered shooting
|
Via USB cable (camera can be operated by both PC or camera controls) |
| Via Wi-Fi (Transfer of recorded images to PC via access point, 5 GHz and 2.4 GHz available) | |
|
GPS / Field Sensor System
|
|
|
GPS / Field Sensor System
|
GPS (GLONASS, QZSS), compass, manometer, temperature sensor, Acceleration sensor |
|
Custom
|
|
|
Playback mode
|
Single-frame, information display, index display (4 / 9 / 25 / 100 frames), calendar, enlargement (2x - 14x), movie (with sound, FFREW / Pause), picture rotation (auto), Light Box display |
| Information display | Histogram (independent luminance / RGB available), Highlight / Shadow point warning, AF frame, Photographic information, OFF |
|
Image Editing
|
|
|
Movie Editing function
|
Trimming (beginning / end) / in-movie image extraction (4K only) |
| Editing function | RAW data edit, Gradation auto, Monochrome, Sepia, Red-eye fix, Saturation, Resize (1280 x 960, 640 x 480, 320 x 240), Trimming, Aspect, e-Portrait, Image Overlay, Post recording |
| RAW data edit | RAW data edit based on settings of the camera (including e-Portrait, Colour Creator, Art Filter, ART-BKT). |
| Edited data can be previewed and up to 2 types of custom settings used for editing can be saved. preview capability. | |
|
Print
|
|
|
Print function
|
Print reservation (DPOF) |
|
Menu
|
|
|
Languages
|
34 languages selectable - English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai |
|
Custom
|
|
|
My Menu
|
35 items in 5 tabs with 7 items each |
| Mode dial my set | 4 types of settings can be configured to C1-C4 modes on mode dial. |
| Menu my set | Available (Settings configured to C1-C4 can be called up via the menu even in P, A, S, M and B modes. |
| Some items including shooting mode may not be called up. | |
| Multi Selector customisation | With |
| Dial customisation | Dial function and dial direction are customisable for both dials |
| Lever Customization | Select assignment from 3 different modes, power switch, or off (no function assignment) |
| Button Customization | Up to 39 functions can be assigned to buttons |
| Up to 24 functions can be assigned for movie recording | |
| Buttons on lenses can also be customized from the camera | |
| Some buttons may have restrictions to what functions can be assigned | |
| Copyright Settings / Lens info Settings | With / With (save up to 10 lenses) |
|
Input / Output
|
|
|
USB / Remote controller connector
|
USB Type-C / ⌀2.5 Pin Jack (when using separately available RM-CB2). |
| HDMI connector | Micro HDMI (type D) |
| Flash attachment | Hot shoe, sync terminal |
| Wireless LAN | Built-in (IEEE 802.11a / b / g / n / ac) |
| Bluetooth | Built-in (Bluetooth Ver.4.2 BLE) |
| Microphone input jack | ⌀3.5 stereo mini jack (plug-in power on / off) |
| Headphone connector | ⌀3.5 stereo mini jack |
| PC interface | Superspeed (USB 3.0) |
| DC connector | AC-5 compatible |
|
Power Requirements
|
|
|
Battery
|
Two BLH-1 Li-ion batteries (included) |
| It can be operated even when only one BLH-1 Li-ion battery is equipped. | |
| Battery status display | Remaining power (10 steps, %, or by-minute display), shot count, degradation |
| AC Adapter | AC-5 AC adapter is separately available |
| USB bus power | A USB PD bus power can be used |
| PD compliant Camera: Rev 3.0 Ver. 1.0a | |
| USB charging | Built-in battery is charged with AC-5 / USB |
| When the camera power is off | |
| Performance varies depending on different USB devices | |
| Sleep mode | With (1 / 3 / 5 min. off) |
| Number of recordable images | Approx. 870 shots (using 2 BLH-1 and Toshiba SDXU-D032G with IS ON, with no flashes attached, based on CIPA test standards) |
| Approx. 2,580 shots (using quick sleep mode, under Olympus testing conditions based on CIPA test standards) | |
| Battery life for movie recording | Approx. 170 minutes[*] (under standard JEITA testing) |
| Approx. 350 minutes[*] (when zoom and other operational functions are not used) | |
| When repeatedly recording at the maximum time of 29 minutes | |
|
Dimensions / Weight
|
|
|
Dimensions
|
W: 144.4 mm, H: 146.8 mm, D: 75.4 mm (based on CIPA standards: excludes protrusions) |
| Weight | Approx. 997 g (with 2 BLH-1 batteries and 2 Memory cards, based on CIPA standards, without eyecup) |
| Approx. 849 g (body only) | |
|
Operating Environment
|
|
|
Temperature
|
-10℃ - +40℃ (when in operation) / -20℃ - +60℃ (when stored) |
| Humidity | 30% - 90% (when in operation) / 10% - 90% (when stored) |
For Olympus M. Zuiko ED 12-40mm f2.8 PRO Lens:
| Model | Olympus M.Zuiko ED 12-40mm f2.8 Lens |
| Focal Length | 12-40mm |
| 35mm Equivalent Focal Length | 24-80mm |
| Lens Construction | 14 Elements in 9 Groups |
| (Aspherical ED lens, 2 Aspherical lenses, DSA lens, 2 ED lenses, HD lens, 2 HR lenses) | |
| Dust & Drip Proof | Yes |
| Focusing System | High-speed Imager AF (MSC) |
| Linear Motor Drive System | |
| Angle of View | 84-30 Degrees |
| Closest Focusing Distance | 0.2m |
| Maximum Image Magnification | 0.3x |
| 35mm Equivalent Max. Image Magnification | 0.6x |
| Minimum Field Size | 58 x 44 mm |
| Number of Blades | 7 (Circular Aperture Diaphragm) |
| Maximum Aperture | f2.8 |
| Minimum Aperture | f22 |
| Filter Size | Diameter 62mm |
| Dimensions | Diameter 69.9x84mm |
| Weight | 382g |
| Related Accessories (Option) | Protection Filter (PRF-D62 PRO) |
Olympus OM-D E-M1X with M. Zuiko ED 12-40mm f2.8 PRO Lens
USB cable
Cable clip
Cable protector
Shoulder strap
Instruction manual
BLH-1 Li-ion battery
BCH-1 Li-ion battery charger
