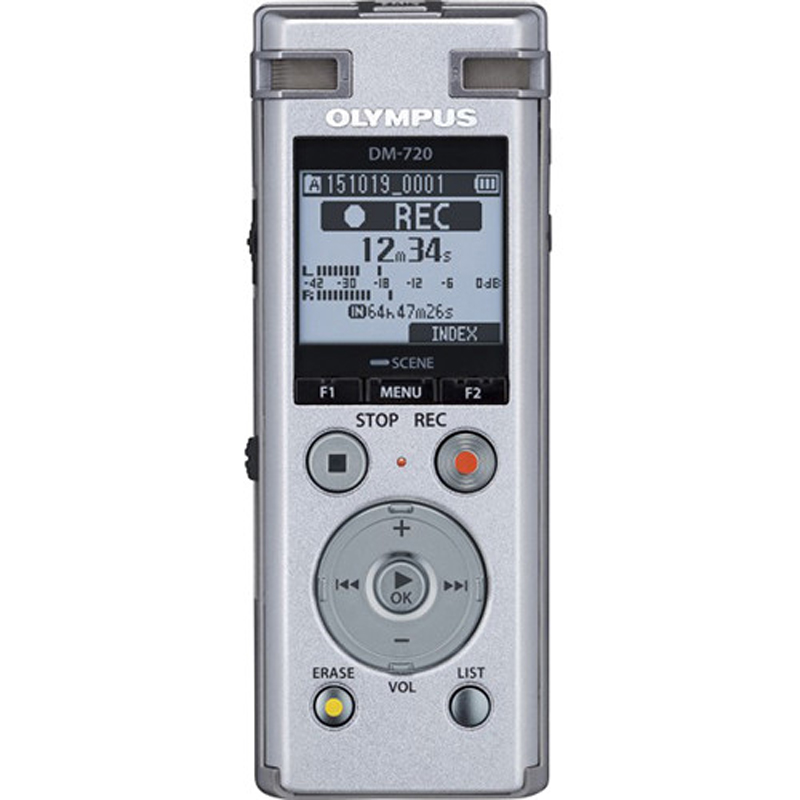

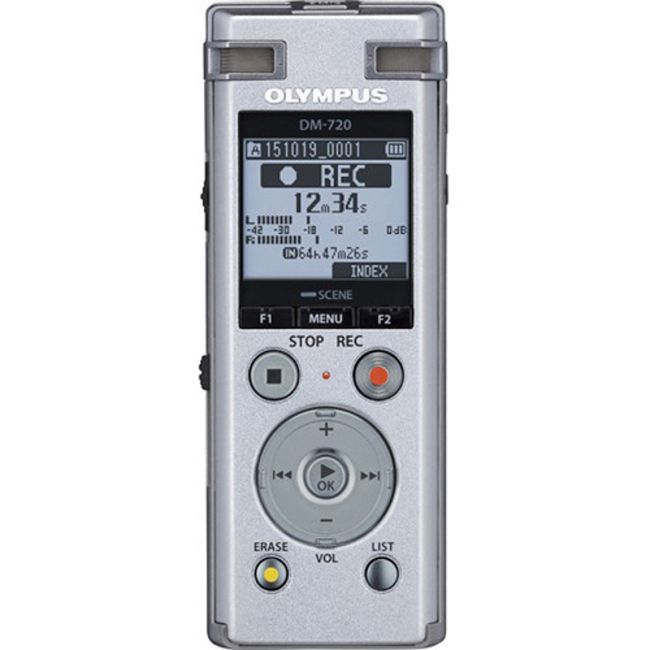

Olympus DM-720 Digital Voice Recorder
- Record in PCM or MP3 Formats
- Voice Guidance System and Voice Actuator
- Internal 4GB Memory and microSD Expansion
- Tresmic Three-Microphone System
- 48 kHz / 24-bit Capable
- Built-In Speaker
- Stereo Microphone 3.5mm Input
- Stereo Headphone 3.5mm Output
- Connect Direct to USB via Included Cable
The Olympus DM-720 Digital Voice Recorder is a versatile device with advanced features. The DM-720 is capable of recording audio in high-quality PCM (Pulse Code Modulation) format or the more common MP3 format, providing flexibility for different recording needs. The voice guidance system provides guidance on the recorder's functions and menus, while the voice actuator feature allows for hands-free recording by automatically starting and stopping recording based on the sound level.
The recorder comes with 4GB of internal memory, providing ample space for audio recording. The memory can be expanded further with a microSD card, up to 128GB in capacity. The DM-720 features a three-microphone system (Tresmic) that enables optimal sound capture in various recording situations. This system includes two directional microphones and a center omnidirectional microphone, allowing for clear and crisp audio recordings even in noisy environments. The recorder can capture audio at 48 kHz / 24-bit resolution, ensuring excellent sound quality and detail.
The DM-720 has a built-in speaker that allows you to listen to your recordings without requiring headphones or external speakers. The device includes a stereo microphone input jack for connecting an external microphone, extending recording capabilities beyond the built-in microphone. The recorder features a stereo headphone jack that allows for private listening of recordings with a headphone, minimizing disturbances. It can be connected directly to a computer via a USB cable, enabling you to easily transfer audio recordings to your computer for editing and storage.
The Olympus DM-720 Digital Voice Recorder is a high-quality and user-friendly device suitable for various recording purposes. With its versatile recording formats, voice guidance system and voice actuator, Tresmic three-microphone system, and expandable memory, the DM-720 offers versatility and high-quality audio recording. It is an ideal option for professionals in the recording industry, students, or anyone who needs to capture audio recordings.
Product Features in Detail
SUPERB STEREO-QUALITY RECORDING.
The DM-720 features a three microphone system that includes both directional and omni-directional microphones to faithfully capture the depth and fullness of the sounds recorded. The stereo microphones are arranged at a 90° angle to produce a natural stereo experience, with an added central microphone to compensate for low-range sounds. This Tresmic combination provides a wide frequency range for the most demanding professionals.
HEAR EVERY VOICE.
The Voice Playback function allows you to skip non-voice audio during playback, and only play the parts of the file where there is vocal content. Olympus' Voice Playback saves time and improves efficiency during transcription.
INTELLIGENT RECORDING.
With previous models, it was necessary to adjust the microphone sensitivity according to the recording environment, such as the number of people or the size of the meeting space. The new Intelligent Auto Mode function makes it easier for users by automatically adjusting the microphone sensitivity according to the volume of the speaker. To set this function, select Auto for the recording level from the menu.
CAPTURE EVERY WORD.
Transcription mode is convenient when creating minutes from your recordings. While transcribing, users frequently repeat play, and stop to check the content. In Transcription Mode, the recorder will automatically playback the 3 seconds before the stop, so you can check the contents before proceeding. On the other hand, fast forward is preset to 3.5x so you can conveniently skip the silences in your recording.
CONNECT. SAVE. SHARE.
The DM-720 can connect directly to your PC via the built-in USB connector. This makes it possible to save data anytime, anywhere. Not only can you save and share data, but the DM-720 can also be charged via USB. All operations of recording, saving, sharing, and charging can be performed on this single, smart and easy-to-use voice recorder.
Recommended Application Area | |
Application | Interviews, Meetings, Speech-to-text, Transcription |
USB functionality | |
Direct USB Connection | Available |
USB Speed | USB 2.0 High Speed |
USB Classes | USB Audio class, USB HID, USB Storage class |
Display | |
Display Backlit | Available |
Display Size | 26.1 x 22.6mm / 1.36'' |
Display Type | Full Dot Matrix Display |
Microphone System | |
TRESMIC (3 Mic System) | Available |
Recording Modes | |
Recording format | MP3, PCM (WAV) |
Maximum Recording Time | 985h (MP3, 8kbps) |
Playback Modes | |
Playback format | MP3, PCM (WAV) |
Frequency response | |
PCM | 48kHz / 20 - 23000Hz |
44.1kHz / 20 - 21000Hz | |
MP3 | 320kbps / 20 - 21000Hz |
128kbps / 20 - 17000Hz | |
64kbps (mono) / 20 - 13000Hz | |
8kbps (mono) / 20 - 3500Hz | |
Record function | |
Advanced recording | Low Cut-Filter, Playback Synchro Recording, Rec Monitor, Zoom Mic. Setting |
Auto recording | Timer recording, VCVA (Variable Control Voice Actuator) |
Recording Scenes | Conference, Dictation, Lecture, Meeting, Speech-Recognition |
Playback function | |
Playback control | Fast play, Intro Play, Slow Play |
File operation | Fast forward and rewind, Forward / Reverse Skip |
File selection | All Files Playback, File Playback, Folder Playback |
Repeat functions | A-B repeat playback, All repeat, File repeat, Folder repeat |
Automatic playback | Random playback |
Sound enhancement | Equalizer, Noise Cancel, Voice Balancer |
Advanced Play | Shadowing Playback, Sleep Timer, Voice Playback |
Playback Scenes | Transcription |
Data organisation | |
Calendar Search | Available |
Index Marks | 99 |
Erase | Erase all files, Music folders, Erase lock, Partial (PCM only), Erase single files |
File Copy (Folder to Folder) | Available |
File divide | Available |
File move | Available |
File Replace | Available |
Files per folder | 200 |
Folder Music | max. 400 |
Folders | 5 |
Other Features | |
Voice guidance | Available |
Storage Media | |
Internal Memory | 4GB Flash Memory |
microSD / microSDHC card | Available |
Interfaces Input | |
Interfaces Input | Manual |
PC interface | USB Cable |
Microphone jack | 3.5 ø mm mini-jack, impedance 2 kΩ |
Microphone sensitivity / gain | Hi, Mid, Lo, Auto |
Interfaces Output | |
Earphone jack | 3.5 ø mm jack, impedance 8Ω |
Maximum headphone output | ≤ 150 mV |
Speaker | 18mm (mono) / Built-in round dynamic speaker |
Max. working output | 150mW |
Power Supply | |
External power supply | USB connecting AC adapter (A-514) |
Internal Charging | AC / USB |
Note: Internal charging operable only with OM System rechargable batteries. | |
AC‑adapter is an optional item. | |
Max. Battery Life | Alkaline Battery, 52h Rec., MP3 8kbps |
35h Play, (earphones) | |
Power source | Battery: 1 x AAA |
Dimensions / Weight | |
Depth | 14.4mm |
Height | 105.9mm |
Weight | 72g (incl. batteries) |
Width | 39.6mm |
Languages | |
Menu languages | CS, DA, DE, EN, ES, FR, IT, NL, PL, RU, SV |
Operating Systems & Requirements | |
Macintosh | Operating system: Mac OS X 10.5 - 10.11 |
Windows | Operating system: Windows Vista/7/8/8.1/10 |
Main Specifications of Bundled Items | |
Note: | *Following features apply to items NOT included in the standard package. Consult the Kits/Box Contents section to see which bundles are available. |
External Microphone* | |
Cable length | 2m |
Device | ME33 (Check product website for more details) |
Dimensions (ø) | 120mm Ø x 23mm |
Frequency response | 70 - 1000Hz |
Microphone characteristics | Omni-directional |
Microphone jack | 3.5 ø mm / Impedance 2.2 kΩ |
Microphone sensitivity / gain | - 35dB at 1kHz |
Microphone type | Electret condenser microphone |
Weight | 110g |
Speech Recognition Software by Nuance* | |
Supported speech recognition software by Nuance | Dragon NaturallySpeaking V12 Recorder Edition |
Supported Languages: DE, EN, FR, NL, IT, ES | |
System Requirements | Windows XP, Vista, Windows 7, 8 & 8.1 (32 & 64 bit) |
Windows Server 2008 R2 & 2012 |
Olympus DM-720 Digital Voice Recorder
AAA NiMH Battery

SKU: Olympus V414111SE000
UPC: V414111SE000
