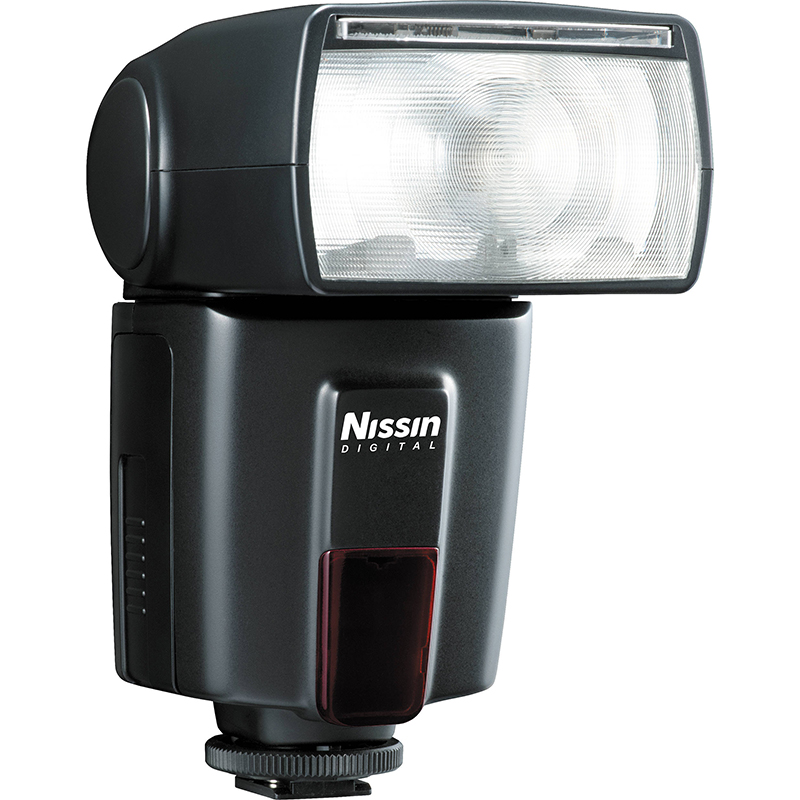

Nissin Di600 Camera Flash

The shoe-mounted compact Nissin Di600 Camera Flash provides Wireless Slave TTL Functionality and is compatible with Canon and Nikon cameras. It has the capability to Tilt Upward 90° and Rotate Left 90° & Right 180°. This unit has GN44 (105mm)/GN32 (35mm) at ISO 100 that provides excellent coverage throughout the Zoom Range of 24-105mm (16mm with Panel). There is also a PC Sync Port & AF Assist Light available for compatibility with various lighting equipment. In addition to its features, it consists of LED Video Light with its 9 steps of output level can be adjusted. This flash has a recycle time of 5 seconds with slow, 1st & 2nd curtain sync. Di600 operates and runs on 4 AA Batteries.

Product Features in Detail

Bounce Flash
The flash beam covers the frame from 14mm (with a wide angle diffuser built-in) to 70mm of the digital lens.
(*) For a longer lens, the flash head reflector position stays at 70mm.
It turns 90 degrees upward and 270 degrees horizontally for bounce lighting.
The flash head also stores a small reflection panel for fill-in shots.
(**) The focal length for the traditional SLR camera is to be multiplied b a factor of 1.5.

TTL Flash
Di600 is compatible with Canon's E-TTL, E-TTLII system, Nikon's i-TTL and Sony ADI/ P-TTL system. Those new digital TTL flash systems control the flash light with greater precision and stability.

Wireless Remote Flash
Di600 has a wireless remote flash system as a slave unit.
You can enjoy creative flash photography with multiple lightings from the various directions. There are 3 slave modes provided.
Slave Digital (SD): Di600 synchronizes to the pre-flash system. The master flash is to be set at TTL (E-TTL for Canon, i-TTL for Nikon and ADI/ P-TTL for Sony) mode.
Slave Film (SF): Di600 synchronizes to the traditional single flash system. The master flash is to be set at manual mode. Studio lighting system synchronizes to this mode. This mode is also available for open flash, and for a standard flash in the market.
Wireless TTL: Di600 synchronizes to the wireless remote flash system. The master flash is to be set at Channel 1 group A in wireless remote mode.

TTL Flash Level Compensation
The power of the flash can be controlled with TTL flash level compensation.
Whereas total exposure is controlled by the camera's EV compensation function, the flash can compensate for the exposure on the main subject only, with little impact on the exposure of the background scene.
The flash power level can be adjusted from -1.5EV through +1.5EV by 0.5EV steps.

Nissin Original "My TTL" Setting
The TTL flash power level is pre-set for exposure at factory. You can, however, reset
at the desired exposure level, in +/- 0.75 Ev. by 0.25 Ev increments.
The pre-set value is memorized as your personal standard after switching the unit
The usual TTL flash level compensation works based on this customized level.

Synchro Contact
Di600 can be used without hotshoe cameras. Some cameras provide a flash synchronization contact at sync socket instead of hotshoe. For this type of cameras, Di600 has standard & 3.5mm PC sync socket for flash synchronization.

High Power
G.No.44(ISO 100) is obtained at the reflector position for 105mm focal length lens, and 45 at 35mm.

Power Zoom
The light distribution angle is automatically adjusted for the lens focal length. A high quality stepping motor sharply traces the lens movement with the same speed as that of the camera manufacturer's original flash model.

Variable Power
When selecting manual power operation, choose from one of the six variable powers for the best lighting effect.
The power level is provided from full power (G.No.44) down to 1/32nd power in 1.0Ev increments.

AF Assist Beam
In darkness or dim light conditions, the Di600 beams a red light to create a sharp contrast to enable the camera's focus sensor to focus easily on the subject.

Energy Saving System
The Di600 has a dual energy saving system.
It automatically enters sleep mode when it's not in use for 5 min., and is reset with a touch of the shutter button or any button of the flash.
If the unit is not in use for 60 minutes, it will automatically power off.
With the flash unit set for slave mode, sleep mode is cancelled and the unit will not automatically turn off until 60 minutes have elapsed.

Rear Curtain Synchro
Nikon and some Canon camera's set the flash for rear curtain synch. photography.
The Di600 follows the command signal of theses cameras.

FE / FV Lock
The Di600 is compatible with either the FE lock (Canon) or FV lock (Nikon) system.
Refer to the camera owner's manual for details.

Red Eye Reduction
Available with Nikon cameras only. A small flash beam is automatically produced for short distance portrait shots to prevent the red-eye phenomenon.
