Nissin Air-1 Commander for Sony
- Compatible with Sony ADI / P-TTL
- Nissin Air 2.4 GHz Radio TTL System
- 98' Triggering Range
- Wireless TTL with Di700A Flash
- 8 Channels and 3 Groups (A, B, C)
- Flash Sync Speed up to 1/8000 Second
- Manual Zoom Adjustment from 24-200mm
- Manual Power Adjustment from 1/1-1/128
- Color LED Control Panel and AF Assist Beam
- 12 Months Genuine Australian Warranty
The Air 1 Commander is capable of a wireless triggering range of 98’ and 24-200mm (16mm with Panel) Manual Zoom Range. It features Nissin Air 2.4 GHz Radio TTL System with GN 177' at ISO 100 and 200mm, making it is less affected by the angle and obstacle limitation. This unit features 8 Channels and 3 Groups (A, B, C) for setting up numerous flashes with different settings and modes. The zoom can be manually adjusted from 24-200mm as well as the power from 1/1-1/128. It also features Flash Sync Speed up to 1/8000 Second and Slow, High-Speed, 1st & 2nd Curtain Sync. Air 1 Commander is also capable of Wireless TTL with Di700A Flash is compatible with Sony ADI / P-TTL offering a triggering range of 98’.
Product Features in Detail
Nissin Air System Transmission
The Air 1 Commander is the perfect addition for wireless flash shooting either in a studio situation or on-location. When compared with the traditional optical wireless transmitters, the 2.4 GHz radio transmission is less susceptible to angle and obstacle limitations, providing a transmission distance of up to 98 feet. Transmission channels and radio transmission IDs can be set to prevent misfiring in the event of signal interference on the same channel.
Pair and control
When combined with the Di700A and/or the i60A, the TTL EV compensation, manual output & zoom settings made on the Air 1 will simultaneously be transmitted to the flash units. Original Canon, Nikon or Sony flash units can also be controlled by the Air 1 when used together with the Air R.
Flexible combinations
The Nissin Air 1 Commander can be combined to control original flash models (when combined with the Air R) and/or the TTL / manual settings of the Nissin Di700A and i60A to provide a near limitless variety of lighting possibilities.

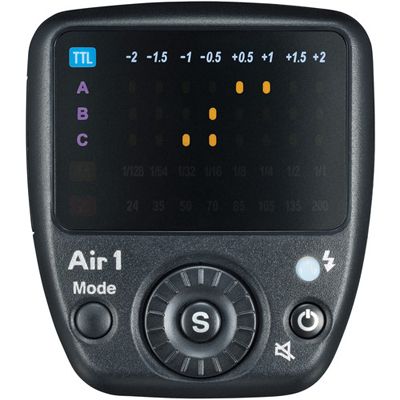

Selector dial and color LED display
The combination of color LED display and selector dial provides the user with an extremely convenient way to take full control of the flashes paired within the NAS system.
Focus assist light
The focus assist light provides an additional source of light to assist the autofocus in low-light situations. (1)
Metal hotshoe and quick release button (2)
The Air 1 Commander has a durable metal hotshoe and features a quick release button. It is easy to attach to your camera and reduces the risk of damage caused by frequent or quick installation.
High-speed synchronization
Supports up to 1/8000 second shutter speeds. (3)
(1) Does not function with Sony cameras.
(2) Not available for Sony cameras.
(3) The maximum synchronization speed depends upon the camera model - High speed sync is available only for compatible cameras. Please refer to the compatibility chart.
(4) The AF assist light will not activate when the camera body has a built-in AF assist beam.
Notice: Design and specifications are subject to change without prior notice.
Type | For Sony Digital SLR cameras |
Wireless system | Radio category |
Radio specifications | 2.4GHz ISM band (Obtaining technical standards conformity certification) |
Channel | 8 channels (channel setting in Air 1) |
Flash | A, B, C (3 Groups) (Group control and a specific group can stop transmitting) |
Power source | Two size-AAA Alkaline, 1.2V NiMH batteries |
Function mode | TTL, Manual and Manual zoom |
Flash interval | Fastest 10 times/second |
Number of flashes (Approx.) | 3,000 flashes |
Transmission distant | Max. 30m (Depending on the enviroment) |
Mode | [TTL] i-TTL ( Nikon) / E-TTL II / E-TTL (Canon) / ADI/P-TTL (Sony), [Manual] |
Manual zoom | Manual adjustment (24/35/50/70/85/105/135/200mm) |
EV compensation on flash | [TTL] -2.0 ~ + 2.0 ,1/2EV step [manual] 1 ~ 1/128 (8 steps) Each group can be adjusted independently or synchronized |
Flash exposure control | 1st- Curtain synchronization, 2nd- Curtain synchronization (not available for Sony Version), Highspeed synchronization, Red-eye reduction, Slow synchronization (only available on Nikon Model), FE / FV Lock (set on camera) |
AF-assist beam effective range | 0.7 ~ 5M |
Operation panel | LED color panel and select dial |
High-speed synchronization | 1/8,000 Sec |
Dimensions | 65(L) x 60 (W) x 55 (H)mm / 2.6(L) x 2.4(W) x 2.2 (H)inch |
Weight | 55g / 1.9oz (without batteries) |
Nissin Air-1 Commander for Sony
12 Months Genuine Australian Warranty
SKU: Nissin FG DAIR1S
UPC: 4938574001986
