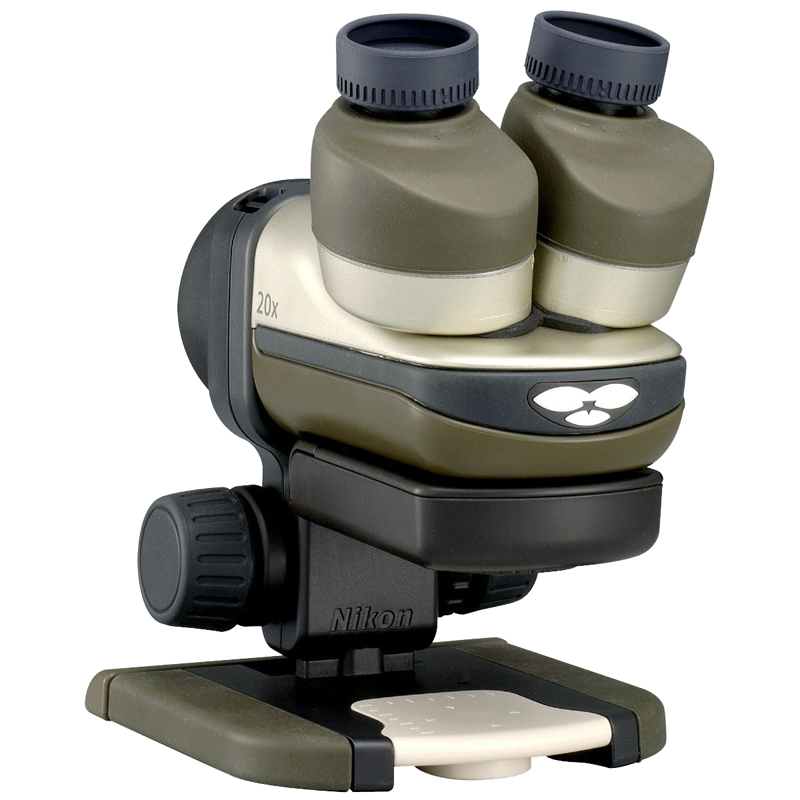

Nikon Field Microscope Mini EZ Micro
- Enables Photography with a Nikon COOLPIX Digital Camera
- 20x Magnification
- 11mm Field of Vision
- 12.8mm Eye Relief
- 12.6° Angle of View
- Made with Environmentally Friendly Materials
- Stereoscopic Microscope
- Two white LED Light Source
- Off, One Lamp, Two Light Settings
- Built-In Illumination System
This compact and portable microscope is designed to be used in conjunction with a Nikon digital camera. It features two white LED light sources, which can be turned on or off independently. The microscope has been specially designed for use with the Nikon COOLPIX digital camera and is made with environmentally friendly materials.
The microscope has a magnification of 20x, which enables you to view objects in detail. The lens has an angle of view of 12.8° and a field of vision of 11mm, making it ideal for viewing small objects such as insects and plants. The built-in illumination system gives you the option of using either off, one lamp, two light settings, so that you can choose how much light you need depending on what you are looking at.
Product Features in Detail
Field Microscope Mini EZ Micro
EZ-Micro is a portable fieldmicroscope with a capability of stereoscopic observation at 20x magnification for outdoor use which enables detailed observation of different subjects, such as insects, plants and minerals. It is designed to work with Nikon COOLPIX series (limited to certain models), thus making it simple to observe objects and capture images at the same time.
20x Magnification
Magnified objects 20 times with a three-dimensional effect, thanks to the stereoscopic binocular design
Protective lens cover
Protect the Nikon Field Microscope Mini with the lens cover.
Torque adjustment prevents loss of focus
The focus can be firmly fixed, eliminating an accidental shift in focus during observation.
Wide focusing range (38mm)
The wide range of focus available makes observation of three-dimensional objects easy.
Equipped with a diopter adjustment ring
It can be easily adjusted for vision differences between the left and right eye.
Wide adjustment range
Wide-ranging adjustment for interpupillary distance
Multifunctional standard stage plate
Both the top and the underside of the multifunctional standard stage plate can be used, or the plate can be removed entirely and reversible.
| Magnification (x) | 20x (fixed) |
| Optical system | Upright, unreversed image; eyepiece diopter adjustable for both eyes; 51-to-72mm interpupillary distance adjustment |
| Field of vision (mm) | 11 (diameter) |
| Angle of view (º) | 12.6 |
| Vertical adjustment | 38mm from the base of stage |
| Photographic optical system | Collimated light beam |
| Photographic magnification | Varies according to the attached digital camera model. |
| [Example: at A4-size printing] | |
| Approx. 20x (at 35mm-equivalent wide angle setting) to approx. 57x (at 100mm-equivalent telephoto setting) | |
| Eye relief (mm) | 12.8 |
| Plate | Removal and reversible (top: flat; underside: built-in cup) |
| Light source | Two white LEDs |
| Light settings | Three settings: off, one lamp, two lamps |
| Power source | One AA-size battery; approx. 10-hour battery life (alkaline battery at 20ºC) |
| Dimensions (mm) | (In use) 162-202 (H)x145 (D)x106 (W) |
| (Folded close) 138 (H) with lighting fitted | |
| Weight (g) | Approx. 635 (without battery) |
| Filters | M37x0.75mm thread filters can be attached |
| Accessories | Large carrying case; jointed strap |
This product comes with 12 Months Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Nikon Field Microscope Mini EZ Micro
Large Carrying Case
Jointed Strap
