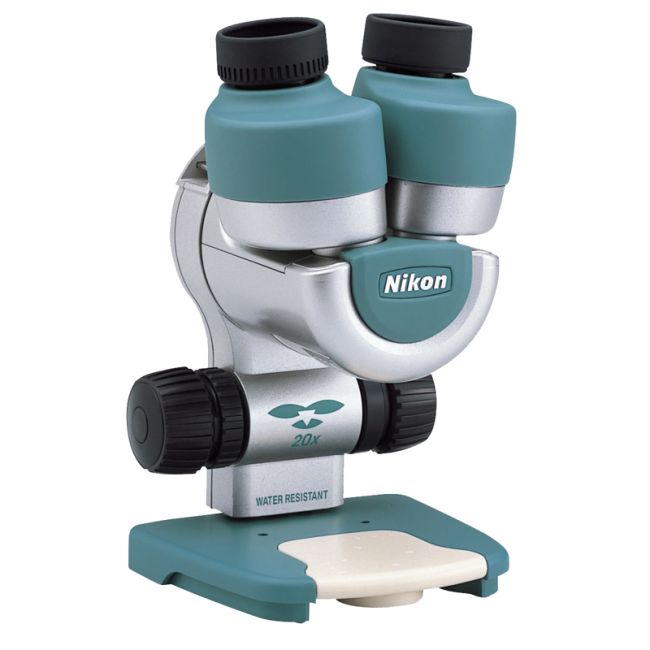

Nikon Field Microscope Mini
- Compact, Portable Body
- 20x Magnification
- 11mm Field of Vision
- 12.8mm Eye Relief
- 12.6° Angle of View
- Stereoscopic Microscope
- Water Resistant
Nikon Field Microscope Mini is a compact and portable body that can be used in the field. It is water resistant and has the ability to be submerged up to 30 feet. With a 20x magnification, this microscope is great for viewing small objects such as insects, plants, rocks or anything you can think of.
This microscope features 11mm field of vision, 12.8mm eye relief, and 12.6° angle of view. It also comes with a stereoscopic eyepiece which allows you to look at your object from two different angles simultaneously.
The Nikon Field Microscope Mini is great for taking out into the field or even just looking at items in your home without having to carry around a bulky microscope that takes up too much space.
Product Features in Detail
Field Microscope Mini
The Nikon Fieldmicroscopemini is a compact version of the Nikon Fieldmicroscope. Its smaller size has been realized by removing the built-in illumination system, while keeping the same 20x magnification optical quality and enhancing water-resistance. Easily fitting in your rucksack, it enables you to view the microscopic world in the mountains or on the seashore, wherever you go.
20x Magnification
Magnified objects 20 times with a three-dimensional effect, thanks to the stereoscopic binocular design
Protective lens cover
Protect the Nikon Field Microscope Mini with the lens cover.
Torque adjustment prevents loss of focus
The focus can be firmly fixed, eliminating an accidental shift in focus during observation.
Wide focusing range (42mm)
The wide range of focus available makes observation of three-dimensional objects easy.
Equipped with a diopter adjustment ring
It can be easily adjusted for vision differences between the left and right eye.
Wide adjustment range
Wide-ranging adjustment for interpupillary distance
Rotating head element
The platform can be fixed to a tripod and the head rotated so that any angle can be freely chosen for observation. The head can be rotated 180˚ to make the compact and easy to carry.
Multifunctional standard stage plate
Both the top and the underside of the multifunctional standard stage plate can be used, or the plate can be removed entirely.
Magnification (x) | 20x (fixed) |
Optical system | Upright, unreversed image; eyepiece diopter adjustable for right eye; 51-to-72mm interpupillary distance adjustment |
Field of vision (mm) | 11 (diameter) |
Angle of view (º) | 12.6 |
Vertical adjustment | 42mm from the base of stage |
Eye relief (mm) | 12.8 |
Plate | Removal and reversible (top: flat; underside: built-in cup) |
Dimensions (mm) | (In use) 156-202 (H)x89 (D)x90 (W) (Folded close) 124 (H) |
Weight (g) | Approx. 395 |
Accessories | Soft case; strap |
This product comes with 12 Months Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Nikon Field Microscope Mini
Soft Case
Strap
