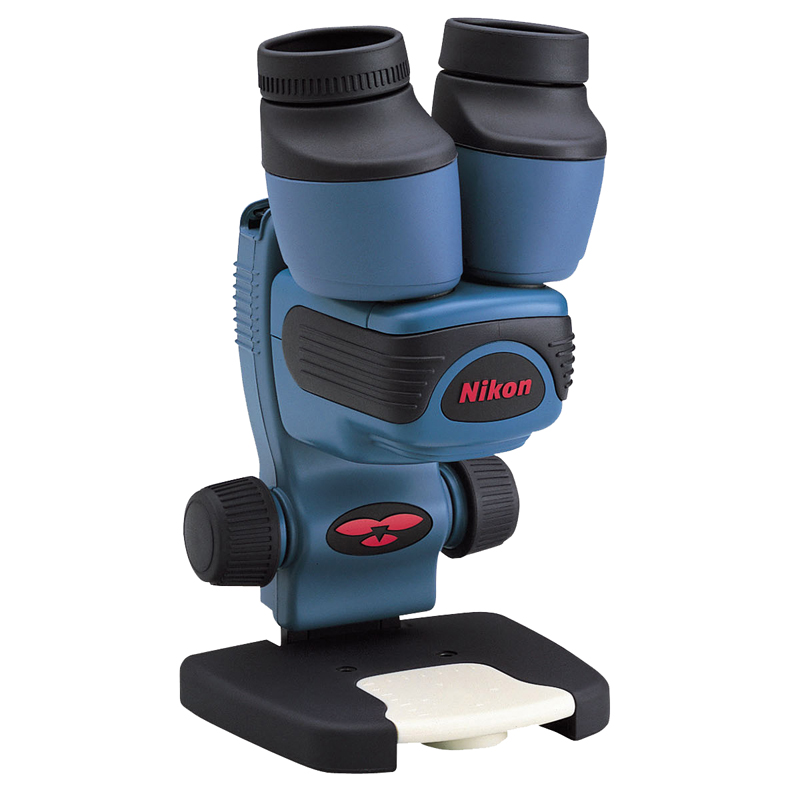

Nikon Field Microscope
- Compact, Portable Body
- 20x Magnification
- 11mm Field of Vision
- 2.5V-0.5A Halogen Lamp
- 11.1mm Eye Relief
- 12.6° Angle of View
- On and Off Light Settings
- Stereoscopic Microscope
- Built-In Illumination System
The Nikon Field Microscope is a compact and portable microscope that is perfect for use in the field or at home. This microscope features 20x magnification and an 11mm field of view, making it ideal for viewing small objects such as insects or flowers. The built-in illumination system provides bright, even light for better viewing.
The microscope features 11.1mm Eye Relief, 12.6° Angle of View and 2.5V-0.5A halogen lamp that provides excellent light output. The built-in illumination system has On and Off brightness settings to allow you to adjust the amount of light coming through the objective lenses. It also includes an adjustable eyepiece that allows you to focus on objects from very close distances.
Product Features in Detail
Field Microscope
The Nikon Fieldmicroscope is a portable optical stereoscopic microscope that features a built-in illumination system and is suitable for serious, scientific use. The illumination system enables you to view the microscopic world in dark places, such as in a forest, or in gloomy weather conditions and other poorly lit environments. It features 20x magnification.
Equipped with a diopter adjustment ring
It can be easily adjusted for vision differences between the left and right eye.
Wide focusing range (50mm)
The wide range of focus available makes observation of three-dimensional objects easy.
20x Magnification
Magnifies objects 20 times with a three-dimensional effect, thanks to the stereoscopic binocular design.
Wide adjustment range
Wide-ranging adjustment for interpupillary distance
Rotating head element
The platform can be fixed to a tripod and the head rotated so that any angle can be freely chosen for observation. The head can be rotated 180˚ to make the unit compact and easy to carry.
Multifunctional standard stage plate
Both the top and the underside of the multifunctional standard stage plate can be used, or the plate can be removed entirely.
Magnification (x) | 20x (fixed) |
Optical system | Upright, unreversed image; eyepiece diopter adjustable for right eye; 56-to-72mm interpupillary distance adjustment |
Field of vision (mm) | 11 (diameter) |
Angle of view (º) | 12.6 |
Vertical adjustment | 50mm from the base of stage |
Eye relief (mm) | 11.1 |
Plate | Removal and reversible (top: flat; underside: built-in cup) |
Light source | 2.5V-0.5A halogen lamp |
Light settings | On/off |
Power source | CR 123A lithium battery; approx. 1-hour battery life (at 20ºC) |
Dimensions (mm) | (In use) 184-238 (H)x94 (D)x100 (W) (Folded close) 144 (H) |
Weight (g) | Approx. 610 (without batteries) |
Accessories | Soft case; head unit cover; strap |
This product comes with 12 Months Australian Manufacturer Warranty. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.
Nikon Field Microscope
Soft Case
Head Unit Cover
Strap
