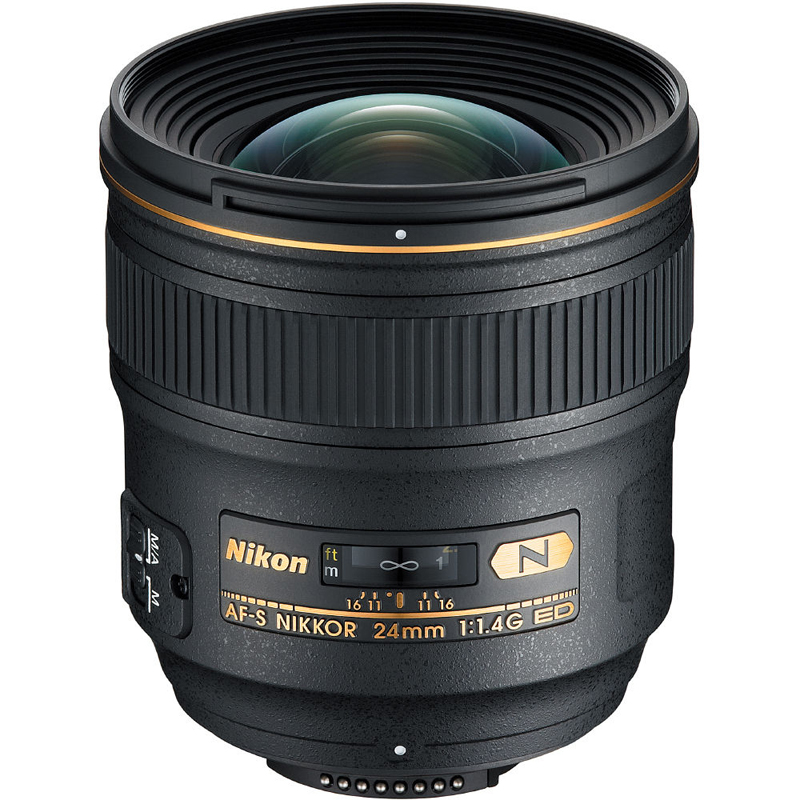

Nikon AF-S 24mm F/1.4G ED Lens
- Aperture of f/1.4 to 16
- Focal Length of 24 mm
- F Mount Lens/FX Format
- Two ED and Two Aspherical Elements
- Nano Crystal Coating
- Silent Wave Motor AF System
- Manual Focus Override
- Rear Focusing System
- 9.8" Minimum Focus Distance
- 77mm Filter Diameter
- Rounded 9-Blade Diaphragm
A high-performance, fast, wide-angle fixed focal-length of 24 mm with an aperture range of f/1.4 to 16, compatible with F Mount Lens/FX Format utilizing Nano Crystal Coat. TheAF-S Nikkor 24mm F/1.4G ED rear focusing lens with 9.8" Minimum Focus Distance is capable of serving the needs of demanding professionals in challenging conditions. A Silent Wave Motor (SWM) provides a fast, accurate and quiet AF operation. A rounded 9-blade diaphragm is also featured for pleasing out-of-focus areas within your images.
Product Features in Detail
Brilliant in any light
The f/1.4 aperture advantage
The AF-S NIKKOR 24mm f/1.4G ED excels in low-light settings for new and exciting shooting opportunities. Nikon’s Extra-low Dispersion (ED) glass ensures sharpness and contrast even at larger apertures, and an exclusive Nano Crystal Coating (N) reduces the lens flare and ghosting typically seen with wide-angle lenses.
Highly advanced optics
Nikon technology for superior imaging
The outstanding capabilities and superlative performance of the AF-S NIKKOR 24mm f/1.4 are the result of Nikon’s latest advances in professional imaging. Optimized for FX-format cameras but equally powerful on DX-format cameras, the AF-S NIKKOR 24mm f/1.4G ED unleashes the full potential of advanced D-SLRs.
Silent Wave Motor
AF-S NIKKOR lenses feature Nikon’s Silent Wave Motor, which represents a significant advance in AF lens technology.
Nano Crystal Coat
An anti-reflective coating developed by Nikon that virtually eliminates internal lens element reflections across a wide range of wavelengths.
ED (Extra-Low Dispersion) Glass
An optical glass developed by Nikon that is used with normal optical glass in telephoto lenses to obtain optimum correction of chromatic aberrations.
Aspherical lens elements
This type of lens utilizes non-spherical surfaces on either one or both sides of the glass in order to eliminate certain types of lens aberration.
Automatic to Manual focusing
Select NIKKOR lenses have a focusing mode which allows switching from automatic to manual focusing with virtually no lag time by simply turning the focusing ring on the lens.
Rear Focusing System
A system in which only the rear lens group moves during focusing, thus eliminating changes in the physical length of the lens during focusing and enabling faster focusing. Such lenses are designated with RF on the lens barrel.
Mount Type | Nikon F-Bayonet |
Focal Length | 24 mm |
Maximum Aperture | f/ 1.4 |
Minimum Aperture | f/ 16 |
Format | FX/35mm |
Maximum Angle of View (DX-format) | 61° |
Maximum Angle of View (FX-format) | 84° |
Maximum Reproduction Ratio | 0.179 x |
Lens Elements | 12 |
Lens Groups | 10 |
Compatible Format(s) | FX |
DX | |
FX in DX Crop Mode | |
35mm Film | |
Diaphragm Blades | 9 |
Distance Information | Yes |
Nano Crystal Coat | Yes |
ED Glass Elements | 2 |
Aspherical Elements | 2 |
Autofocus | Yes |
AF-S (Silent Wave Motor) | Yes |
Minimum Focus Distance | 0.82 ft. ( 0.25 m) |
Focus Mode | Auto |
Manual | |
Rear Focusing | Yes |
Filter Size | 77 mm |
Accepts Filter Type | Screw-on |
Approx. Dimensions (Diameter x Length) | 3.3 in. (83 mm) x 3.5 in. (88.5 mm) |
Approx. Weight | 21.9 oz. (620 g) |
Nikon AF-S Nikkor 24mm F/1.4G ED Camera Lens
HB-51 Bayonet Lens Hood
LC-77 Snap-On Front Lens Cap
LF-1 Rear Lens Cap
CL-1118 Soft Case

SKU: Nikon JAA131DA
UPC: 18208021840
