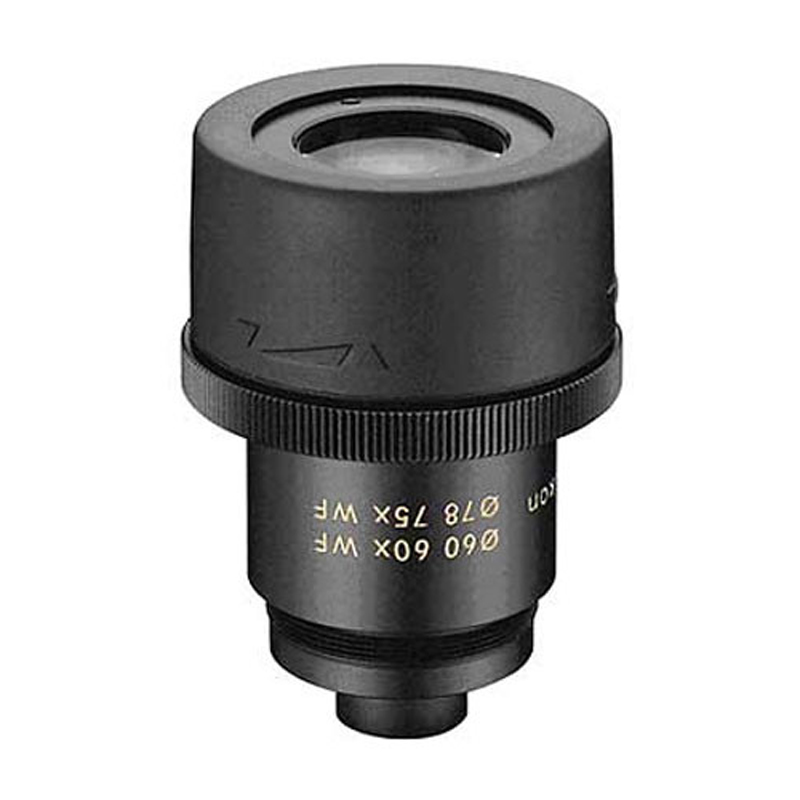

Nikon 60x/75x Wide DS Eyepiece

The Nikon 60x/75x Wide DS Eyepiece is a premium quality wide angle eyepiece. It's designed to fit the same body of Nikon Fieldscope Spotting Scopes as the standard 40x eyepiece, but provides a wider field of view.

The wide field of view, combined with the excellent optical quality of this eyepiece, makes it ideal for viewing objects closer to the horizon. It offers a 72/75° apparent field of view and 40x magnification with the 50mm scope, 60x with the 60mm scope, and 75x with the 82mm scope.

This premium product is waterproof, fogproof and nitrogen purged to prevent internal fogging and moisture build-up during long periods of storage or use in damp conditions.

Product Features in Detail

60x/75x Wide DS Eyepiece
Dedicated eyepiece with wide angular field of view. Enables digiscoping with certain Nikon COOLPIX and digital SLR cameras, and the Fieldscope III, EDIII, ED82 and ED50. Features an advanced multilayer lens coating for superior light transmission and clear, high resolution imagesMagnification: 60x when attached to a Fieldscope III or EDIII; 75x when attached to a Fieldscope ED82; and 40x when attached to a Fieldscope ED50. Angular field of view (Real/degree): 1.2 when attached to a Fieldscope III or EDIII; 1 when attached to Fieldscope ED82; and 1.8 when attached to Fieldscope ED50. Angular field of view (Apparent/degree): 64.3 for all models. Field of view at 1,000m: Approximately 21 m when attached to a Fieldscope III or EDIII; 17 m when attached to a Fieldscope ED82; and 31 m when attached to a Fieldscope ED50. Exit pupil: 1 mm when attached to a when attached to a Fieldscope III and EDIII; 1.1 mm when attached to a Fieldscope ED82; and 1.3 mm when attached to a Fieldscope ED50. Relative brightness: 1 when attached to a Fieldscope III or EDIII; 1.1 when attached to a Fieldscope ED82; and 1.7 when attached to a Fieldscope ED50. Eye relief: 17.0 mm for all models. Weight: 190 g.
