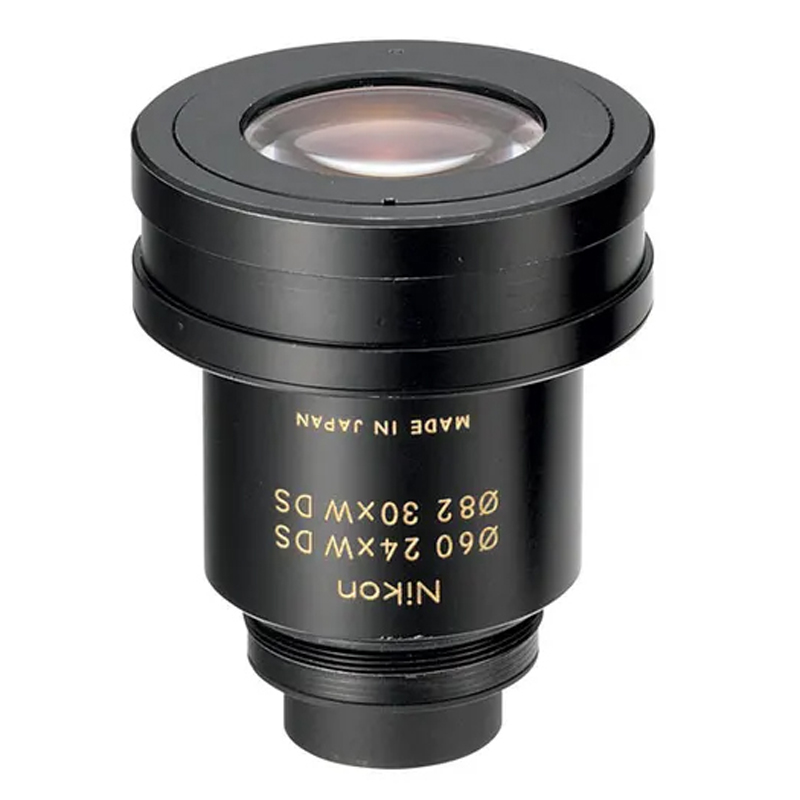

Nikon 24x/30x Wide DS Eyepiece

The Nikon 24x/30x Wide DS Eyepiece is a premium quality wide angle eyepiece. It's designed to fit the same body of Nikon Fieldscope Spotting Scopes as the standard 24x eyepiece, but provides a wider field of view.

The wide field of view, combined with the excellent optical quality of this eyepiece, makes it ideal for viewing objects closer to the horizon. It offers a 72° apparent field of view and 16x magnification with the 50mm scope, 24x with the 60mm scope, and 30x with the 82mm scope.

This premium product is waterproof, fogproof and nitrogen purged to prevent internal fogging and moisture build-up during long periods of storage or use in damp conditions.

Product Features in Detail

24x/30x Wide DS Eyepiece
Dedicated eyepiece with wide angular field of view. Enables digiscoping with certain Nikon COOLPIX and digital SLR cameras, and the Fieldscope III, EDIII, ED82 and ED50. Features an advanced multilayer lens coating for superior light transmission and clear, high resolution images. Magnification: 24x when attached to a Fieldscope III or EDIII; 30x when attached to a Fieldscope ED82; and 16x when attached to a Fieldscope ED50. Angular field of view (Real/degree): 3 when attached to a Fieldscope III or EDIII; 2.4 when attached to Fieldscope ED82; and 4.5 when attached to Fieldscope ED50. Angular field of view (Apparent/degree): 64.3 for all models. Field of view at 1,000m: Approximately 52 m when attached to a Fieldscope III or EDIII; 42 m when attached to a Fieldscope ED82; and 79 m when attached to a Fieldscope ED50. Exit pupil: 2.5 mm when attached to a when attached to a Fieldscope III or EDIII; 7.5 mm when attached to a Fieldscope ED82; and 3.1 mm when attached to a Fieldscope ED50. Relative brightness: 6.3 when attached to a Fieldscope III or EDIII; 7.3 when attached to a Fieldscope ED82; and 9.6 when attached to a Fieldscope ED50. Eye relief: 18.7 mm for all models. Weight: 170 g.
