Nanlux Evoke 5C 8Kit

The Nanlux Evoke 5C is an ultra-compact professional RGB LED spotlight designed for creators who demand maximum color control, precision output, and rugged reliability in a highly portable form factor. Engineered with the advanced Nebula C8 Light Engine, it delivers exceptional color fidelity and creative flexibility in a palm-sized lighting solution.

Despite its compact size, the Evoke 5C produces 496 lux at 3.3 ft (5600K, bare) and offers a massive 1000–20,000K color temperature range with full RGB color control, enabling everything from accurate daylight matching to highly stylized cinematic looks. Fine tuning is elevated further with ±200 green/magenta adjustment, ensuring precise color balance across mixed lighting environments.

Built for professional workflows, the fixture delivers outstanding color accuracy with CRI 98 and TLCI 98, ensuring natural skin tones and true-to-life reproduction across photo and video production. Its Nebula C8 engine expands creative possibilities with deep, saturated hues and smooth tonal transitions across the full RGB spectrum.

Control flexibility is a core strength of the Evoke 5C, offering onboard controls, app-based wireless operation, DMX/RDM integration, CRMX wireless control, and NFC quick pairing, making it adaptable to both solo creators and large studio environments.

Designed for real-world production conditions, it features a built-in rechargeable battery for true portability and an IP67 weatherproof rating, ensuring reliable performance in rain, dust, and demanding outdoor environments. This makes it suitable for both studio precision work and rugged on-location shoots.

The light includes a magnetic accessory system with dedicated modifiers and a protective carrying case, allowing fast setup changes and expanded lighting control without tools. A USB-C cable is also included for charging and wired operation.

Compact, durable, and highly versatile, the Nanlux Evoke 5C is a powerful creative tool for filmmakers, photographers, and content creators who need professional-grade RGB lighting with unmatched portability and control flexibility.

Product Features in Detail

Nanlux 5C Tiny - Limitless
NANLUX Evoke 5C-the world's smallest professional 8-color spotlight.
Bringing together the superior standards of the Evoke series with the advanced Nebula C8 Color Light Engine, the Evoke 5C delivers exceptional color performance and light shaping capabilities in an ultra-compact form.
Small in size, combines with a wide range of accessories, it serves as a versatile solution that is ideal for on-set fill lighting, subtle accent illumination, adding ambient light within the frame or seamless integration as unobtrusive practicals. The built-in battery eliminates reliance on external power, ensuring unmatched flexibility for quick, on-location setups. With its IP67-rated durability, the Evoke 5C performs reliably in any shooting condition. Whether you need flexible fill light, or a specialized tool for complex environments, the Evoke 5C is an ideal choice.

Handy and Versatile
The Evoke 5C measures just 5.6×4.4×4.5 cm/2.2×1.73×1.77 in. The metal body ensures durability and weighs only 160 g/5.64 oz. Its compact design makes it exceptionally portable and quick to set up. It can be handheld for run-and-gun shooting or discreetly concealed within the frame to provide subtle fill light without drawing attention.
Despite its small footprint, the Evoke 5C delivers impressive illumination. It's perfect for enhancing fine details, building atmosphere, adding localized highlights, or creating precise accent lighting-making it an indispensable utility light on any set.

Extensive Accessories, Maximum Versatility
To meet the practical needs of professional production, the compact fixture body
is built with magnetic mounts on both front and back, a 1/4′′-20 mount with anti-twist design, and a USB-C port, supporting accessories for light shaping, mounting, power,
and control, making it a versatile on-set light.

USB-C Port
For power input or connecting the USB-C to DMX Adapter Cable for wired DMX control.

1/4"-20 mount with anti-twist design
Secured on light stands or other supports.

Magnetic & snap-fit design
Quickly attach and detach various modifiers.

Magnetic & latch design + electronic contacts
Attach the CRMX Module for wireless DMX control, or Battery Grip and E27 Socket Adapter for power, or be used to charge when placed in the dedicated 8-Light Kit Case.

Innovative Light Engine, Superior Light Quality
The Evoke 5C is equipped with the innovative Nebula C8 Color Light Engine, offering the industry's widest color temperature range, excellent color rendering, and higher color saturation, delivering high-quality light for professional productions.

Nebula C8 Color Light Engine
The NANLUX Nebula C8 Color Light Engine is the industry's first eight-color light engine. Powered by an eight-color system (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo), with an advanced color-mixing algorithm, the C8 delivers a wider CCT range, better skin tone reproduction, a broader color gamut, and enhanced color saturation.

CCT Range:
1,000K-20,000K (G/M±200)
Covers 82% of the CIE 1931 visible color gamut.
Covers 6% more within the visible color gamut than Rec. 2020. Covers 94% of the Rec. 2020 color space.
Covers 94% of the Rec. 2020 color space

Various Lighting Modes
The Evoke 5C has seven built-in lighting modes to flexibly light different scenarios.

CCT Mode
Adjustable color temperature from 1,000K to 20,000K with ±200 green/magenta fine-tuning.

HSI Mode
With 360 hues and 100% saturation for flexible color control.

HSIW Mode
Building on HSI, offers white point color temperature and G/M adjustment.

RGBW Mode
Individual control of four separate channels: red, green, blue and white.

XY Coordinates Mode
Offers precise color control within the CIE 1931 color space.

Gel Mode
Provides access to 460 LEE and Rosco gels.

FX Effect Mode
15 special effects with adjustable parameters.

Built-in Battery & Flexible Power Options
With its built-in lithium battery, the Evoke 5C operates without an external power source and can be deployed instantly, perfect for on-the-go shooting or rapid repositioning.
Runtime at 100% brightness:
About 50 minutes
Runtime at 1% brightness:
About 160 minutes

The Evoke 5C also supports multiple power and charging options, ensuring worry-free operation if used for extended periods.
The USB-C port supports adapters and power banks of 5V/2A or higher, allowing convenient charging anytime, anywhere.
The electronic contacts on the rear of the Evoke 5C allow it to be powered by the Battery Grip or via the E27 Socket Adapter. They also allow it to be charged in the 8-Light Kit Case.

Dustproof and Waterproof, Ready for Underwater
With its IP67-rated body, the Evoke 5C performs reliably even in challenging environments. For quick underwater shots on set, it delivers consistent lighting for up to 30 minutes at depths of 1 meter without additional protection.
The optional IP68-rated Underwater Housing further enhances the Evoke 5C's underwater performance at depths of up to 30 meters, meeting the demands of professional dive shooting.

Multiple Control Methods
The Evoke 5C supports multiple wired and wireless control methods to meet the efficient and complex lighting requirements of professional productions. Adjustments can be made directly on the fixture or wirelessly via the NANLINK App. For larger or more complex shoots, it allows remote control via wired DMX or wireless CRMX.

On-board
Four buttons and a display, providing intuitive and easy operation.

NANLINK App
Connect to the NANLINK App 2.0 via Bluetooth for an intuitive and efficient wireless control experience.

LumenRadio CRMX
Achieve flexible and stable wireless DMX group control by attaching the Magnetic CRMX Module.

DMX/RDM
The USB-C to DMX Adapter Cable* converts the Evoke 5C's USB-C port into an XLR male and female connector, along with a USB-C port.
*Coming soon

NFC
Quickly connect the fixture to the NANLINK App 2.0.* Users can also batch-set DMX parameters for multiple fixtures even when they are powered off, greatly improving pairing efficiency.
*Available in a later firmware update.

Optional Kits, Flexible Combination
In addition to the standard kit, optional bundles include the Evoke 5C Kit with extra accessories and the comprehensive Evoke 5C 8-Light Kit. These options accommodate a wide range of shooting scales and setups—from solo creators to gaffers on large productions.

Evoke 5C Kit
The lightweight yet professional kit includes a range of modifiers for quick transitions between spotlighting, soft lighting, and beam spread control. It's designed to handle the most common professional shooting scenarios. The kit features a handy carrying bag with a carabiner, allowing to attach it to the belt or bag for easier transport and quick grab.

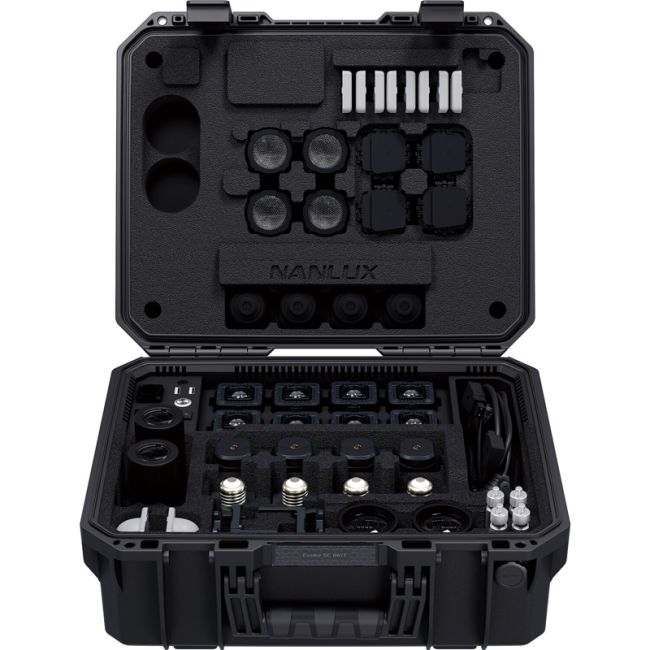

Evoke 5C 8-Light Kit
The kit includes eight Evoke 5C fixtures, a comprehensive range of modifiers and power supply accessories, plus a custom-designed charging case (based on the GUTEK T-230). This is a go-anywhere solution combining efficient storage, charging, and protection.
The case supports three power options- AC power, battery via D-tap, or PD adapter via USB-C for simultaneously charging eight Evoke 5C fixtures and four Battery Grips.
Every accessory has a dedicated slot, ensuring secure, organized, and highly efficient storage.
The case features an IP67 rating, impact resistance, and a V-2 flame-retardant rating to protect the fixtures during transport.
