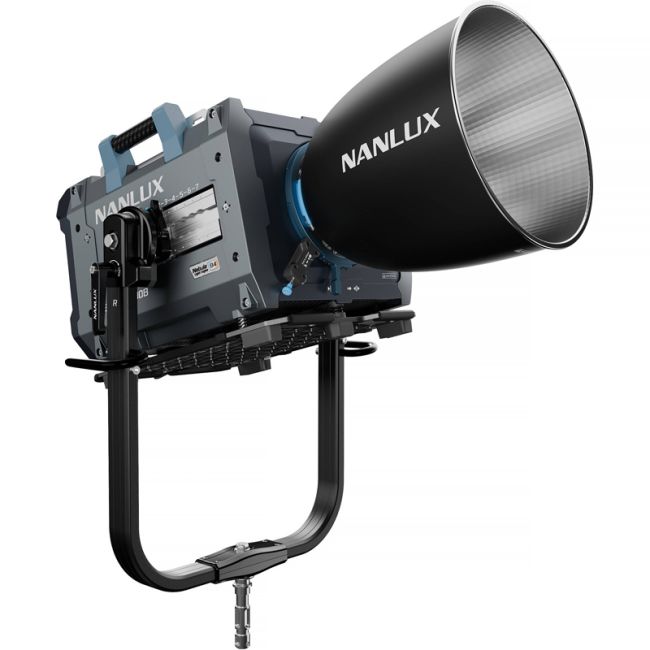

Nanlux Evoke 5000B Bi-Colour LED Spot Light

The Nanlux Evoke 5000B Bi-Color LED Spot Light is a formidable lighting solution tailored for professional settings such as studio environments and film/TV production. Its design and features cater to the high demands of cinematographers, photographers, and broadcast professionals who require precise, powerful, and versatile lighting instruments. The Evoke 5000B offers an impressive output of 555,250 Lux at 3.3 feet (1 meter) at 5600K, ensuring that it can illuminate subjects from a distance with incredible brightness. With a Color Temperature from 2700K to 6500K in Bi-Color Mode, it provides immense flexibility in matching the light's color temperature with ambient lighting conditions or achieving creative lighting effects. Designed to operate on 100-240V AC power, it is suitable for use in various locations worldwide without the need for additional power conversion devices. It offers multiple control methods including onboard controls, wireless (MX and App control), and remote control, providing convenience and flexibility for adjusting settings on the fly. The color accuracy boasts a CRI (Color Rendering Index) of 97 and a TLCI (Television Lighting Consistency Index) of 98, ensuring that colors are rendered accurately and consistently, which is critical for high-quality visual production. With a TM-30 Rg rating of 102, it surpasses traditional quality metrics, promising superior color fidelity and saturation in production. It features five fan modes, allowing users to balance cooling needs with noise level considerations, essential in quiet filming environments. The color offers +/- 80 Green/Magenta tint adjustment, providing meticulous control over the light's color balance, helping to tackle or match various lighting conditions. Supports continuous dimming from 100% down to 0.1%, enabling precise intensity control without color shift, which is ideal for subtle lighting adjustments during shoots. With an IP66 rating, it is highly resistant to dust and water, making it suitable for outdoor shoots in challenging weather conditions.

The Nanlux Evoke 5000B Bi-Color LED Spot Light represents a significant step forward in lighting technology for professional video and photography production. Its combination of power, precision, and versatility makes it a high-value asset for any production demanding the highest quality lighting. Its thoughtful design and robust build quality ensure that it can meet the technical and creative needs of today's cinematographers and photographers, providing a tool that not only illuminates but enhances the visual storytelling process.

Product Features in Detail

The world's First 5000W Stormproof LED bi-color spotlight with Green/Magenta adjustment.
The Nanlux Evoke 5000B integrates an impressive output with 5000W power draw, a color temperature range of 2700K-6500K, ±80 Green/Magenta adjustment, excellent light quality, an IP66 rating, and the self-developed Nebula B4 Light Engine, all in one fixture. It also supports a variety of control methods, making it a cutting-edge solution for professional production. This groundbreaking innovation highlights Nanlux's ongoing commitment and advancements in LED lighting and marks a milestone in the transition of motion picture lighting to the LED era.

Revolutionary Light Engine Remarkable Output
The Evoke 5000B is equipped with Nebula B4 Light Engine that developed by Nanlux. This light engine not only ensures the white light efficiency, but also provides a color temperature range of 2700K-6500K and ±80 Green/Magenta adjustment. With an ultra-high input power of 5000W*, it is the only bi-color light fixture at this power level to date** that can adjust both color temperature and green/magenta values. It is now quick and easy to match other light sources on-set or achieve a specific look. This makes the Evoke 5000B the ideal alternative for traditional fixtures that rely on gels and repeated adjustments, being far more accurate and far less time-consuming.
The built-in professional CSP chips and ultra-high LED light efficiency enable the
Evoke 5000B to produce extraordinary illuminance, approaching that of a 9kW HMI or 24kW tungsten light.

Innovative Nebula B4 Light Engine Optimizing White Light Efficiency and Functionality Nebula B4 Light Engine
Based on considerations of high light efficiency and functionality, Nanlux developed the innovative Nebula B4 Light Engine, which combines 4 types of white light chips, providing Green/Magenta adjustment capability across the entire color temperature range on a bi-color fixture. Compared to bi-color lighting produced by full-color light engines, the Nebula B4 Light Engine outperforms them by 30% in white light emitting efficiency from the same power input.

All-in-One Design Compact Weatherproof·
Nanlux is always committed to an efficiency-oriented vision in product design, aiming for high efficiency and simple operation on set.
The Evoke 5000B integrates the lamp head, control unit, and power supply into one fixture, significantly reducing both the total weight and size compared to a solution with separate units. With its all-in-one lamp and just one cable, fixture management is simpler and more organized, improving efficiency for both on-set and transportation. To reduce weight and increase durability, the Evoke 5000B is constructed using high-strength magnesium alloy. It weighs only 46kg/101lb (with yoke), a remarkably light weight for the output.
The Evoke 5000B is constructed with an IP66-rated housing, enabling it to withstand extreme weather conditions and allowing production to continue unaffected in harsh conditions.

Meticulous Design in Every Detail
The Nanlux team has carefully considered users' diverse needs in the detailed design of the Evoke 5000B.

Yoke with Disc Brake
The yoke of Evoke 5000B is designed with disc brake, providing more grip strength that prevents the fixture from accidentally tilting once the angle has been fixed. This ensures precise positioning and on-set safety. There is an angle display on the yoke, ideal for aligning the angles when multiple fixtures are working as a group.

Balance Adjusting Rail
The two sides of the fixture is built with balance adjusting rails, enabling flexible adjustment of the balance position of the head, ensuring that the fixture remains neutral in terms of center of gravity when different accessories mounted on.

Skid
The Evoke 5000B comes with a skid, which brings general-purpose advantages and conveniences:
Preventing Wear: The skid elevates the light fixture, effectively preventing direct contact with the ground and wear on the fixture's bottom.
Enhancing Efficiency: It can embed into the two handles on the top of the fixture, allowing for stacking of multiple fixtures and improving transport efficiency.
Shock Protection: Springs between the fixture and the skid effectively reduce the impact from drops and transport bumps, extending the fixture's service life.
Easy operation: It has two handles at both the front and back, making it easy to grab when setting up the fixture or adjusting the tilt angle when the fixture is installed high.

Dual Security
The existing NL mount is added with the PosiTight system, providing dual security to ensure a tighter connection between the fixture and the accessory, resulting in more stable lighting performance.

Excellent Lighting Performance
The Evoke 5000B adopts a unique 95° beam angle, making it suitable for lighting large areas even without a modifier.
With this beam angle and emitting area, the light quality and shadows closely mimic sunlight, making it an ideal solution for simulating natural light.

Exceptional Dimming Control
The smooth dimming of LED lights, especially in controlling brightness from 0.0% to 0.1%, is essential for fade in/out lighting. The Evoke 5000B achieves fully linear dimming performance through newly developed hardware combined with optimized mixing algorithms.
The newly added High Speed Mode allows the Evoke 5000B to switch from PWM to DC, maintaining stable and consistent brightness during high-frame-rate shooting. Even at over 10,000 frames, it ensures smooth, flicker-free performance. Combined with its exceptionally high illuminance, the Evoke 5000B provides an excellent lighting solution for high-speed shooting.

Comprehensive Controls, Ideal for Sets
The Evoke 5000B is designed with built-in control, ensuring the timely response of control signals. A new wired controller is included with the fixture, which provides stable wired control when the fixture is rigged high.
The availability of DMX/RDM, Art-Net/sACN, and LumenRadio CRMX control options allows the Evoke 5000B to operate smoothly in professional film and television production sets, enabling simultaneous control of multiple fixtures.

On-board Control
The control panel is equipped with three knobs, four buttons, and a 4.3-inch display screen for intuitive and quick control.
The new-generation user interface provides users with a straightforward menu and user-friendly icons, allowing them to quickly locate the needed options and adjust parameters.

Wired Controller
The Evoke 5000B is equipped with an extension port, ensuring compatibility with the new IP66-rated wired controller (WC-EXT). This extension port enables connections between the fixture, the motorized yoke (YK-E-EVL), and other accessories, allowing for simultaneous control of all connected devices. Additionally, the fixture retains a wired control port, allowing compatibility with the existing wired controller* (WC-LM6P-C1).
*The wired controller can be used to control the Evoke 900C/1200/1200B/ 2400B/5000B, and Dyno 650C/1200C.

DMX/RDM Control
The fixture has two 5-pin XLR DMX in and out ports for DMX/RDM signal transmission, ensuring a stable connection for group control.

Art-Net/sACN
The fixture is equipped with two LAN ports, supporting Art-Net/sACN protocol control over Ethernet, ensuring stable signal transmission and enabling long-distance control of multiple fixtures.

LumenRadio CRMX
The Evoke 5000B has a built-in LumenRadio Timo Two module, allowing it to connect to the CRMX control ecosystem and providing flexible and stable wireless DMX control.

NANLINK APP 2.0
The Evoke 5000B can be controlled by the Nanlink App 2.0 through its built-in Bluetooth module, making efficient, flexible and simple wireless control possible.

Remote Controller
The Evoke 5000B can also be controlled by a remote controller (optional purchase) through its built-in 2.4G module for quick parameter adjustments.

Optimized Cooling Management
A fixture with breakthrough output will face a bigger challenge for heat dissipation. The Evoke 5000B is equipped with a newly designed cooling system, including optimized heat sinks and fan modules, which improve heat dissipation efficiency.
This cooling system includes Smart, Full Speed, Low Speed, Off, and Pause modes, allowing users to switch between them based on their needs. The Smart mode automatically adjusts the fan speed according to the ambient temperature. In this mode, the noise level is only 44 dB(A), ensuring a silent recording environment.

Complete NL Mount Accessory Ecosystem
Thanks to the advanced technology, the light source module of the Evoke 5000B is the same size as that of the Evoke 2400B. Adopting the NL mount makes the Evoke 5000B compatible with most accessories for the Evoke 2400B. This means the Evoke 5000B can integrate into the existing accessory ecosystem and, when combined with accessories like the Fresnel, reflector, parallel beam reflector, and softbox, can produce a variety of lighting effects. This reduces the accessory investment required when purchasing a new light fixture.
Additionally, a new larger motorized Fresnel lens, a motorized yoke, and a new wired controller tailored for the Evoke 5000B are also being introduced. Together with the existing Evoke series accessories, these meet the requirements for shaping light, supporting, transporting, and controlling, acting as an efficient and all-round lighting tool on set.

Light Shaping
The newly introduced motorized Fresnel lens features a 45cm lens with a 16°-50° zoom range. At 16°, it gives the Evoke 5000B an illuminance of 47,970 lux (@5m, 5600K), providing smaller lighting area and a less hard appearance.
The zoom range of the FL-45E can be adjusted using the button on the Fresnel lens itself, controlled on the fixture, via wired control (wired controller, DMX, Ethernet), or through wireless control (Nanlink App 2.0, LumenRadio CRMX). The built-in fans provide operational stability and reliability in high temperature environments.

YK-E-EVL Motorized Yoke
The motorized yoke that specifically designed for the Evoke 5000B has ability to adjust the angle electronically, enabling 540° horizontal rotation and 270° vertical flip. This makes it simple to position and adjust when the fixture is rigged high, significantly improving on-site setup efficiency.
The motorized yoke contains a panel at the bottom for controlling both the fixture and the yoke simultaneously. It can also be controlled via the button, or by the wired controller, DMX/RDM, Ethernet.

Controlling
The new wired controller is designed with a 3.2-inch display screen, three buttons, and three knobs. The interface replicates the control layout of the Evoke 5000B, so users can quickly adapt when switching between on-board control and wired controllers.
The controller comes with an 8m connection cable. An IP66-rated housing ensures it can still operate even in severe weather. There is a magnetic module on the rear of the controller, allowing it to adhere to metal surfaces or attach to a magnetic base that can be installed on the fixture Wired Controller for convenience.
