Nanlite PavoTube II 30XR 4ft RGBWW LED Tube 4 Kit
- For Photo, Video, and Film Production
- Four 4' PavoTube Lights
- 746 Lux at 3.3' (5600K) Output
- 2700-12,000K CCT with RGB Mode
- LumenRadio CRMX
- Onboard, Wireless, DMX and App Control
- CRI 97 | TLCI 98
- 15 Special Effects and 10 Pixel Effects
- Three 1/4"-20 Receivers for Mounting
- Built-In Rechargeable Battery and AC Power
- Includes AC Adapter, Mounting Clip and Bag
The Nanlite PavoTube II 30XR 4ft RGBWW LED Tube is a versatile lighting solution designed for photo, video, and film production. It is a versatile lighting tool suitable for a wide range of applications in photo, video, and film production. It can provide high-quality lighting for various projects. The package includes four 4-foot PavoTube lights, providing a compact and portable lighting solution that is easy to set up and use.
Nanlite PavoTube II 30XR 4ft RGBWW LED Tube is equipped with LumenRadio CRMX technology, which provides a reliable and stable wireless DMX signal. With LumenRadio CRMX, the LED tube can wirelessly communicate with compatible wireless DMX systems, allowing you to easily integrate the Pavotube II 30XR into your lighting setups and control it remotely without the need for cables or adapters. The built-in LumenRadio CRMX technology ensures a strong and stable wireless DMX signal for consistent and reliable control of your lighting.
The PavoTube II 30XR delivers an output of 746 Lux at a distance of 3.3 feet when set to a color temperature of 5600K. This ensures a sufficient and bright light output for your productions. The LED tube offers a wide color temperature range from 2700K (warm) to 12,000K (cool) in CCT mode. It also features RGB mode, allowing you to create a virtually unlimited range of colors for creative lighting effects. You can control the Pavotube II 30XR using the onboard controls, wirelessly through the included remote control, via DMX systems, or using the Nanlite smartphone app. This versatile control options provide flexibility and convenience in adjusting the lighting as needed.
With a high Color Rendering Index (CRI) of 97 and Television Lighting Consistency Index (TLCI) of 98, the LED tube provides accurate and vibrant color reproduction, ensuring that your images and footage look natural and true to life. It offers 15 built-in special effects, such as fireworks, lightning, strobe, and more. It also provides 10 pixel effects, allowing you to create dynamic and visually striking lighting patterns.
The LED tube is equipped with three 1/4"-20 receivers, providing multiple mounting options. This allows you to easily attach the tube to various stands, clamps, or other accessories for flexible positioning. The PavoTube II 30XR features a built-in rechargeable battery, giving you the freedom to use it in locations without access to an AC power source. It also comes with an AC adapter for when you prefer to use it with continuous power. The package includes an AC adapter for charging and continuous power, a mounting clip for secure attachment, and a bag for storage and transportation of the LED tube.
The Nanlite Pavotube II 30XR 4ft RGBWW LED Tube offers versatile lighting capabilities for photo, video, and film production. With its compact size, wide color temperature range, flexible control options, and various special effects, it allows for creative lighting setups and enhances the quality of your visual productions.
Product Features in Detail
RGBWW LED pixel tube
The Nanlite PavoTube II 30XR is an RGBWW LED pixel tube that has the same design, features, and physical attributes as the standard PavoTube II 30X, with the addition of having CRMX LumenRadio wireless DMX built in. The PavoTube X-Series have been refined based on feedback from creators around the globe with features including pixel-based special effects, brighter output, more uniform diffusion, robust metal housings, DMX compatibility, wireless 2.4G, Bluetooth control with the free NANLINK mobile app for iOS and Android, and CRMX in the XR models. It includes accessories and a padded carrying bag.
Get Unique, Studio Quality Lighting Anywhere
With an expanded and more precise color temperature range from 2700K-12000K with green to magenta adjustment, an average CRI of 97, an average TLCI of 98, plus full-spectrum RGB hue and saturation control, the PavoTube II 30XR 4' RGBWW LED Pixel Tube packs studio-quality lighting into a hardy, go-anywhere package.
From a Next-Generation LED Tube
Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED Tube design. Enhancements include brighter output with more uniform diffusion, a pixel density of 16 to create eye-catching animated effects, an upgraded control panel with locking buttons, DMX compatibility, and full wireless control through 2.4G and Bluetooth with the free NANLINK mobile app for iOS and Android, and CRMX on the XR models.
With No Cords Needed
Powered by an internal 4400mAh Li-ion battery, the PavoTube II 30XR can run for 1 hour and 36 minutes at full brightness completely untethered. Full battery recharge is achieved in 3 hours and 30 minutes via the included AC adapter, which can also power the Pavotube II 30XR during longer shoots.
Pixel Based Special Effects
In addition to 15 adjustable practical special effects, PavoTube II 30XR features 10 new pixel-based effects expanding the creative possibilities further than ever before. Pixel-based effects include Hue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, and Driving. Practical effects include Hue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, and Welding.
And A Robust Metal Housing
The PavoTube II 30XR's upgraded metal housing makes worrying about an accidental drop or risky light placements a thing of the past. Plus, three incorporated ¼-20" receivers greatly expand mounting options.
Technical Data | |
CRI | Average 97 |
TLCI | Average 98 |
Color Temperature (Kelvin) | 2700K-12000K |
Lumen Output 3200K | 1188 |
Lumen Output 5600K | 1278 |
Dimming | 0-100% |
DMX Control | Yes |
Compatible Wifi Adapter | Nanlink WS-TB-1 Transmitter Box |
Compatible Remote | WS-RC-C2 remote control |
Wireless Control Type | CRMX, 2.4GHz, Bluetooth, DMX/RDM |
Frequency | 2.4Ghz |
Accessory Port(s) | No |
Depth Rating | IP 20 |
Mount | T12, 3x 1/4 20", Magnets |
Operating Temperature | ta45℃ |
Cooling System | No |
Power Source | DC15V/2A |
Max Power Consumption | 36W |
Electrical Load Capacity | 81.4W |
Amp-Hours | 4400mAh |
Includes Rechargeable Battery | Yes |
Number of Battery Cells | 10 |
Battery Capacity (Wh) | 81.4 |
Battery Chemistry | Li-Ion |
Compatible D-Tap Adapter | Nanlite CB-DT-DC D-Tap cable with DC Socket |
Battery Included | Yes |
Charger | AC Adapter |
Battery Maximum Output Voltage | 18.5V |
Battery Required | Yes |
Charge Time to Full (Hours) | About 3 hours 30 mins |
Runtime @ 100% Brightness (Hours) | 1h 36 mins |
Runtime @ 50% Brightness (Hours) | 3h 7 mins |
Runtime @ 10% Brightness (Hours) | 11 h 45 mins |
'Product Diameter (cm) | 4.3 |
'Product Diameter (in) | 1.7 |
Dimensions | |
Product Length (cm) | 114.5 |
Product Length (in) | 45 |
Product Weight (kg) | 1.58 |
Product Weight (lb) | 3.5 |
Special Effects | |
Special Effects | 15 BUILT-IN PRACTICAL EFFECTS: HUE LOOP/ CCT LOOP/ INT LOOP/ CCT FLASH/ HUE FLASH/ CCT PULSE/ HUE PULSE/ STORM/ POLICE CAR/ TV/ PAPARAZZI/ CANDLE/FIRE/ DISCO/ BAD BULB/ FIREWORK/ EXPLOSION AND WELDING 10 PIXEL EFFECTS: HUE LOOP/ CCT LOOP/ INT LOOP/ MULTI-COLOUR/ GRADIENT/ SCROLLING/ MARCHING/ FLAME/ RAINBOW/ DRIVING |
This product comes with 2 Year Limited Warranty Extendible to 3 Years Limited with Registration. Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty. Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.

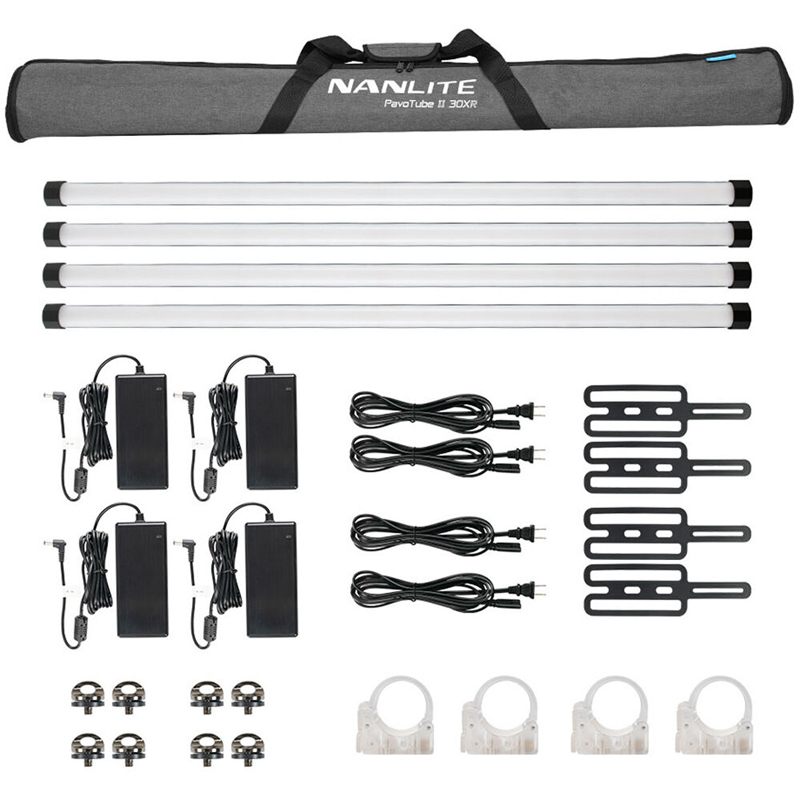

Nanlite PavoTube II 30XR 4ft RGBWW LED Tube 4 Kit
4x 15V/4A Power Adapters
4x 9.8' (3m) Power Cables
4x Power Adapter Safety Straps
4x Transparent Polycarbonate T12 Clips with Two 1/4"-20 Receivers
8x 1/4"-20 Eye Bolts
Padded Carrying Bag
User Manual

SKU: Nanlite NNPAV30XR4KIT
UPC: 6949987426059
