You are here : Home > Manfrotto MT190CXPRO4 Carbon Fibre Tripod (Legs only)

McAfee Secure sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams

Manfrotto MT190CXPRO4 Carbon Fibre Tripod (Legs only)Bookmark and Share

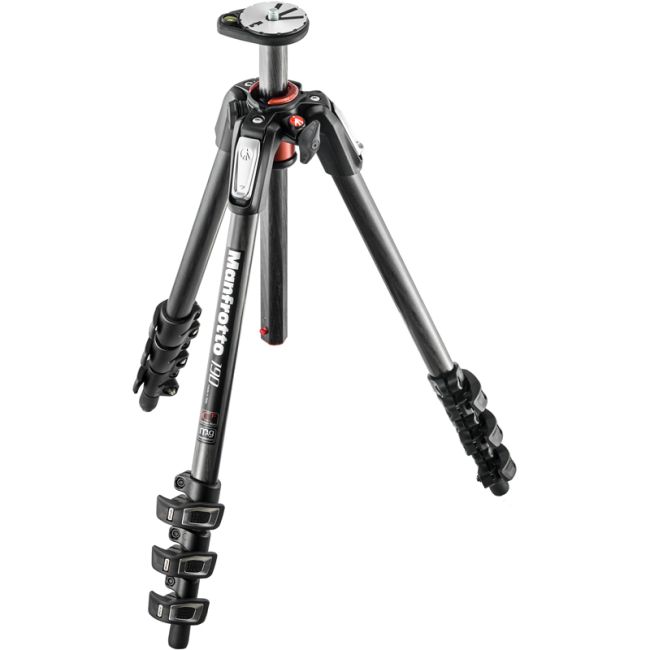

Manfrotto MT190CXPRO4 Carbon Fibre Tripod (Legs only)
Click for larger view
Click for rear view

Main Product

Manfrotto MT190CXPRO4 Carbon Fibre Tripod (Legs only) $572.00 Ships today

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Payload capacity of 7 kg
  • 160 cm maximum height
  • 8 cm minimum height
  • Folded length of 52.5 cm
  • 1.6 kg tripod
  • 4 leg sections
  • carbon fiber tubing + magnesium castings
  • 2 Years Standard Australian Warranty

The 190CXPRO4 is a carbon fibre Tripod with Horizontal Column and 4 leg sections. It provides advanced features and excellent build quality. This tripod achieves its robust design by using materials like carbon fiber tubing + magnesium castings. The tripod has 1.6 kg weight that can withstand a payload of up to 7 kg. It has a maximum height of 160 cm and a minimum height of 8 cm. Capture things in hard to reach places, this tripod has a 4 leg angles of that gives you the flexibility to adapt to any point of view. You can easily keep it to rest when not in used with a folded length of 52.5 cm

Product Features in Detail

90° centre column mechanism
Allows the column to be extended vertically as normal, or horizontally to open up a wide range of framing and shooting possibilities; this makes the 190CXPRO4 an extremely versatile tripod, suitable for a wide range of photography and video applications. The horizontal column mechanism is housed within the tripod's top casting for compactness, but it is easily and quickly extended whenever you need it. Switching between vertical and horizontal column orientation requires no disassembly, and can even be done with a camera attached.

Extremely compact
Together with the height saving of the new horizontal column mechanism, 4-section legs help to reduce the closed length of this tripod by 16cm compared to preceding 190 models - a boon for any travelling photographer. The legs are also fast to extend and adjust, thanks to the Quick Power Lock levers that block and unblock each leg section. The special design of the QPL levers allows a more comfortable and stronger single-handed grip of the leg locks. From folded, the sections of each leg of the tripod can be released in a single movement. The QPL lever design also offers more powerful locking of each section, meaning the tripod is more stable and rigid than with traditional lever designs. Intuitive and ergonomic leg angle selectors allow each leg to be independently and solidly set to any of the preset angles, again allowing considerable positioning freedom.

Bubble level
A bubble level is built in to the top of the centre column for precise framing. The bubble level rotates freely around the centre column, so it can be positioned wherever it's easiest for you to see it while adjusting the tripod, and without it either being obscured by the mounted head and camera, or getting in the way of head or camera controls.

Easy Link connector
The top casting of the 190CXPRO4 has an Easy Link connector for supporting a photo or video accessory (such as an LED light, flash, reflector, or other piece of equipment) on an extending arm or bracket, and making the tripod into a practical mobile studio.

Ergonomic leg angle selector
This tripod features a newly designed ergonomic leg angle selector. This new angle selector improves the comfort and the precision in use.

Included in the Box

     Manfrotto 190 Carbon Fibre 4-Section Tripod with Horizontal Column
     2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on

Warranty Information

     This Manfrotto 190 Carbon Fibre 4-Section Tripod with Horizontal Column comes with 2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty once the product is registered on
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

attaches by. 3/8 attachment type
centre column rapid
Color black color
column tube diameter 25mm
leg angles 25°.46°.66°.88°
legs tube diameter 24.8 . 20.4 . 16 . 11.6 mm
material carbon fiber tubing + magnesium castings
patent pat. pending
closed length 52.5 cm
leg sections 4 number
maximum height 160 cm
maximum height (with centre column down) 135 cm
minimum height 8 cm
safety payload 7 kg
weight 1.65 kg
