You are here : Home > Manfrotto 190 Aluminum 4 Section Tripod with XPRO Ball Head + 200PL Plate

McAfee Secure sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams

Manfrotto 190 Aluminum 4 Section Tripod with XPRO Ball Head + 200PL PlateBookmark and Share

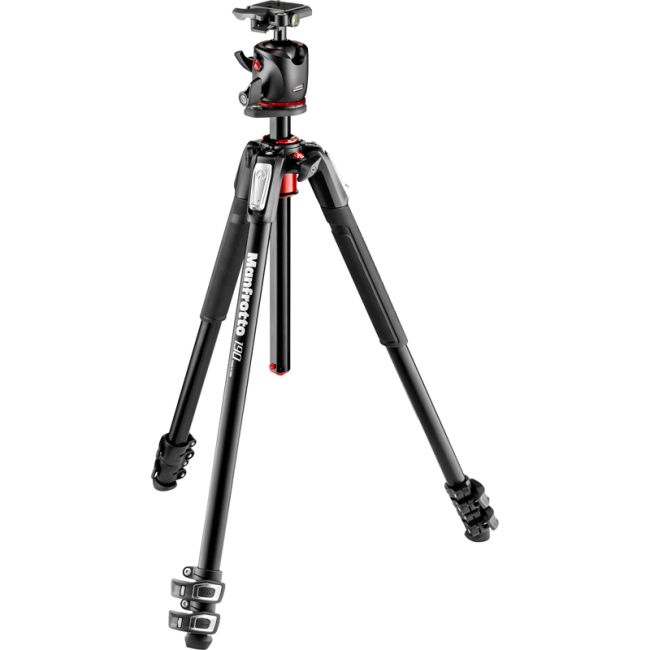

Manfrotto 190 Aluminum 4 Section Tripod with XPRO Ball Head + 200PL Plate
Click for larger view
Click for rear view

Main Product

Manfrotto 190 Aluminum 4 Section Tripod with XPRO Ball Head + 200PL Plate $399.00

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Replaces Manfrotto MK190XPRO4-BH
  • Payload Capacity of 7 kg
  • 171 cm Maximum Height
  • 8 cm Minimum Height
  • Folded Length of 60 cm
  • Quick Power Lock SystemEasy Link
  •  Leg Angle Selector
  • 4 Leg Sections
  • Aluminum
  • Comes with XPRO Ball Head + 200PL Plate
  • 2 Years Standard Australian Warranty

The new 190 Aluminum 4 Section Tripod promotes compactness, rigidity, and function. This tripod achieves its lightweight design by using materials like carbon fibre and aluminum. It features the 2.55 kg tripod that can withstand a payload of up to 7 kg. It has a maximum height of 171 cm and a minimum height of 8 cm. Capture things in hard to reach places, this tripod has a 4 leg section that gives you the flexibility to adapt to any terrain. The Quick Power Lock system allows a fast, solid effortless set up. The Easy Link allows adding accessories to the tripod as LED and the New Leg Angle Selector allows having smooth operations. Never miss the opportunity to capture perfection with the help of the XPRO Ball Head + 200PL Plate. This tripod can easily be kept away when not in used with a folded length of 60 cm.

Product Features in Detail

190XPRO3 4-Section Aluminium Tripod
This 190 kit comprises a compact 190XPRO4 4-section aluminium tripod and a portable, versatile ball head. Both tripod and head have advanced features and excellent build quality.

90° Centre Column Mechanism
The key feature of this kit is the tripod's 90° centre column mechanism, which allows the column to be extended vertically as normal or horizontally. This makes it an extremely versatile tripod, suitable for a wide range of photography applications. The horizontal column mechanism is housed within the tripod's top casting for compactness, but it is easily and quickly extended whenever you need it. Switching between vertical and horizontal column orientation requires no disassembly, and can even be done with a camera attached.

Quick Power Lock Levers
The legs of the tripod are also fast to extend and adjust, thanks to the Quick Power Lock levers that block and unblock each leg section. The special design of the QPL levers allow a stronger and more comfortable single-handed leg lock grip. The sections of each leg on the tripod can be released from their folded position in a single movement. The QPL lever design also offers more powerful locking of each section, making this tripod more stable and rigid than traditional lever design models. Intuitive, ergonomic leg angle selectors allow each leg to be independently and solidly set to any of the preset angles, afford considerably greater positioning freedom.

Bubble Level
A bubble level is built in to the top of the centre column for precise framing. The bubble level rotates freely around the centre column, so it can be positioned wherever it's easiest for you to see while you adjust the tripod and without it either being obscured by the mounted head and camera.

Easy Link Connector
The tripod’s top casting has an Easy Link connector to support a photo or video accessory (such as an LED light, flash, reflector, or other piece of equipment) on an extending arm or bracket, and transforming it into a practical mobile studio.

XPRO Ball Head
The new XPRO Ball Head is the perfect union between innovative solutions and design. It has a new triple locking system which guarantees camera position stability, friction control helping the user balance the weight of camera equipment and two levelling bubbles to precisely frame composition. Moreover, its new polymer rings have substituted that unpleasant, messy grease, ensuring smooth, accurate and less jerky camera movement. XPRO Ball Head is portable, lightweight and reliable thanks to its magnesium body and comes with the Manfrotto 200 pl plate.

Made in Italy by Manfrotto
The 190XPRO3 and the MHXPRO-BHQ2 head are made in Italy by Manfrotto.

Included in the Box

     Manfrotto 190 Aluminum 4 Section Tripod with XPRO Ball Head + 200PL Plate
     2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on

Warranty Information

     This Manfrotto 190 Aluminum 4 Section Tripod with XPRO Ball Head + 200PL Plate comes with 2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty once the product is registered on
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

Material Aluminium
Collection/Series 190
Leg Type Single
Leg Lock Type Flip Lock
Closed Length 60 cm
Max Height 171 cm
Min Height 8 cm
Head Type Ball Head
Base Type Flat
Colour Black
Safety Payload 7 kg
Maximum Height (with Center Column Down) 146,5 cm
Weight 2550 g
Leg Angles 25°,46°,66°,88°
Legs Tube Diameter 26, 22.5, 19, 15.5 mm
Centre Column rapid
