Manfrotto MK190XPRO4-BH Aluminium Tripod + 496RC2 Ball HeadBookmark and Share

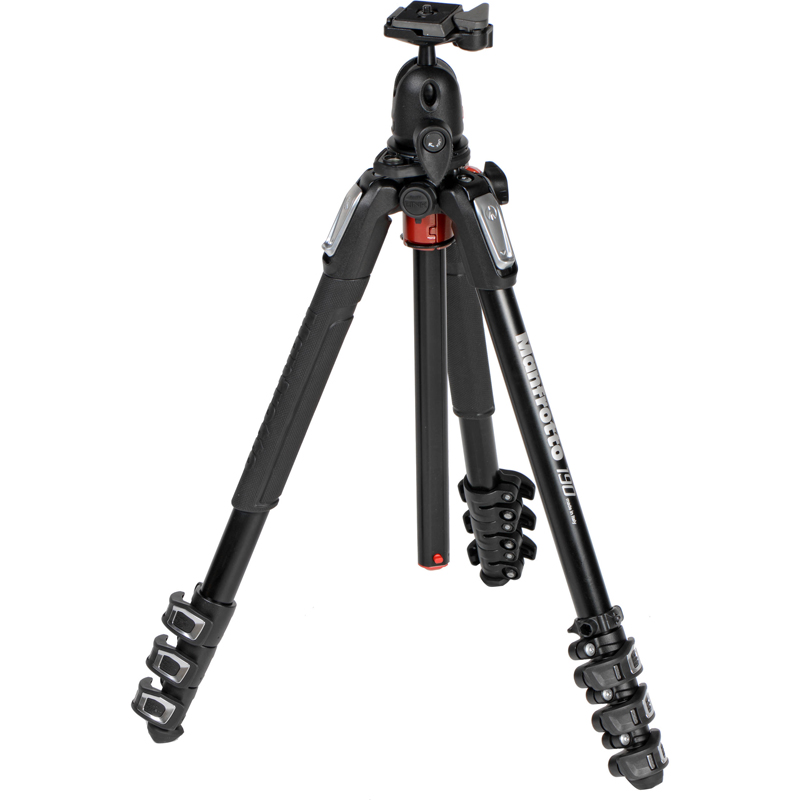

Manfrotto MK190XPRO4-BH Aluminium Tripod + 496RC2 Ball Head
Click for larger view
Click for rear view

Main Product

Manfrotto MK190XPRO4-BH Aluminium Tripod + 496RC2 Ball Head $493.00

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Payload capacity of 6 kg
  • 170 cm maximum height
  • 8 cm minimum height
  • Folded length of 62 cm
  • 2.5 kg tripod and 0.42 kg ball head
  • 4 leg sections
  • aluminum
  • comes with MHXPRO-BHQ2 Ball Head
  • 2 Years Standard Australian Warranty

The new 190X PRO-4 Alu 4-Section Horizontal Column Tripod + Ball Head promotes compactness, rigidity, and function. This tripod achieves its lightweight design by using materials like carbon fibre and aluminum. It features the 2.5 kg tripod and 0.42 kg ball head that can withstand a payload of up to 6 kg. It has a maximum height of 170 cm and a minimum height of 8 cm. Capture things in hard to reach places, this tripod has a 4 leg section that gives you the flexibility to adapt to any terrain. Never miss the opportunity to capture perfection with the help of the MHXPRO-BHQ2 Ball Head . This tripod can easily be kept away when not in used with a folded length of 62 cm.

Product Features in Detail

four leg angles
Four pre-set independent leg angles give the tripod great positioning flexibility and versatility, and allow all intermediate heights from the stated minimum to maximum levels to be reached. Stability is assured at all 4 angles by the spring-loaded step mechanism.

90° centre column mechanism
Allows the column to be extended vertically as normal, or horizontally to open up a wide range of framing and shooting possibilities; this makes the 190XPRO4 an extremely versatile tripod, suitable for a wide range of photography and video applications. The horizontal column mechanism is housed within the tripod's top casting for compactness, but it is easily and quickly extended whenever you need it. Switching between vertical and horizontal column orientation requires no disassembly, and can even be done with a camera attached.

Quick Power Lock levers
The legs of the 190XPRO4 tripod are also fast to extend and adjust, thanks to the Quick Power Lock levers that block and unblock each leg section. The special design of the QPL levers allows a more comfortable single-handed opening of all leg sections in one action. QPL’s lever design also offers more powerful locking of each section, meaning the tripod is more stable and rigid than with traditional lever designs. Intuitive and ergonomic leg angle selectors allow each leg to be independently and solidly set to any of the preset angles, again allowing considerable positioning freedom.

Bubble level
A bubble level is built in to the top of the centre column for precise framing. The bubble level rotates freely around the centre column, so it can be positioned wherever it's easiest for you to see it while adjusting the tripod, and without it either being obscured by the mounted head and camera, or getting in the way of head or camera controls.

Easy Link connector
The top casting of the 190XPRO4 has an Easy Link connector for supporting a photo or video accessory (such as an LED light, flash, reflector, or other piece of equipment) on an extending arm or bracket, and making the tripod into a practical mobile studio.

Ergonomic leg angle selector
This tripod features a newly designed ergonomic leg angle selector. This new angle selector improves the comfort and the precision in use.

Included in the Box

     Manfrotto 190X PRO-4 Alu 4-Section Horizontal Column Tripod + Ball Head
     2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on

Warranty Information

     This Manfrotto 190X PRO-4 Alu 4-Section Horizontal Column Tripod + Ball Head comes with 2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty once the product is registered on
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

attaches by. 3/8 attachment type
centre column rapid
closed length 62 cm
Color black color
column tube diameter 25mm
leg angles 25°.46°.66°.88°
leg sections 4 number
legs tube diameter 26. 22.5. 19. 15.5 mm
material aluminum
maximum height 173 cm
maximum height (with centre column down) 148 cm
minimum height 8 cm
safety payload 6 kg
weight 3.1 kg


MHXPRO-BHQ2 Ball Head  Specs

attachment 3/8'' female thread attachment type
Color black color
independent pan lock no
lateral tilt -90° / +90° head tilt
material aluminum
panoramic rotation 360 °
plate type 200PL-14
quick release si
safety payload 6 kg
weight 0.42 kg
working height 10 cm
