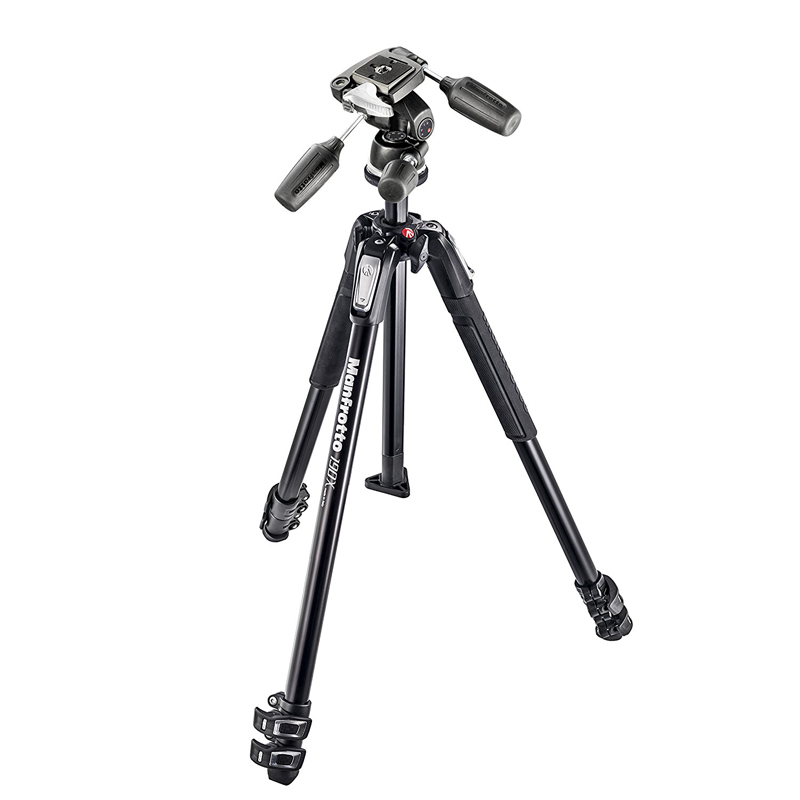

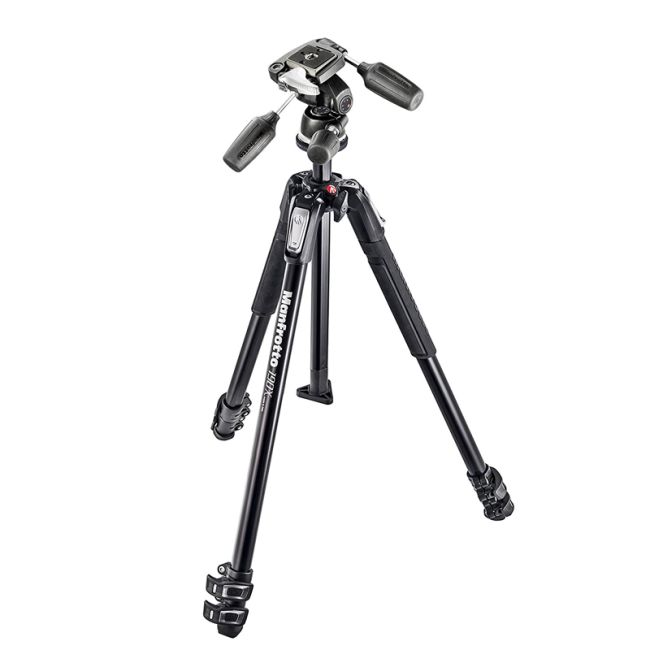

Manfrotto MK190X3-3W Aluminium Tripod + 804RC2 3 Way Head
- Payload capacity of 4 kg
- 170 cm maximum height
- Easy Link connector
- Folded length of 69 cm
- 4 leg angles
- 3 leg sections
- Adapto and aluminium
- includes 804RC2 3-way photo head
The all new 190X Aluminum 3 section tripod is the best choice for photographers who are longing to begin anew expanding their creativity. The creative ground level adaptor of this tripod can be combined with the 4 leg angles to enable the tripod to reach ultra-low positions. It also has an easy link connector that is able to support a photo or video accessory with a payload capacity of 4 kg. The maximum height can reach up to a maximum of 170 cm and can be folded to 69 cm. Its 3 leg sections are made out of a sturdyadapto and aluminum material. THe kit includes 804RC2 3-way photo head that withstands daily rigors of a professional photographer’s lifestyle.
Product Features in Detail
four leg angles
Four pre-set independent leg angles give the tripod great positioning flexibility and versatility, and allow all intermediate heights from the stated minimum to maximum levels to be reached. Stability is assured at all 4 angles by the spring-loaded step mechanism.
Q90° column
Q90° quick centre column system. This model include the patented Q90° system. This ingenious system allows the user to move the central column from vertical to horizontal position in just seconds without having to disassemble the column.
Quick Power Lock levers
The legs of the 190X tripod are also fast to extend and adjust, thanks to the Quick Power Lock levers that block and unblock each leg section. The special design of the QPL levers allows a more comfortable single-handed opening of all leg sections in one action. QPL’s lever design also offers more powerful locking of each section, meaning the tripod is more stable and rigid than with traditional lever designs. Intuitive and ergonomic leg angle selectors allow each leg to be independently and solidly set to any of the preset angles, again allowing considerable positioning freedom. .
Bubble level
A bubble level is built in to the top of the centre column for precise framing. The bubble level rotates freely around the centre column, so it can be positioned wherever it's easiest for you to see it while adjusting the tripod, and without it either being obscured by the mounted head and camera, or getting in the way of head or camera controls.
Easy Link connector
The top casting of the 190X has an Easy Link connector for supporting a photo or video accessory (such as an LED light, flash, reflector, or other piece of equipment) on an extending arm or bracket, and making the tripod into a practical mobile studio.
Ergonomic leg angle selector
This tripod features a newly designed ergonomic leg angle selector. This new angle selector improves the comfort and the precision in use.
| Center Of Gravity | 55 mm |
| centre column | rapid |
| closed length | 69 cm |
| Color | black |
| column tube diameter | 25mm |
| front tilt | -60° / +90° |
| leg angles | 25°.46°.66°.88° |
| leg sections | 3 number |
| legs tube diameter | 26. 22.5. 19 mm |
| material | Adapto and aluminium |
| maximum height | 170 cm |
| maximum height (with centre column down) | 145 cm |
| safety payload | 4 kg |
804RC2 3 Way Head Specs
| attachment | 3/8'' female thread attachment type |
| Color | black color |
| front tilt | -30° / +90° tilt range |
| lateral tilt | -30° / +90° tilt range |
| material | technopolymer |
| panoramic rotation | 360 ° |
| plate type | quick release - with 1/4-20'' screw |
| quick release | yes |
| secondary safety system | yes |
| safety payload | 4 kg |
| weight | 0.75 kg |
| working height | 12 |
190X Kit - Alu 3-Section Tripod + 804RC2 3 Way Head
2 Years Standard Australian Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on warranty.manfrotto.com
