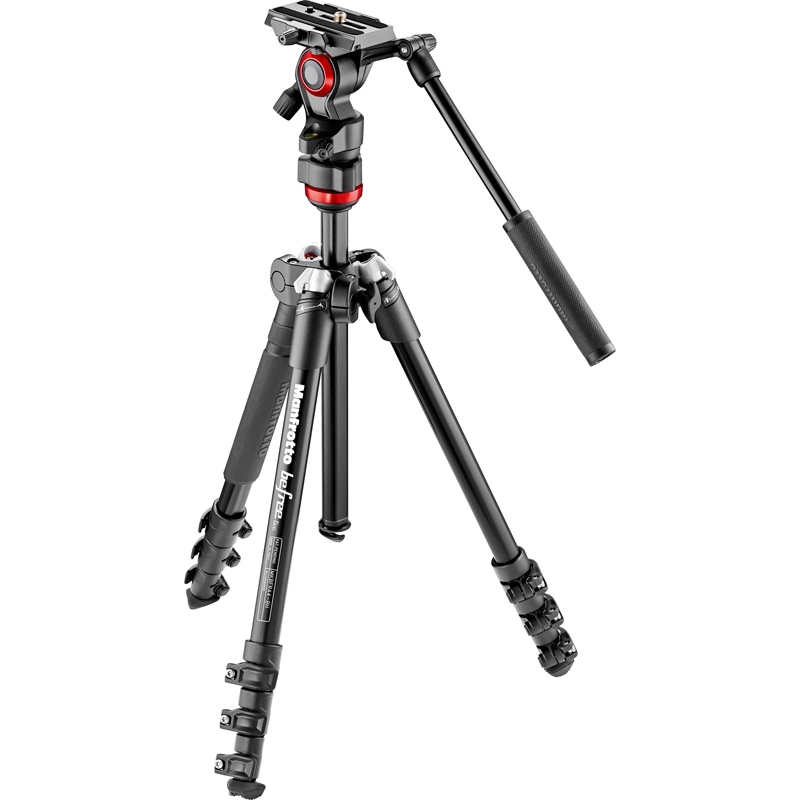

Manfrotto BeFree Live Lever Aluminium Tripod w/ Fluid Video Head MVKBFRL-LIVE
- 40mm flat base
- Fluid drag system
- 1/4" screw and 3/8" adapter
- Pan and tilt drag knobs
- Removable pan bar
- Quick release sliding plate
- Bubble level
- Supports up to 4 kg of weight
- Adjustable 4-section tripod with leg locks
- Leg angle selectors
- Folded height of 40cm
- Minimum height of 34cm
- Maximum height of 144cm
- Product code MVKBFR-LIVE
Videographers who are always on-the-go will enjoy the Manfrotto BeFree Live Fluid Head with BeFree Aluminium Tripod System. The set includes the BeFree Live Fluid Video Head which is the smallest and lightest among all the company's offerings. Sporting a 40mm flat base that supports most photography tripods, it also has a 1/4" screw and 3/8" adapter for camera attachments. Meanwhile, its 360-degree fluid drag system is enhanced by the quick release sliding plate and the removable pan bar. A bubble level indicates the balance of the camera and this Manfrotto tripod head supports up to 4 kg of weight. On the other hand, the Manfrotto Befree camera tripod has been cleverly designed for travel thanks to its 40cm folded size. The freedom is yours to use its adjustable 4-section tripod with leg locks from a minimum height of 34cm to a maximum height of 144cm. Choosing between two positions is also possible with the tripod's leg angle selectors.
Product Features in Detail
Portable and lightweight
The Manfrotto BeFree Live Fluid Video Head weighs only 0.38kg and can easily be transported anywhere. Meanwhile, the BeFree Camera Tripod has a unique folding mechanism enables its legs to fold around the head and the quick release plate attachment to bring its closed position to only 40 cm long. Its aluminium construction makes it easy to carry as well.
Fluid movement and balance
With its pan and tilt drag knobs as well as the removable pan bar, you can switch to that desired angle easily. Likewise, the sliding plate and the bubble level indicates if the camera is in perfect balance.
Compatibility
The Manfrotto BeFree Live Fluid Video Head is compatible with the Manfrotto BeFree tripods, the Manfrotto 290 Light Tripod, and any tripod with a 40mm diameter.
Portable
Befree comes with a dedicated shoulder bag to protect it from any accidental damage while making it comfortable to carry and easy to pack in luggage.
Stable and robust
Its new aluminium ball head is solid, quick and simple to operate plus has sturdy aluminium leg locks for stability. The Manfrotto Befree has a maximum payload of 4 kg, guaranteeing stability and sturdiness even with longer zoom lenses.
Intuitive
Befree is quick to set up and simple to use. The new patented leg angle selectors allow for two inclinations offering maximum versatility for camera positioning.
Weight | 1800 g |
Collection/Series | Befree |
Material | Aluminium |
Safety Payload Weight | 4 kg |
Min Height | 43 cm |
Maximum Height | 151 cm |
Head Type | Video/Fluid Head |
Leg Sections | 4 |
Legs Tube Diameter | 12, 15.5, 19, 22.5 mm |
Quick Release | Yes |
Closed Length | 40 cm |
Base Type | Ball |
Attachment | 1/4" screw, 3/8" screw |
Base Diameter | 40 mm |
Bubble Spirit Level (No.) | 1 |
Carrying Bag Included | 110340 |
Center Column | rapid |
Color | Black |
Easy Link | No |
Front Tilt | -90°/+65° |
Leg Type | Single |
Leg Angles | 25°,51° |
Leg Lock Type | Flip Lock |
Maximum Height (with Center Column Down) |
128 cm |
Maximum Working Temperature | 60 C |
Minimum Working Temperature | -30 C |
Pan Bar Included | Yes |
Pan Drag | fluid cartridge with fixed drag |
Panoramic Rotation | 360 |
Plate Type | 501PL |
Tilt Drag | fluid cartridge with fixed drag |
Upper Disc Diameter | 40 mm |
BeFree Live Fluid Video Head
Befree Compact Travel Tripod
Shoulder Bag
2 Years Standard Warranty + an additional 10 Years FREE Extended Warranty Once the product is registered on warranty.manfrotto.com

SKU: ManfrottoMVKBFRL-LIVE
UPC: 8024221690576
