Manfrotto 468 Hydrostatic Ball HeadBookmark and Share

Categories: Manfrotto Tripod Heads, Tripod Heads,

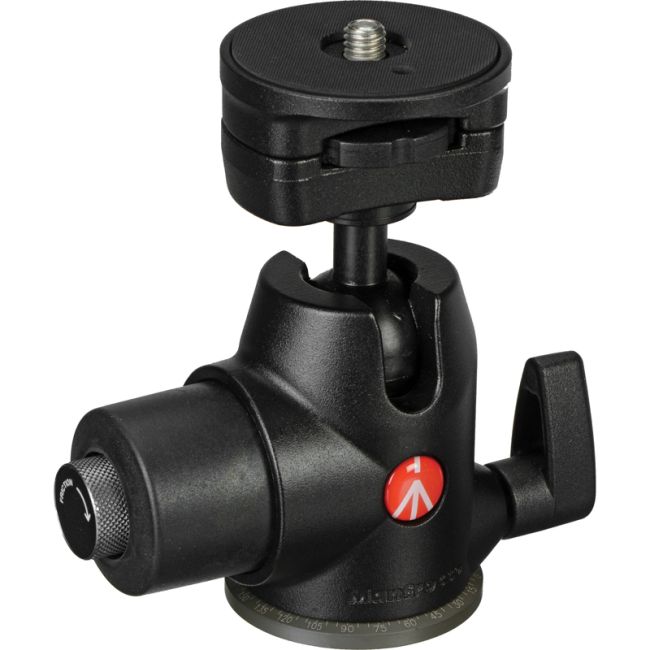

Manfrotto 468 Hydrostatic Ball Head
Click for larger view
Click for rear view

Main Product Options

See Product Summary below for more information

Manfrotto 468MGQ6 $439.00
Manfrotto 468MGRC4 Hydrostatic Ball Head $440.00
Manfrotto 468MGRC3 $439.00

+ More Options- Less Options

Manfrotto 468MGRC5 $419.00
Manfrotto 468 Hydrostat $388.00

Total AU$

* All prices include GST
Bookmark and Share

Product Summary

  • Payload capacity of 16 kg
  • Weight: 0.65 kg
  • independent pan lock
  • hydraulic locking mechanism
  • Height: 13 cm
  • magnesium die cast body with PTFE coated aluminum
  • 2 Years Standard Australian Warranty

Intended for photographer’s who demand for a ball head that caters heavy duty load yet lightweight. The Manfrotto 468 Hydrostatic Ball Head weighs only 0.65 kg but it can withstand a heavy payload of 16 kg. This head is of magnesium die cast body with PTFE coated aluminum partnered with tension surface for smooth movements. The independent pan lock is combined with the hydraulic locking mechanism to provide ultimate safety of your equipment. Measuring at 13 cm working height this ball head is really a work of art.

Product Features in Detail

1 bubble level
The built-in, carefully hand-set bubble spirit level helps make sure your horizons really are horizontal.

222-322 ball friction
Separate control for pre-setting the friction of the ball when unblocked. The position of the red line indicates the approximate amount of friction applied.

carrying handle
Included carrying handle makes the tripod more comfortable to transport and stays conveniently and unobtrusively attached during use

separate lock each axis
With a separate lock on each axis of movement, this head can be precisely adjusted, and panning/tracking can be achieved on any axis

sturdy all-metal construction
Sturdy all-metal construction

double 90° groove
The double 90° groove (one on each side of the head) means switching from landscape to portrait is convenient however you're set up

Ergonomic and easy to use

weight-saving construction
Materials, design and construction techniques have been carefully selected to help save weight without sacrificing stability or strength

wing-nut leg locks
Wing nut leg locks are slightly slower to use than 'Quick Action' flip lever leg locks, but give total control over locking force and are so easy to service out in the field that they'll never let you down.

hydrostatic locking mechanism
The Hydrostat ball locking system is based on a chamber containing fluid, which, when pressurised by the tightening of the lock knob, exerts an even locking force on the ball. The evenness of the force applied by this system compared to the traditional mechanical blocking technique is what gives this head its remarkable load capacity. The Hydrostat system also reduces framing deviation during blocking for greater accuracy.

manfrotto world first
Manfrotto world first

Included in the Box

     Manfrotto 468 Hydrostatic Ball Head
     2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty Once the product is registered on

Warranty Information

     This Manfrotto 468 Hydrostatic Ball Head With Sandbag comes with 2 Years Standard Warranty + an additional 8 Years FREE Extended Warranty once the product is registered on
     Our products are sourced from authorised Australian suppliers and therefore come with genuine Australian warranty.
     Camera Warehouse does not participate in 'Grey Market' or 'Parallel Import' activities.


Tech Specs

attachment 3/8'' female thread attachment type
ball friction setting yes
Color black color
independent pan lock yes
lateral tilt -90° / +90° tilt range
material magnesium
panoramic rotation 360 °
patent pat. pending
plate type fixed - with 1/4'' - retractable 3/8'' screw
quick release no
safety payload 16 kg
weight 0.65 kg
working height 13
